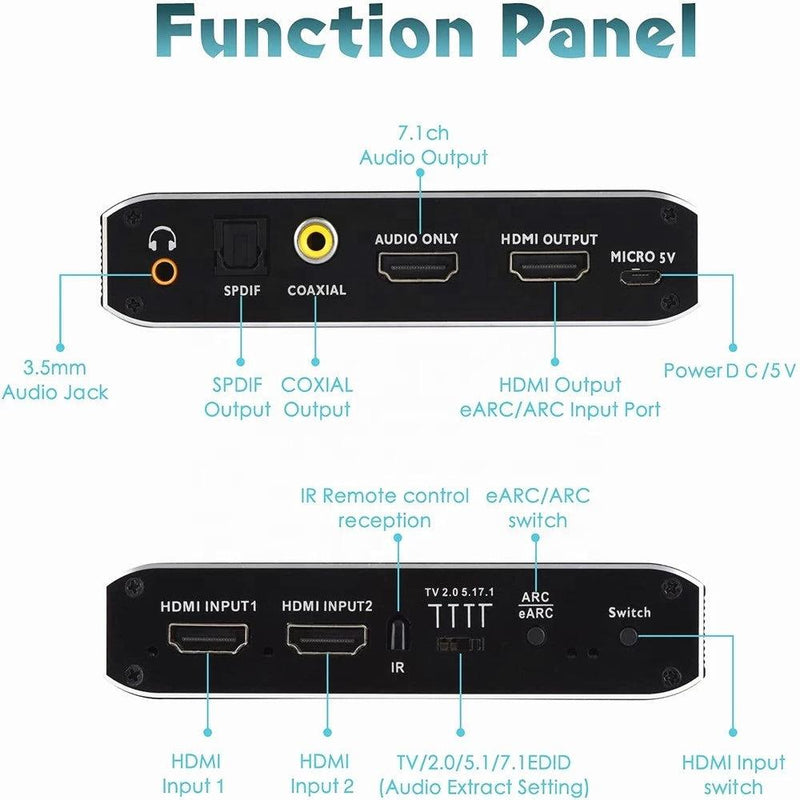

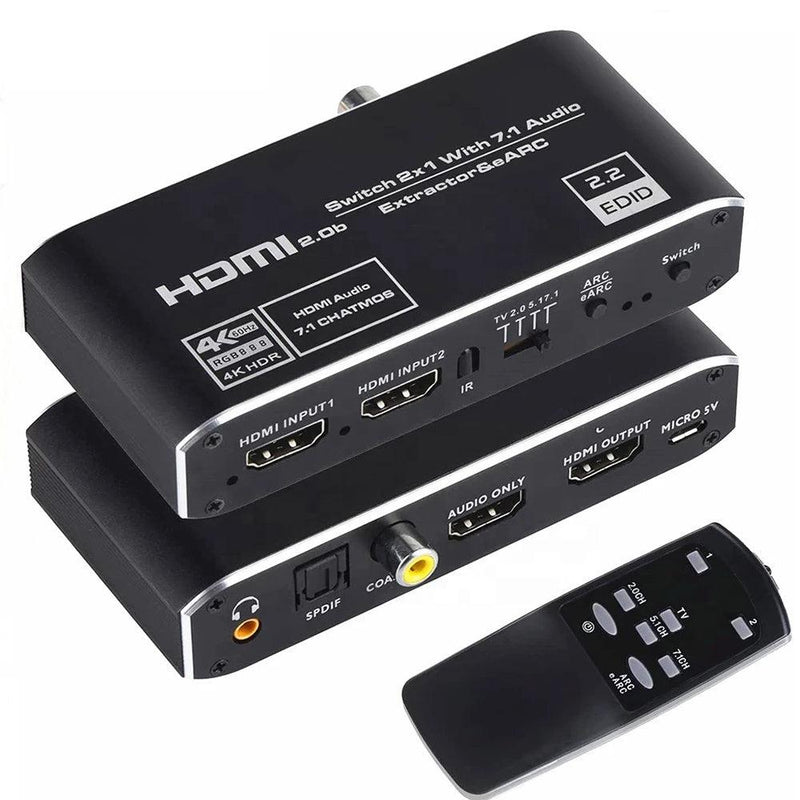

NÖRDIC HDMI Switch 4K60Hz HDMI 2.0 Audio Extractor with high performance. It has 2 HDMI inputs and 1 HDMI output with audio extraction function. Support ARC and eARC Function. The extract sound can be output via 3.5 mm Audio Jack, Toslink SPDIF, Coaxial, HDMI Audio Port. It allows the user to use the existing audio receiver to receive 4K60Hz, HDCP 2.3. The product also supports HDMI loop out, as well as 10-bit HDR (High Dynamic Range).

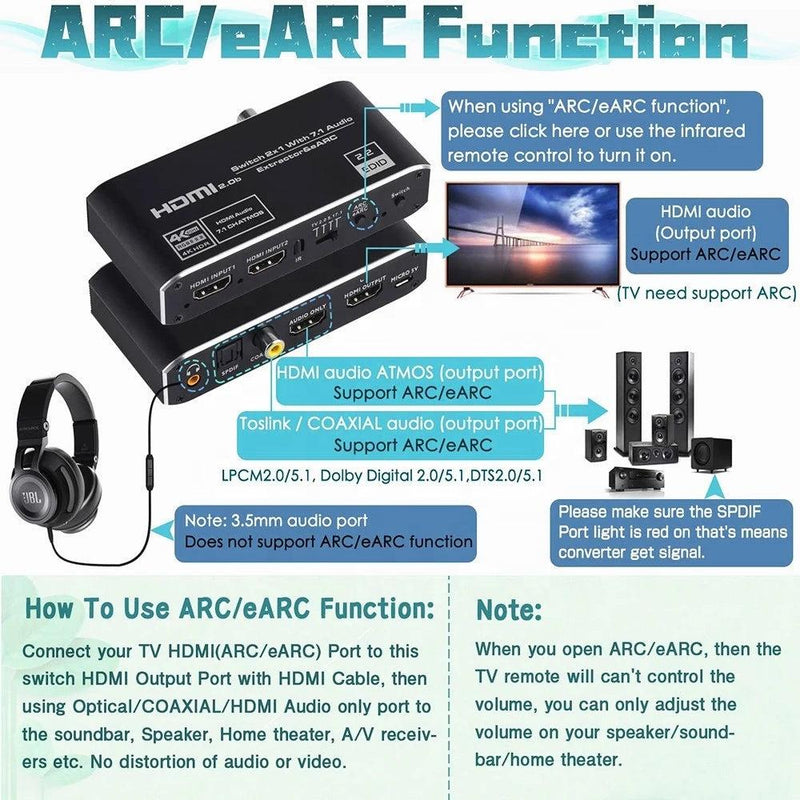

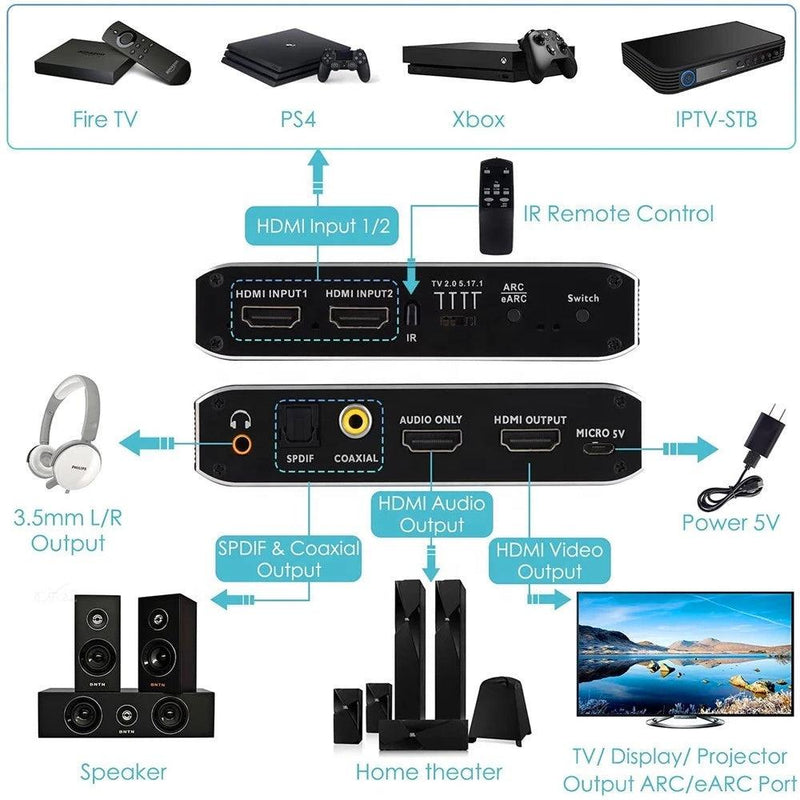

Extract the sound from the TV to the Soundbar or amplifier. Connect your TV HDMI(ARC or eARC) port to this audio converter HDMI output (ARC/eARC)Port with HDMI cable, then connect optical cable or HDMI cable or coaxial to the amplifier or SoundBar.Note: eARC and ARC feature is only available from optical SPDIF, coaxial and HDMI audio port.Powered by included 5V1A USB charger.No drivers required.
Specifications:
- Input: 2xHDMI 4K60Hz
- Output: 1xHDMI 4K60Hz, 1xToslink, 1x Coaxial digital audio, 1x3.5mm Headphone, 1xHDMI Audio
- Support for 4K 60Hz RGB8:8:8 YUV 4:4:4/4:2:2/4:2:0
- Support for 1440p 120Hz
- Color depth: 8/10/12bit in 1080p60Hz, 8-bit in 4K60Hz RGB:8:8:/YUV 4:4:4

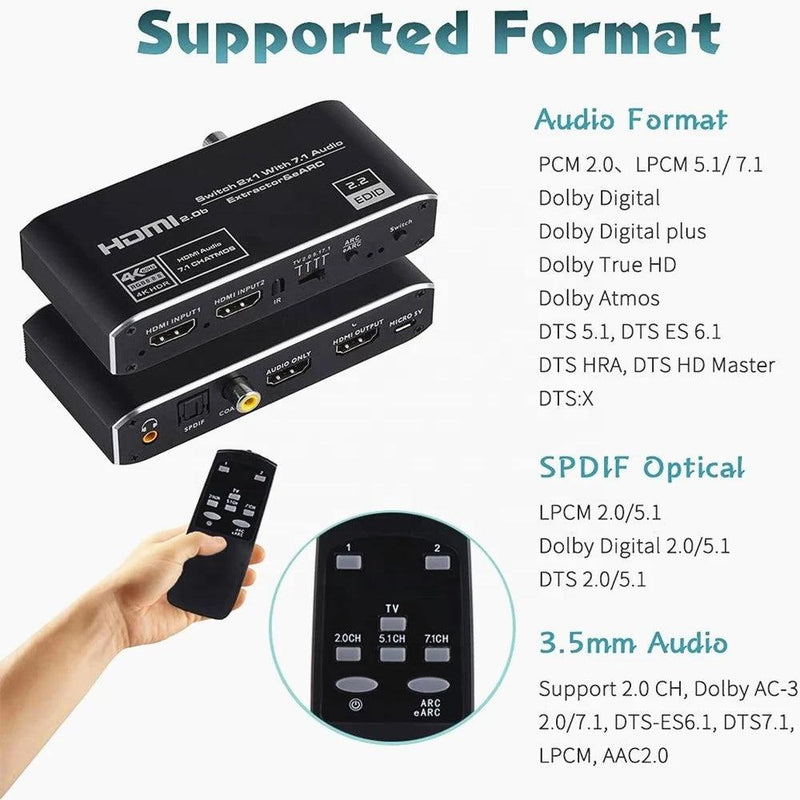

- HDMI audio format: PCM 2.0, LPCM 5.1/ 7.1, Dolby Digital, Dolby Digital plus, Dolby True HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS
- SPDIF/Coaxial Formats: LPCM2.0/5.1, Dolby Digital 2.0/5.1, DTS2.0/5.1
- Contents:
Switch, USB Charger with cable, remote control, manual
Note that 4K120Hz is only possible if you use the optical audio output, not the HDMI audio output.
Input: 2xHDMI 4K60Hz
Output: 1xHDMI 4K60Hz, 1xToslink, 1x Coaxial digital audio, 1x3.5mm Headphones, 1xHDMI Audio
Support for 8K30Hz, 4K 120Hz RGB8: 8: 8 YUV 4: 4: 4 / 4: 2: 2/4: 2: 0
Support for 1440p 120Hz
Color depth: 8/10 / 12bit in 1080p60Hz, 8-bit in 4K60Hz RGB: 8: 8: / YUV 4: 4: 4 < br> HDMI audio formats: PCM 2.0, LPCM 5.1 / 7.1, Dolby Digital, Dolby Digital plus, Dolby True HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS
SPDIF / Coaxial Formats: LPCM2.0 / 5.1, Dolby Digital 2.0 / 5.1, DTS2.0 / 5.1
Contents:
Switch, USB Charger with cable, remote control, manual
