NÖRDICSKU:SGM-274

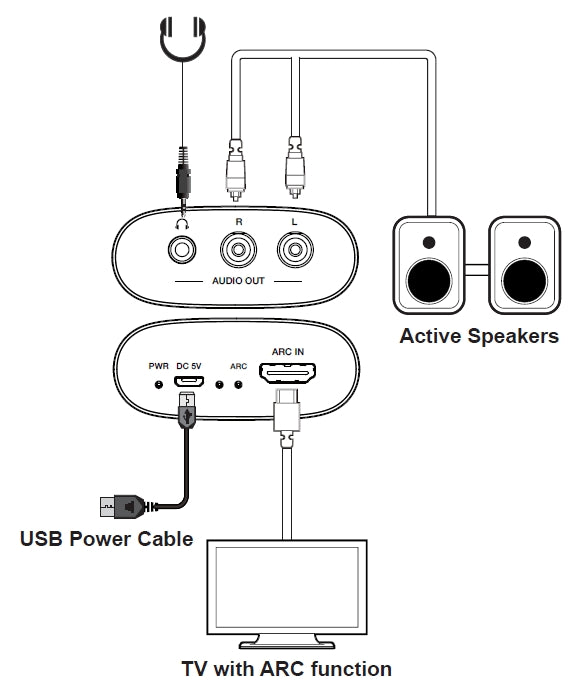

This product allows you to connect headphones, a stereo system, or active speakers to the HDMI ARC port on your TV to enjoy high-quality stereo sound with support for CEC volume control via your TV remote.

Specifications

HDMI 1.3 compatible
Supports PCM 2.0, Dolby 5.1, DTS 5.1 → converted to 2-channel analog stereo audio
Volume control via TV remote (CEC)
Stereo output only – set TV audio format to PCM
Audio output level: 2V p-p
Metal housing with silver finish
Power supply via USB (5V / 500mA)
Power consumption: 0.86W (max)
Operating temperature: 0°C – 40°C
Storage temperature: -20°C – 60°C
Relative humidity: 20–90% RH (non-condensing)

Connections

Input:

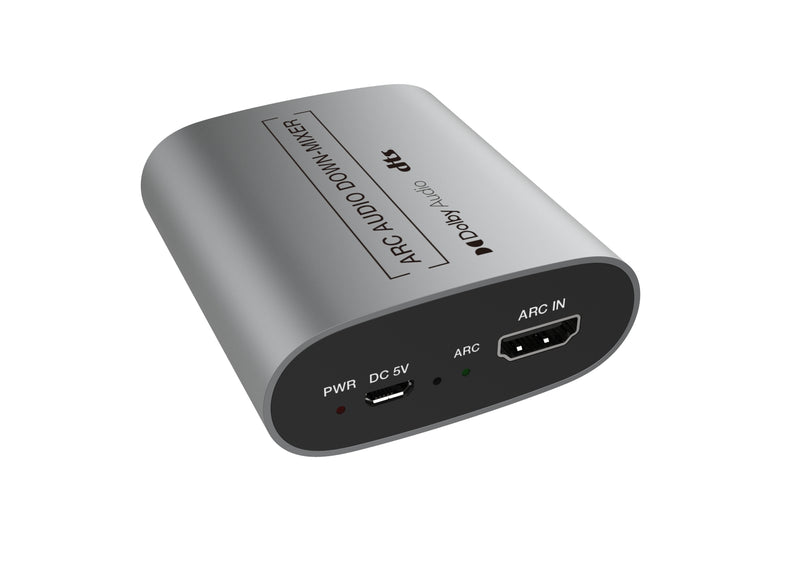

- 1 x HDMI (Type A, 19-pin, female)
- 1 x Micro USB (power supply)
Output:

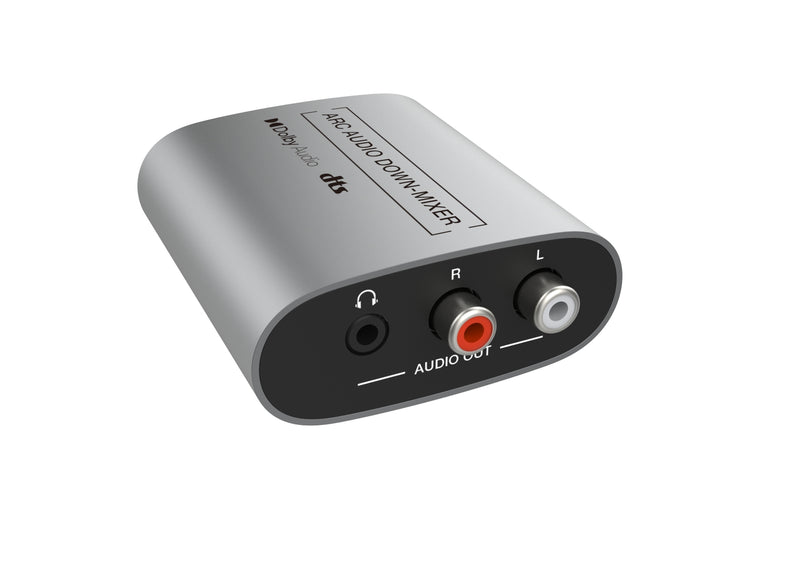

- 1 x RCA L/R (analog stereo)
- 1 x 3.5 mm stereo audio output

Dimensions

Size: 70 x 65 x 27 mm
Weight: 80 g
Material: Aluminum housing

Contents

1 x HDMI ARC Audio Decoder
1 x USB cable (USB-A to Micro USB)
1 x User manual
