NÖRDIC HDMI 4K eARC Extractor

Name: NÖRDIC HDMI 4K eARC Extractor
Brand: NÖRDIC
SKU: SGM-280
Price: 60,00 EUR
Availability: InStock

NÖRDICSKU:SGM-280

The NÖRDIC HDMI 4K eARC Extractor is a compact and advanced audio extractor that supports eARC/ARC functionality, enabling high-quality audio transmission from an eARC-compatible TV to legacy amplifiers via HDMI. This solution allows continued use of existing audio systems even after upgrading the TV.

Specifications

HDMI Standard: HDMI 2.0b
HDCP Support: HDCP 2.3 / 1.x
Video Bandwidth: 18 Gbps
Video Resolution:
- Up to 4K@60Hz (RGB/YCbCr 4:4:4, 4:2:2, 4:2:0)
- VESA formats up to QSXGA@60Hz
Color Depth:
- 8/10/12-bit (1080p, 4K30, 4K60)
Color Format: RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0
HDR Support: HDR, HDR10, HDR10+, Dolby Vision
HDMI Audio Formats:
- PCM 2.0, LPCM 5.1 / 7.1
- Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos
- DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X
Built-in Signal Processing: Equalizer, Retiming, Driver
Audio Out HDMI (720p black screen with audio)
EDID Management: Auto copy from OUT1 or OUT2
CEC Support: Yes
ESD Protection: ±8kV (air) / ±4kV (contact)
Power Input: USB 5V / 500mA (via included cable)
Power Consumption: Max 1.75W
Operating Temperature: 0 – 40 °C
Storage Temperature: -20 – 60 °C
Humidity: 20 – 90 % RH (non-condensing)

Connections

Input:

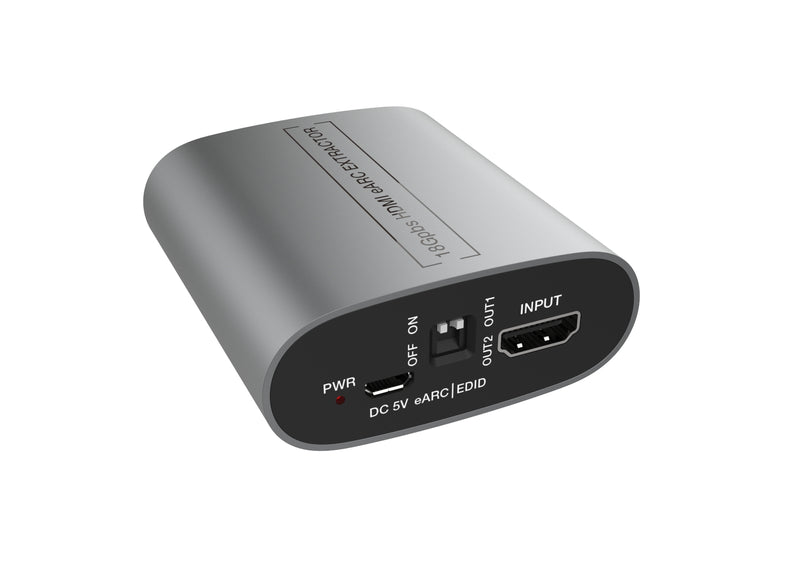

- 1 x HDMI IN (Type A, female)

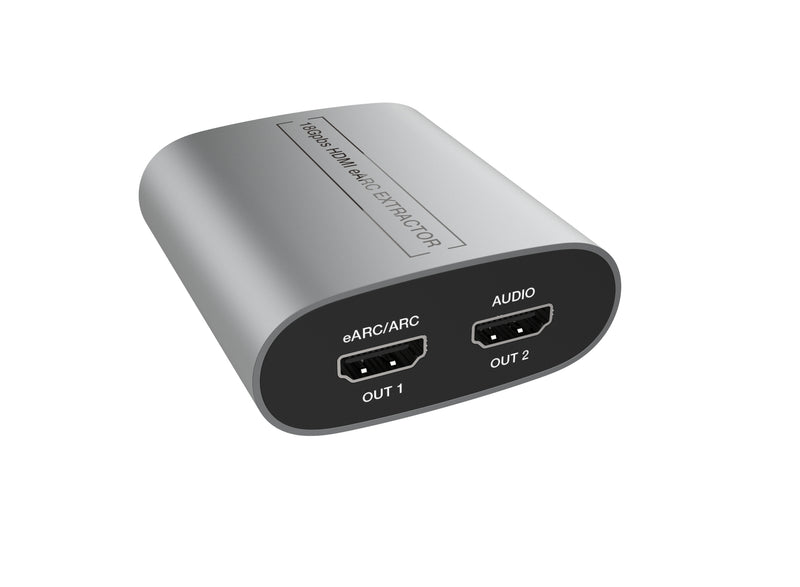

Output:
- 1 x HDMI OUT1 (eARC/ARC to TV)
- 1 x HDMI OUT2 (audio to amplifier, 720p black screen)

Features

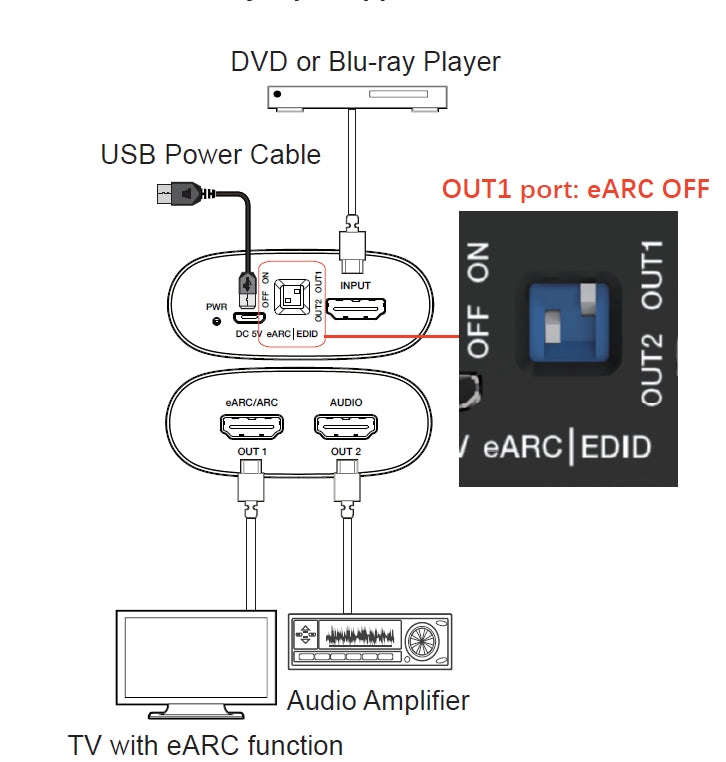

Extracts eARC/ARC audio from TV to legacy audio systems via HDMI
Audio transmission to amplifier even when HDMI input is inactive
Compatible with all modern audio formats including Dolby Atmos & DTS:X
EDID management and CEC support for flexible use
Compact aluminum design with low power consumption
HDMI audio output with black screen (720p)
Easy switching between eARC mode and HDMI input mode

Dimensions

Size: 65 x 70 x 27 mm
Weight: 83 g
Color: Silver
Enclosure: Aluminum

Contents

1 x HDMI 4K eARC Extractor
1 x USB-A to Micro-USB cable
1 x User Manual
