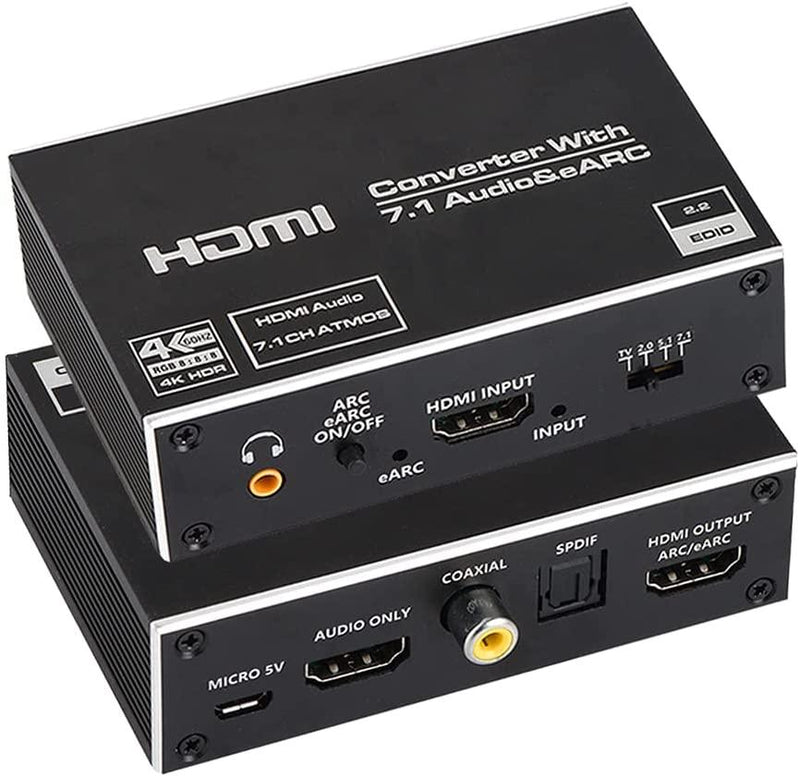

NÖRDIC 4K HDMI 2.0 Audio Extractor with 1xHDMI input and and 1xHDMI output with sound extraction function. The sound can be output via 3.5 mm Audio Jack, Toslink SPDIF, Coaxial, HDMI Audio Port. It allows the user to use the existing audio receiver to receive 4Kx2K @ 120Hz, HDCP 2.3 content audio. The product also supports HDMI loop out, as well as 10-bit HDR (High Dynamic Range) pass-through and eARC / ARC function.

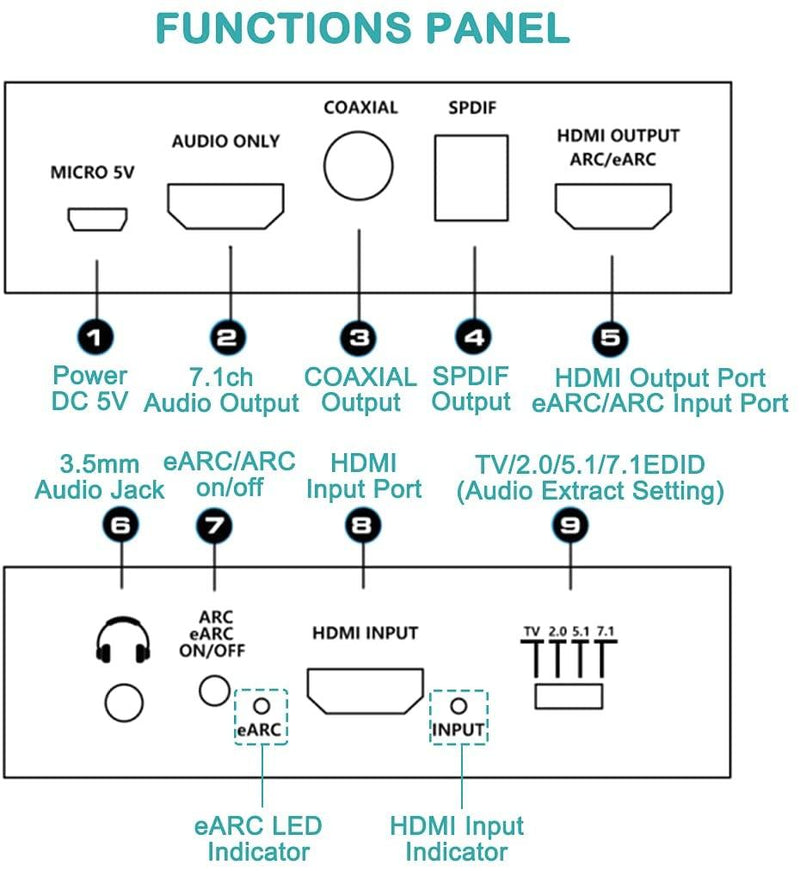

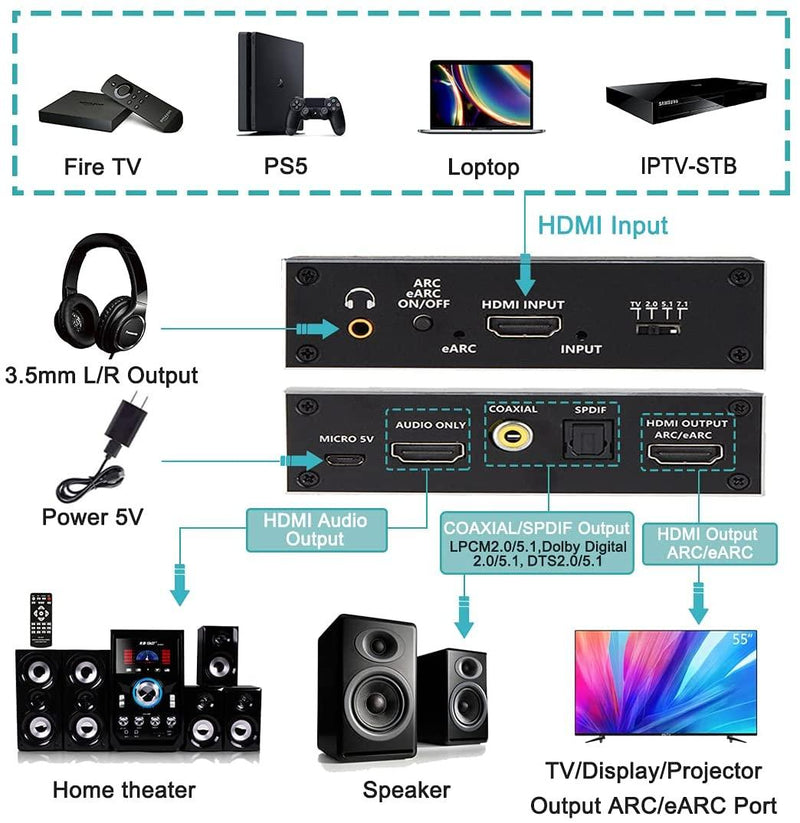

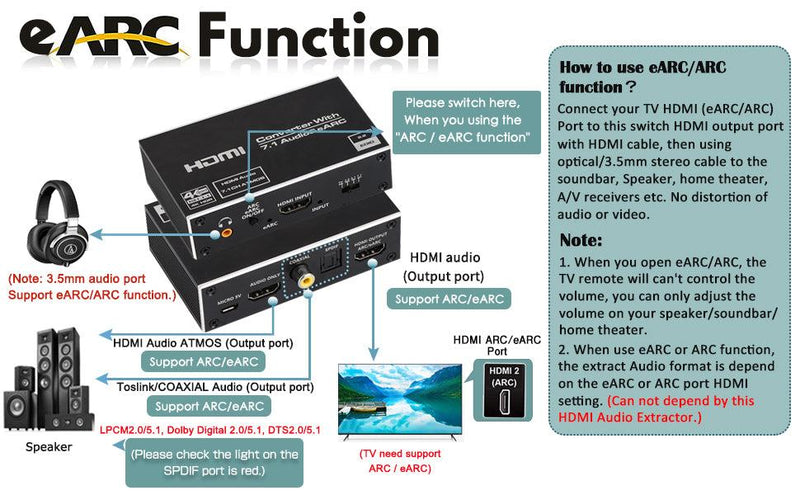

Extract the sound from the TV to the Soundbar or amplifier. Connect your TV HDMI (ARC or eARC) port to the extractor's HDMI output (ARC / eARC) with HDMI cable, then connect optical cable or HDMI cable or coaxial cable to the amplifier or SoundBar. (Note: The eARC and ARC functions are only available from the SPDIF, coaxial and HDMI optical audio port.)
Note that 4K120Hz is only possible if you use the optical audio output, not the HDMI audio output.
Specification:
HDMI Input: Supports up to 4K @ 120Hz RGB 8: 8: 8. Ycbcr 4: 4: 4/4: 2: 2/4: 2: 0.
HDMI Input: Support for computer, laptop, PS3 / 4/5, Xbox, Blu-ray DVD player, STB etc.
Color depth: 8/10/12 (1080p @ 60HZ); 8-bit (4kx2k @ 60Hz RGB 8: 8: 8 / YUV 4: 4: 4)

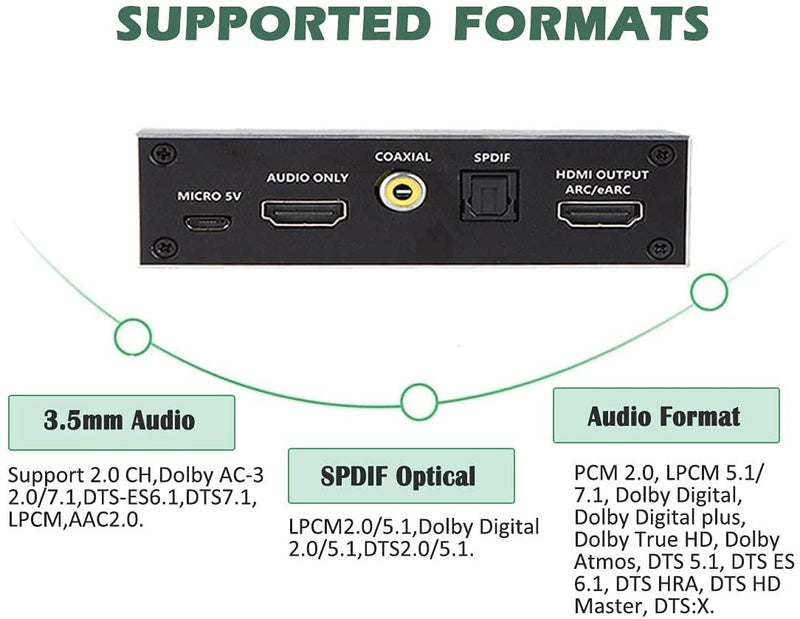

8/10/12-bit (4Kx2K @ 60HZ Ycbcr 4: 2: 2/4: 2: 0). < br> HDMI audio formats: PCM 2.0, LPCM 5.1 / 7.1, Dolby Digital, Dolby Digital plus, Dolby True HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS: X
Support Blue -ray 24/50 / 60fs / HD-DVD / XVYCC.
SPDIF / coaxial format: LPCM2.0 / 5.1, Dolby Digital 2.0 / 5.1, DTS2.0 / 5.1.
3.5 mm L / R supports headphones.
HDCP support 2.2 / 2.3, compatible with HDMI 2.0b.
HDMI output: Support for projectors, HDTV, monitor, monitor, etc
Power port: DC / 5V.
Contents: Extractor, power adapter, manual
