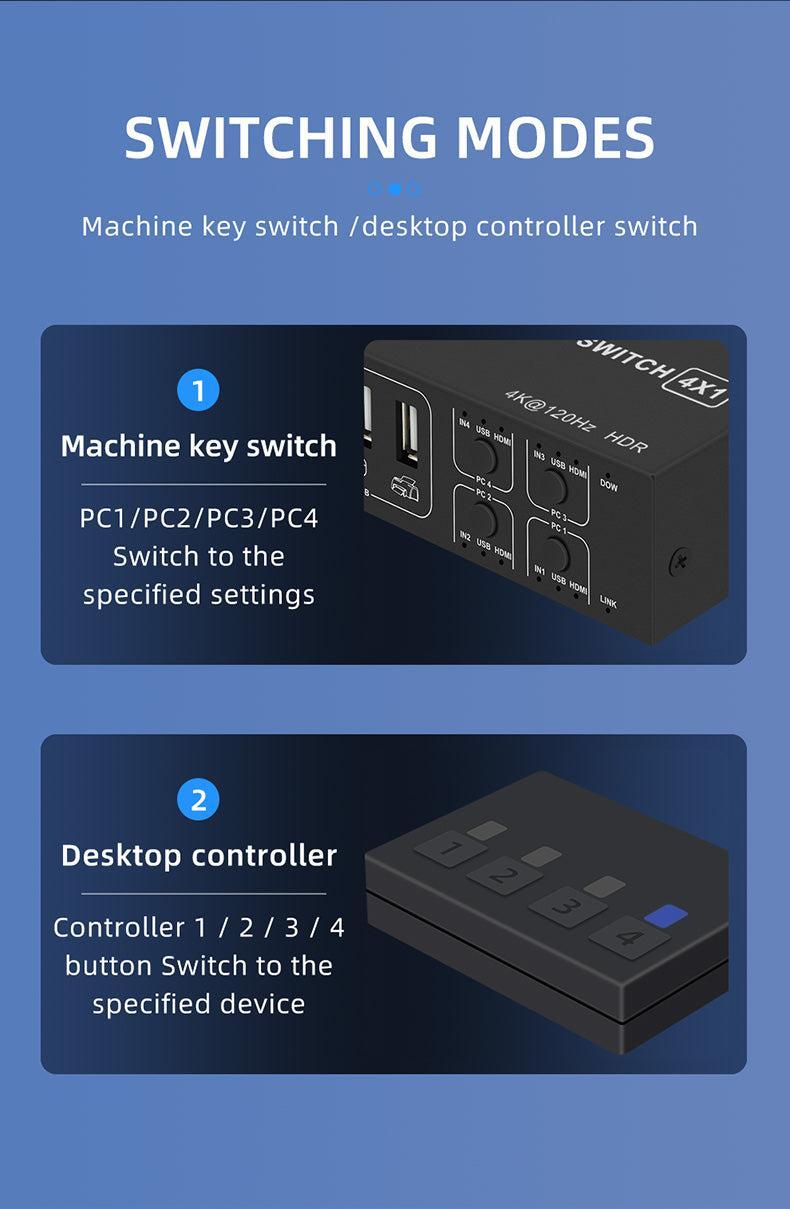

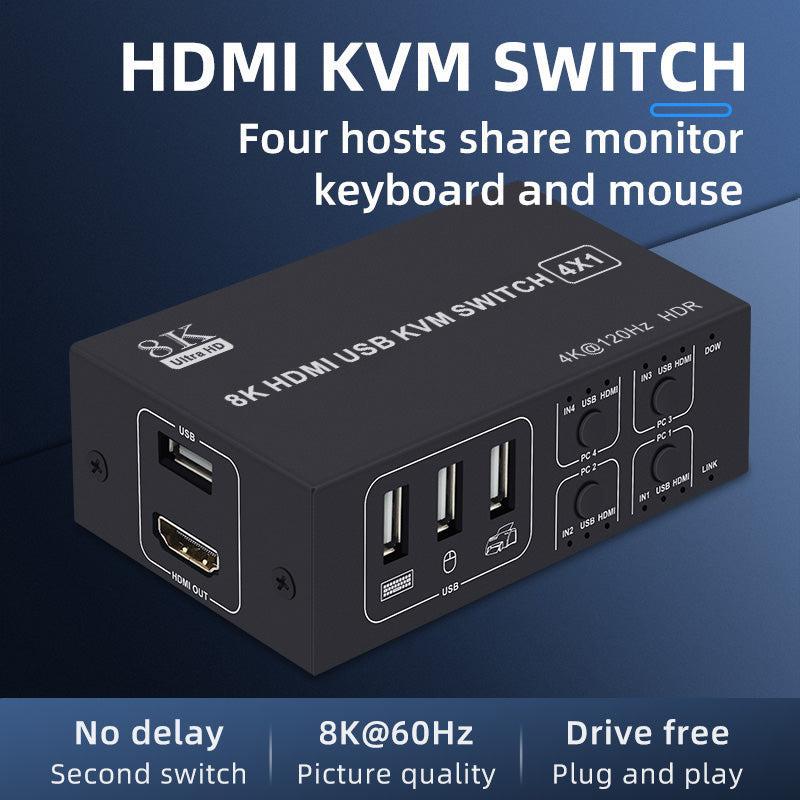

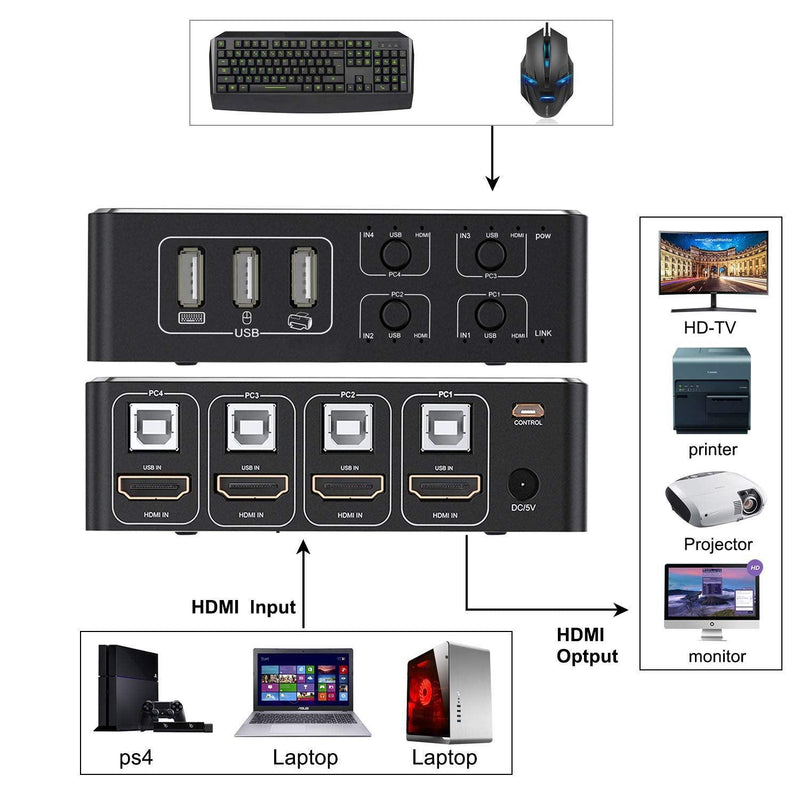

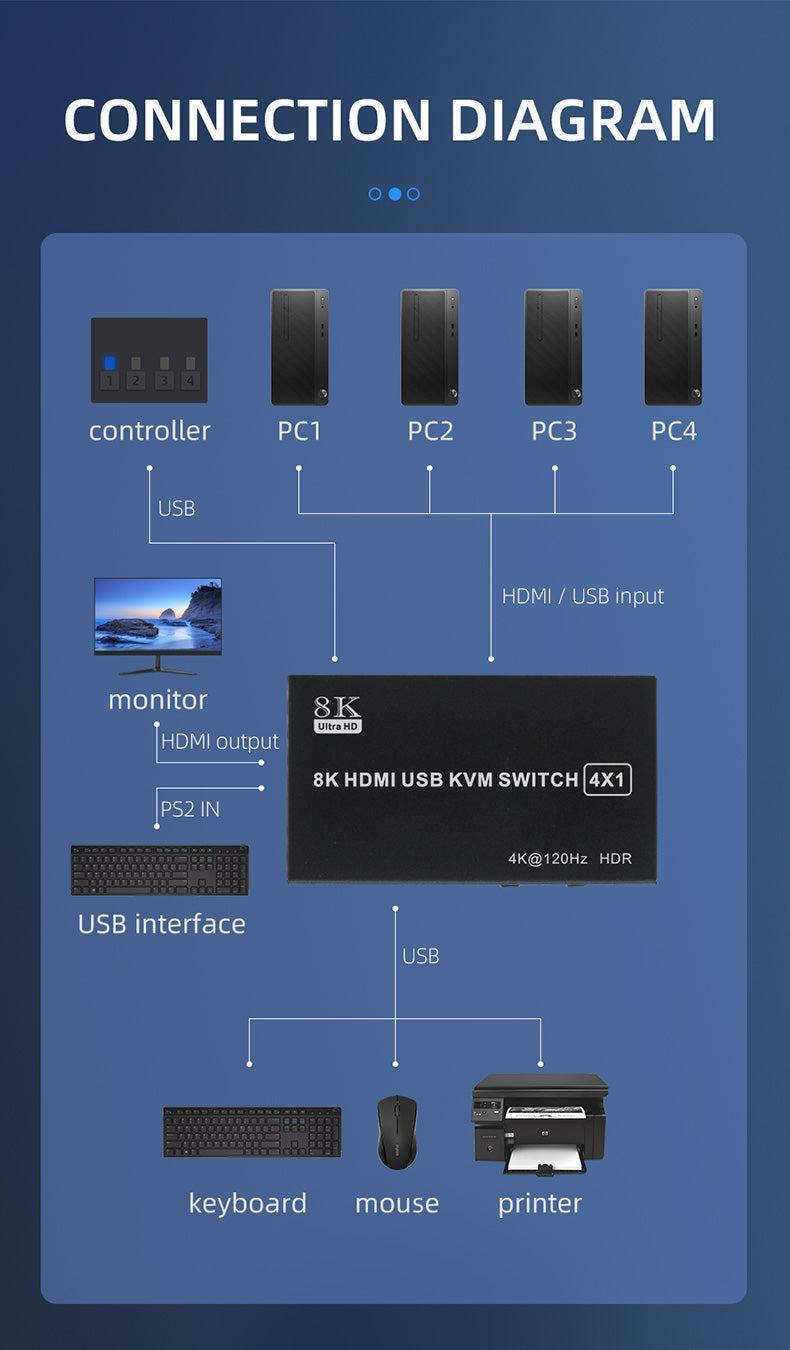

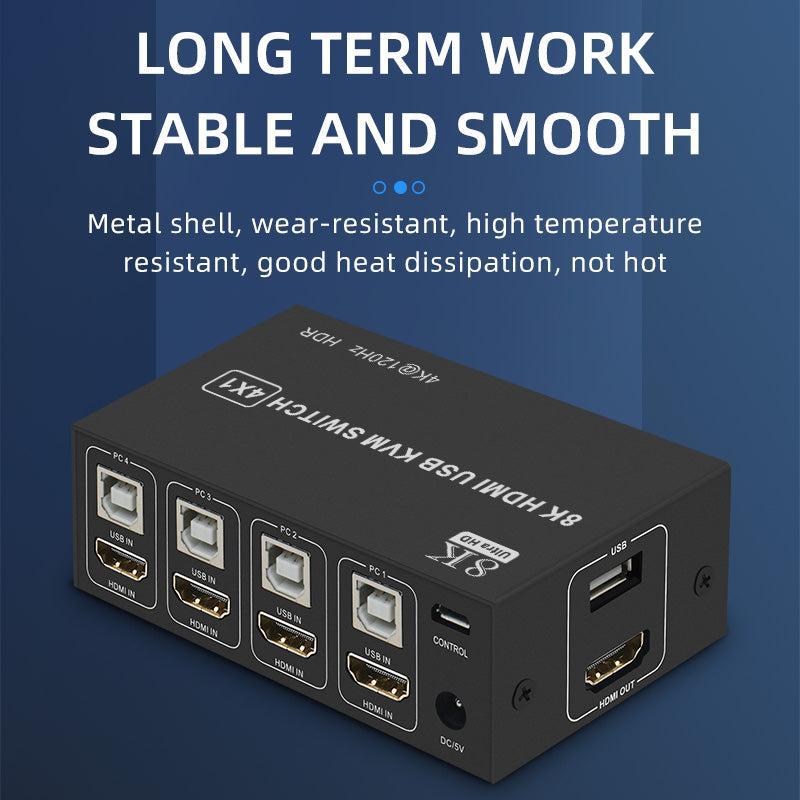

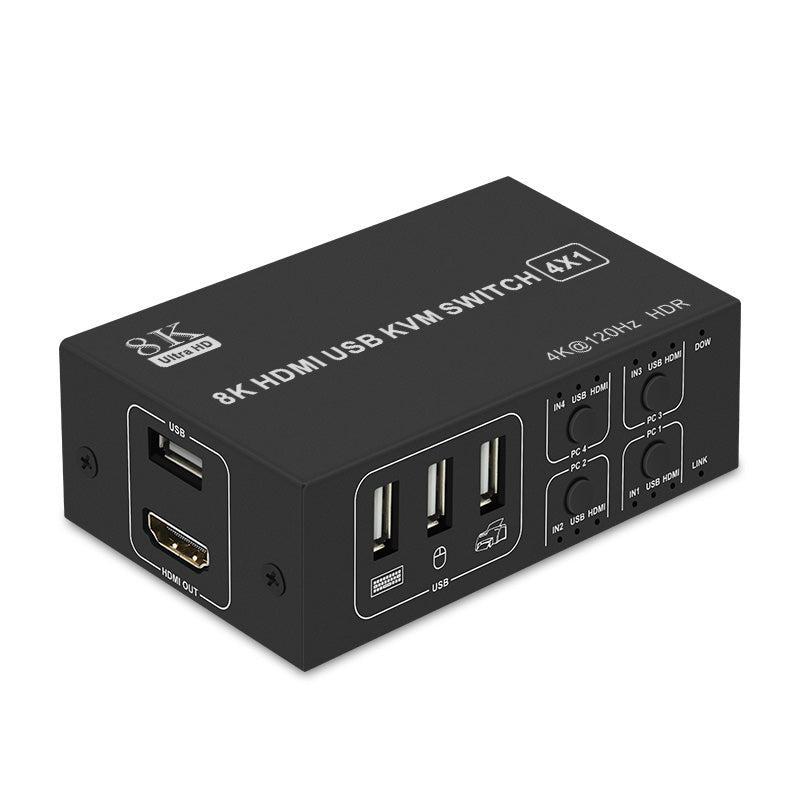

NÖRDIC KVM switch is a convenient solution for connecting up to four computers with HDMI output to an HDMI 2.1 display. The switch supports resolutions up to 8K60Hz, HDR and HDCP 2.2. It is possible to switch between all four computers using either buttons on the switch or a small box that is connected to the switch and can be placed on the table. The switch has four USB A 2.0 ports that can be used to connect a mouse, keyboard, hard drive or USB memory. Support for wireless mouse and keyboard. Recommended maximum HDMI cable length 3m.
Support for Windows, MacOS, Linux. Plug and Play no drivers needed. Powered by USB charger 5V2A (power supply not included).
Technical specifications:
-
Input:
4x HDMI 2.1 8K60Hz
4x USB-B data
1x DC 5V
-
Output:
1x HDMI 2.1 8K60Hz

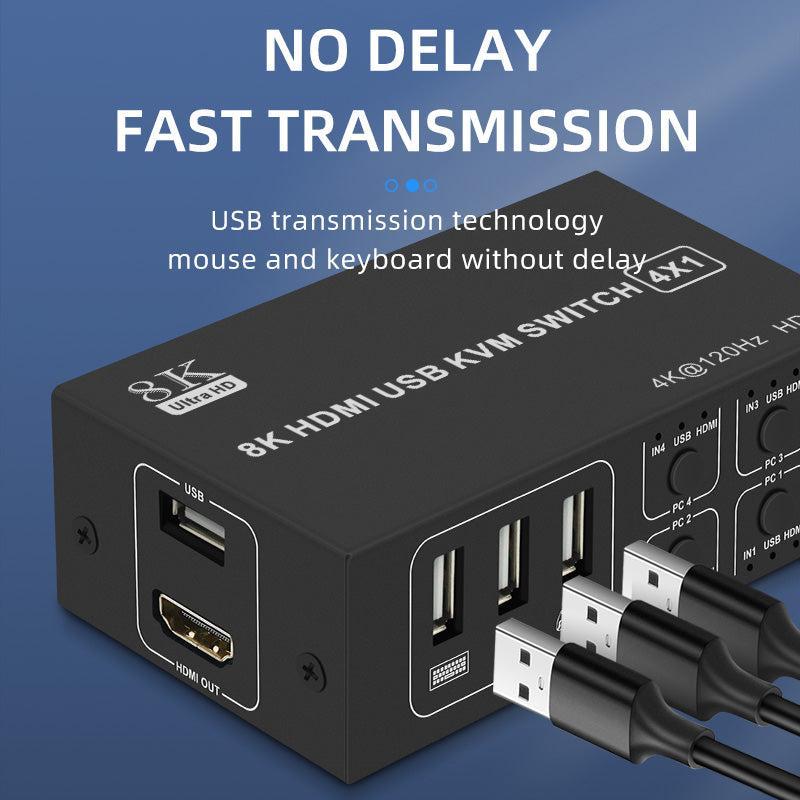

4x USB-A 2.0
-
Video:
- Resolutions:
7680x4320 60/30Hz 4:4:4 (DSC)
4096x2160 144(DSC)/120/60Hz
3440x1440 120/60Hz
2560x1440 144/120/60Hz
1920x1080 240/120/60Hz
- Bandwidth: 48Gbps
- Data rate: 42 Gbps
- HDCP/DPCP: 2.3/1.0
- HDR: 10
- Support for widescreen 16:9 and ultra wide 21:9
- Color format: RGB, 4:4:4, 4:4:2, 4:2:0, 4:0:0
- Color depth: up to 16bpc
-
Audio:
- HDMI; PCM 2.0/ LPCM 5.1/7.1 Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, DTS:X

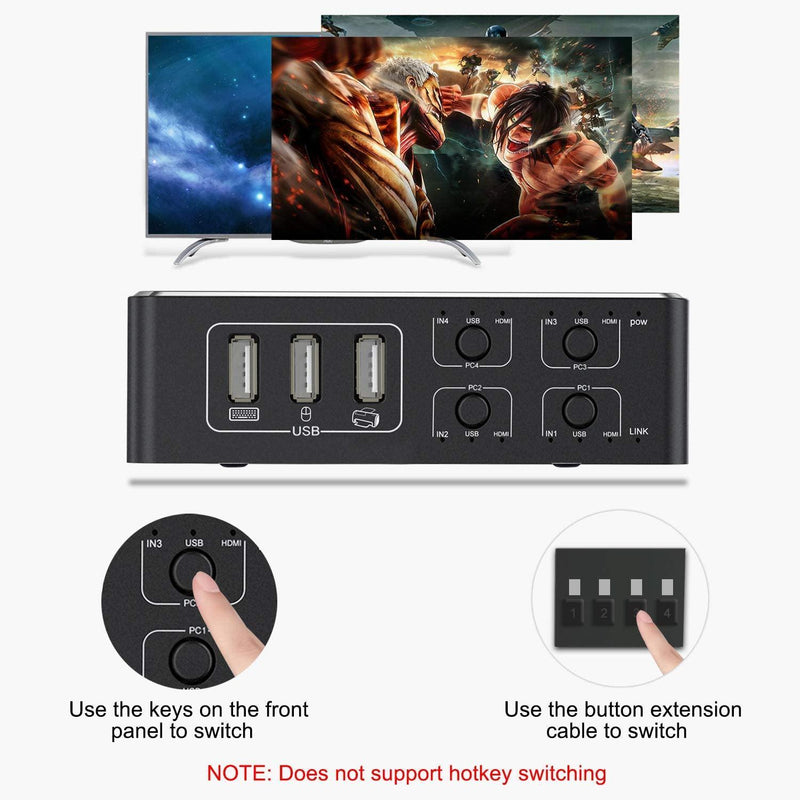

- Way to switch on: Button on the switch, external control
- Wireless mouse and keyboard support: RF, Bluetooth (some special gaming and multimedia keyboards and mice may be incompatible)
- Operating System: Windows 11/10/9/8/7/XP, MacOS, Linux, ChromeOS
- Power: DC 5V/2A
- Environment: 0 to 45°C in use, -20 to 50°C in storage
- Dimensions: 110x60x30 mm
- Weight: 240g
- Color: Black
- Material: Aluminum
- Drivers: No drivers, Plug & Play
-
Content:
1x KVM-116
4x USB-A to B 1m cables
1x USB-A power cable 5V2A

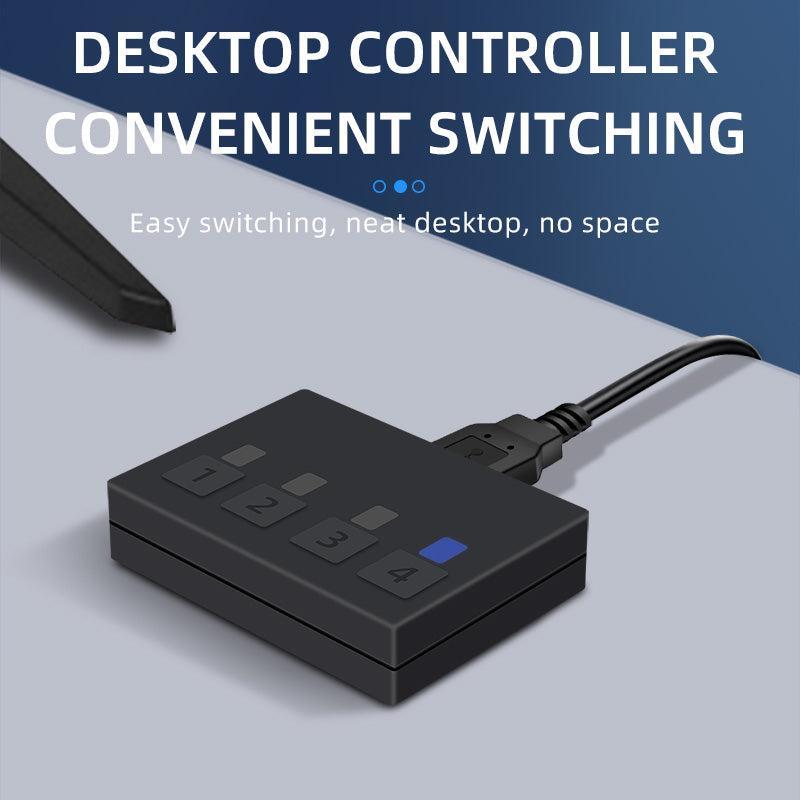

1x External control + cable
1x Manual
