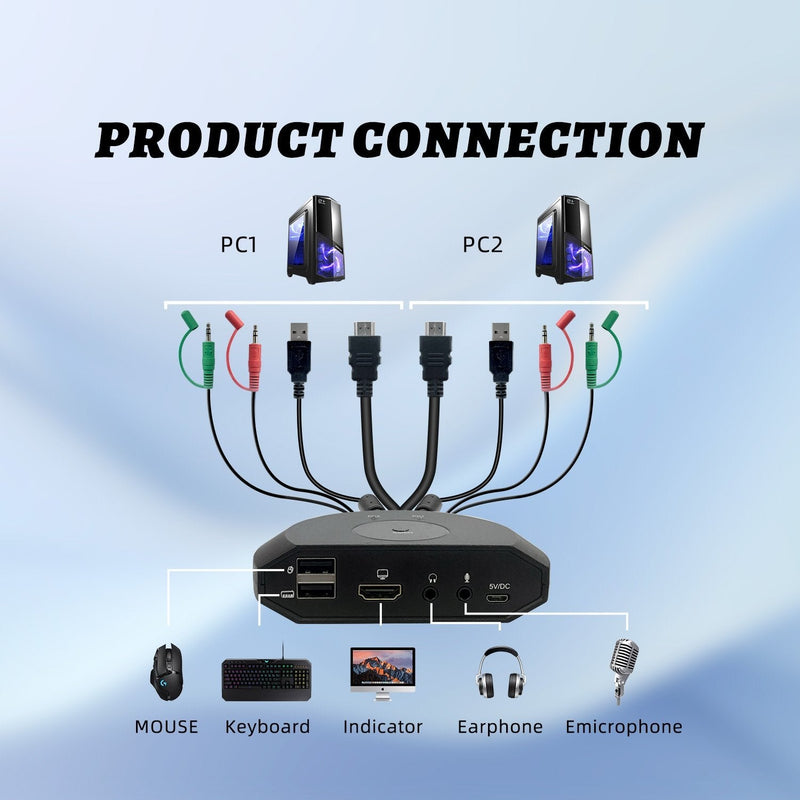

NÖRDIC KVM-144 allows you to connect two computers to an external display and easily switch between which source is displayed. Connect cables on the back of the KVM switch to your two HDMI sources and an HDMI cable to your monitor. The switch supports HDMI 2.0 and is backward compatible with previous versions (HDMI cable to monitor not included). There are two USB-A 2.0 ports for your keyboard and mouse as well as two 3.5mm ports for microphone and headphones. Supports resolutions up to 4K60Hz or 1440p144Hz. Supports a maximum bandwidth of up to 10 Gbps and data rate of 6 Gbps and also supports HDCP 2.2. The switch supports color formats RGB, 4:4:4, 4:2:2, 4:2:0 and up to 10bpc color depth. The switch is powered by the included 5V micro-USB power cable. No drivers required, plug and play.
Specifications
- Inputs:
1x HDMI 2.0
2x USB-A 2.0
2x 3.5mm AUX for headphone and microphone
1x micro USB
- Outputs:
2x HDMI (one for each computer)
2x USB-A (one for each computer)
4x 3.5mm AUX (two for each computer)
- Supports resolutions up to 4K60Hz
- Supports bandwidth up to 10 Gbps and data rate up to 6 Gbps
- HDCP 2.2 support
- Color format: RGB, 4:4:4, 4:2:2, 4:2:0
- Color depth: 10bpc
- Powered by included 5V power cable
- No drivers required, plug and play
- Contents: KVM switch, micro-USB power cable, manual
