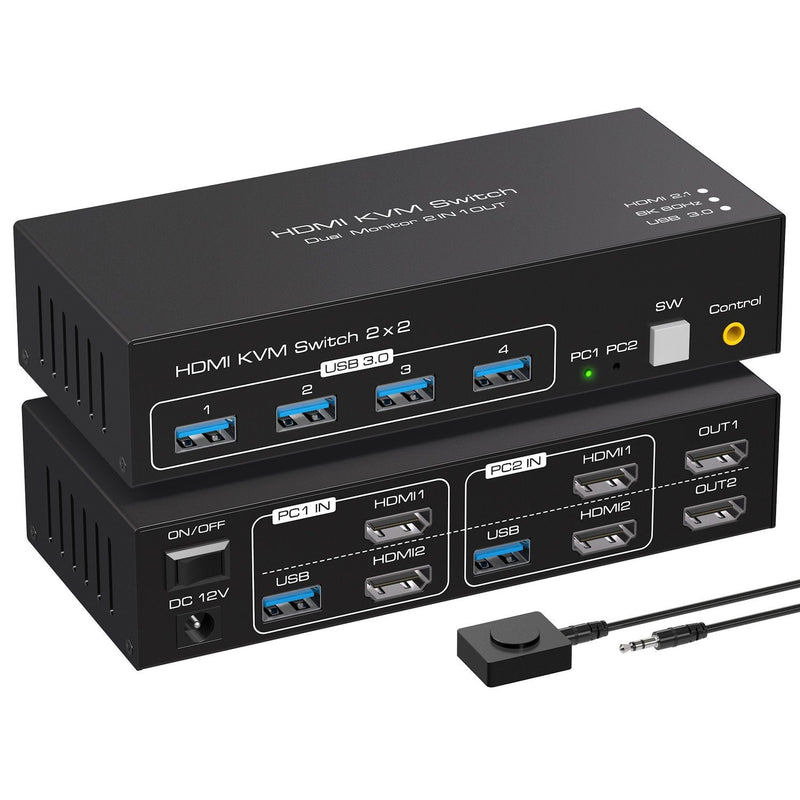

NOTE: The KVM switch is black, the pictures with blue color are for reference only.

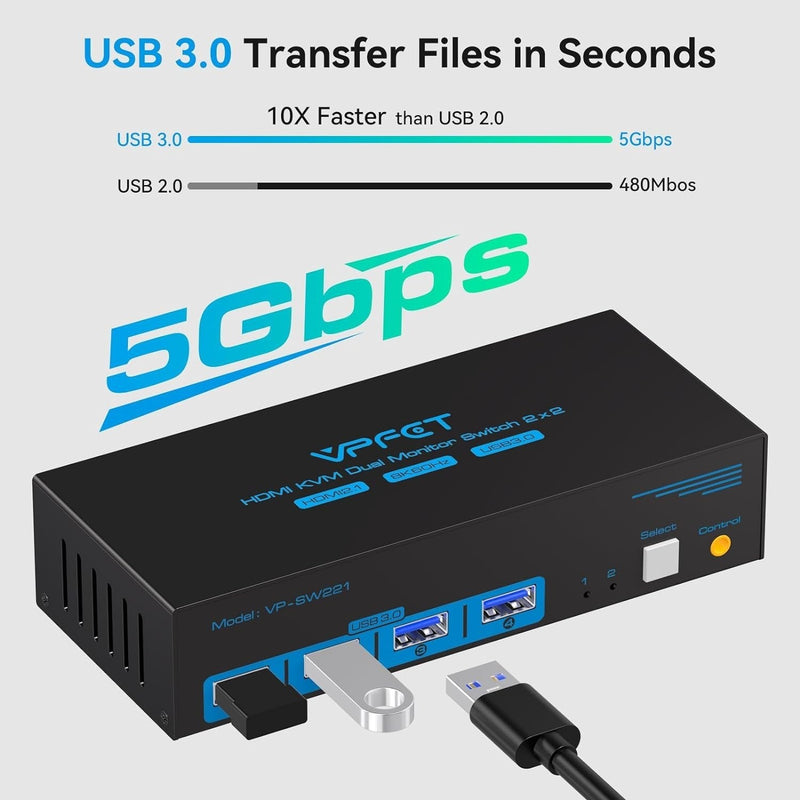

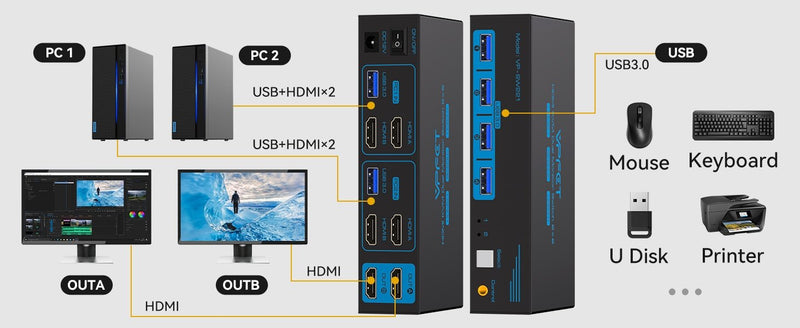

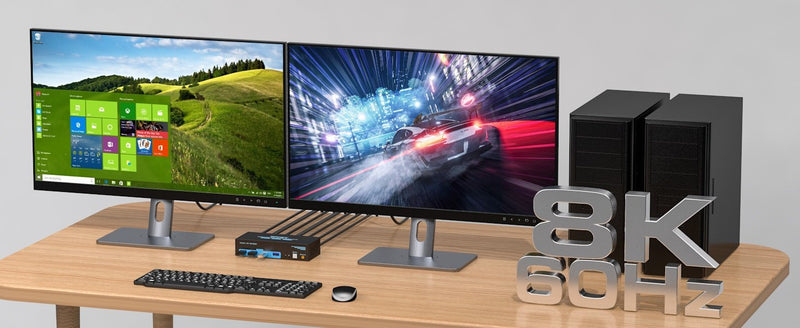

This 2 to 2 HDMI KVM switch allows you to connect two computers sharing two external displays and four USB-A 3.1 ports for other USB devices as well as two USB-A 3.1 ports for each computer. The switch supports resolutions up to 8K60Hz or 4K120Hz via HDMI 2.1 (cables not included). The switch also supports HDCP 2.3 and HDR10. The USB-A 3.1 ports support up to 5Gbps data transfer rates and the switch requires no drivers. More demanding devices such as printers and hard drives require external power from the included power supply. Please note that this 2 to 2 switch requires dual graphics cards and support for extend mode and MST.

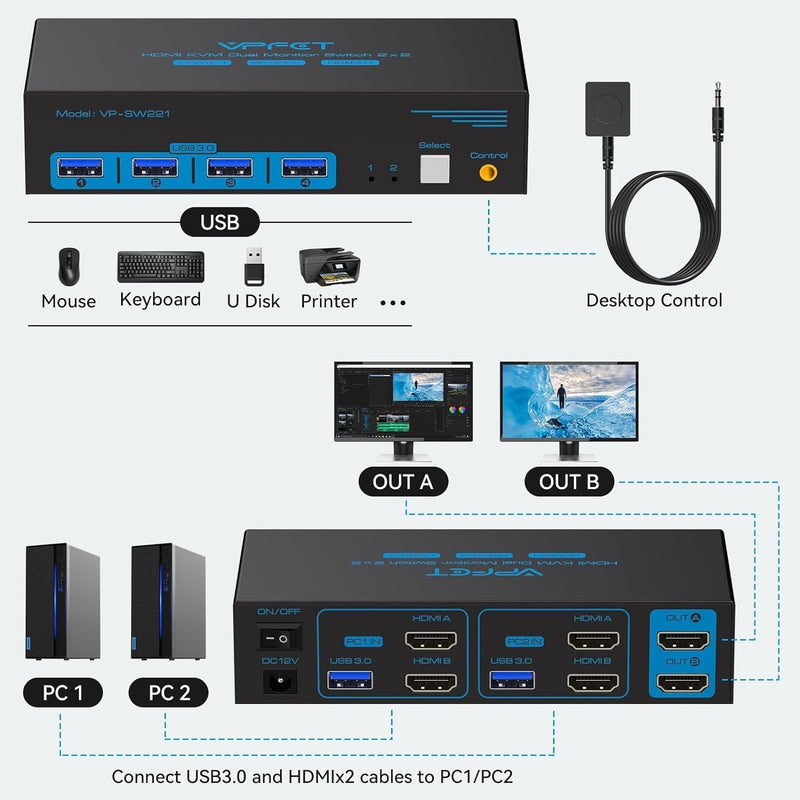

You can select which computer is connected to the display via the button on the switch or via the included wired button. The switch is powered by the included power supply and cable.
Technical specifications:
-
Input:
4x HDMI 2.1
2x USB-A 3.1 5Gbps
1x DC 12V
-
Output:
2x HDMI 2.1
4x USB-A 3.1 5Gbps
-
Video:
- Resolutions:
7680x4320 60Hz 4:4:4
4096x2160 120/60Hz
3440x1440 120/60Hz
2560x1440 144/120/60Hz
1920x1080 240/120/60Hz
- Bandwidth: 48Gbps
- Data rate: 42 Gbps
- HDCP/DPCP: 2.2/1.0
- Compression: DSC 1.2
- HDR: 10
- Color format: RGB, 4:4:4, 4:4:2, 4:2:0, 4:0:0
- Color depth: up to 16bpc
-
Audio:
- HDMI; PCM 2.0/ LPCM 5.1/7.1 Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, DTS:X
- Way to switch on: Button on the switch, external control
- Wireless mouse and keyboard support: RF, Bluetooth (some special gaming and multimedia keyboards and mice may be incompatible)

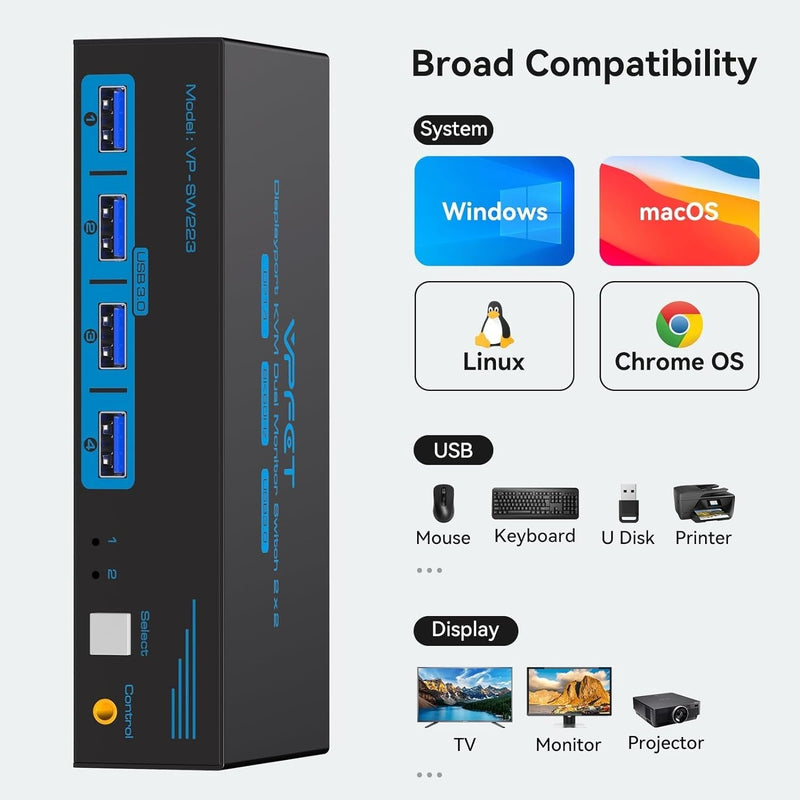

- Operating System: Windows 11/10/9/8/7/XP/Vista, MacOS, Linux, Ubuntu
- Power: DC 12V/1A, 1W power consumption (included)
- Environment: -5 to 45°C in use, -20 to 50°C in storage
- Dimensions: 150x65x35 mm
- Weight: 0.3kg
- Color: Black
- Material: Aluminum
- Drivers: No drivers, Plug & Play
- Does not support Freesync/Gsync
-

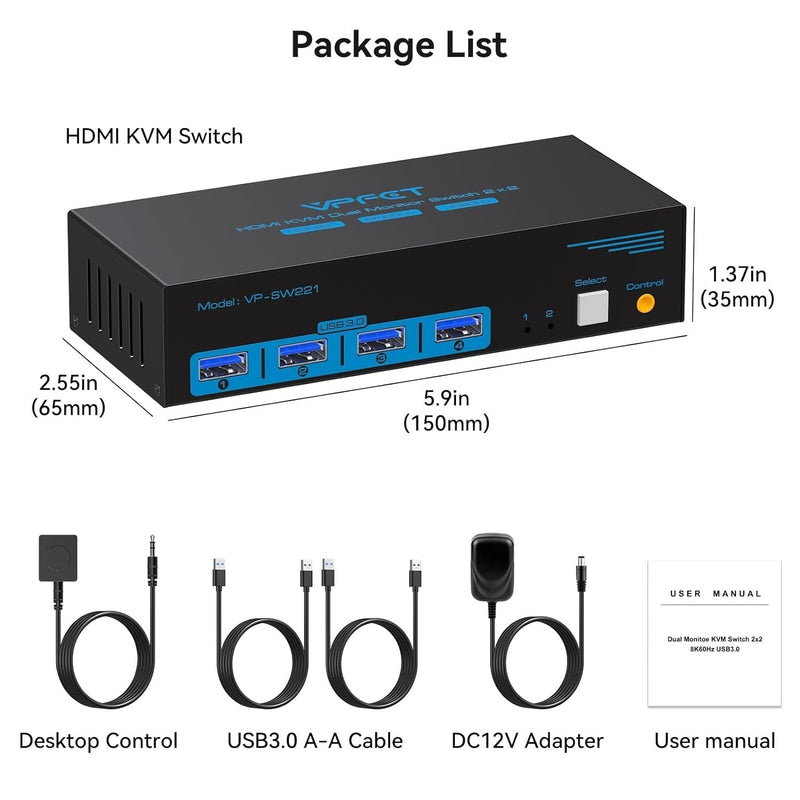

Content:
1x KVM-151
2x USB-A to A cables
1x External control for switching
1x Power supply and cable
1x Manual
