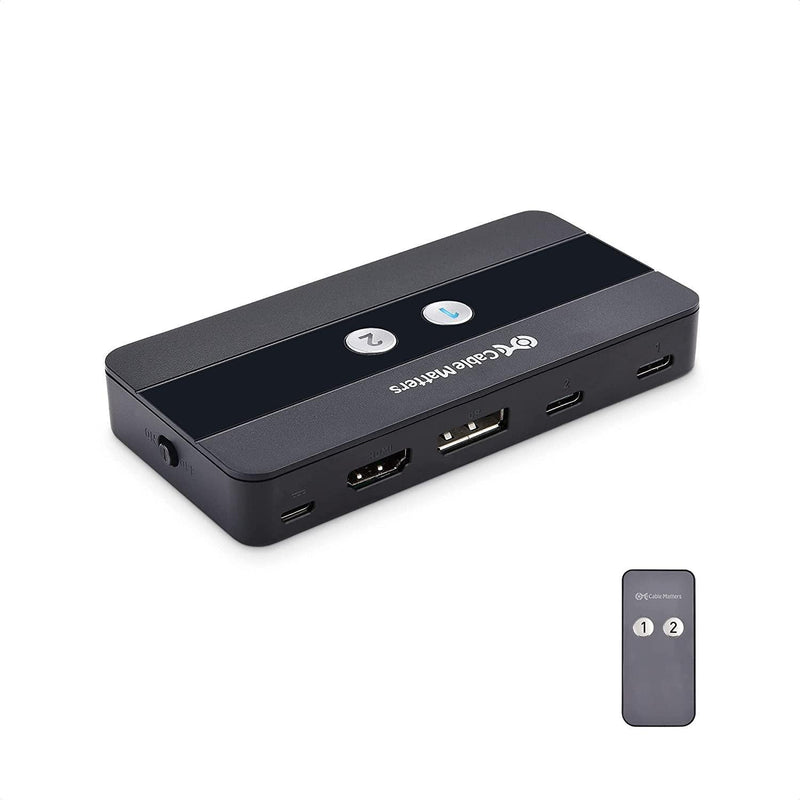

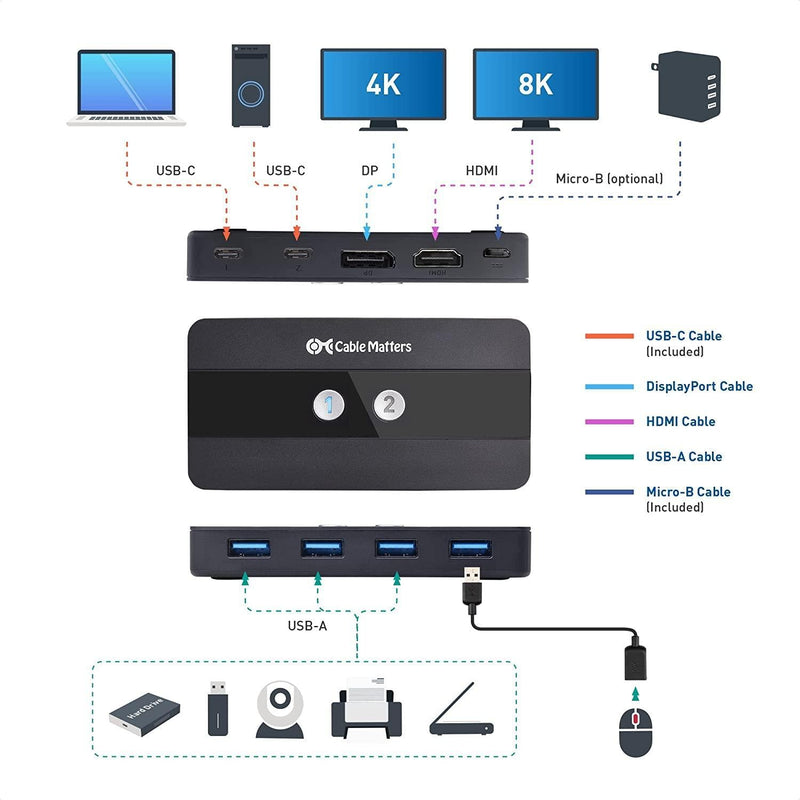

Cable Matters USB-C KVM switch for connecting two USB-C computers, Macs, tablets or smartphones to two monitors and four USB devices. Only one USB-C cable is needed to connect each USB-C device to the switch, two USB-C to USB-C cables are included.

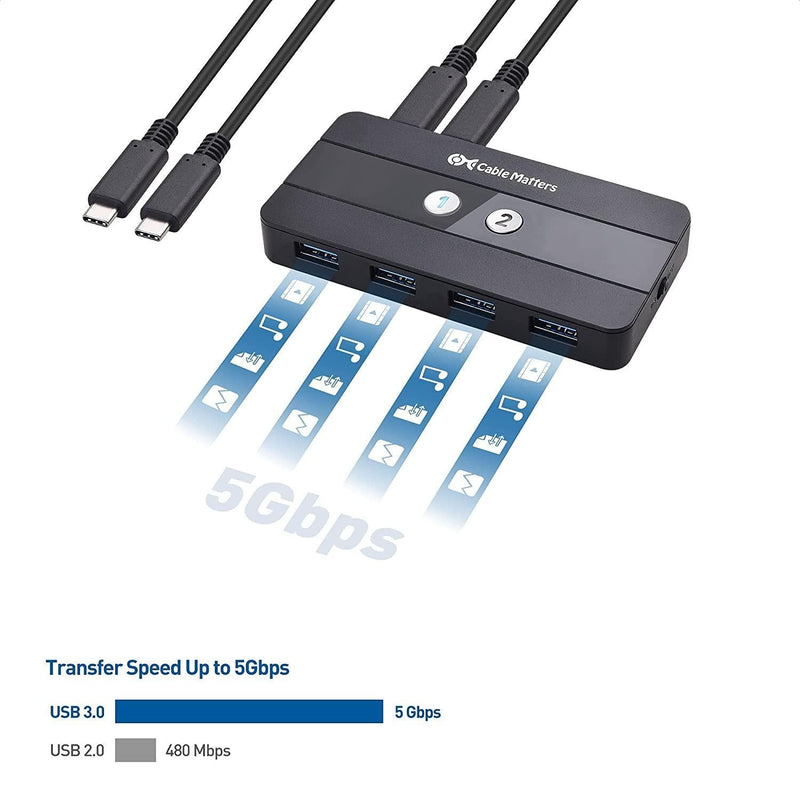

The switch has four USB-A 3.0 ports for keyboards, computer mice, headphones, hard drives or USB memory sticks with data speeds up to 5Gbps (for more power-intensive USB devices such as hard drives and printers, additional power via micro USB may be required, cable not included). Support for wireless computer mice and keyboards. Support for Windows, MacOS, Linux, ChromeOS (NB MacOS can only duplicate, not extend the desktop). Plug & Play, no drivers required.
Technical specifications:
-

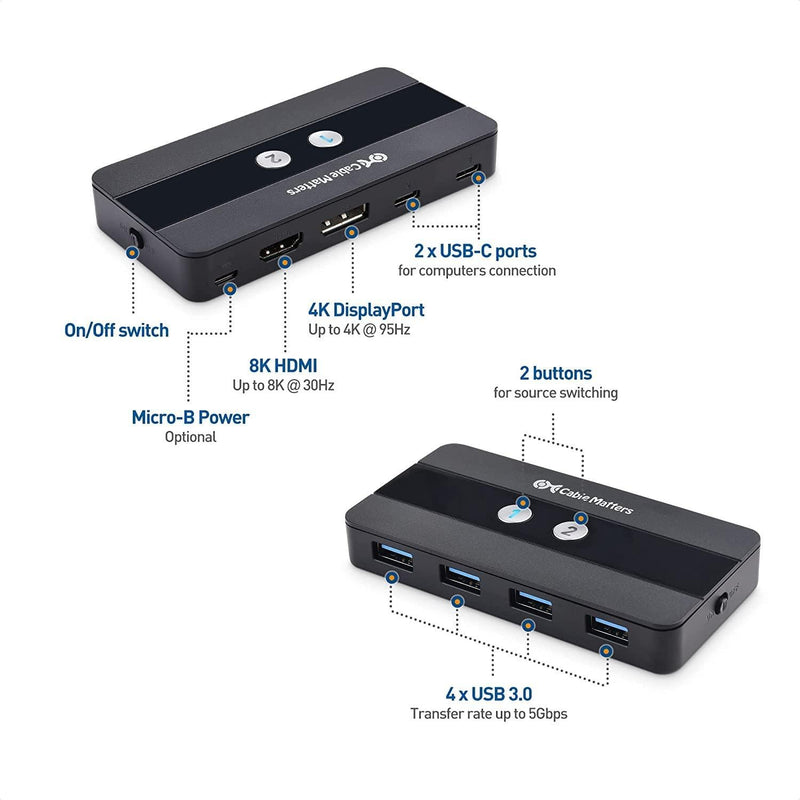

Input:
2x USB-C
1x Micro-USB for additional power
-
Output:
1x HDMI
1x DisplayPort
4x USB-A 2.0
-
Video:

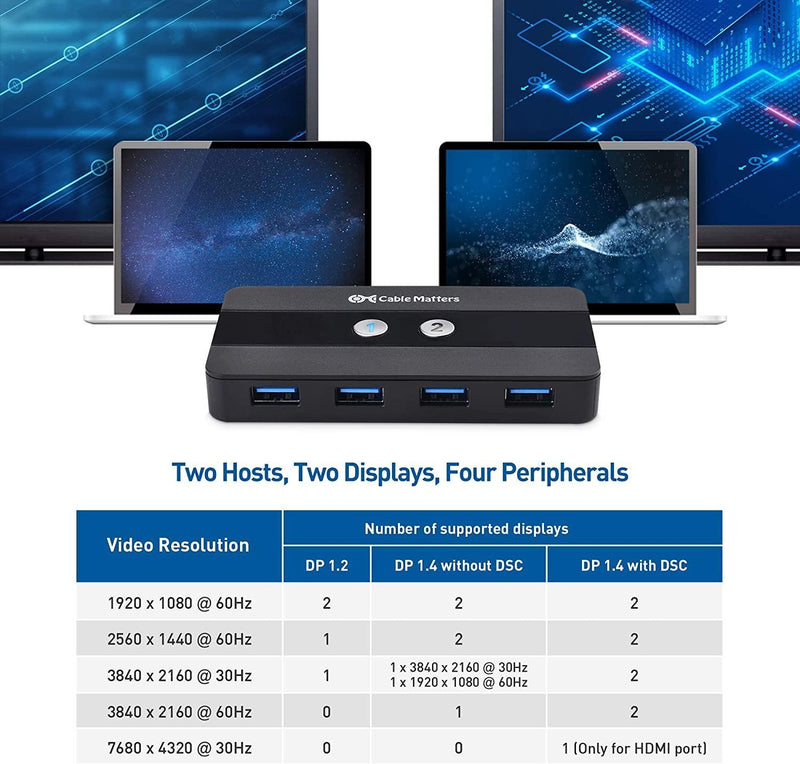

- Resolutions up to:
7680x4320 30Hz (via HDMI only)
3840x2160 60Hz
3440x1440 60Hz
2560x1440 60Hz
1920x1080 60Hz
- Bit rate: 32 Gbps
- Data rate: 26 Gbps
- HDCP/DPCP: 2.2
- HDR: 10
- Color format: RGB, 4:4:4, 4:4:2, 4:2:0, 4:0:0
- Color depth: up to 16bpc
-
Audio:
- HDMI/DP; PCM 2.0/5.1/7.1 Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, DTS:X

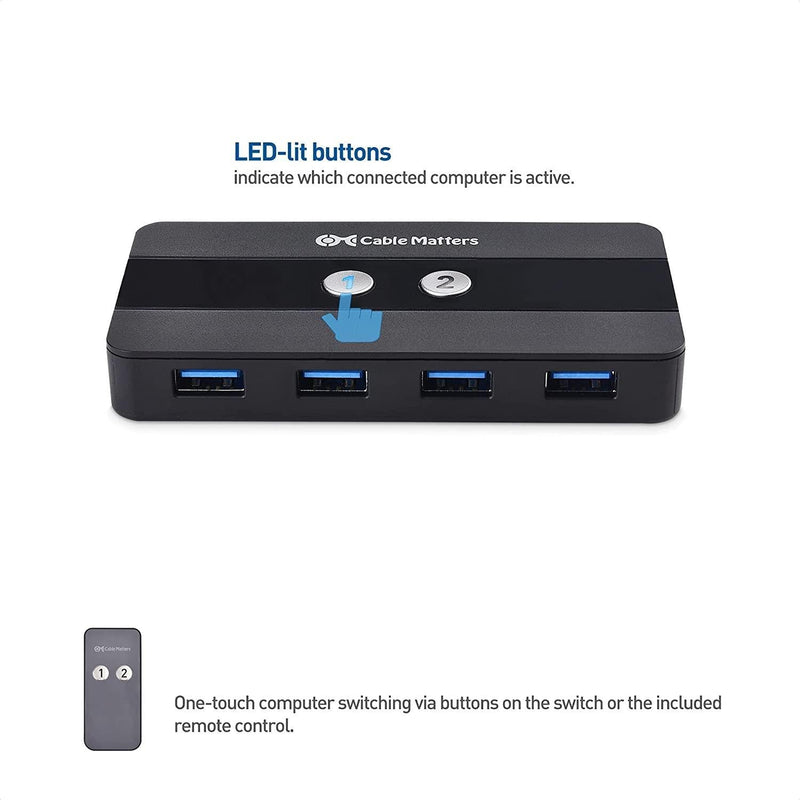

- Way to switch on: Button on the switch, external control
- Wireless mouse and keyboard support: RF, Bluetooth (some special gaming and multimedia keyboards and mice may be incompatible)
- Operating system: Windows 11/10/9/8/7/XP/Vista, MacOS, Linux
- Power: DC 5V/2A, (cable not included)
- Environment: -15°C to 45°C in use, -20°C to 70°C in storage

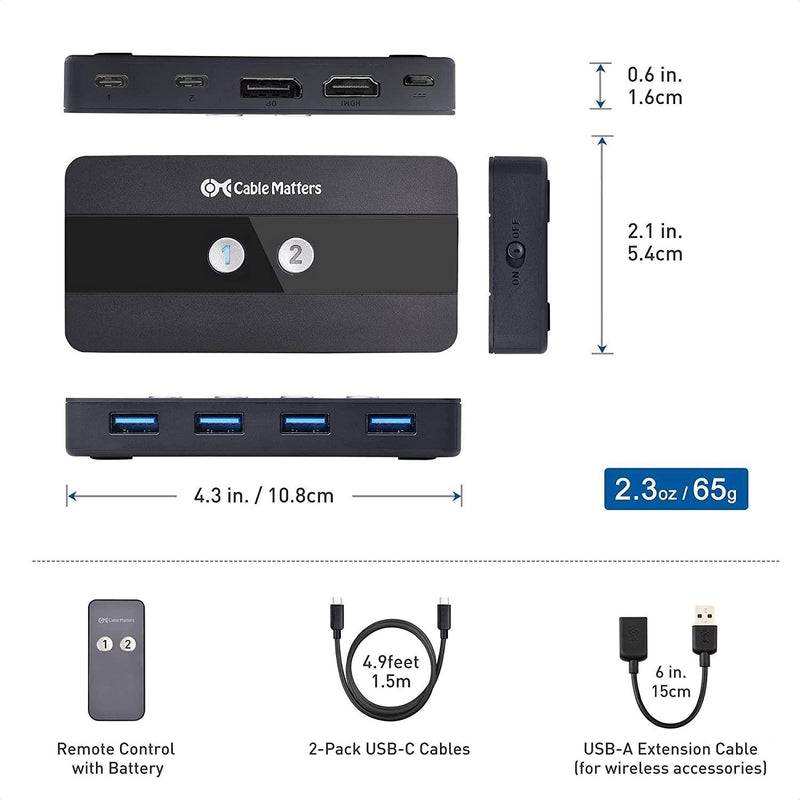

- Dimensions: 108x54x16 mm
- Weight: 65g
- Color: Black
- Material: Plastic
- Drivers: No drivers, Plug & Play
-
Content:
1x KVM-108
2x USB-C 1.5m cables
1x USB-A extension cable for wireless devices
1x External control for switching
1x Manual
