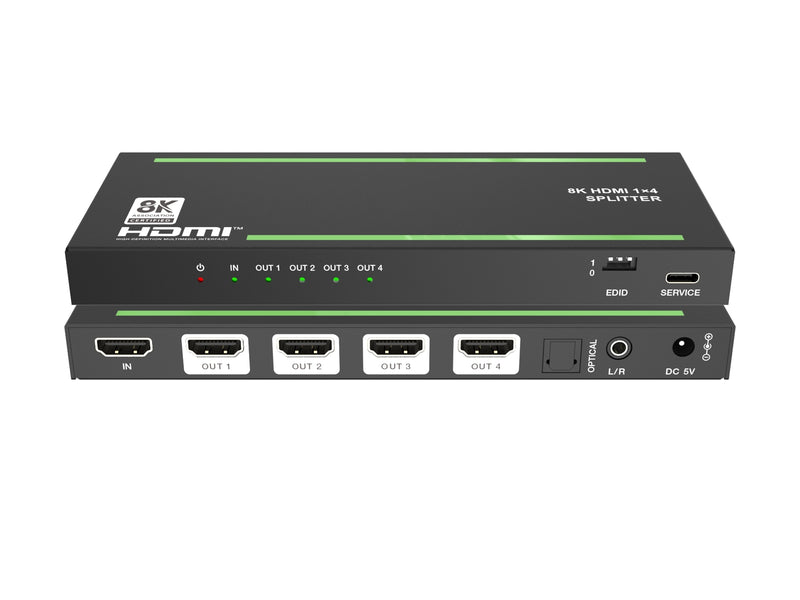

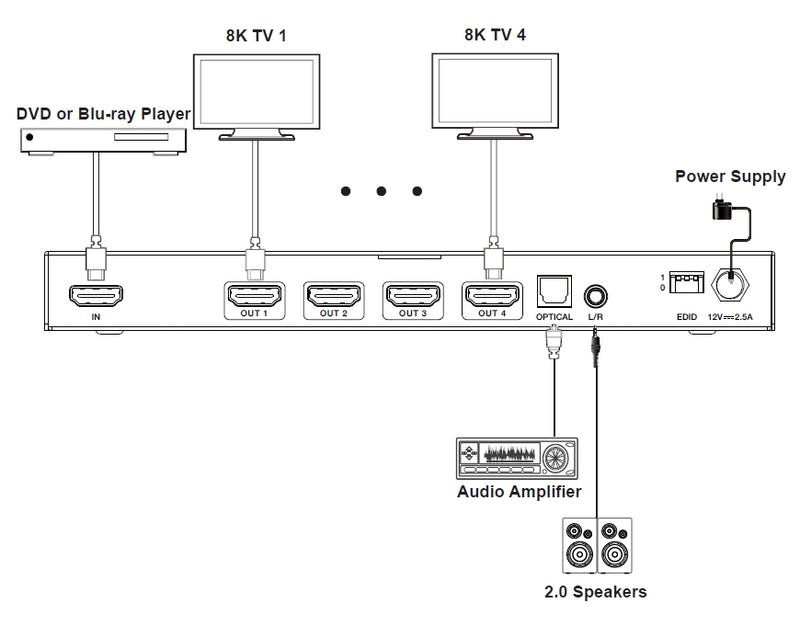

This HDMI splitter allows you to connect an HDMI source and easily switch between up to four HDMI displays, and in addition also extract the sound via optical S/PDIF or 3.5mm AUX. The splitter supports resolutions up to 8K@60Hz 4:2:0 10 bit, 4K120Hz. Note that HDMI 2.1 cables are required for the highest resolutions. Also supports HDCP 2.3 and is backward compatible with previous versions. Maximum bandwidth 48 Gbps and data rate 41.92 Gbps. Supports color format RGB Y'CbCr 4:4:4, 4:2:2, 4:2:0 and color depth up to 16bpc. Supports downscaling of video signals 8K to 4K and 4K to 1080p.
No drivers are required and the splitter is powered by included 5V2A power cable with interchangeable plug for plugging into any wall outlet in the world. Note that this splitter is not bidirectional and only works as a 1 to 4 splitter, not a 4 to 1 switch.
Specifications:
- Inputs:
1x HDMI 2.1
1x DC 5V2A
- Outputs:
4x HDMI 2.1
1x S/PDIF
1x 3.5mm AUX
- Resolutions: 8K@60Hz 4:2:0 10 bit, 8K@/30Hz 4:4:4 10 bit, 4K@120/60/30Hz, 1080P@240/120/60Hz
- Bandwidth: 48Gbps
- Data rate: 41.92Gbps
- EDID support for easy connection
- HDCP 2.3 and 2.1 support
- Support for: HDR/10/10+, VRR, ALLM, FVA, QMS, QFT, SBTM and HLG pass-through
- Color format: RGB Y'CbCr 4:4:4/4:2:2/4:2:0
- Color depth: up to 16bpc
- Audio format:
AUX: PCM 2.0 stereo
S/PDIF: LPCM 2.0/2.1/5.1 DTS 5.1
- No drivers required, Plug and Play
- Dimensions: 175x70x20 mm
- Weight: 300 g
- Colour: Black
- Contents:
1x SGM-252
1x Power supply 5V2A
1x Manual
