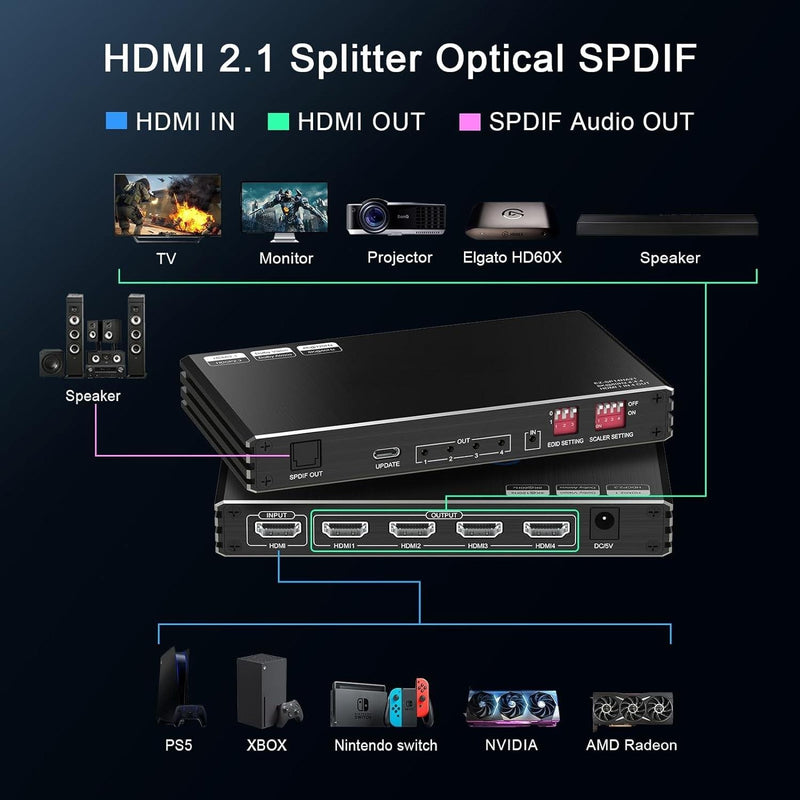

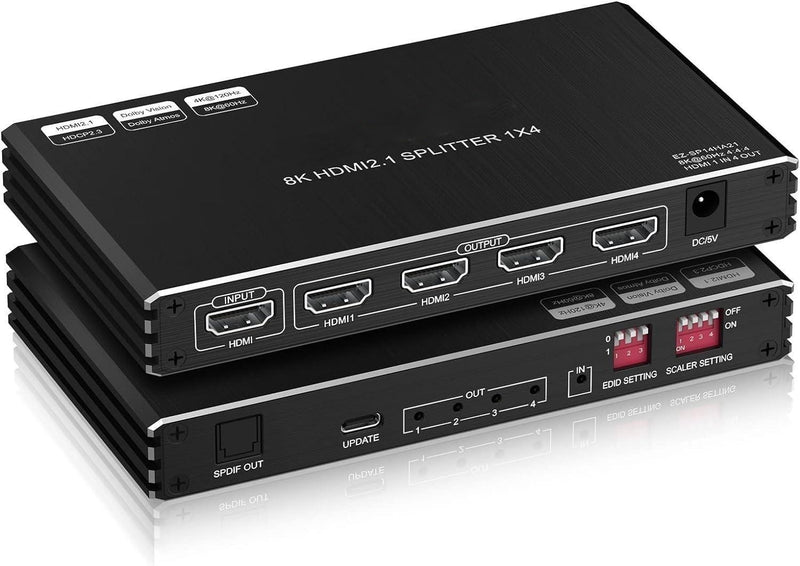

This HDMI splitter allows you to connect an HDMI source to up to 4 shared external displays and also extract audio via HDMI or optical S/PDIF. The splitter supports resolutions up to 8K60Hz HDR10+ 8bpc RGB via DSC 1.2 and can stream 4K and 1080p to multiple screens simultaneously. Note that HDMI 2.1 cables are required for the highest resolutions. Also supports HDCP 2.3 and is backward compatible with previous versions. Maximum bandwidth 48Gbps and data rate 41.92Gbps. Supports color format RGB Y'CbCr 4:4:4, 4:2:2, 4:2:0 and color depth up to 16bpc. EDID support allows the displays to communicate with the HDMI source for easy connection and downscaling of the image. The splitter supports FreeSync and G-sync and VRR GENERAL.
The sound can be extracted via one of the HDMI ports or S/PDIF and the splitter supports 2.0, 5.1 or 7.1 channels (7.1 only through HDMI). Support for audio formats Dolby Atmos, DTS-X, DTS-HD, DTS Master Audio, Dolby TrueHD, Dolby AC3, DSD and more. With support for HDMI CEC, you can control the volume of speakers or amplifiers with the TV remote control, please note that all connected devices must support CEC.
No drivers are required and the splitter is powered by the included 5V2A power supply.
Specifications:
- Inputs:
1x HDMI 2.1
1x DC 5V2A
- Outputs:
4x HDMI
1x Optical S/ PDIF
- Resolutions: 8K@60/30Hz, 4K@120/60Hz, 1440p@120/60Hz, 1080P@144/120/60Hz
- Bandwidth: 48Gbps
- Data rate: 41.92Gbps
- Support for: Dynamic HDR, HDR10+, VRR, ALLM, Free-Sync/G-Sync, Dolby Vision
- Color format: RGB Y'CbCr 4:4:4/4:2:2/4:2:0
- Color depth: up to 16bpc
- Audio format:
HDMI: PCM 2.0, LPCM 7.1/5.1, Dolby Atmos, DTS Master, DTS-X, DTS, Dolby TrueHD, Dolby Digital Plus
S/PDIF: LPCM 5.1/2.0 Dolby Digital, DTS 5.1, DTS

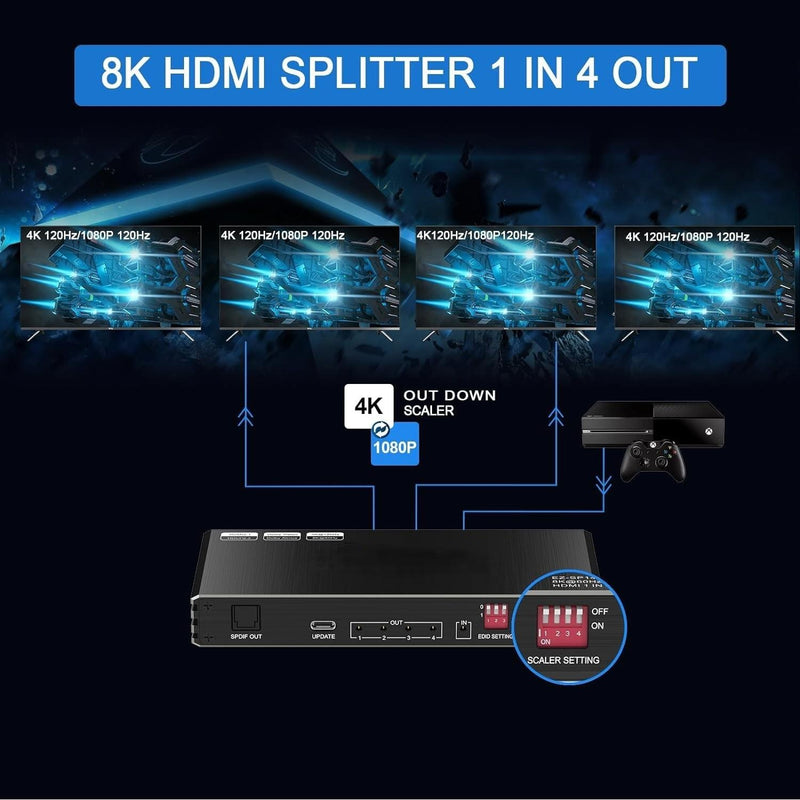

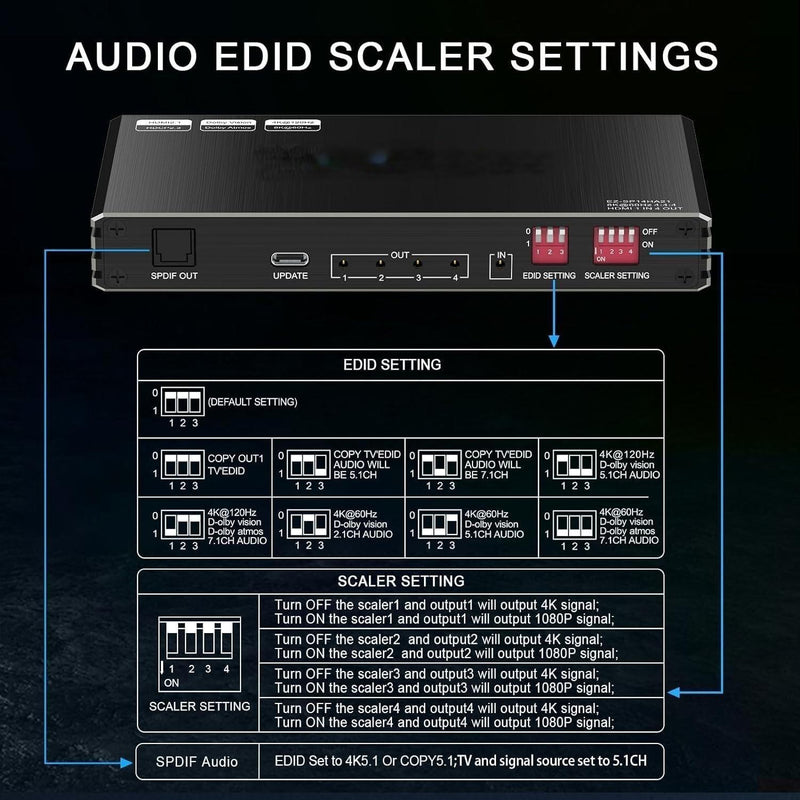

- Support for EDID and downscaling
- CEC support
- No drivers required, Plug and Play
- Dimensions: 150x83x20mm
- Weight: 220g
- Colour: Black
- Contents:
1x SGM-238
1x 5V2A power supply
1x Manual
