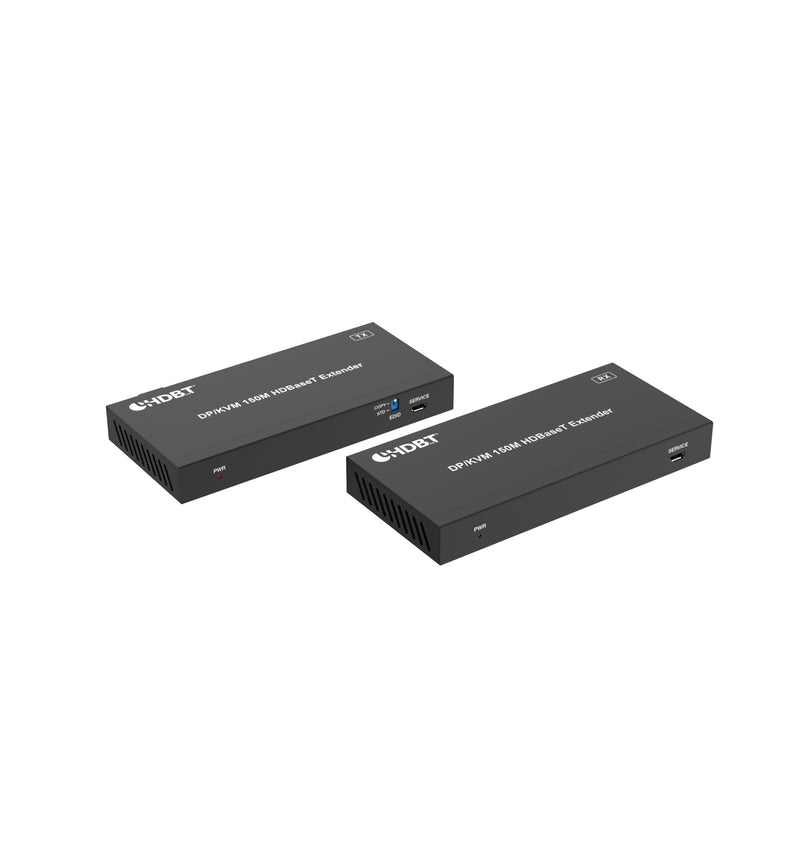

This NÖRDIC 4K60 HDBaseT DisplayPort KVM Extender enables transmission of DP signal, KVM, RS-232, and IR up to 100 meters for 4K60 or 150 meters for 1080p using only a single CAT6 cable. Perfect for those needing a dynamic setup over distance.
Specifications
- DisplayPort standard: DP 1.2a
- HDCP version: HDCP 2.2
- Video resolution: Up to 4K@60Hz YUV 4:4:4
- Video bandwidth: 21.6 Gbps
- Color format: RGB, YCbCr 4:4:4, 4:2:2, 4:2:0
- Color depth: 8/10/12 bit
- HDR support: HDR, HDR10, HDR10+, Dolby Vision, HLG
- Audio format: LPCM 2.0 (96KHz), Dolby Digital Plus 5.1CH, DTS-HD Master 7.1CH
- Transmission distance:
- 4K60: up to 100 m
- 1080p: up to 150 m
- USB support: USB 1.1 (for KVM)
- IR support: Bi-directional, wideband 20–60KHz
- ESD protection: ±8kV (air), ±4kV (contact)
- Power consumption: Max 13.2 W
- Power supply: DC 24V/1A, supports two-way POC
- Temperature range: 0–40 °C (operation), -20–60 °C (storage)
- Humidity: 20–90 % RH (non-condensing)
- Dimensions: 140 x 65 x 18 mm (both transmitter and receiver)
- Weight: Transmitter 241 g, receiver 253 g
- Enclosure: Metal, black
Connections

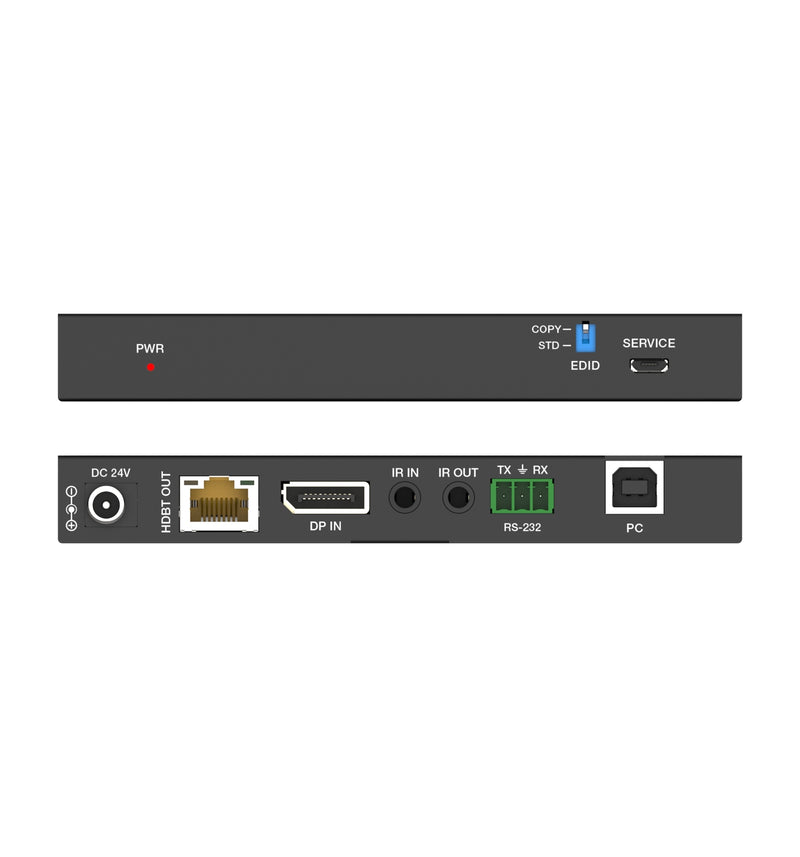

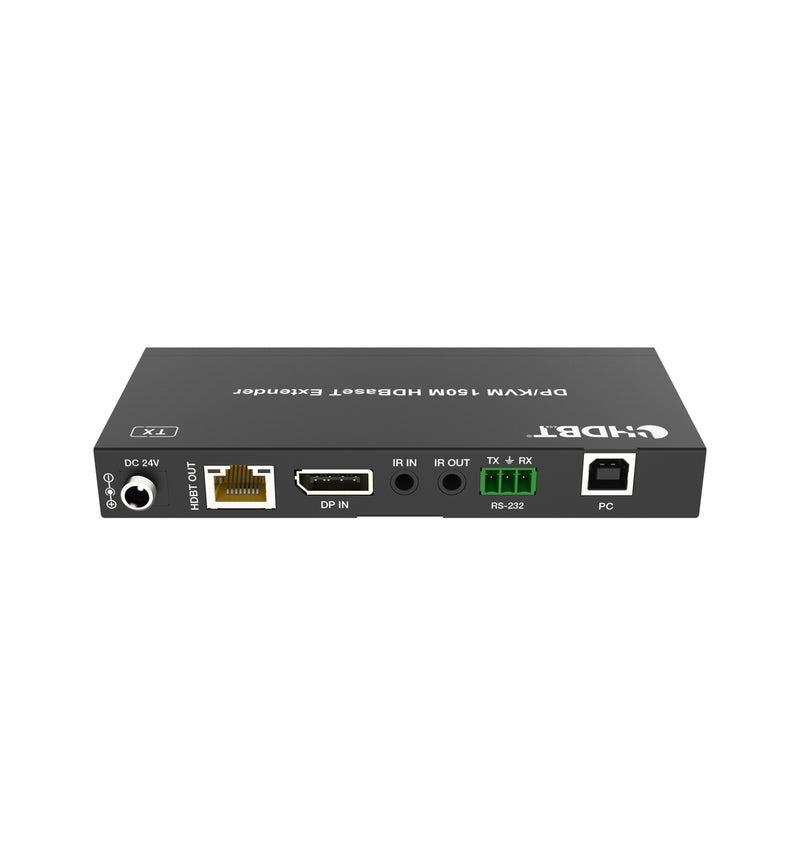

- Transmitter:
- Input: 1 x DP IN (20-pin)
- Output: 1 x HDBaseT OUT (RJ45)
- Ports:
- 1 x IR IN (3.5 mm)
- 1 x IR OUT (3.5 mm)
- 1 x RS-232 (3-pin Phoenix)
- 1 x USB-B (to PC)
- 1 x SERVICE (Micro-USB)

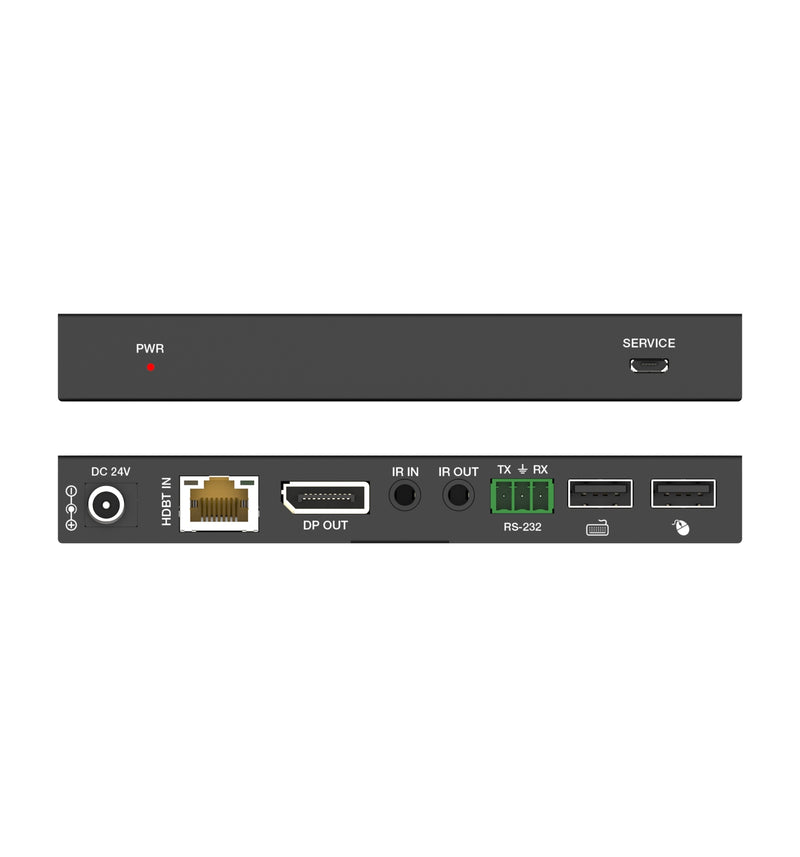

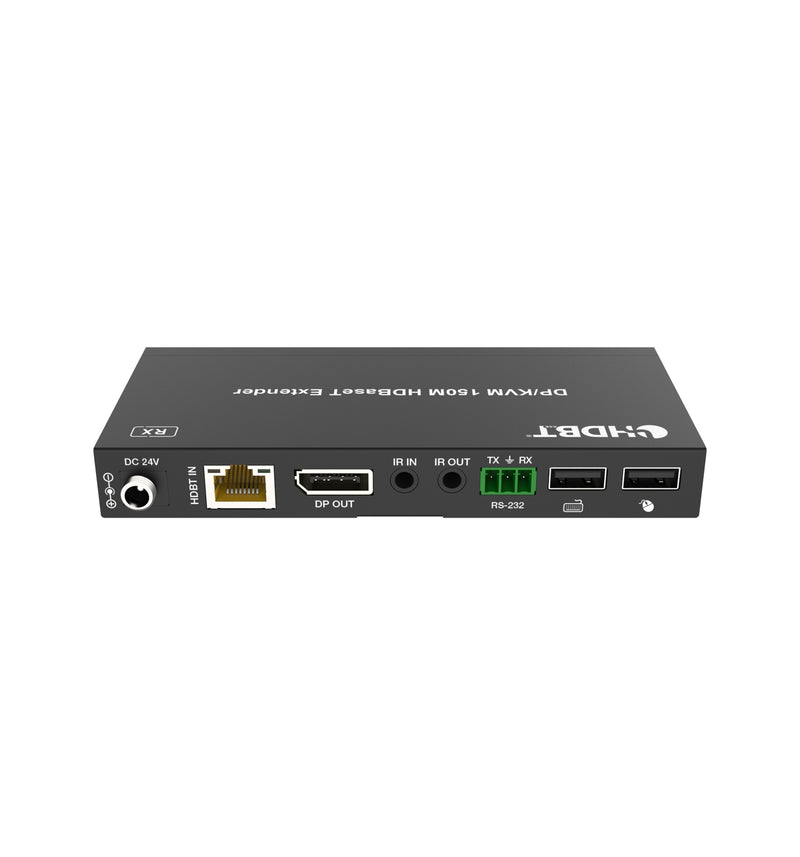

- Receiver:
- Input: 1 x HDBaseT IN (RJ45)
- Output: 1 x DP OUT (20-pin)
- Ports:
- 1 x IR IN (3.5 mm)
- 1 x IR OUT (3.5 mm)
- 1 x RS-232 (3-pin Phoenix)
- 2 x USB-A (for keyboard and mouse)
- 1 x SERVICE (Micro-USB)
Features
- Extends DP signal, IR, RS-232 and USB KVM over long distances
- Visually lossless video compression with support for 4K@60Hz
- Remote control of PC via keyboard and mouse
- Automatic EDID management via DIP switches
- Supports high quality audio and multiple formats
- POC – only one device needs power supply
- Compact and durable metal enclosure for professional installation
What is HDBaseT?
HDBaseT is a global standard for transmission of ultra-high definition video, audio, Ethernet, control signals (IR, RS-232), USB, and power over a single network cable (CAT5e/6/6a). It enables long-distance transmission without compression or delay, commonly used in professional AV installations, corporate environments, and digital signage solutions.
Contents
- 1 x 4K60 DP KVM Extender – Transmitter
- 1 x 4K60 DP KVM Extender – Receiver
- 1 x IR blaster cable (1.5 m)
- 1 x IR receiver cable (1.5 m)
- 2 x 3-pin Phoenix connectors
- 1 x USB cable (USB-A to USB-B, 1.5 m)
- 4 x Mounting brackets
- 2 x Screws (KM3*4)
- 1 x 24V/1A Power adapter
- 1 x User manual
