This product provides a stable and high-performance solution for long-distance transmission of video, audio, and USB control signals over a network. With support for resolutions up to 4K@30Hz and 1080p@120Hz, it delivers sharp images and low latency, making it ideal for professional environments, offices, and gaming. It has a range of up to 120 meters via Cat5e/6/7 Ethernet cable and supports advanced audio formats such as Dolby Digital Plus, Dolby TrueHD, and DTS-HD Master Audio.
Specifications:
- Transmission distance: Up to 120m via Cat5e/6/7 Ethernet cable
- Resolution: Supports 4K@30Hz, 1080p@120Hz
- Audio formats: Supports Dolby Digital Plus, Dolby TrueHD, DTS-HD, DTS-HD Master Audio

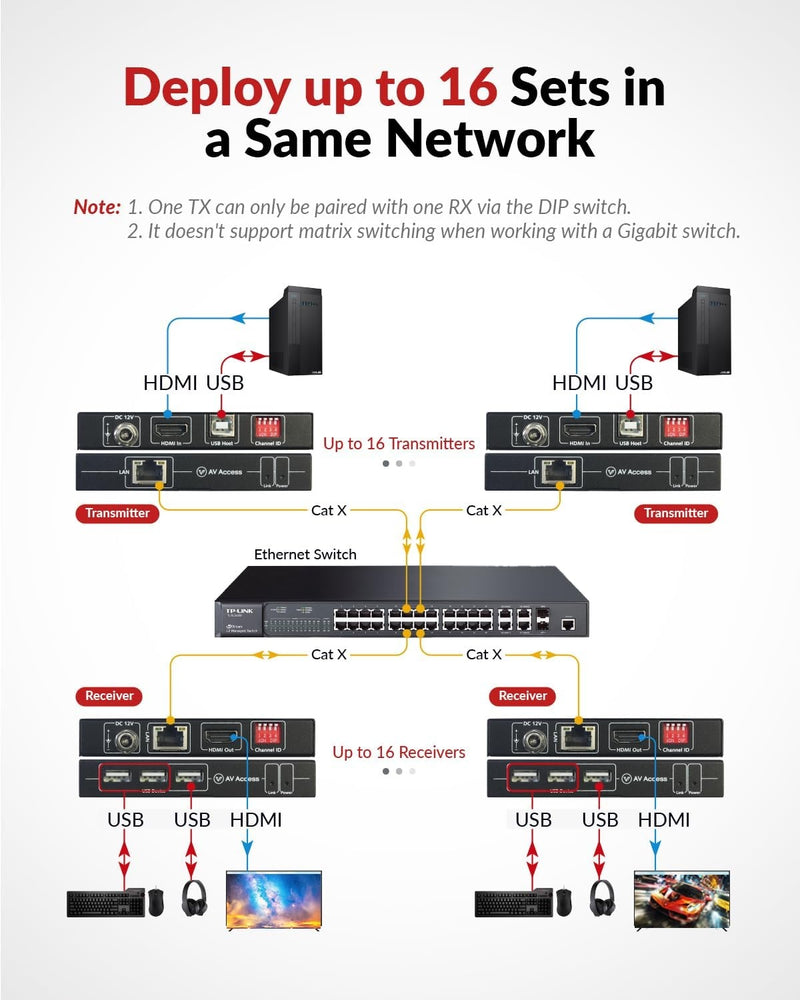

- Network support: Configurable with up to 16 TX and RX units in the same network via DIP switch
- Power supply: DC 12V on both transmitter (TX) and receiver (RX)

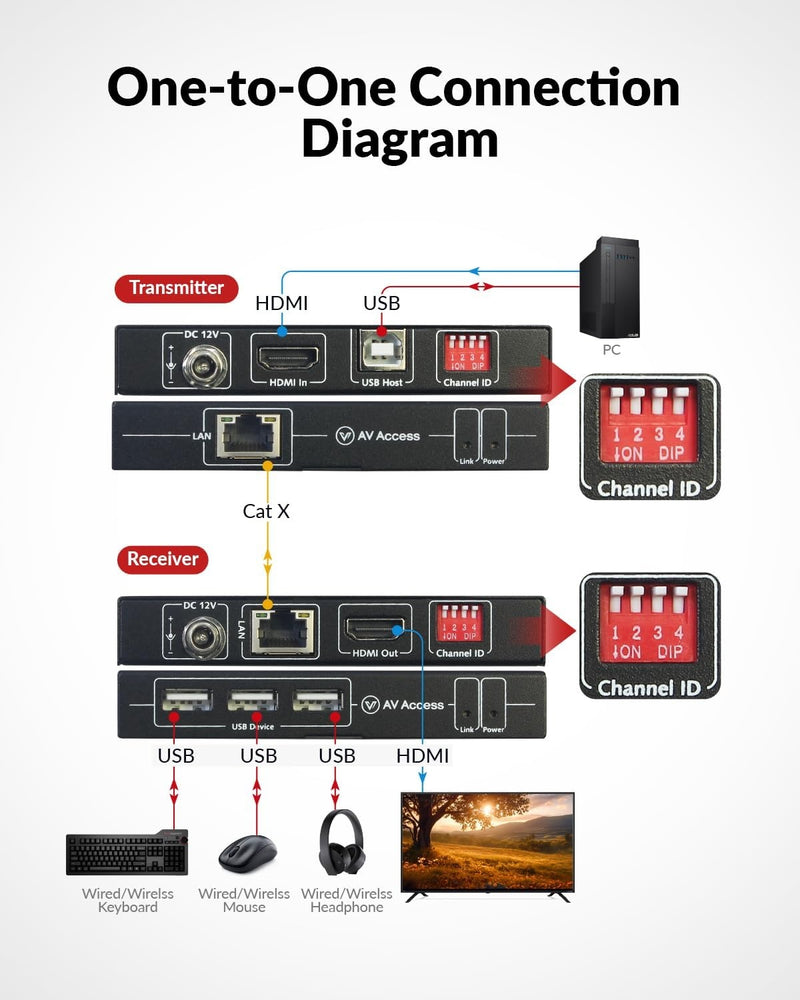

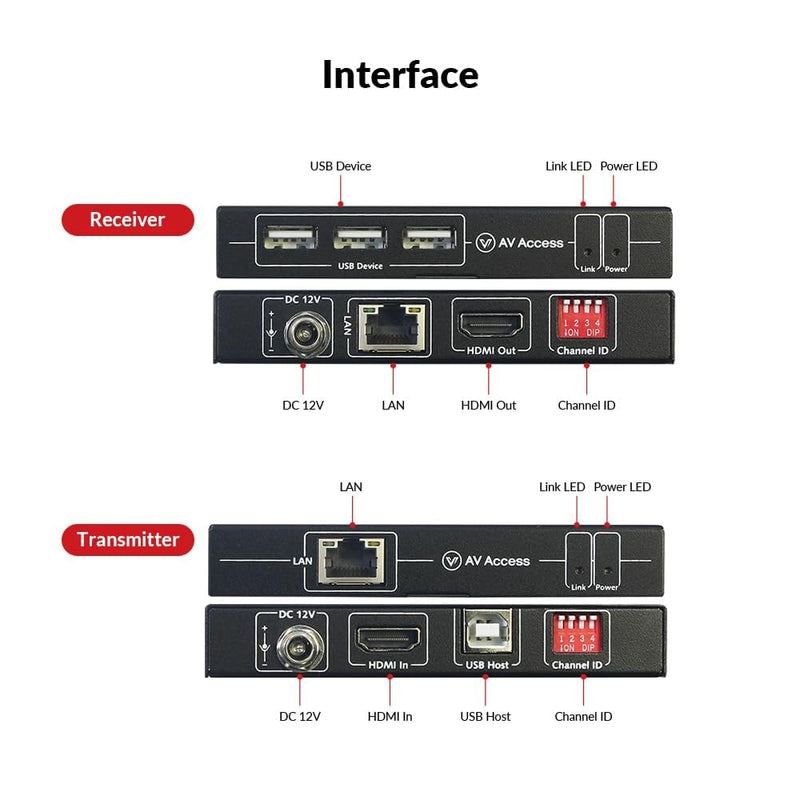

Connections:
-
Transmitter (TX):
- 1 x HDMI IN
- 1 x USB 2.0 A to B (for connection to computer)
- 1 x LAN port for signal transmission
- 1 x DC 12V power input
- 1 x Channel ID Switch
-
Receiver (RX):
- 1 x HDMI OUT
- 3 x USB-A ports for peripherals (e.g. mouse, keyboard)
- 1 x LAN port for reception
- 1 x DC 12V power input
- 1 x Channel ID Switch
Compatibility:
- Supports Windows, Mac, Linux
- Compatible with PC, PS, Xbox
Certifications & Protection:
- CE/FCC certified for safe use
- ESD protection against lightning strikes

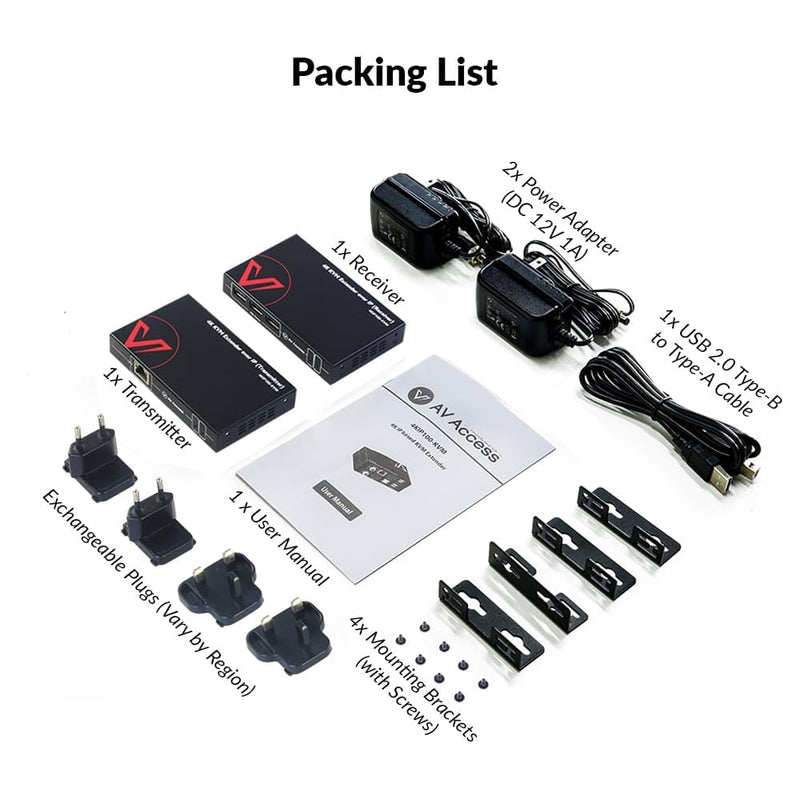

Package Contents:
- 1 x 4K KVM Extender Transmitter (TX)
- 1 x 4K KVM Extender Receiver (RX)
- 2 x Power Adapter DC 12V 1A
- 1 x USB 2.0 B to A cable
- 4 x Mounting brackets with screws
- 4 x Interchangeable power plugs for different regions
- 1 x Manual
