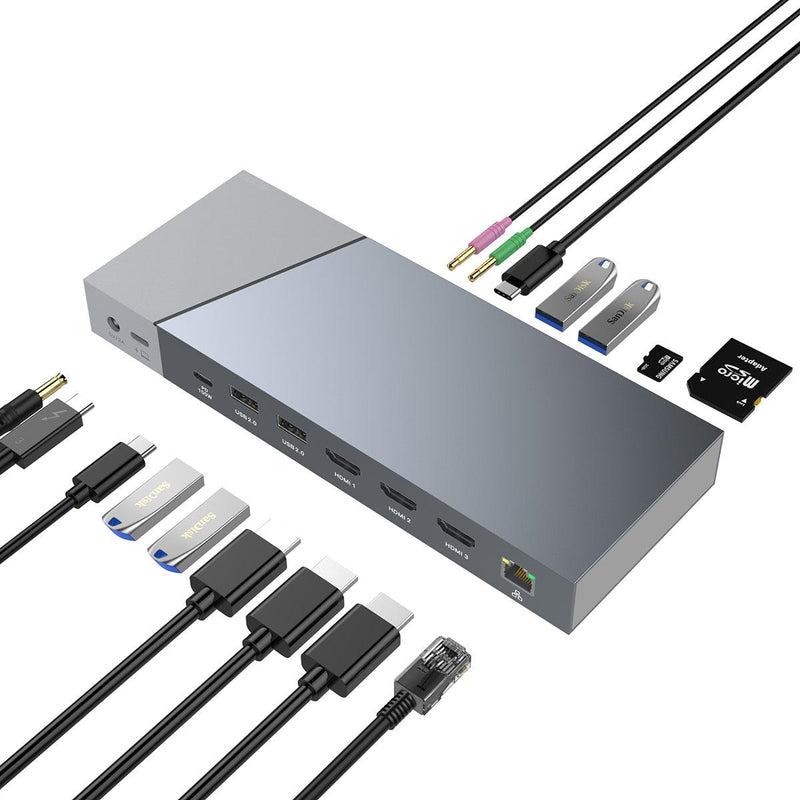

NÖRDIC DisplayLink Docking station converts a USB-C, USB-A or Thunderbolt port in your computer into 15 ports including 1xHDMI 4K 30Hz 2xHDMI 2K50hz, 1x USB C Power Delivery 100W, 2x USB-A 3.1 5Gbps, 1xUSB-C 3.2 10Gbps, 2xUSB -A 2.0 480Mbps, 2xSD/Micro SD card reader, 1xRJ45 GigaLAN and 1x 3.5mm audio input.

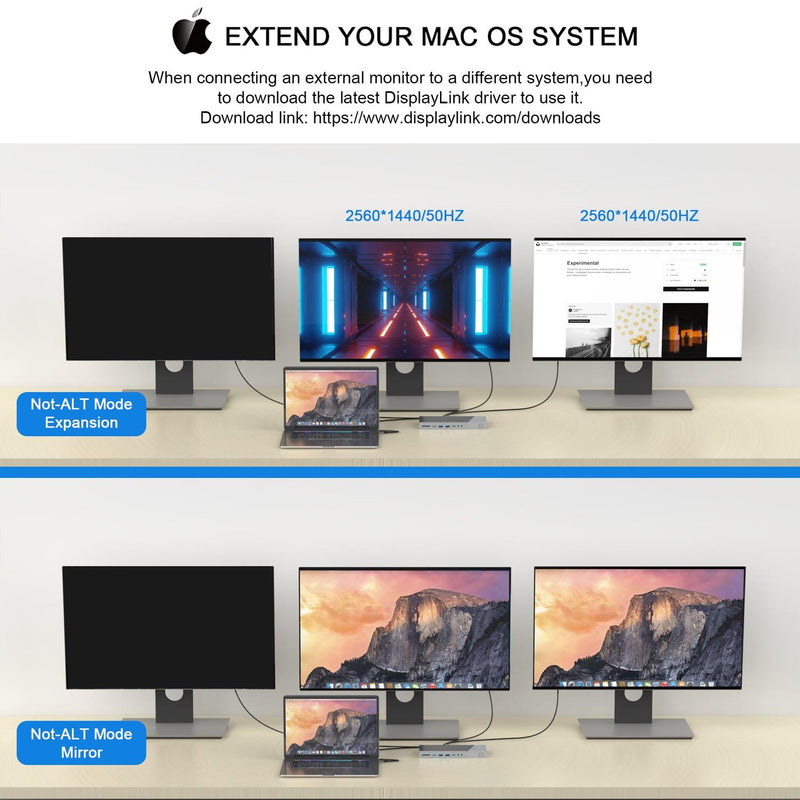

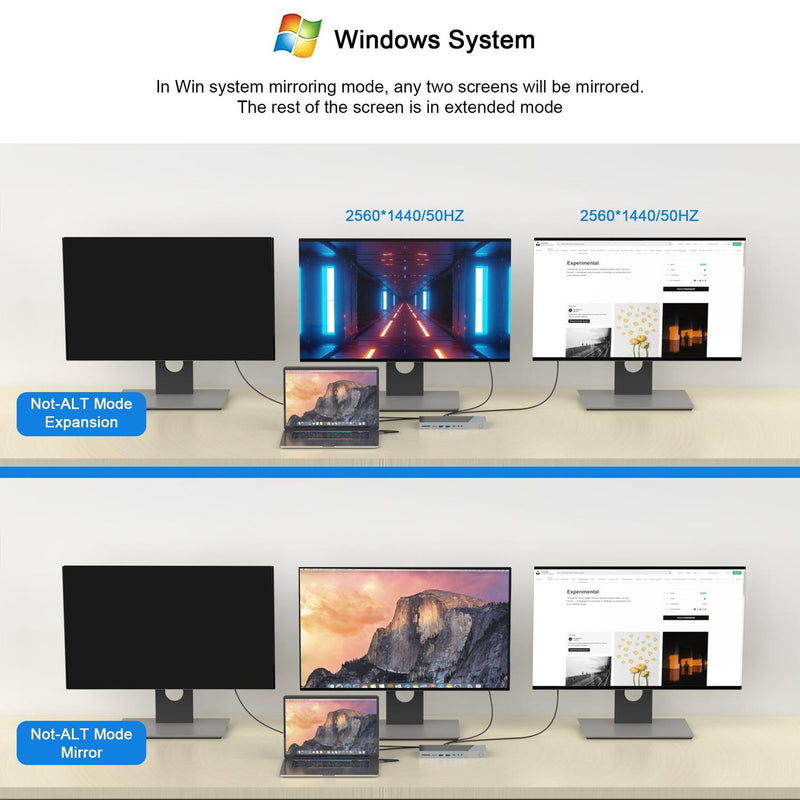

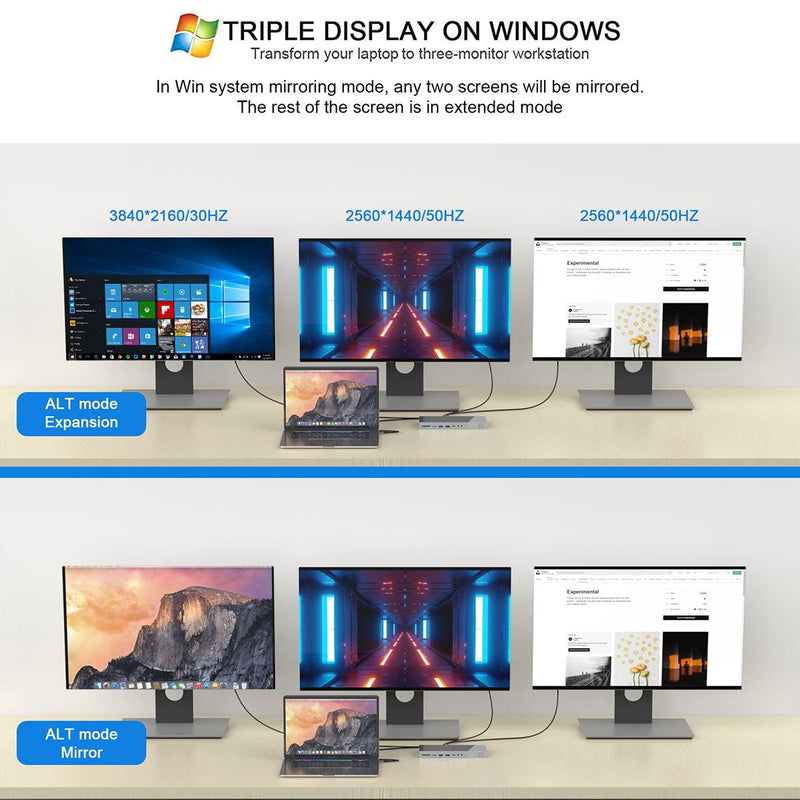

It is possible to connect three external monitors to the computer (a total of 4 monitors including your computer's monitor) via 3xHDMI ports on the dock. The docking station supports MST and this means that you can mirror (Mirror) or extend (Extended) up to three external monitors. For more info see the pictures. The MST function applies to both Windows and Mac including Mac M1 and M2. The docking station is capable of 4K 30Hz but only for an external monitor.

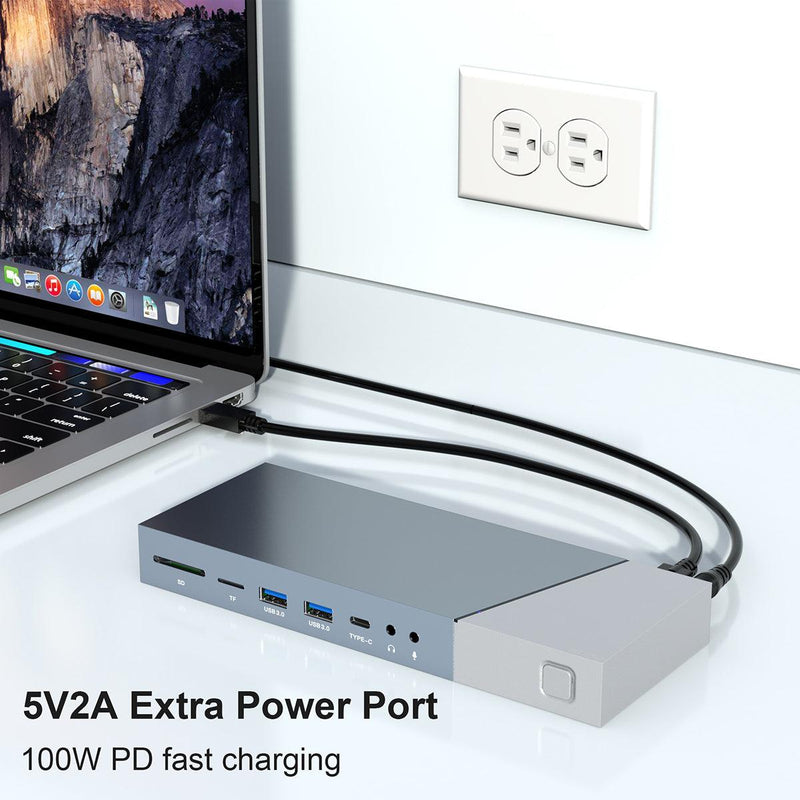

The HDMI ports are backwards compatible with 4K 30Hz, 2K50Hz, 1080p, 1080i and 720P. The USB-A 3.1 ports can handle data transfer speeds up to 5Gbps and the USB-C 3.2 Gen2 port supports Power Delivery up to 100W and data transfer speeds up to 10Gbps. The docking station is powered by a USB charger 5V2A (not included. USB charging cable included)
A perfect USB-C docking station for MacBook, MacBook Air / Pro, iMac / iMac Pro, Chromebook Pixel, Dell, ASUS, HP, Lenovo and more other Type C laptops. The docking station with DisplayLink chipset supports USB-A ports USB3.1, USB3.0. and USB2.0.
Compatible with Windows, MacOs, Linux and Android.
Two USB cables are included in the package:
USB-C to USB-C that can be used to connect the dock to USB-C ports in your computer
USB-C to USB-A cable that can be used to connect the dock to USB-A ports in your computer

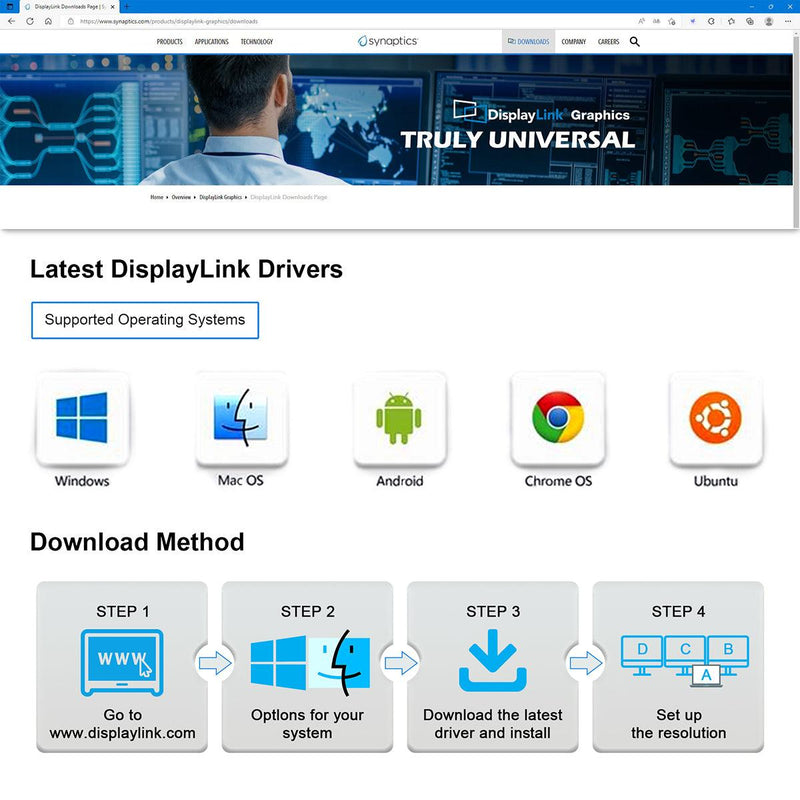

Drivers can be downloaded here.

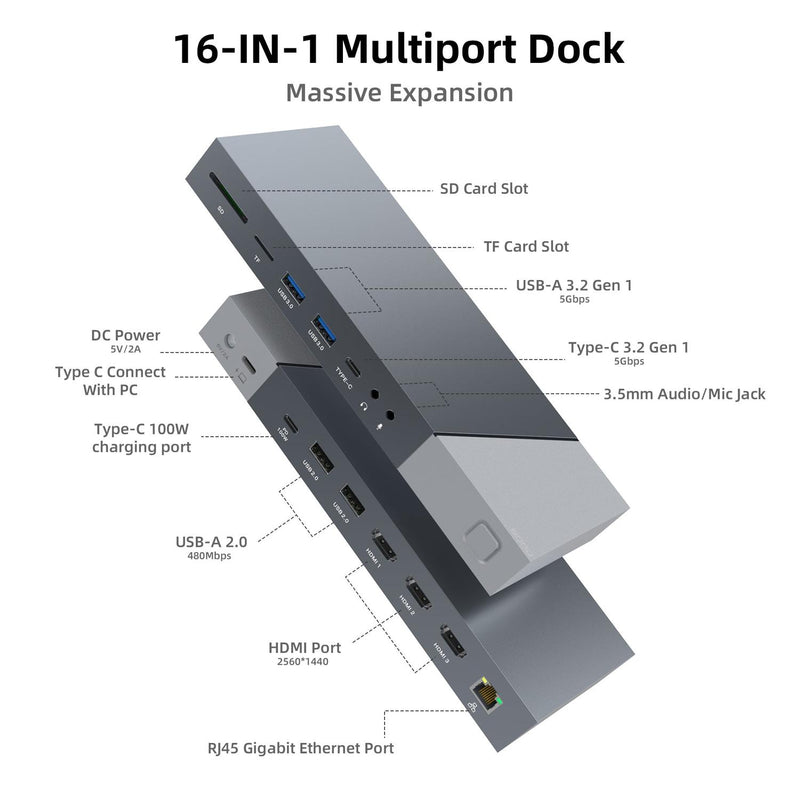

Chipset: DL3900+VL817+CS5262
Input: USB-C 3.2 10Gbps
Output: 1xHDMI4K30Hz if only one monitor is connected

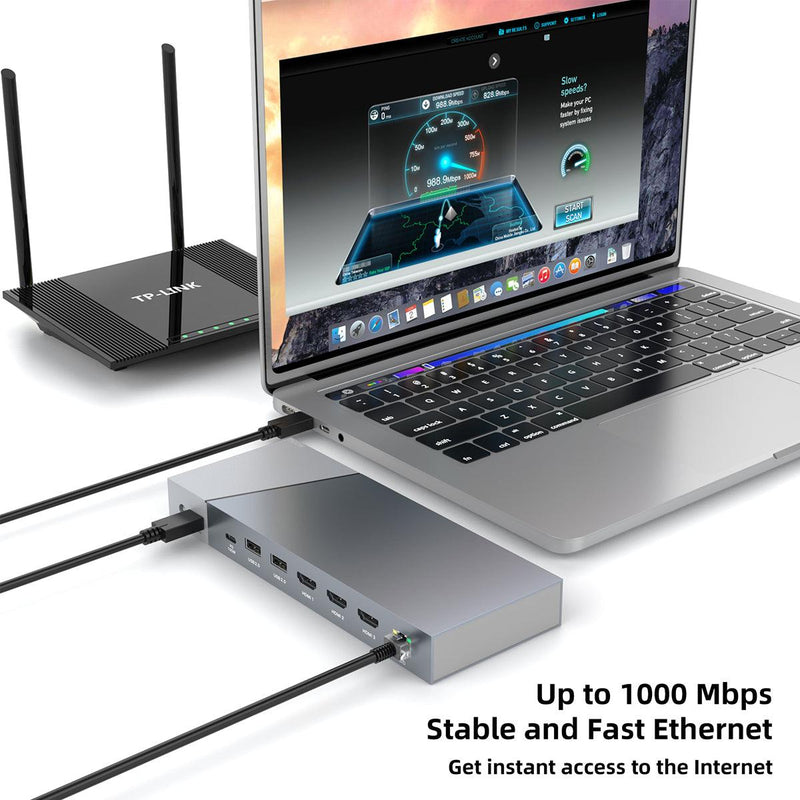

- 1xRJ45 LAN Giga
- 1x card reader SD/TF

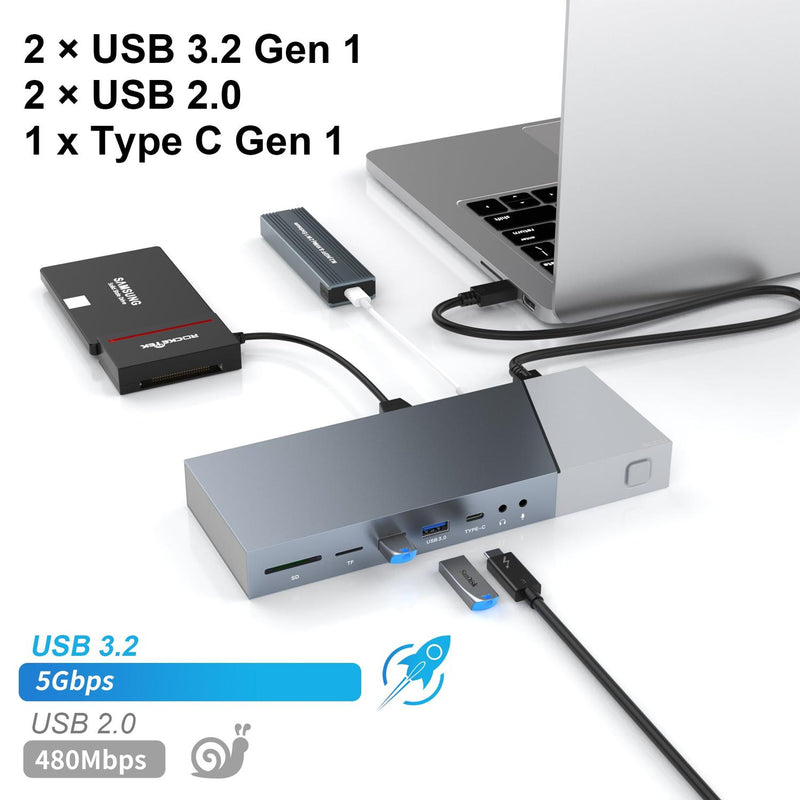

- 2xUSB-A 3.1 5Gbps
- 2xUSB-A 2.0 480Mbps
- 1xUSB-C 3.2 10Gbps
- 2xCard reader SD and MicroSD: Read speed 50-104Mbps write speed 30-80Mbps
- 1xUSB-C PD: Up to 100W (for accessories, not the computer)

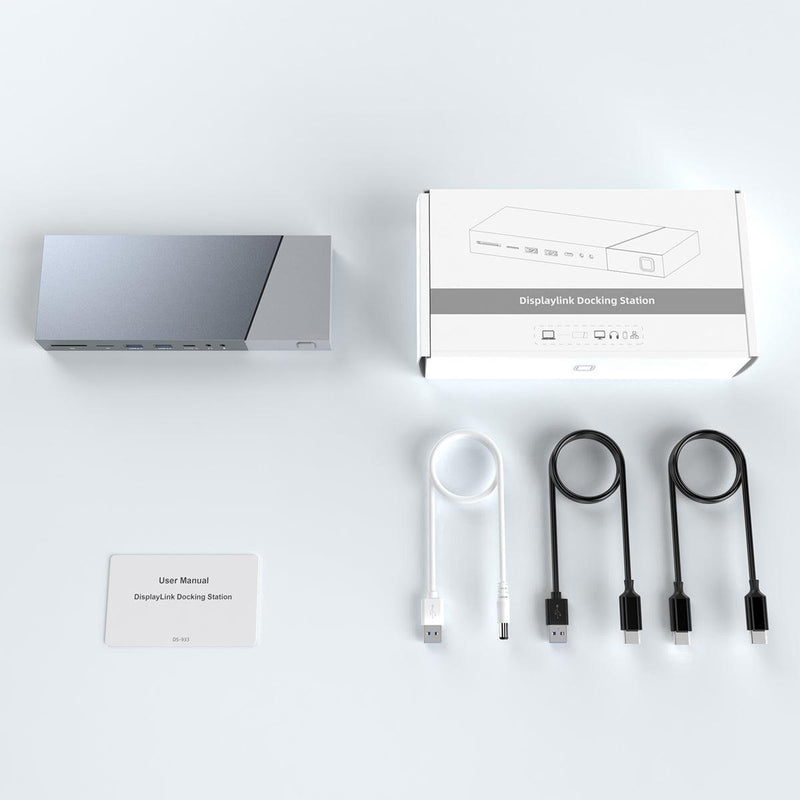

Contents:
- 1xDocking Station
- 1xUSB Charging Cable
- 1xUSB-C to USB-C cable approx. 1m
- 1xUSB-C to USB-A cable approx. 1m
- Manual
