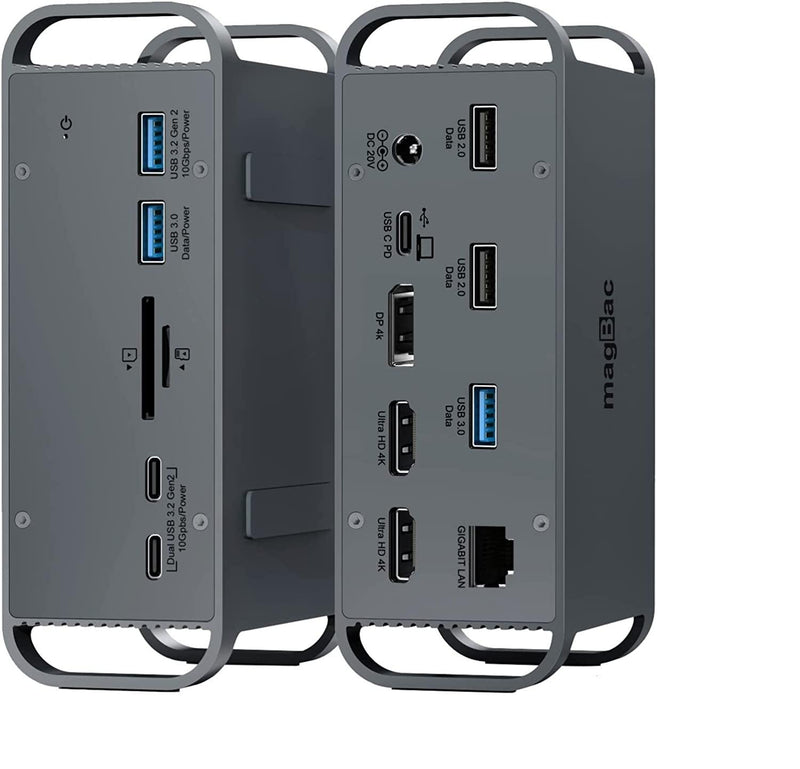

NÖRDIC 1 to 15 USB-C docking station allows you to expand a USB-C port in your computer to 2xHDMI 2.0, 1x DP 1.2, 1xUSB-C 3.2 Gen2, 1xUSB-C Power delivery 65W, 1xUSB-C 3.0, 2xUSB- A 3.2 Gen2, 1xUSB-A 3.0, 2xUSB-A 2.0, 1xRJ45, 1xDC in, 1xSD card input, 1xTF card input.
The docking station supports up to three external monitors, two via HDMI and one via Displayport. The resolution for one monitor is max 4k60hz, for two it is 4k30hz and for three it is 2k60hz. The docking station also supports MST, which means that it can both mirror or extend the external monitors. Extended only works on Windows.
The three USB 3.2 Gen2 ports support data transfer speeds up to 10Gbps, the USB 3.0 ports support speeds up to 5Gbps and the USB 2.0 ports support speeds up to 480Mbps. Use the 65W DC in port to power both the docking station and your computer via the USB-C PD port and connect wired internet via the RJ45 port.

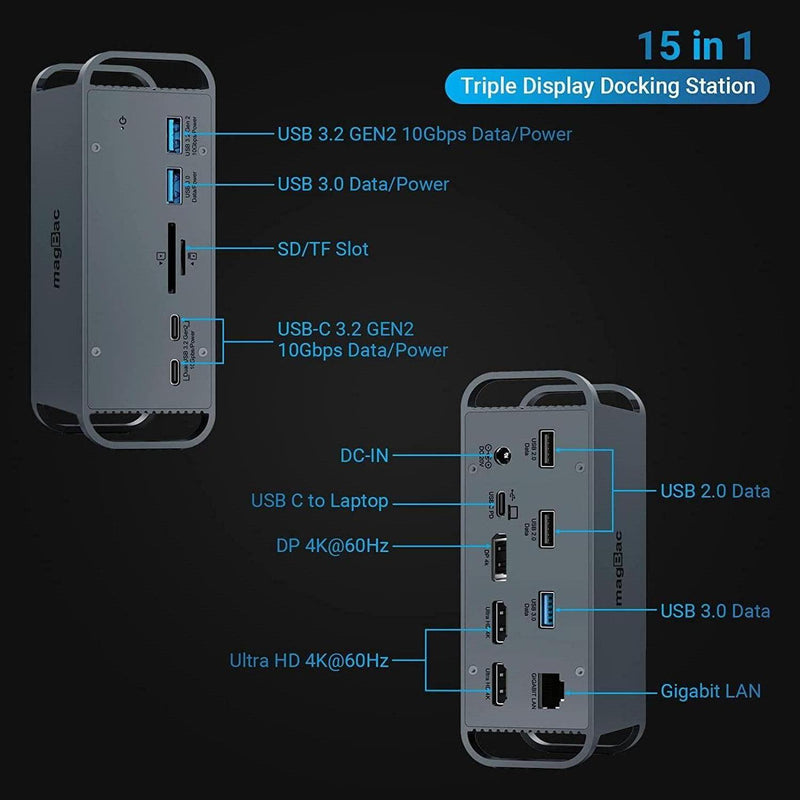

Specifications:
- Inputs:
1xUSB-C
1xDC 65W
- Outputs:
2xHDMI 2.0
1xDP 1.2
1xUSB-C 3.2 Gen2 10Gbps
1xUSB-C Power Delivery 65W
1xUSB-C 3.0 5Gbps
2xUSB-A 3.2 Gen2 10Gbps
1xUSB-A 3.0 5Gbps
2xUSB-A 2.0 480Mbps
1xRJ45 10/100/1000Mbps
1xSD Card input
1xTF Card input
- Resolutions:
1 monitor max 4k60hz
2 monitors max 4k30hz
3 monitors max 1920x1080 60hz
- Chipset:
Power delivery: VL103R
USB 3.1 Gen 1: VL817
USB 3.1 Gen 2: VL822
USB 2.0: FE1.1S
Card reader: RTS5306
HDMI: VMM5310
Network: AX88179A
- Contents:
1xDocking station
1x65W power supply
1xUSB-C to USB-C
1xmanual
