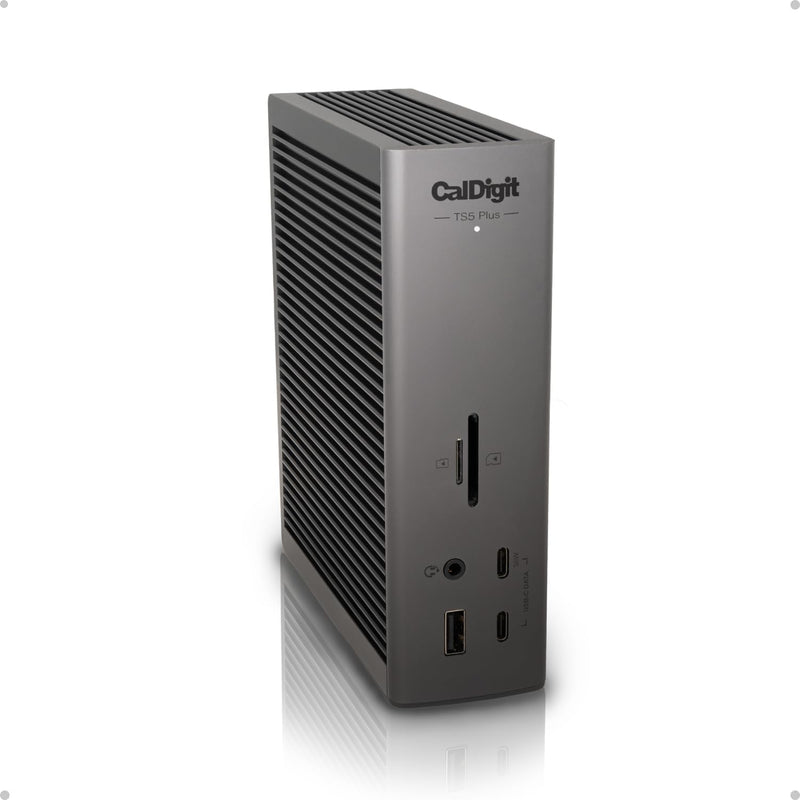

CalDigit TS5 Plus is the most advanced Thunderbolt 5 dock on the market, delivering 20 ports for maximum connectivity. With support for up to 120Gb/s bandwidth, three external displays on Windows, 10GbE networking, and 140W power delivery, the TS5 Plus is designed for professional users who demand speed, stability, and flexibility. It supports high-resolution displays up to 4K 144Hz or 5K/6K on compatible Thunderbolt and DisplayPort connections, making TS5 Plus ideal for creative workflows, gaming, and professional graphics.
Specifications

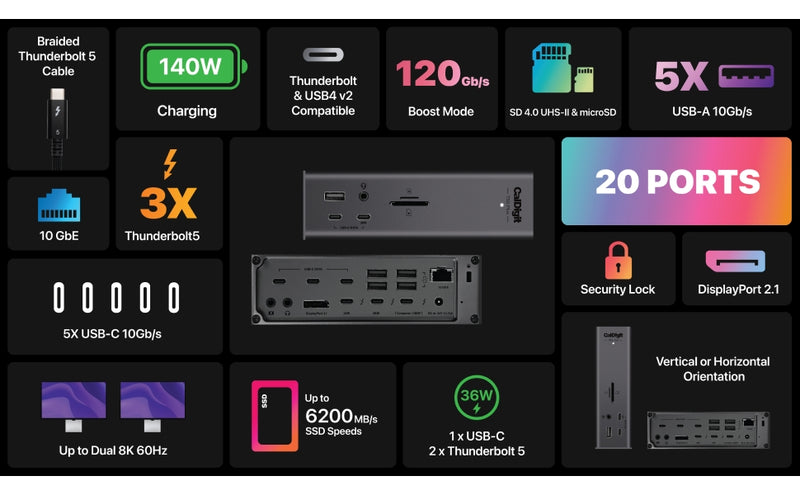

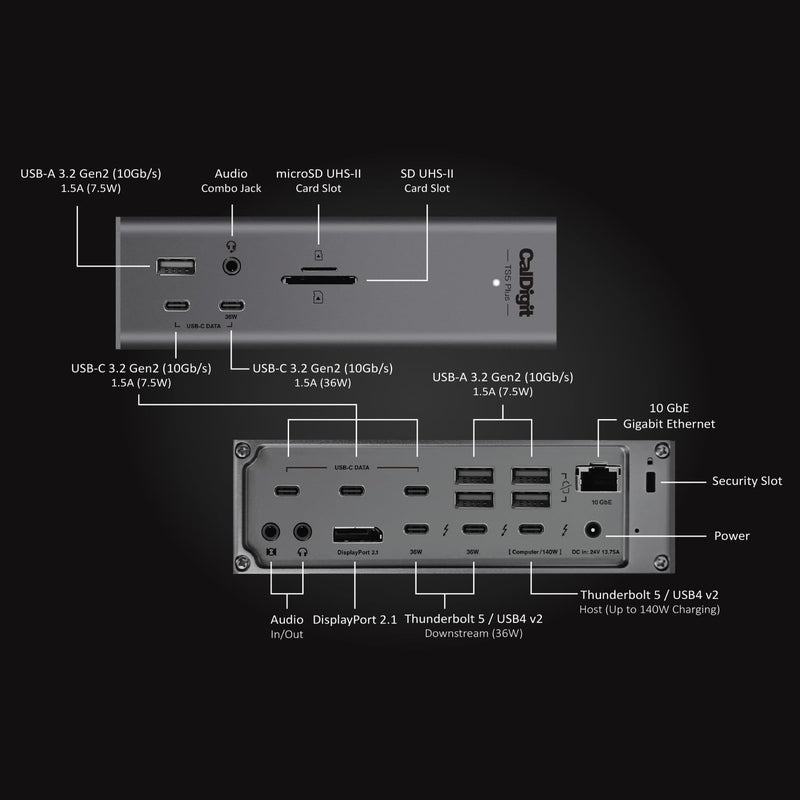

Number of ports: 20
Thunderbolt 5: 1× host port (120Gb/s), 2× downstream ports (80Gb/s)

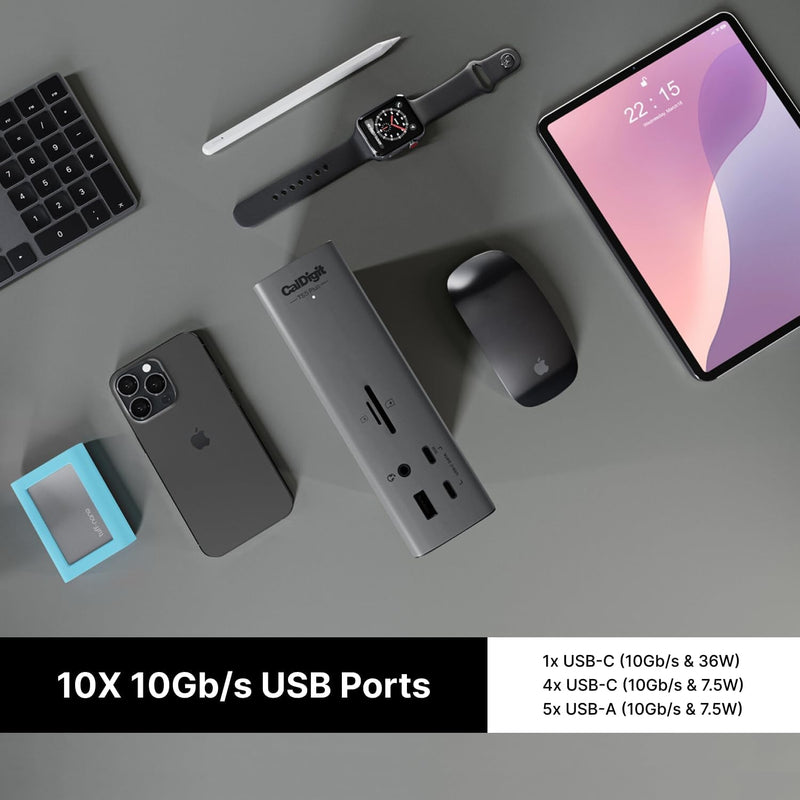

USB: 5× USB-C (10Gb/s), 5× USB-A (10Gb/s)
Display: 1× DisplayPort 2.1, supports up to 3 displays on Windows
Single display: up to 8K 60Hz (Thunderbolt 5/USB4)
Dual display: up to 5K 60Hz per display
Triple display (Windows): up to 4K 144Hz
Storage: SD 4.0 (UHS-II), microSD 4.0 (UHS-II)
Network: 10 Gigabit Ethernet
Audio: 1× front 3.5mm combo, 1× rear audio out, 1× rear audio in
Power delivery: up to 140W to host, 36W via Thunderbolt/USB-C, 7.5W via other ports
Dimensions: 155 × 47 × 127.9 mm
Weight: 0.90 kg
Features
20 ports usable simultaneously

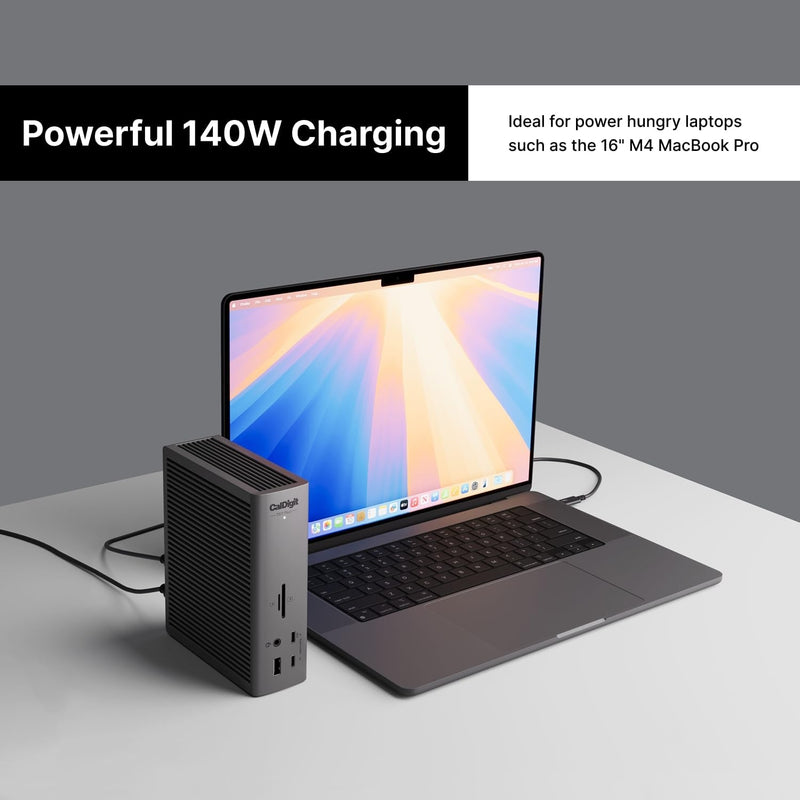

140W charging for powerful laptops like MacBook Pro 16″ M3/M4 Pro/Max

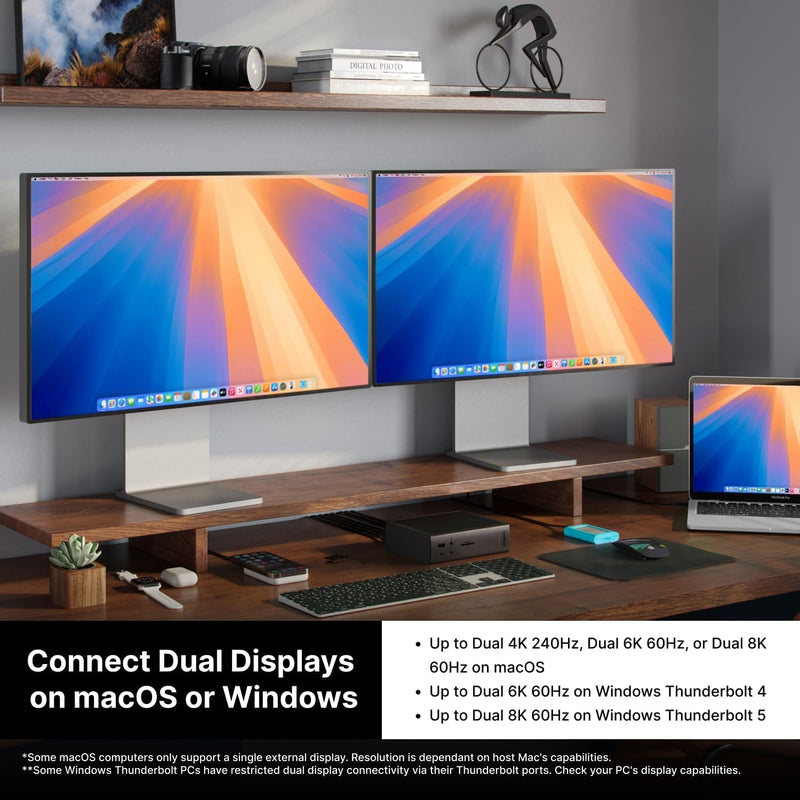

Supports up to three high-resolution external displays with high refresh rate
Bandwidth Boost prioritizes high-performance monitors

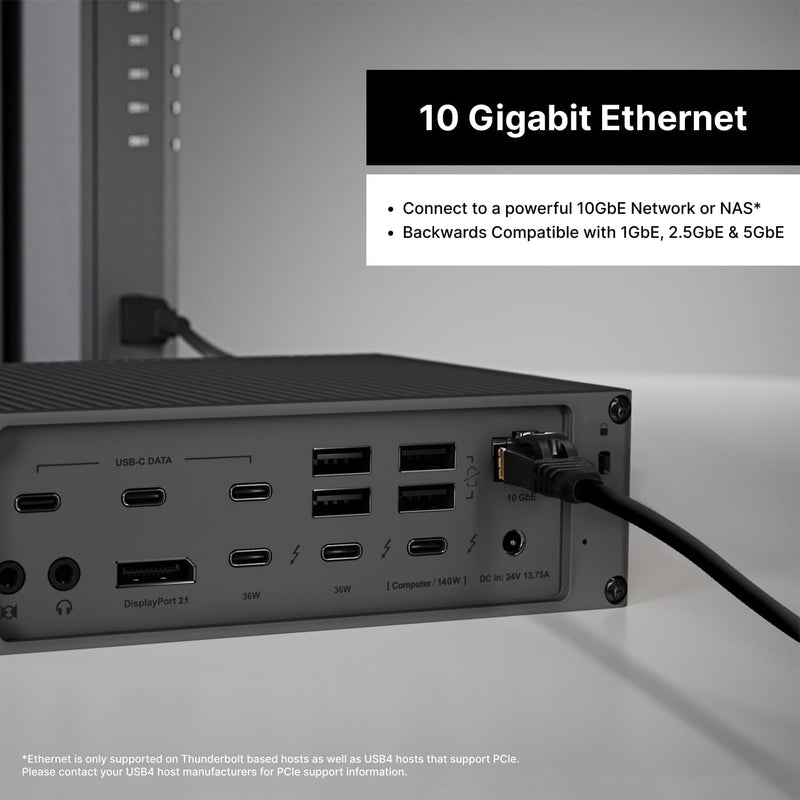

10GbE for lightning-fast network speeds
64Gb/s PCIe performance for external SSDs up to 6,200MB/s

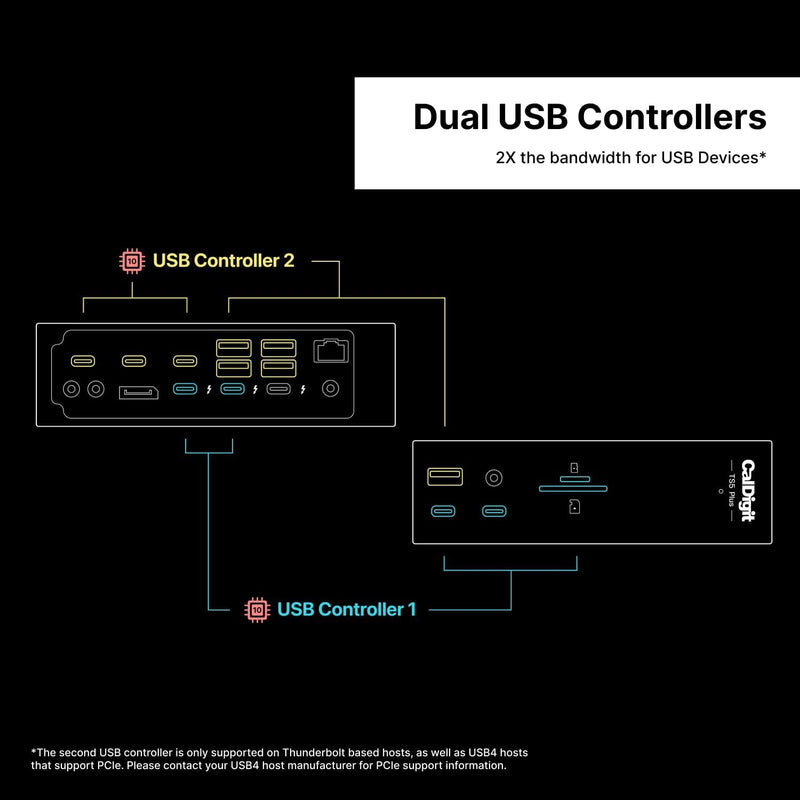

Two separate USB controllers for maximum transfer capacity
High-speed SD and microSD UHS-II card readers
Offline charging for mobile devices even without connected computer
Compatible with macOS, Windows, and iPadOS (Thunderbolt/USB4)
Package Contents
1× CalDigit TS5 Plus
1× Thunderbolt 5 braided cable (1m)
2× rubber feet
1× power cable
1× 330W power adapter
