One of the market's best Thunderbolt 4 docking stations that converts USB-C in the computer into 18 extra ports. Support for Thunderbolt4, Thunderbolt 3 and USB4.
Has support for:
Thunderbolt 3 and 4 PCs
USB4 PC
USB-C PC
USB-C Windows Tablet
Intel Thunderbolt 3 Mac¹
M1 Pro, M1 Max & M1 Ultra Thunderbolt 4 Mac¹
M1/M2 Thunderbolt 3 Mac¹
Thunderbolt or USB-C iPad²
Thunderbolt or USB-C Chromebook
¹ requires macOS 11.4 (Big Sur) or later
² Functions depend on host computer or tablet capacity
Connection of monitors
A monitor: If you're looking to add a single monitor to the TS4, you can either connect it to the DisplayPort connector or to one of the additional Thunderbolt 4 ports. If you want to connect an HDMI display, you can either connect an Active DisplayPort to HDMI adapter or use a USB-C to HDMI adapter.

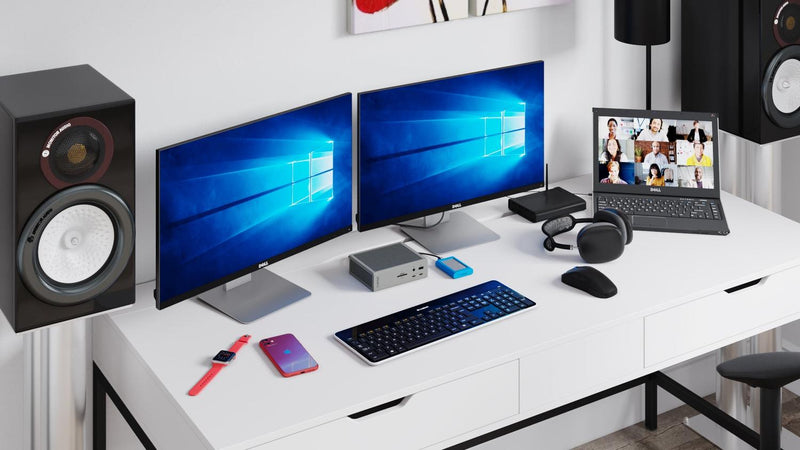

Dual monitors
MacOS users on M1 Pro, M1 Max or Intel-based Macs can connect up to dual displays.
M1/M2-based Macs do not support dual displays via their Thunderbolt ports.
Windows PC Thunderbolt 3 and Thunderbolt 4 users can connect up to dual displays.

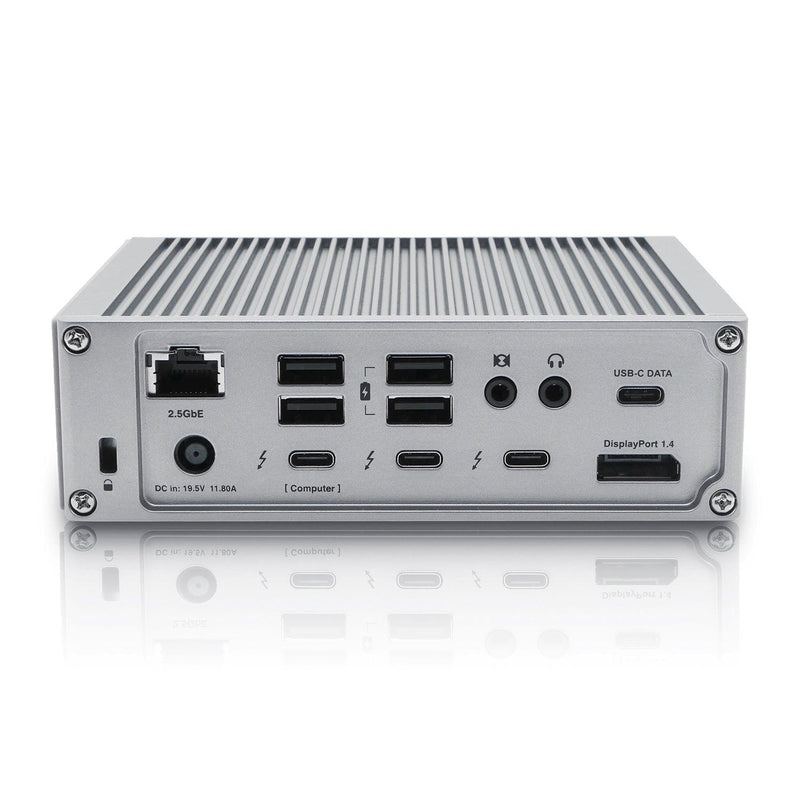

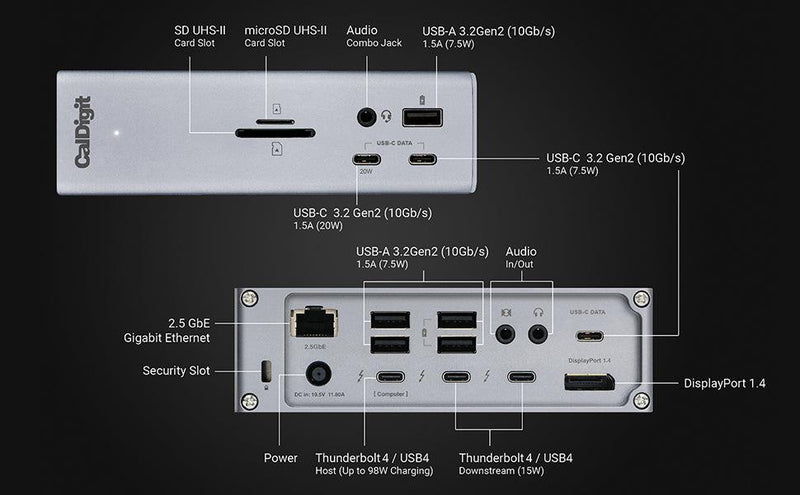

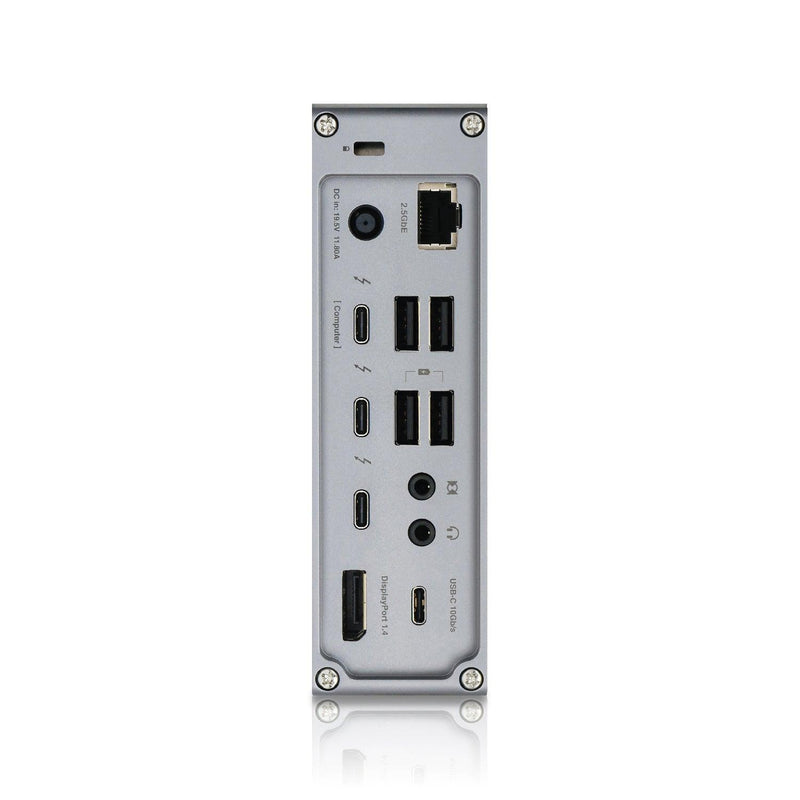

Input: 1x USB-C
Output:
1 x DisplayPort 1.4 8K60Hz or dual monitor 6K60Hz
3 x Thunderbolt 4 (40 Gb/s)
3 x USB-C (10 Gb/s)
5 x USB-A (10 Gb/s)
1 x SD 4.0 (UHS-II)
1 x microSD 4.0 (UHS-II)
1 x 2.5 Gigabit Ethernet
1 x Audio In/Out (3.5mm)
1 x audio output (3.5 mm)
1 x audio input (3.5 mm)
Minimum system requirements:
macOS 11.4 (Big Sur) or later
Windows 10 (20H2) or later
Thunderbolt 4 computer
Thunderbolt 3 computer
USB-C (USB4) computer
USB-C computer
Chromebook (Thunderbolt or USB-C)
iPad Pro/iPad Air/iPad mini (Thunderbolt or USB-C)
Windows Tablet (Thunderbolt or USB-C)
Power Delivery
Thunderbolt 4/USB4 Host Port: Up to 98W (5V, 9V, 15V/3A, 20V/4.9A)
Each Downstream Thunderbolt 4/USB4 Port: 15W (5V/3A)
Front 20W USB-C Port: 20W (5V/3A, 9V/2.22A)
Other USB-C Ports: 7.5W (5V/1.5A)
USB-A Ports: 7.5W (5V/1.5A)
Dimensions: 141x42x113mm
Weight: 640g
Content
1xCalDigit TS4
1xThunderbolt cable 80cm
1xPower supply with cable
