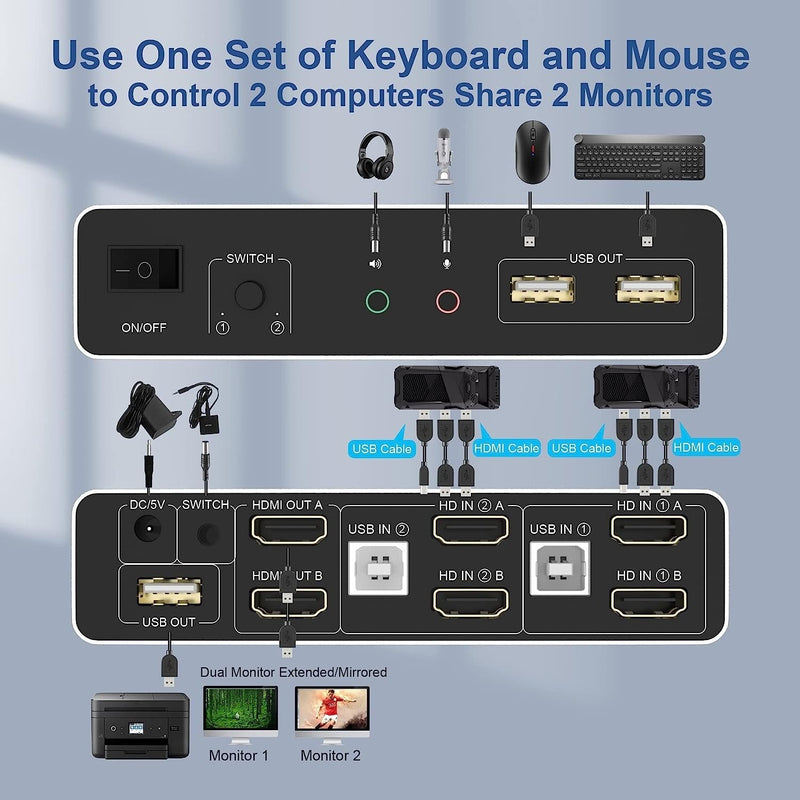

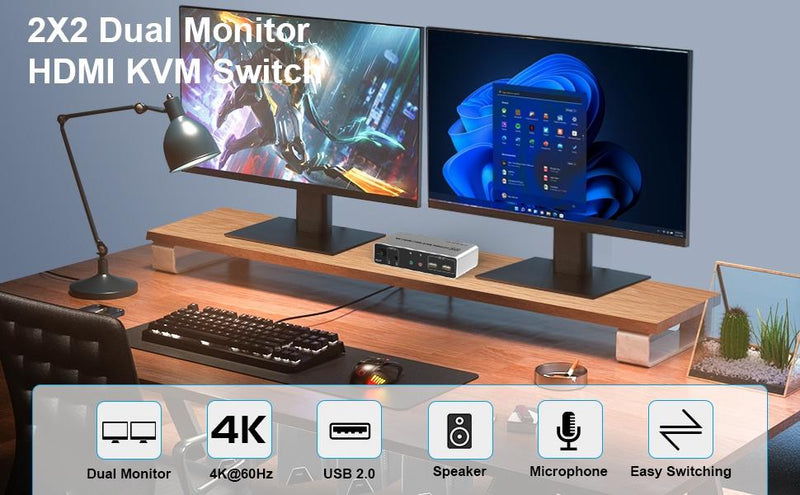

The NÖRDIC 2-PC HDMI KVM Switch lets you connect 2 computers sharing two displays and 3 USB-A ports for accessories. Connect to the switch with two HDMI cables from each computer, one for each display. The HDMI outputs support resolutions up to 4K60Hz. It is possible to both extend and mirror the computer's desktop.

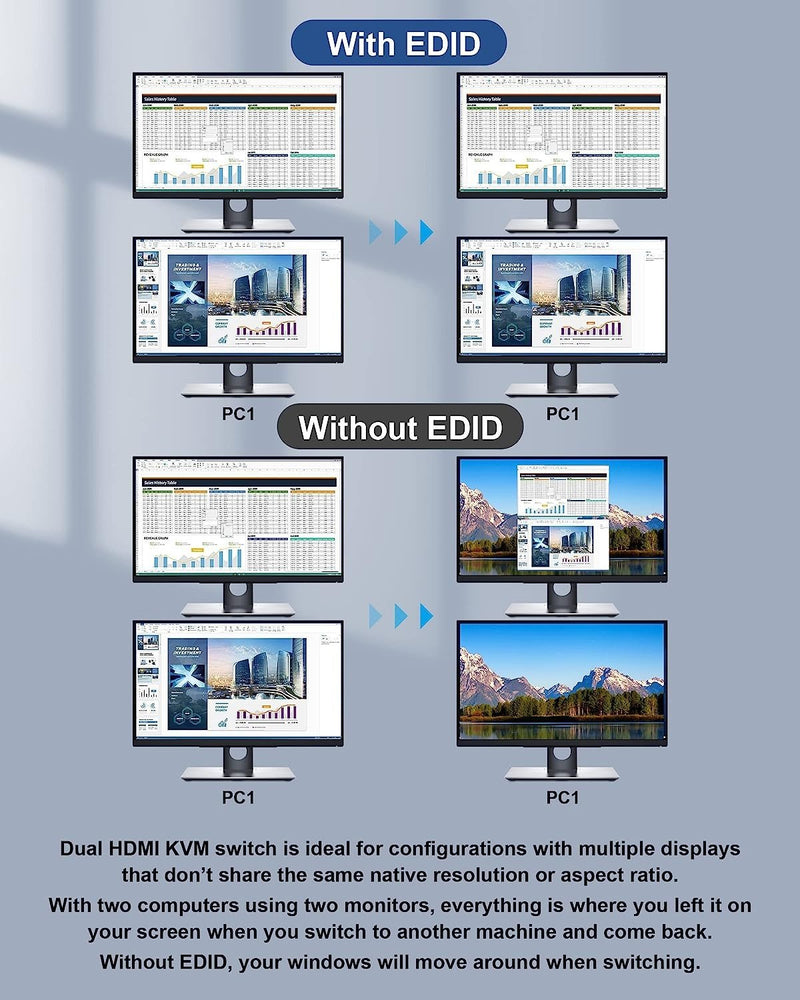

The switch has an EDID emulator that keeps all windows where you left them on the screen when you switch between computers. The EDID emulator makes switching between computers faster and makes it easy to use with screens of different resolutions.
With the three USB 2.0 ports you can connect a mouse, keyboard, printer and more that both computers share. The switch also has outputs for both headphones and microphone so you can connect a headset without taking up one of the USB ports. It is easy to switch between connected computers either via a button on the switch or with an external control that can be placed on the desk. The switch does not require any drivers. Compatible with Windows, MacOS, Linux, Unix, Ubuntu.
Technical specifications:
-

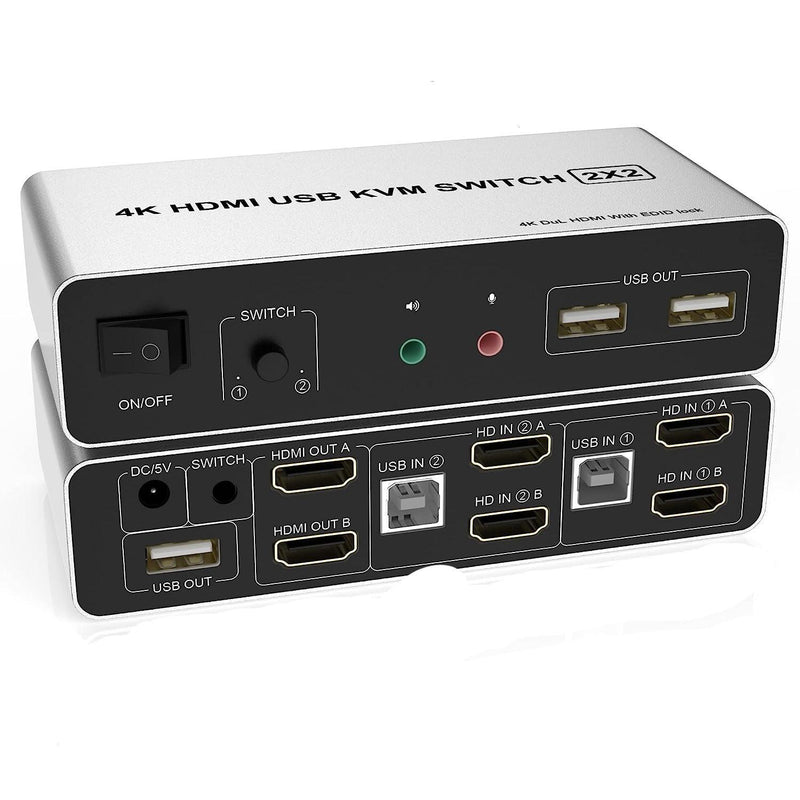

Input:
4x HDMI 2.0 4K60Hz (2 per computer)
2x USB-B data (1 per computer)
1x DC 5V
-
Output:
2x HDMI 2.0 4K60Hz
3x USB-A 2.0
2x 3.5mm AUX
-
Video:
- Resolutions:
4096x2160 60Hz
3440x1440 60Hz
2560x1440 144/120/60Hz
1920x1080 240/120/60Hz
- Bandwidth: 18Gbps
- Data rate: 14.4 Gbps
- HDCP/DPCP: 2.2/1.0
- HDR: 10
- Color format: RGB, 4:4:4, 4:4:2, 4:2:0, 4:0:0
- Color depth: up to 16bpc
-
Audio:
- HDMI; PCM 2.0/ LPCM 5.1/7.1 Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, DTS:X
- Way to switch on: Button on the switch, external control
- Wireless mouse and keyboard support: RF, Bluetooth (some special gaming and multimedia keyboards and mice may be incompatible)
- Operating System: Windows 11/10/9/8/7/XP, MacOS, Linux, Ubuntu, Unix
- Power: DC 5V/1A
- Environment: 0 to 45°C in use, -20 to 50°C in storage
- Dimensions: 130x60x30 mm
- Weight: 225g
- Color: Silver
- Material: Aluminum
- Drivers: No drivers, Plug & Play
-
Content:
1x KVM-118
2x USB-A to B cables
1x Power adapter 5V1A
1x External control
1x Manual
