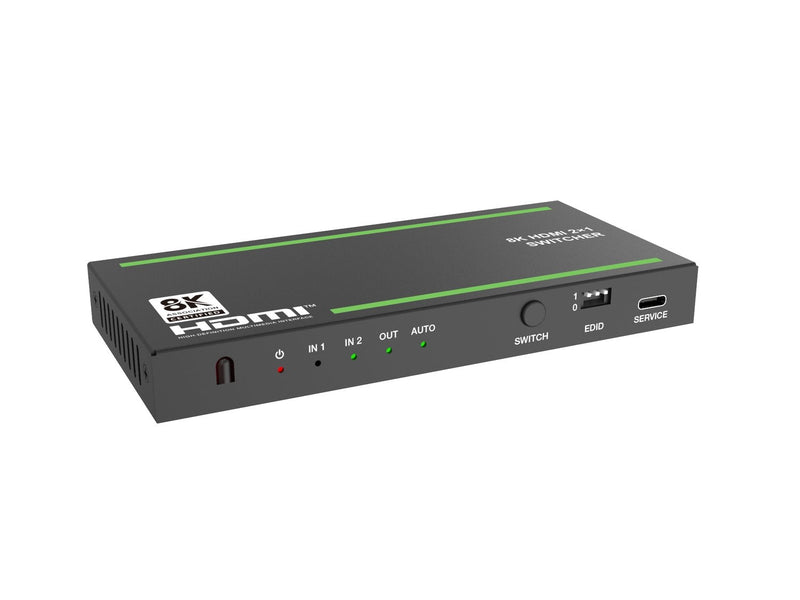

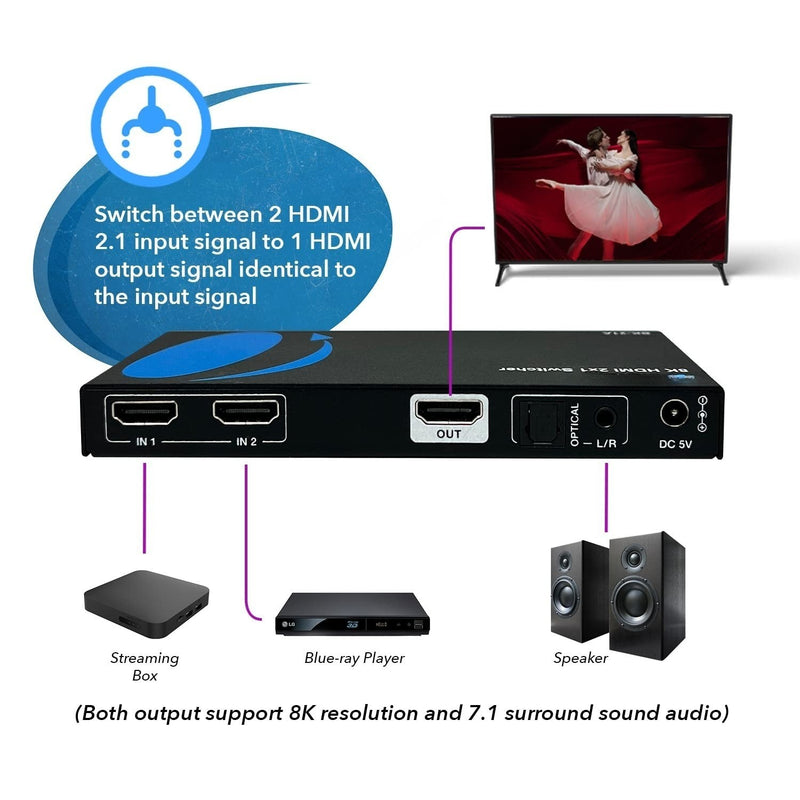

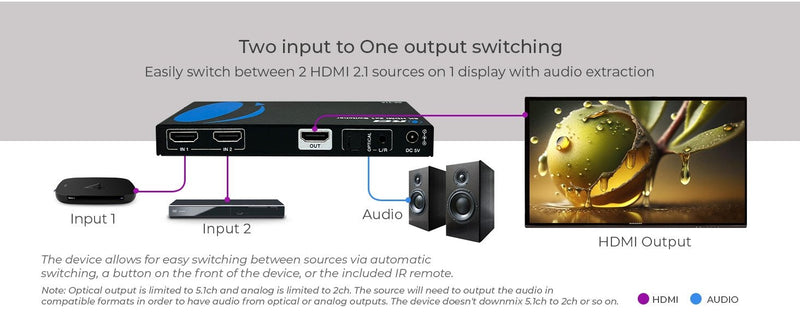

This HDMI switch allows you to connect and switch between 2 HDMI sources to an HDMI display, and in addition to this also extract the audio via optical S/PDIF or 3.5mm AUX. The switch supports resolutions up to 8K@60Hz 4:2:0 10 bit. Please note that HDMI 2.1 cables are required for the highest resolutions. Also supports HDCP 2.3 and is backwards compatible with previous versions. Maximum bandwidth 48 Gbps and data rate 41.92 Gbps. Supports color formats RGB Y'CbCr 4:4:4, 4:2:2, 4:2:0 and color depth up to 16bpc.
No drivers are required and the extractor is powered by the included 5V1A power cable. Please note that this switch is not bidirectional and only works as a 2 to 1 switch, not a 1 to 2 splitter.
Specifications:

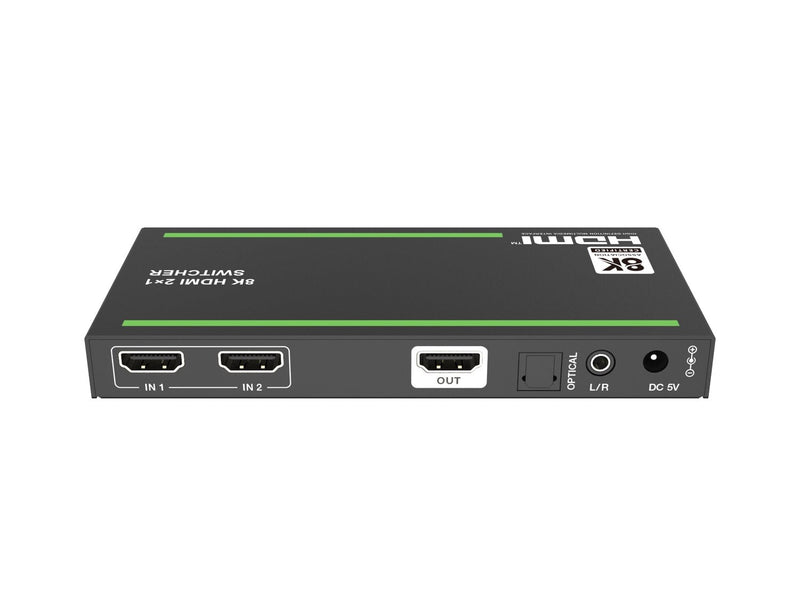

- Inputs:
2x HDMI 2.1
1x DC 5V1A
- Outputs:
1x HDMI 2.1
1x S/PDIF
1x 3.5mm AUX
- Resolutions: 8K@60Hz 4:2:0 10 bit, 8K@/30Hz 4:4:4 10 bit, 4K@120/60/30Hz, 1080P@240/120/60Hz
- Bandwidth: 48Gbps
- Data rate: 41.92Gbps

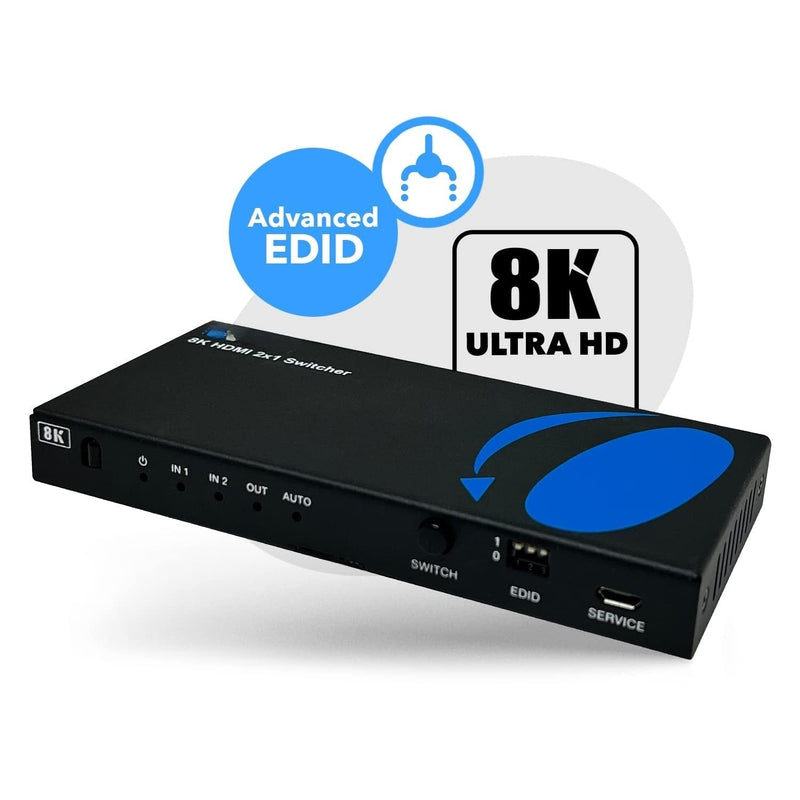

- EDID support for easy connection
- Support for: HDMI CEC, HDR/10/10+, VRR, ALLM, FVA and HLG pass-through
- Color format: RGB Y'CbCr 4:4:4/4:2:2/4:2:0
- Color depth: up to 16bpc
- Audio format:
AUX: PCM 2.0 stereo
S/PDIF: LPCM 2.0/2.1/5.1 DTS 5.1,
HDMI: LPCM 2.0/2.1/5.1/7.1, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
- No drivers required, Plug and Play
- Dimensions: 145x68x18 mm
- Weight: 258g
- Color: Black
- Content:
1x SGM-249
1x Power supply 5V1A
1x Remote control
1x Manual
