NÖRDIC 8K 60Hz HDMI 2.1 Extractor HDMI/S/PDIF/Coaxial/AUX

This 8K HDMI extractor allows you to separate audio and video signals from your HDMI sources. The extractor accepts up to 8K60Hz media and can extract the audio to HDMI, Coaxial, S/PDIF or 3.5mm AUX for your speakers or headphones. The video signal is passed on completely unchanged. Easily switch which audio output you want to use via the button on the extractor.

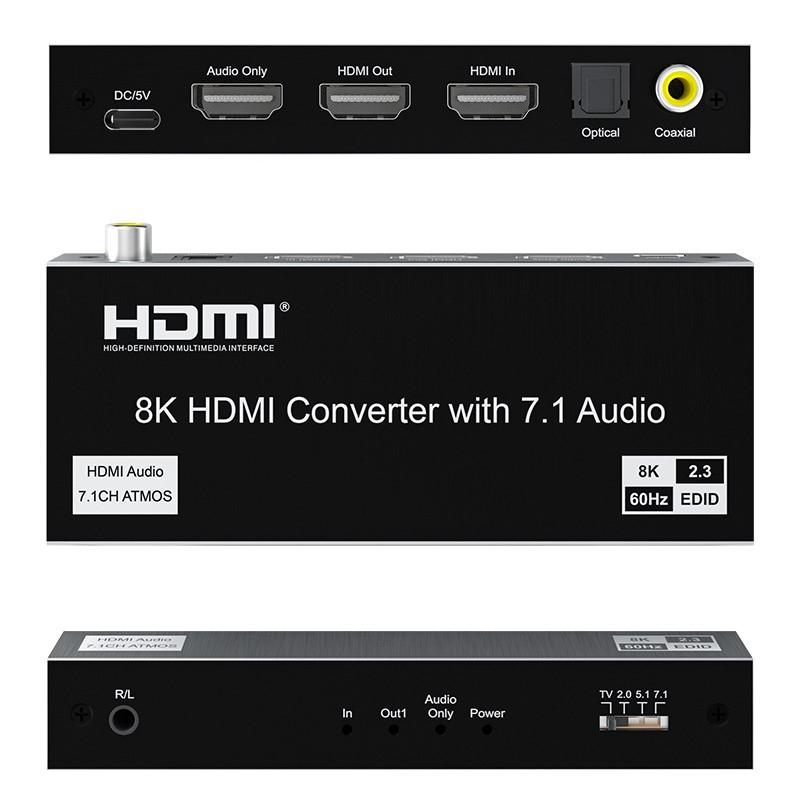

• Inputs:
  HDMI 2.1
  USB-C DC 5V
• Outputs:
  HDMI 2.1
  HDMI Audio
  Coaxial
  S/PDIF Toslink
  3.5mm AUX
• Video:
  • Resolutions:
    8K 60/30Hz
    4K 120/60/30Hz
    1080p 60Hz
  • Color format: RGB, YCbCr 4:4:4, 4:2:2, 4:2:0
  • Color depth: 8/10/12 bit
  • Bandwidth: up to 40Gbps
  • HDCP: 2.3, backward compatible
  • Support for VRR, ALLM and HDR/HDR10
• Audio:
  • HDMI: PCM 2.0, LPCM 5.1/7.1, Dolby Digital, Dolby Digital Plus, Dolby True HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD MASTER, DTS:X
  • S/PDIF & Coaxial: LPCM 2.0/5.1, Dolby Digital 2.0/7.1, DTS 2.0/5.1
  • 3.5mm AUX: PCM 2.0 Analog stereo
• Recommended cable length: for the highest possible resolution, a maximum of 3 meters in and 5 meters out is recommended
• Power: 5V 1A (power supply and cable included)
• Color: Black
• Material: Aluminum
• Dimensions: 120x50x20 mm
• Weight: 120g
• Content:
  SGM-255
  Power supply and power cable 5V 1A
  Manual
