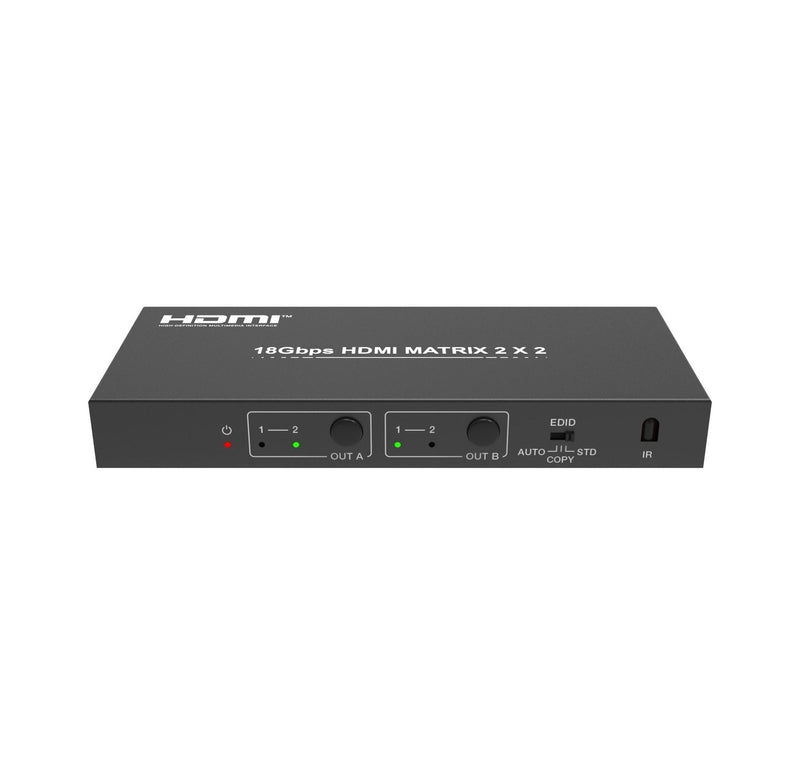

This HDMI extractor allows you to connect, switch and extract audio from up to 2 HDMI sources to two HDMI displays. The extractor supports resolutions up to 4K@60Hz 4:4:4. Please note that HDMI 2.0 cables are required for the highest resolutions. Also supports HDCP 2.2 and is backward compatible with previous versions. Maximum bandwidth 18 Gbps and data rate 14.4 Gbps. Supports color formats RGB Y'CbCr 4:4:4, 4:2:2, 4:2:0 and color depth up to 16bpc. The audio is extracted via 3.5mm AUX, optical S/PDIF or HDMI and the extractor supports 2 channel, 5.1 and 7.1 channel audio (note 7.1 only via HDMI).
No drivers are required and the extractor is powered by the included 5V1A power cable.
Specifications:

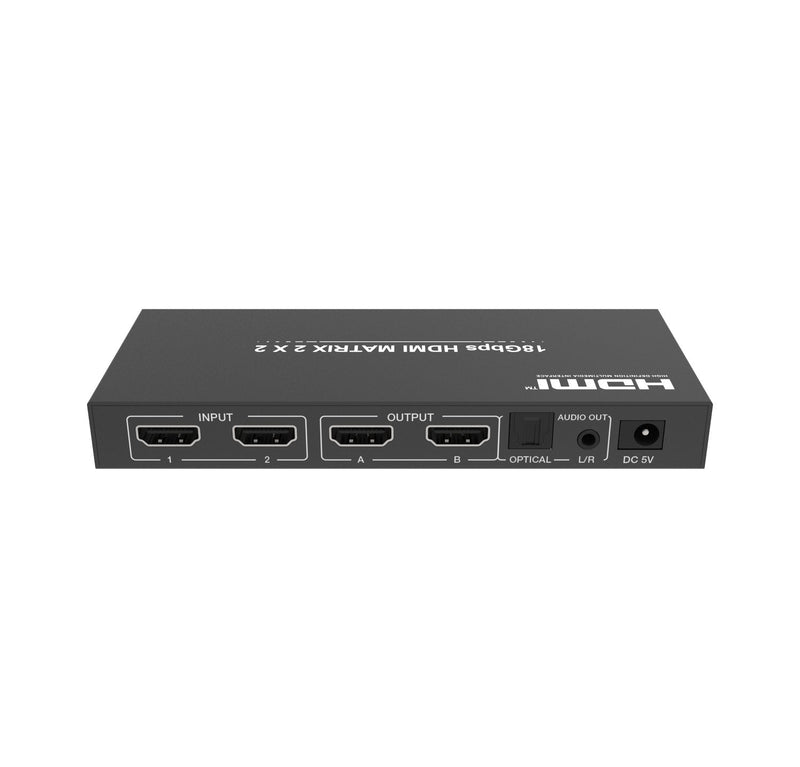

- Inputs:
2x HDMI 2.0
1x DC 5V1A
- Outputs:
2x HDMI 2.0
1x S/PDIF
1x 3.5mm AUX
- Resolutions: 4K@60/30Hz, 2K@60/30Hz, 1080P@120/60Hz
- Bandwidth: 18Gbps
- Data rate: 14.4Gbps
- EDID support for easy connection
- Support for: HDMI CEC, HDR/10/10+, VRR, ALLM, Dolby Vision, QMS, QFT, SBTM and HLG pass-through
- Color format: RGB Y'CbCr 4:4:4/4:2:2/4:2:0
- Color depth: up to 16bpc
- Audio format:
AUX: PCM 2.0 stereo
S/PDIF: LPCM 2.0/2.1/5.1 Dolby/DTS 5.1, Dolby True HD,
HDMI: PCM 2.0/5.1/7.1, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
- No drivers required, Plug and Play
- Dimensions: 144x60x18 mm
- Weight: 208g
- Color: Black
- Content:
1x SGM-244
1x Power supply 5V1A
1x Remote control
1x Manual
