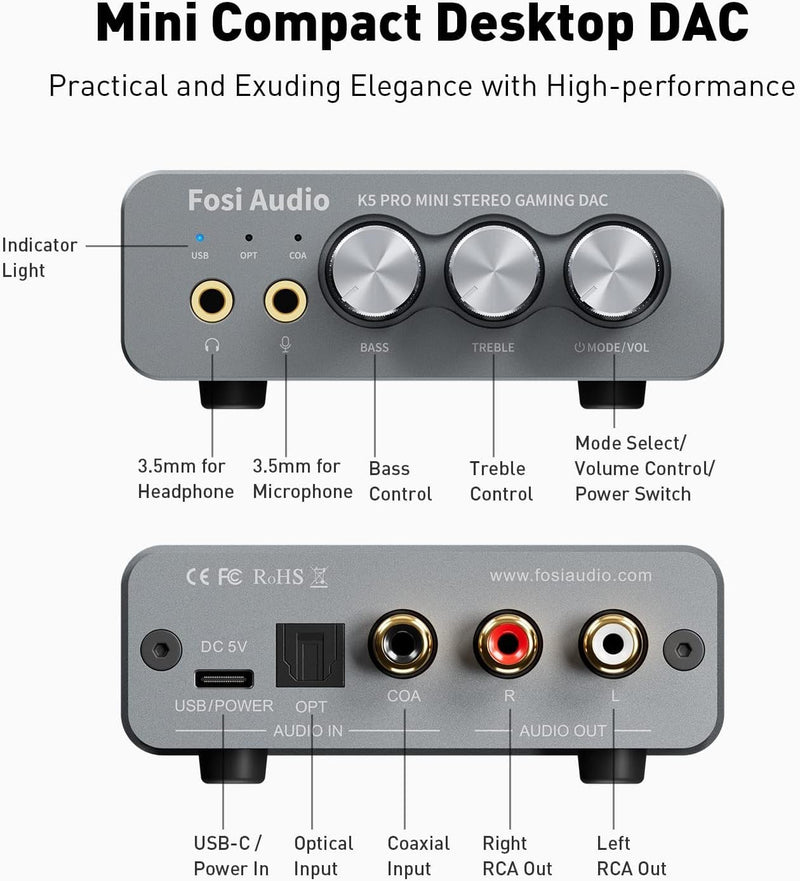

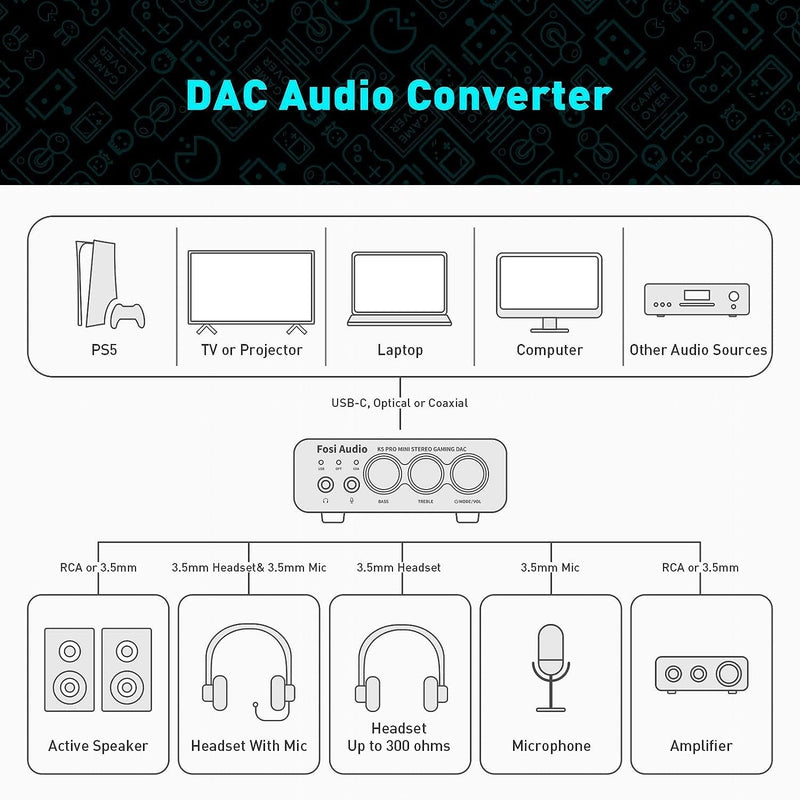

The K5PRO headphone amplifier is an upgrade of the DAC-Q4. It can be connected to most audio systems, headphones and microphones. It connects optically, coaxially or via USB-C and has two 3.5mm headphone and microphone ports and a set of RCA R/L outputs. The amplifier has an amplifier chip that can drive headphones and microphones with impedance from 16 Ohms to 300 Ohms. The unit's RCA output connects to an amplifier or powered speakers on a desktop computer.
The K5PRO incorporates high-performance operational amplifier chips from Texas Instruments. The device features very low noise, high output drive capability, high unity gain bandwidth, low distortion, and high slew rate, as well as input protection diodes and output short-circuit protection. The amplifier has a specified maximum limit for the corresponding input noise voltage.
The amplifier can deliver up to 1000 mW RMS (16 Ω, 20 Hz - 20 KHz, 0.003% THD) and is equipped with volume, bass and treble controls, making it suitable for use as a preamplifier or volume control for your PC/computer/Mac/headphones/speaker system. The device is easy to install and does not require any special software, app or driver installation, plug and play.
The DAC audio is a mini-compact D/A converter with a full metal shell that ensures high quality. It streams bit-perfect 24bit/192kHz HD with low jitter (24bit/96KHz for USB), with an output protection circuit to protect your expensive audio system.
Specifications:
- Input:
1x Optical S/PDIF
1x Coaxial
1x USB-C power and/or audio
1x 3.5mm microphone input
- Output:
1x RCA R/L
1x 3.5mm AUX headphones
- Max output:
1000mW@16Ω
500mW@32Ω
300mW@64Ω
150mW@128Ω
80mW@300Ω
- Impedance: 16-300Ω
- Bass and Treble levels: ±6dB
- DC 5V via USB-C
- Sampling frequency:
USB: 24bit/96kHz
Optical/Coaxial: 24bit/192kHz
- Frequency: 20Hz-20kHz(±3dB)
- THD: ≤0.003%
- SNR: ≥110dB
- Dimensions: 112x95x30mm
- Weight: 250g
- Color: Gray

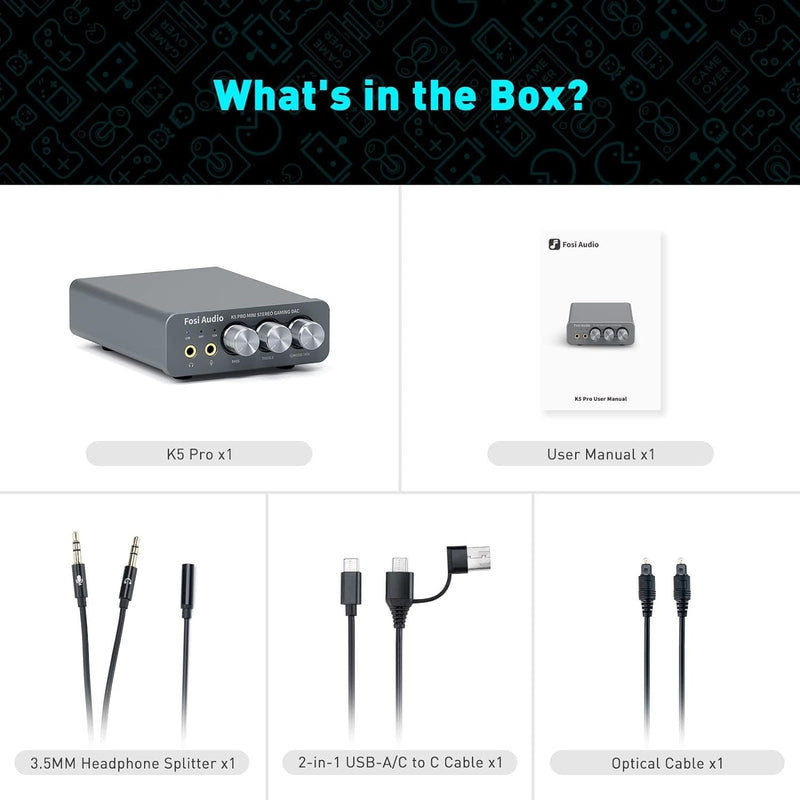

- Content:
1x K5PRO
1x USB-A/C to C cable
1x 3.5mm splitter
1x Optical cable
1x Manual
