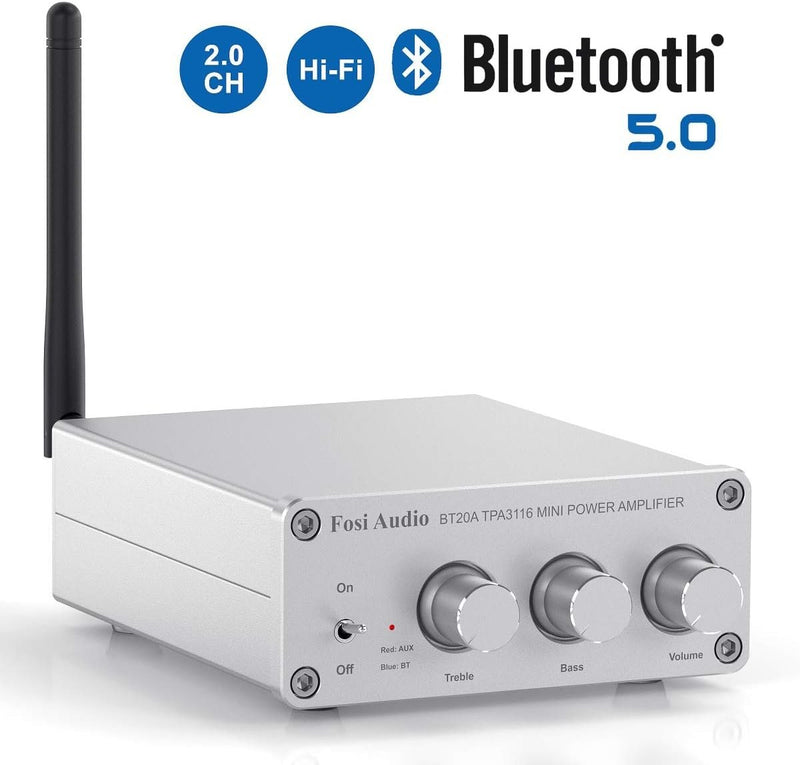

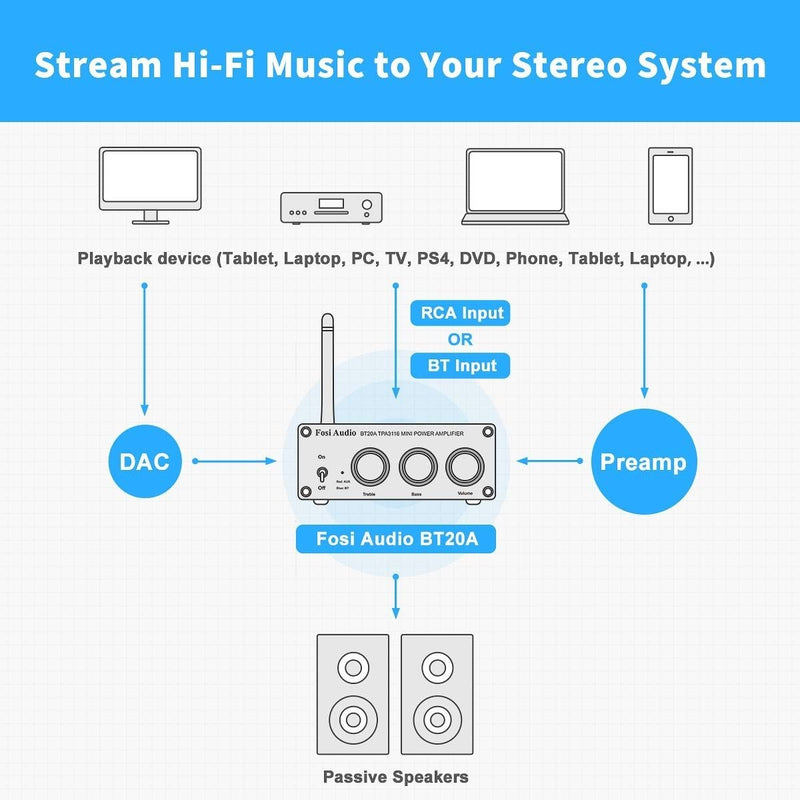

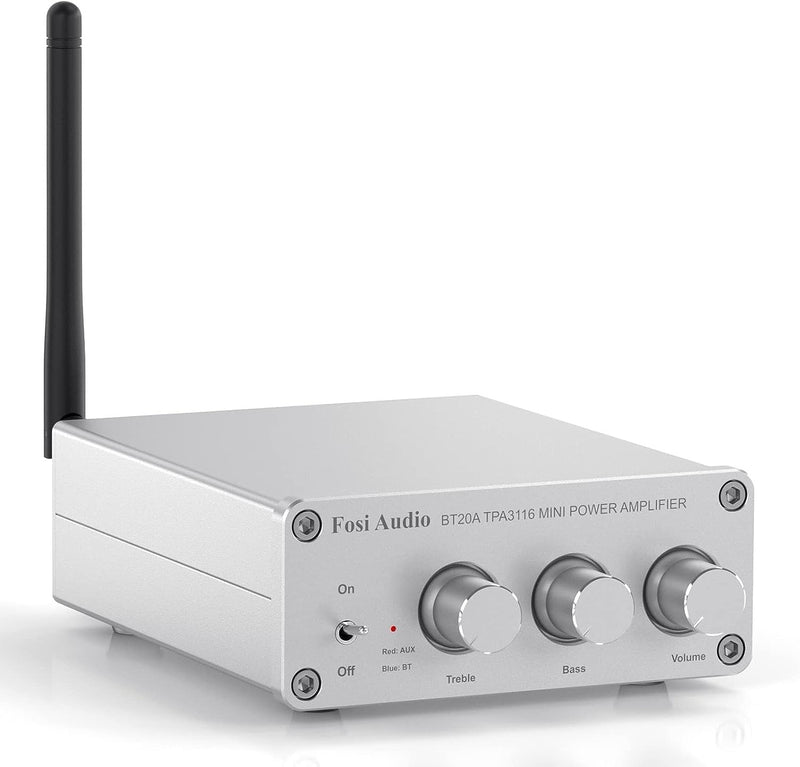

This 2-channel amplifier BT20A-S offers both Bluetooth and RCA inputs, along with passive speaker outputs. This versatile amplifier allows you to build a high-quality 2.0 channel audio system that allows connections to your phone, computer, tablet and more.
The BT20A-S is perfect for those looking for exceptional HiFi sound quality. You have control over the sound of your bookshelf speakers through music or video software, fine-tuning bass and treble to your liking.
With Bluetooth 5.0 and two Texas Instruments TPA3116D2 chips, the BT20A-S delivers powerful and clear stereo sound. The TPA3116D2 is a highly efficient digital amplifier with an advanced oscillator/PLL circuit, ensuring minimal interference and offering a connection range of up to 15 meters.
With an impressive 100W RMS per channel at 4 ohms, 20 Hz - 20 kHz and only 0.04% THD, the BT20A-S Bluetooth amplifier is a powerhouse. It comes with a 24V power supply and can drive speakers with a capacity of 280 watts at 8 ohms or 320 watts at 4 ohms. (For passive speakers only, not the powered speakers)
Specifications:

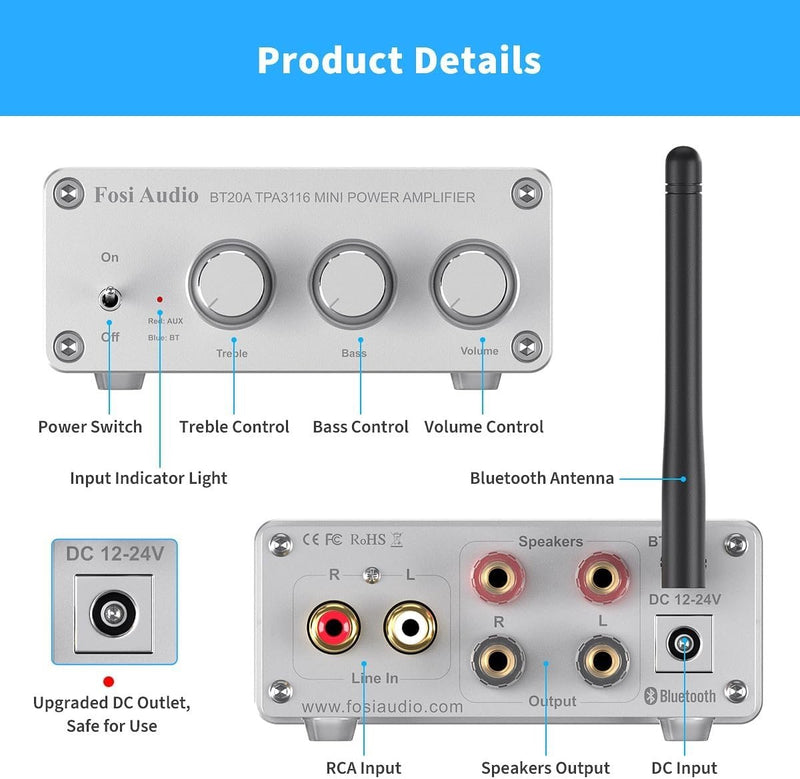

- Connections:
RCA R/L
Bluetooth
- Max output: 100W per channel
- Impedance: 2-8Ω
- DC 12-24V via included power cable
- Input sensitivity: 280 mV
- Frequency: 20Hz-20kHz(±3dB)
- THD: ≤0.04%
- SNR: ≥98dB
- Dimensions: 132x90x36mm
- Weight: 360g
- Color: White

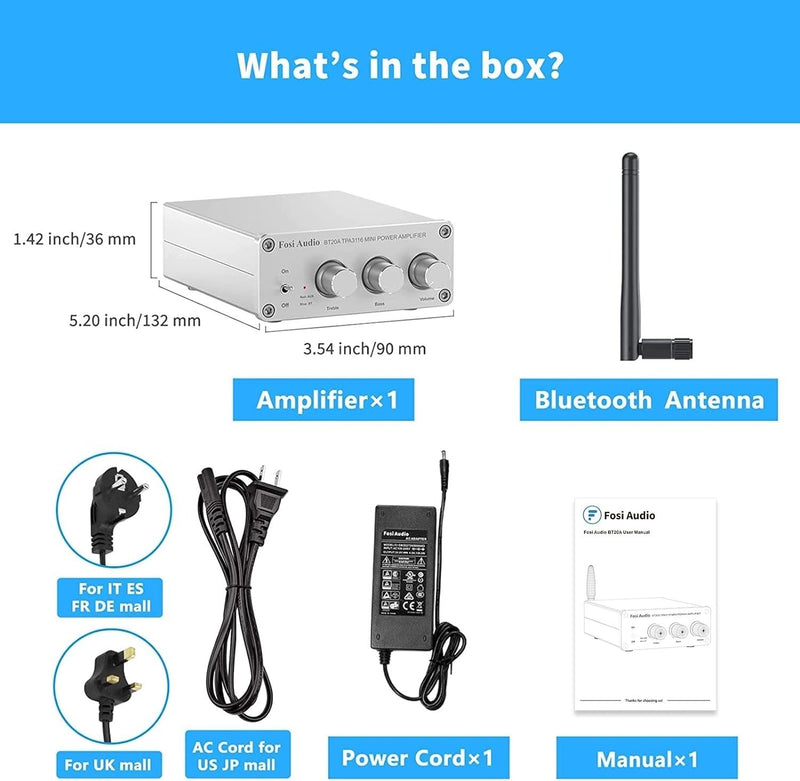

- Content:
BT20A-S
Power supply 24V/4.5A and power cable
Antenna
Manual
