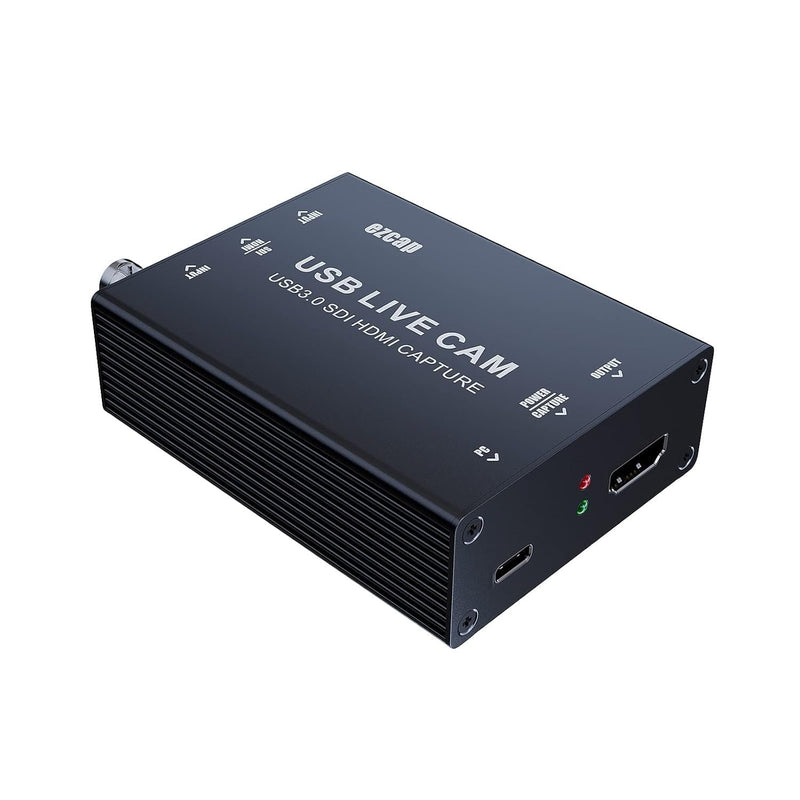

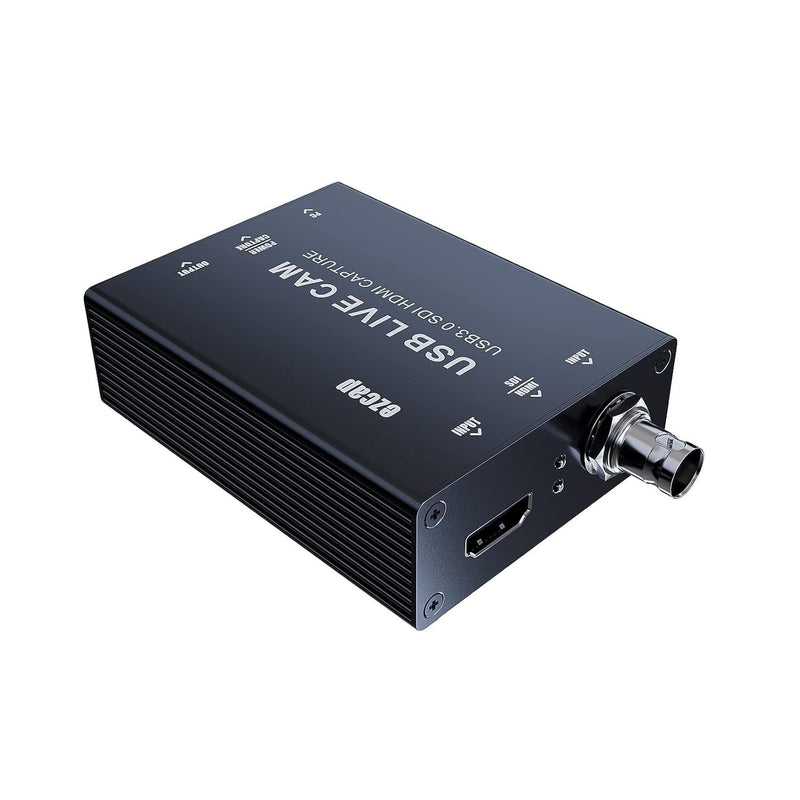

Ezcap USB Video Capture Card and Converter HDMI 4K30Hz / SDI 1080p60Hz - UVC

This capture card from ezcap records and streams audio and video from HDMI and SDI devices to your computer's USB-A or USB-C port and can simultaneously display the image via HDMI. Easy installation with UVC technology and no external power supply required. Compatible with popular programs such as VLC, OBS and more.

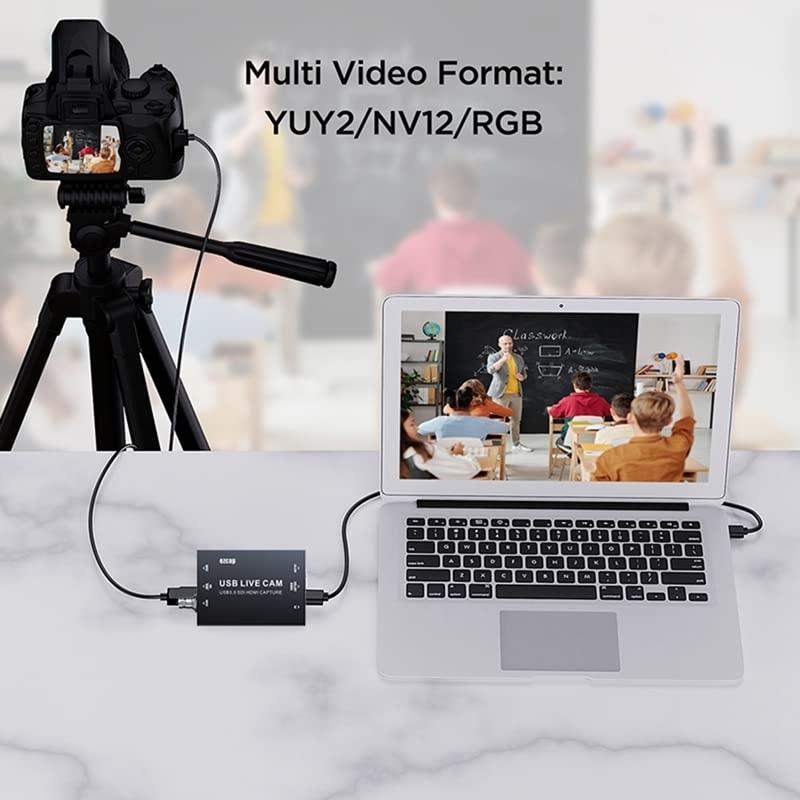

The card can receive video from sources up to UHD 4K at 30fps from HDMI and 1080p 60fps from SDI and records in resolutions up to UHD 4K 30fps, 1440p 60 fps and 1080p 120fps from HDMI and FHD 1080p at 60fps via SDI. Supports NV12, YUY2, XRGB and P010 video formats.

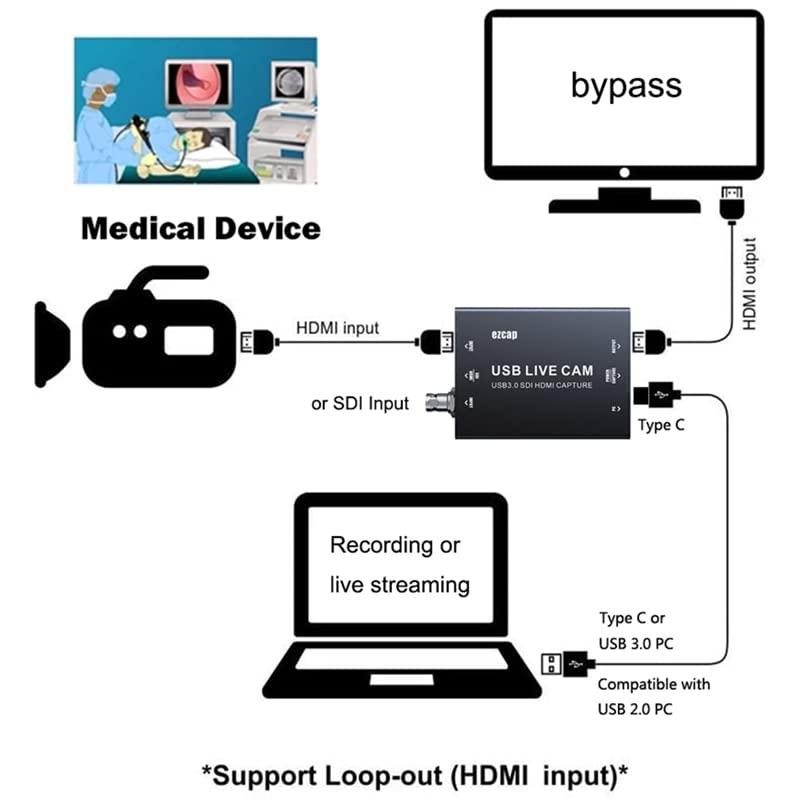

Compatible with Windows, MacOS, Linux. Connect to your computer via USB-C or USB-A and to your HDMI or SDI device, then download recording software to your computer, adjust settings and start recording. You can also stream video to HDMI display from both HDMI and SDI devices. Follow the user manual for further instructions.

• Inputs:
  1x HDMI 1.4
  1x 3GSDI
• Outputs:
  1x HDMI 1.4
  1x USB-C 3.0 5Gbps
• No external power supply
• No drivers required
• Computer system requirements:
  1x USB 3.0 port
  Intel Core i5 / AMD Ryzen 3
  NVIDIA GTX 1060 / AMD RX 5700
  8GB RAM
  Windows 7 or later, macOS 10.15
• Dimensions: 105x66x27 mm
• Weight: 80g
• Color: Black
• Content:
  1x EZCAP327
  1x USB-C to USB-C cable
  1x USB-C to USB-A cable
  1x Manual
