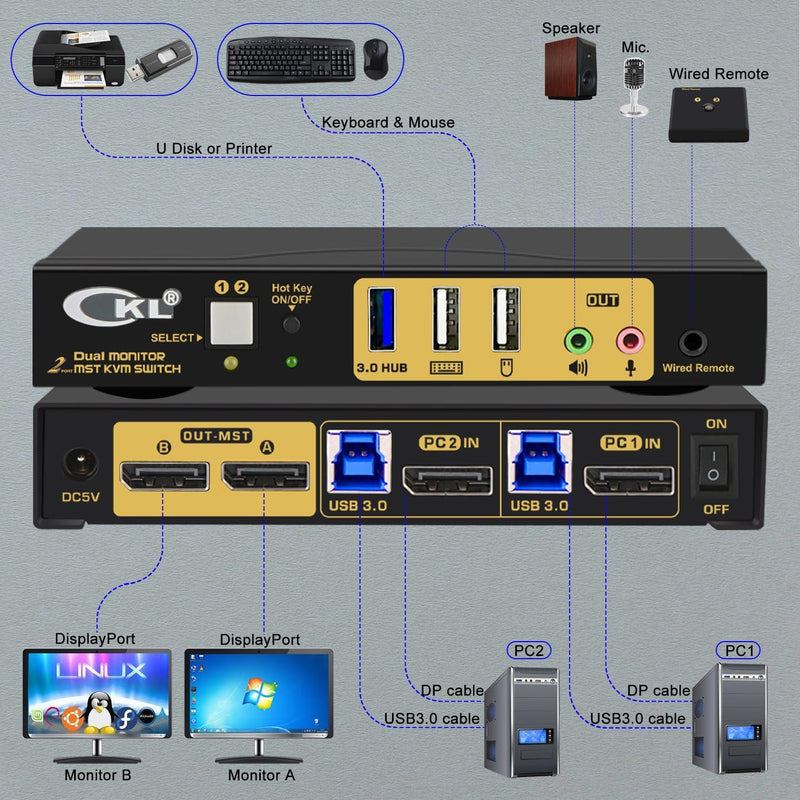

This 2-computer KVM switch lets you connect two computers with DisplayPort outputs that share two displays, two 3.5mm AUX (one for headphones, one for microphone) and three USB-A. With support for MST, only one DisplayPort cable is required from each computer, which halves the number of cables on your desk! The switch supports resolutions up to 4K60Hz to both displays simultaneously. The USB-A 3.0 port supports up to 5 Gbps data transfer speed and the two dedicated ports for mouse and keyboard give you access to keyboard shortcuts to switch between the connected computers. You can connect wired headphones and microphone to the two 3.5mm AUX ports and the switch requires no drivers. You can choose which computer should be connected to the displays via the button on the switch, hotkeys on the mouse or keyboard or via the included wired remote control. The switch is powered by the included power supply and cable.
Technical specifications:
-

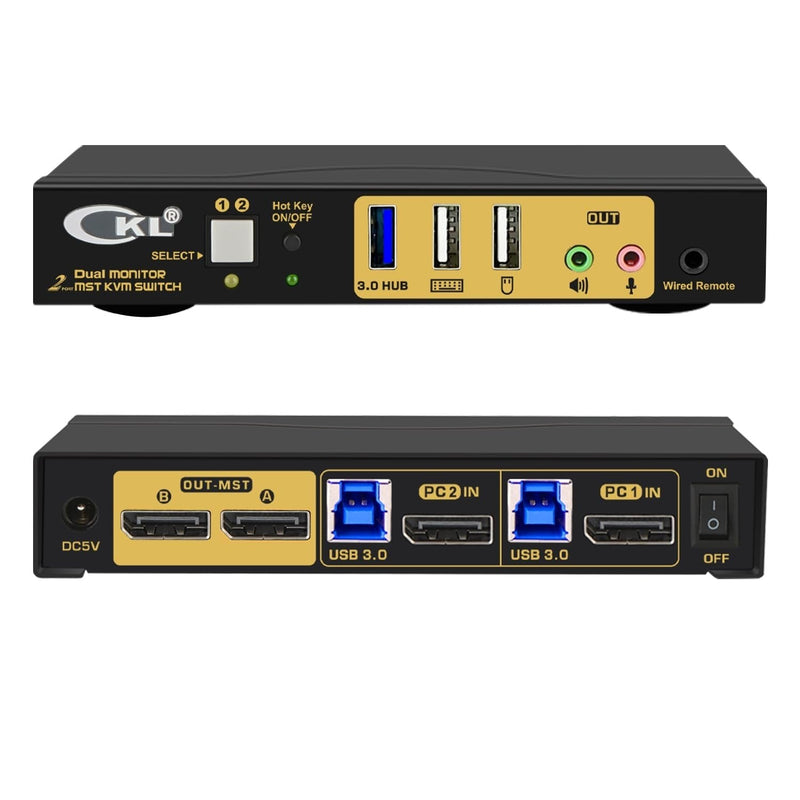

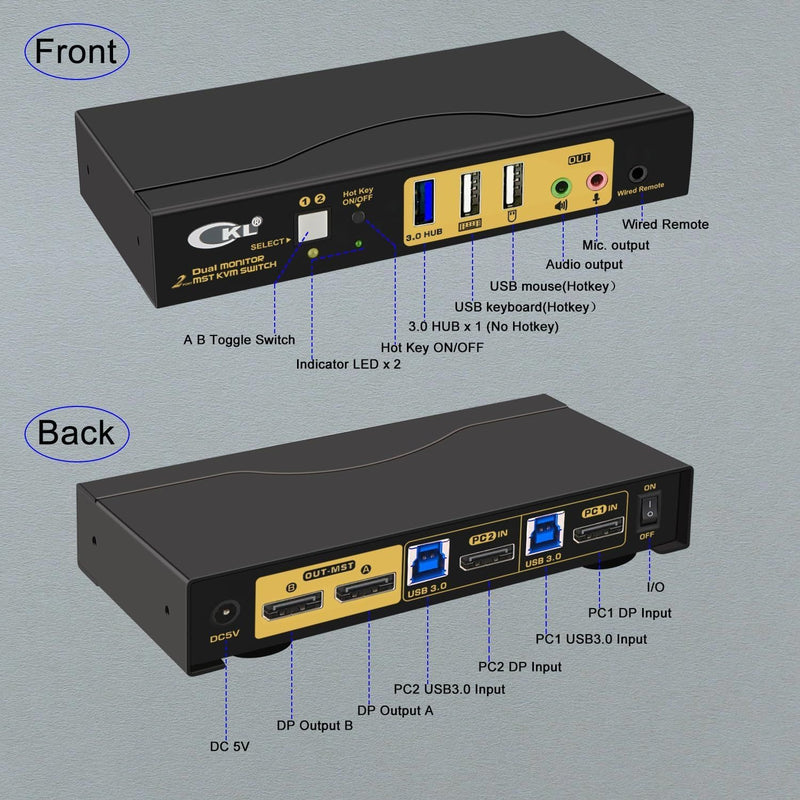

Input:
2x DisplayPort 1.4
2x USB-B
1x 3.5mm AUX
1x DC 5V
-
Output:
2x DisplayPort 1.4
1x USB-A 3.0 5Gbps
2x USB-A 2.0 480 Mbps
1x 3.5mm AUX
-
Video:
- Resolutions:
4096/3840x2160 60/30Hz
3440x1440 60/30Hz
2560x1440 120/60/30Hz
1920x1080 144/120/60Hz
- Bandwidth: 18Gbps
- Data rate: 14.4 Gbps
- HDCP/DPCP: 2.2/1.0
- HDR: 10
- Color format: RGB, 4:4:4, 4:4:2, 4:2:0, 4:0:0
- Color depth: up to 16bpc
-
Audio:
- 3.5mm AUX: PCM 2.0 stereo
- DP; PCM 2.0/5.1/7.1 Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, DTS:X

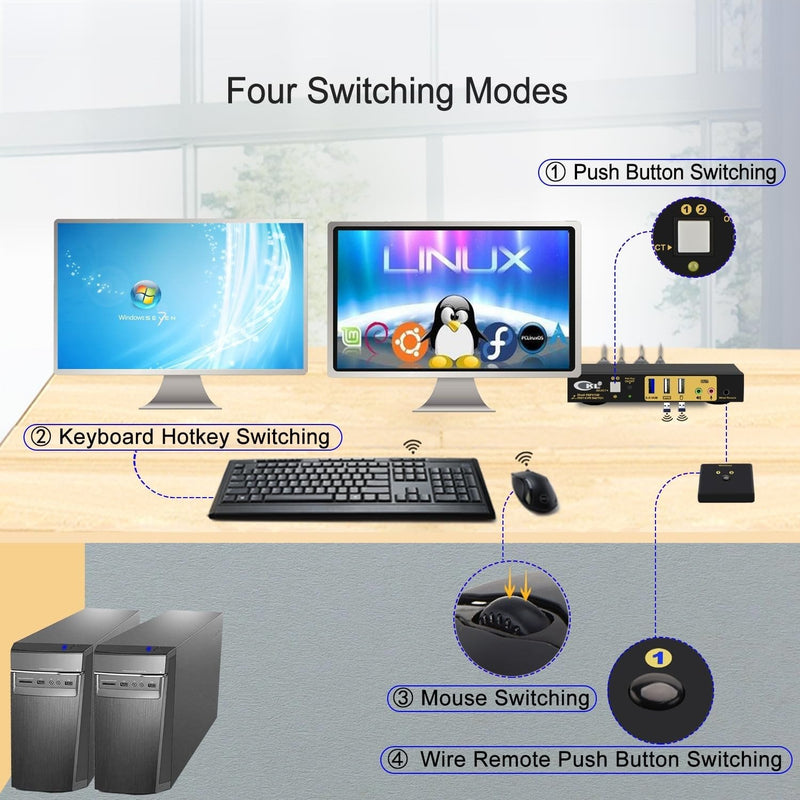

- Ways to switch on: Button on the switch, desktop button and hotkeys
- Wireless mouse and keyboard support: RF, Bluetooth (some special gaming and multimedia keyboards and mice may be incompatible)
- Operating system: Windows 11/10/9/8/7/XP/Vista, MacOS, Linux
- Power: DC 5V 2A, 1.5W max (included)
- Environment: -5 to 45°C in use, -20 to 50°C in storage
- Dimensions: 140x75x25 mm
- Weight: 0.38 kg
- Color: Black
- Material: Aluminum
- Drivers: No drivers, Plug & Play
-

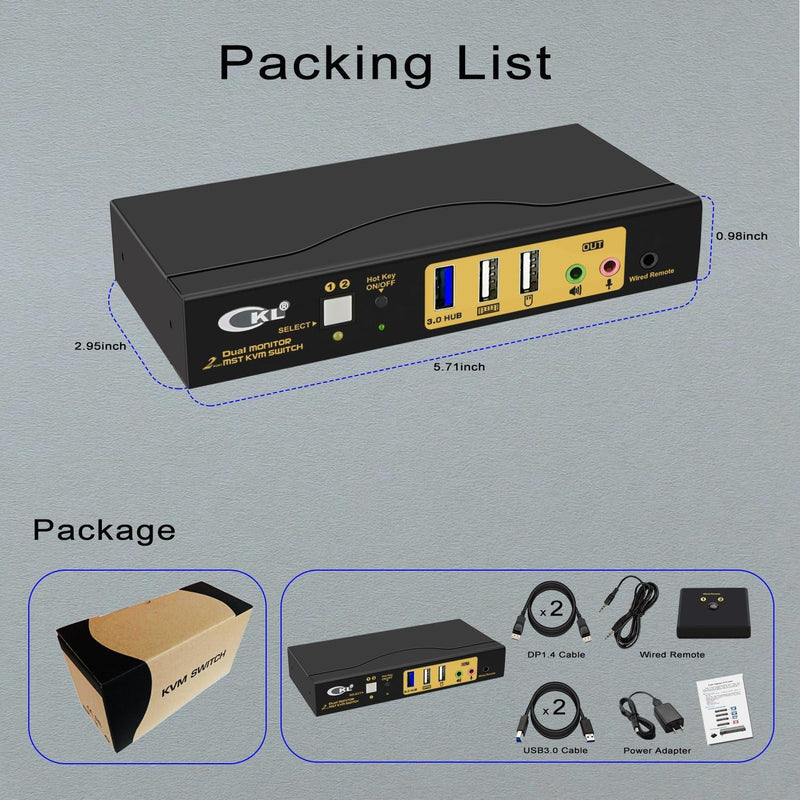

Content:
1x KVM-140
2x USB-A to USB-B cable
2x DisplayPort 1.4 cables
1x External control + cable
1x Power supply and cable 5V 2A
1x Manual
