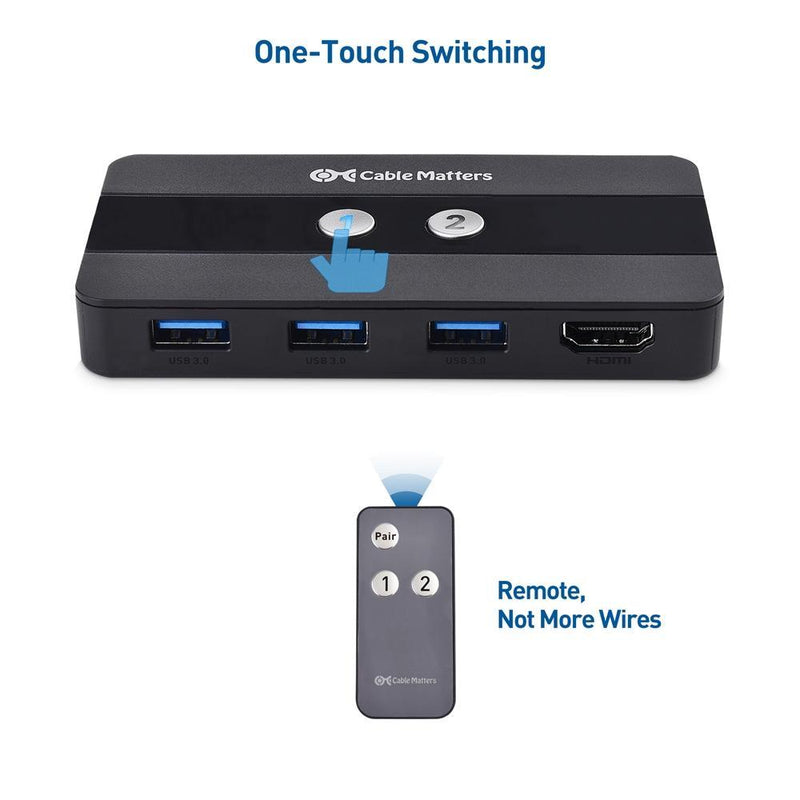

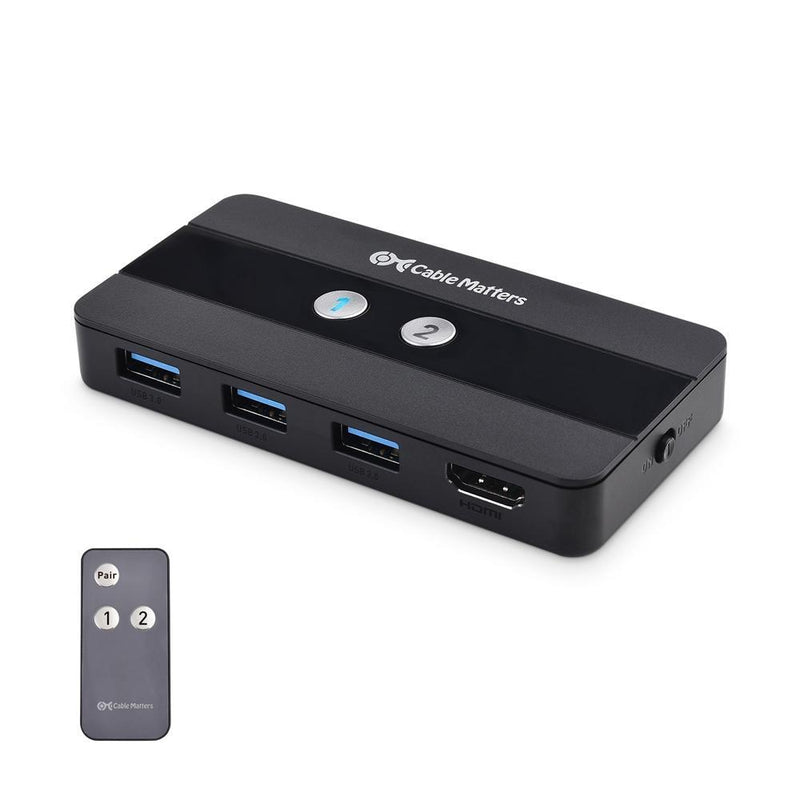

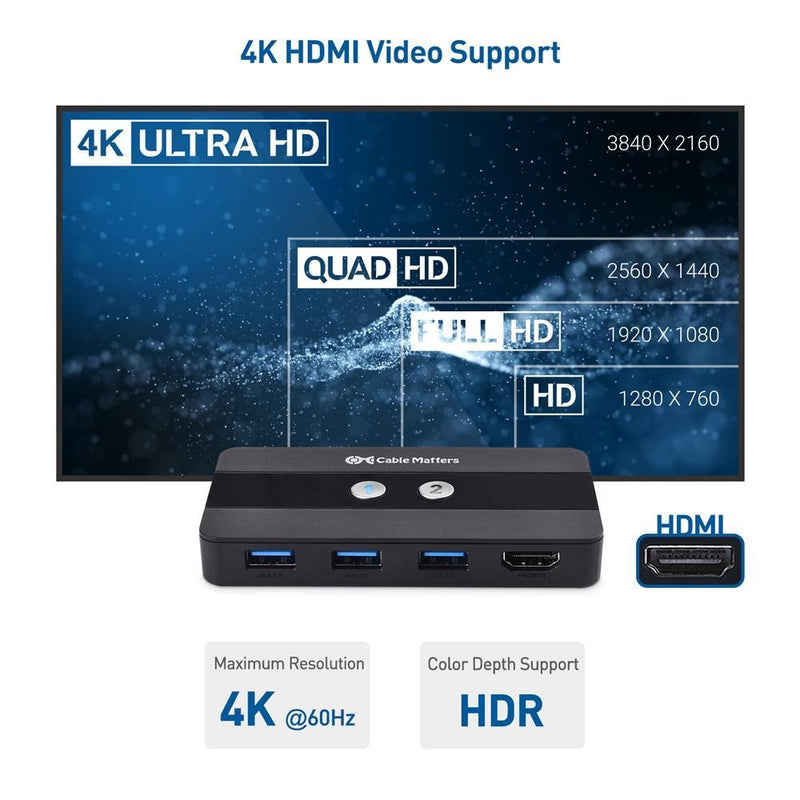

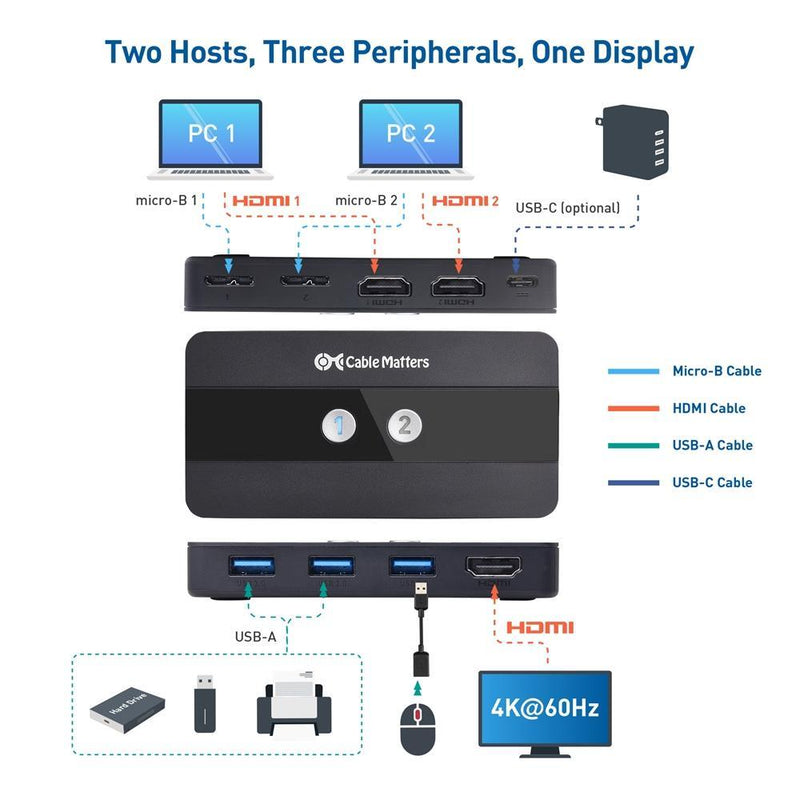

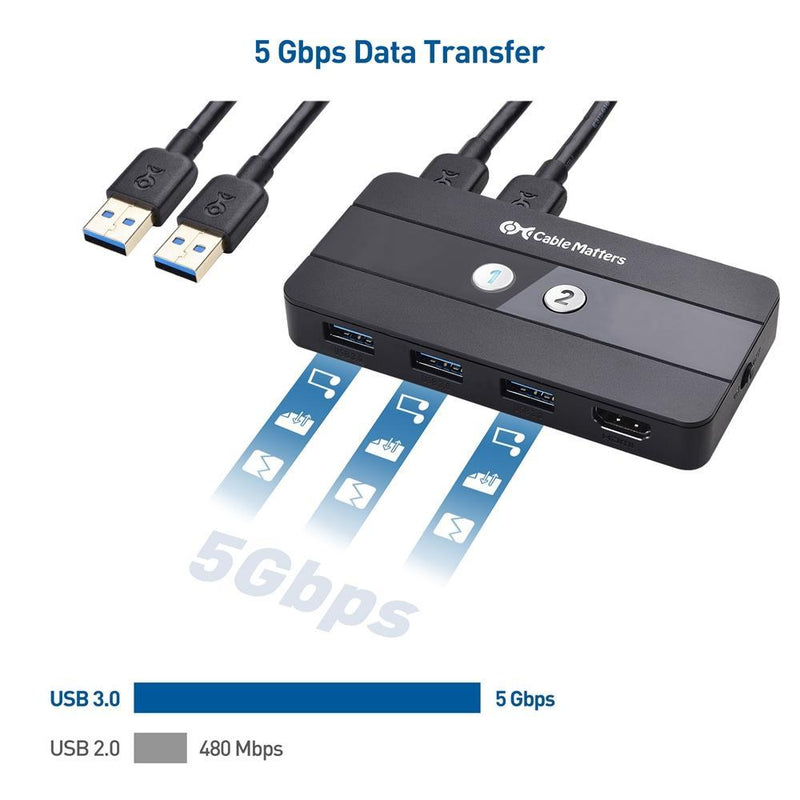

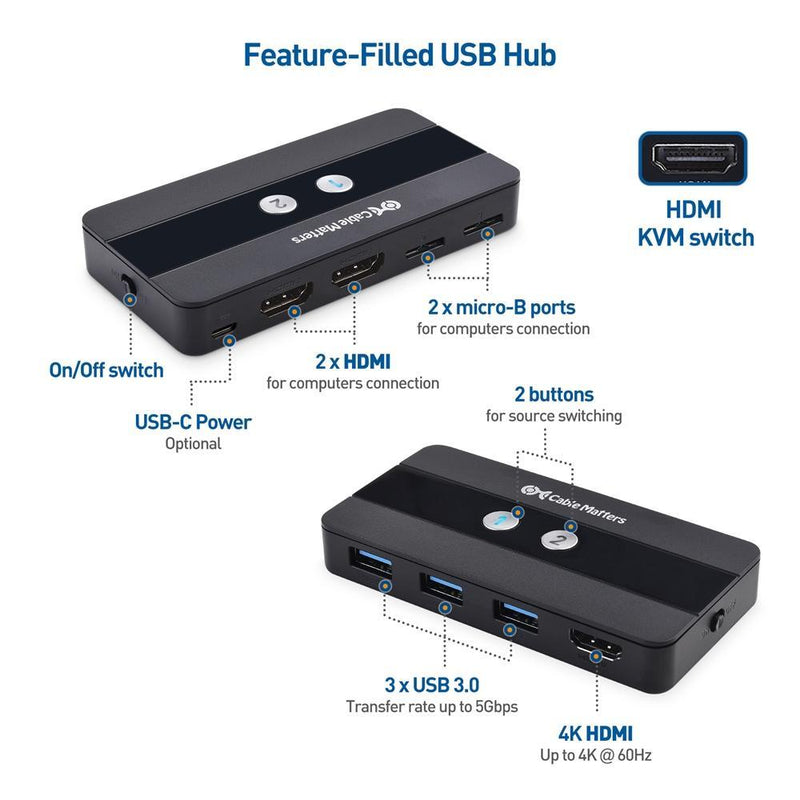

Cable Matters KVM Switch lets you connect two computers via HDMI and micro USB 3.0 that share an HDMI display and up to three USB-A 3.0 ports. The HDMI output supports resolutions up to 4K60Hz and it is possible to both extend and mirror the computers' desktops. The USB-A ports support data transfer speeds up to 5Gbps and it is also possible to power the ports using the USB-C port on the switch, for those USB devices that are a little more demanding. You can choose which computer should be active using buttons on the switch or via the included remote control. No drivers required, Plug & Play!
Technical specifications:
-
Input:
2x HDMI 2.0
2x Micro B
1x DC 12V
-
Output:
1x HDMI 2.0
3x USB-A 3.1 5Gbps
-
Video:
- Resolutions:
4096x2160 60Hz
3440x1440 60Hz
2560x1440 144/120/60Hz
1920x1080 240/120/60Hz
- Bandwidth: 18Gbps
- Data rate: 14.4 Gbps
- HDCP: 2.2
- HDR: 10
- Color format: RGB, 4:4:4, 4:4:2, 4:2:0, 4:0:0
- Color depth: up to 16bpc
-
Audio:
- HDMI; PCM 2.0/ LPCM 5.1/7.1 Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, DTS:X
- Way to switch on: Button on the switch, external control
- Wireless mouse and keyboard support: RF, Bluetooth (some special gaming and multimedia keyboards and mice may be incompatible)
- Operating System: Windows 11/10/9/8/7/XP/Vista, MacOS, Linux, Ubuntu
- Power: DC 12V/1A, 1W power consumption (included)
- Environment: -5 to 45°C in use, -20 to 50°C in storage
- Dimensions: 108x54x16 mm
- Weight: 65g
- Color: Black
- Material: Aluminum
- Drivers: No drivers, Plug & Play
-

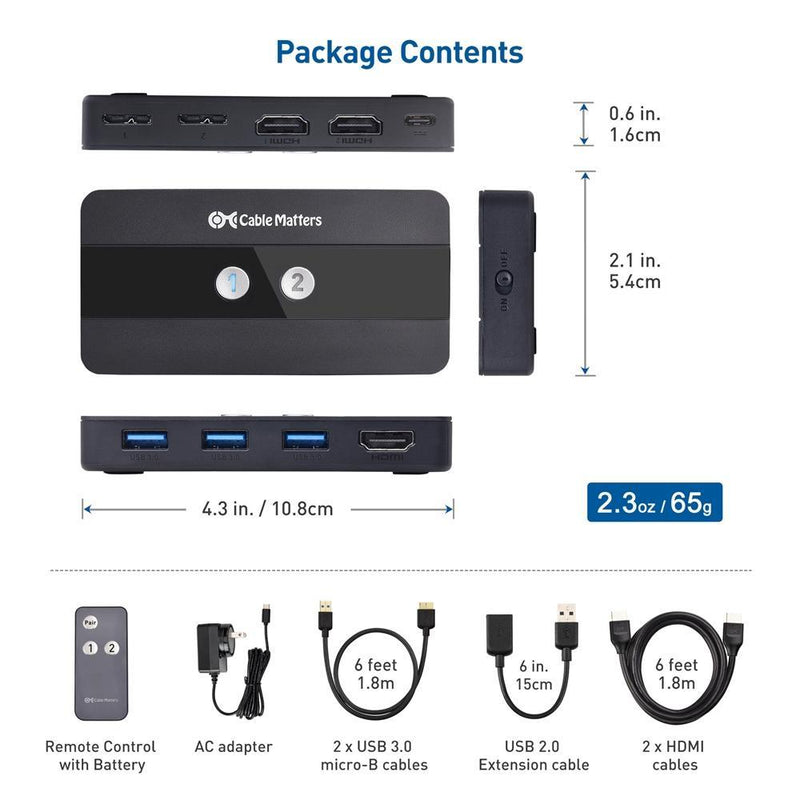

Content:
1x KVM-130
2x HDMI 2.0 1.8m cables
2x USB-A to micro B 1.8m cables
1x External control for switching
1x 15cm USB-A extension cable
1x Power supply and cable
1x Manual
