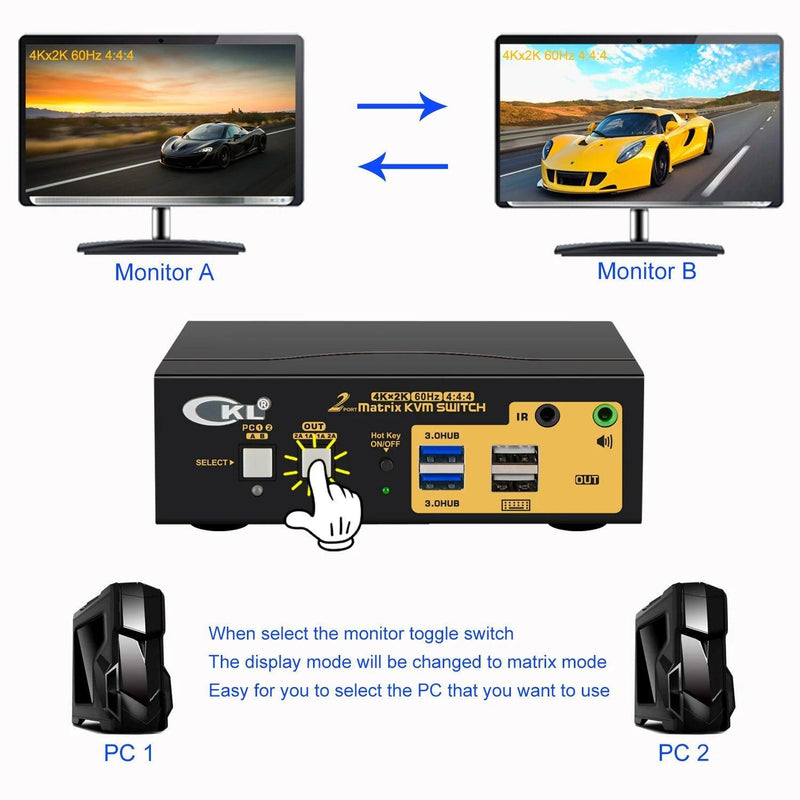

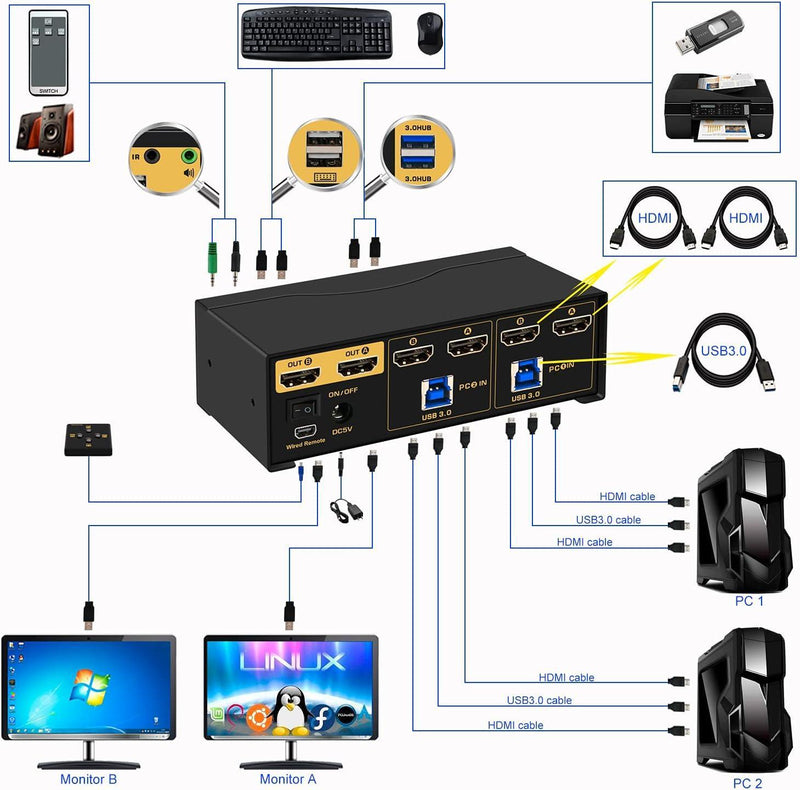

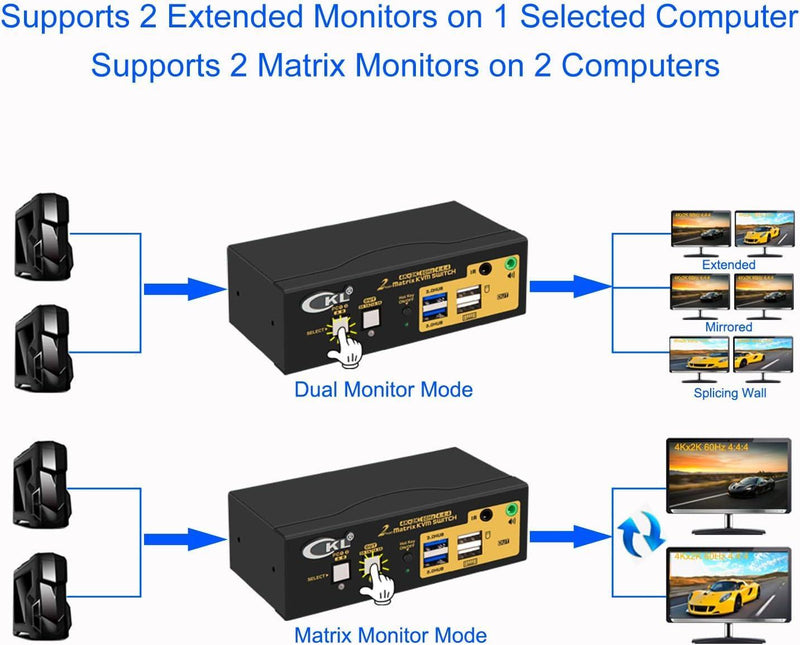

This 2-PC HDMI KVM switch allows you to connect 2 computers sharing two screens and up to 4 USB accessories such as keyboards, mice, printers, scanners, webcams, and more. The HDMI outputs support resolutions up to 4K60Hz and you can both mirror and extend your computer's desktop. The KVM switch can act as a matrix, meaning you can choose to display both computers simultaneously on each screen. Connect to the KVM switch via two HDMI cables from each computer, one per connected screen.
The KVM switch supports multiple operating systems, including Windows, Linux and MacOs. Compatible with wireless keyboards and mice. You can switch between computers via buttons on the switch, keyboard hotkeys, mouse buttons, remote control or an external box that can be placed on the desk. No drivers required, powered by the included power adapter.
Technical specifications:
-
Input:
4x HDMI 2.0 4K60Hz (2 per computer)
2x USB-B data (1 per computer)
1x DC 5V
-
Output:
2x HDMI 2.0 4K60Hz
2x USB-A 2.0
2x USB-A 3.0
1x 3.5mm AUX
-
Video:
- Resolutions:
4096x2160 60Hz
3440x1440 60Hz
2560x1440 144/120/60Hz
1920x1080 240/120/60Hz
- Bandwidth: 18Gbps
- Data rate: 14.4 Gbps
- HDCP/DPCP: 2.2/1.0
- HDR: 10
- Color format: RGB, 4:4:4, 4:4:2, 4:2:0, 4:0:0
- Color depth: up to 16bpc
-
Audio:
- HDMI; PCM 2.0/ LPCM 5.1/7.1 Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, DTS:X

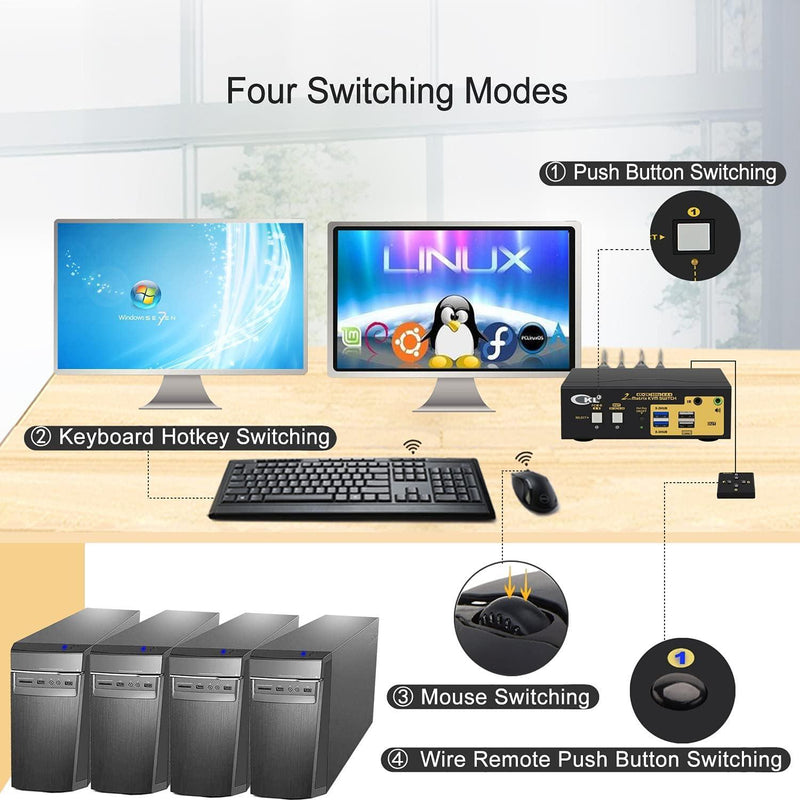

- Ways to switch: Button on the switch, external control, keyboard and mouse hotkeys
- Wireless mouse and keyboard support: RF, Bluetooth (some special gaming and multimedia keyboards and mice may be incompatible)
- Operating System: Windows 11/10/9/8/7/XP, MacOS, Linux, Ubuntu, Unix
- Power: DC 5V/2A
- Environment: 0 to 45°C in use, -20 to 50°C in storage

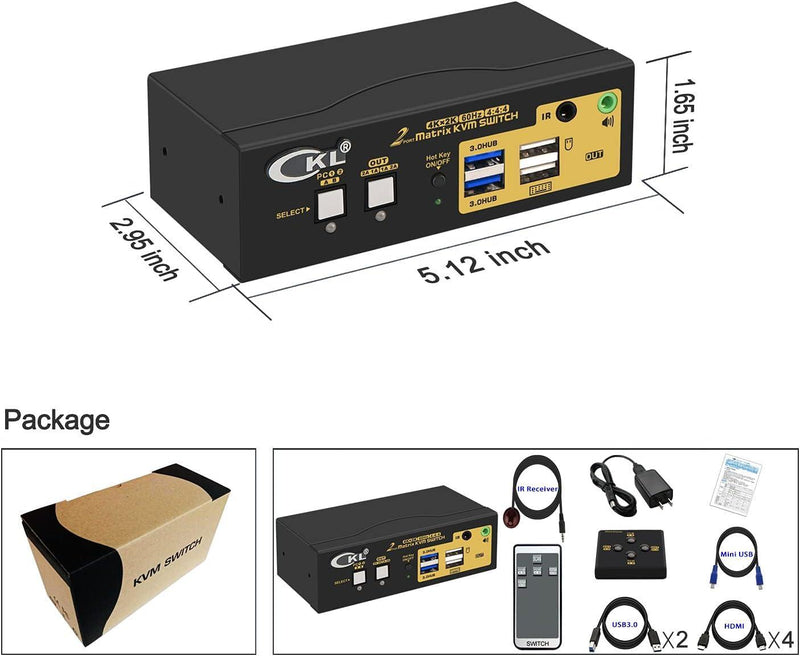

- Dimensions: 130x75x40 mm
- Weight: 440g
- Color: Black
- Material: Aluminum
- Drivers: No drivers, Plug & Play
-
Content:
1x KVM-125
4x HDMI 2.0 cables
2x USB-A to B cables
1x Power adapter 5V2A
1x External control
1x Micro USB cable
1x Manual
