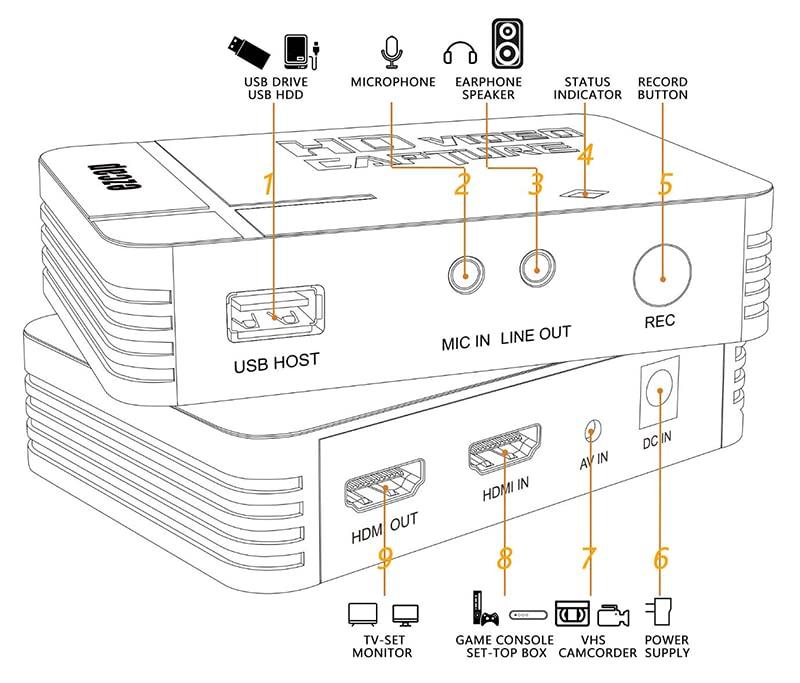

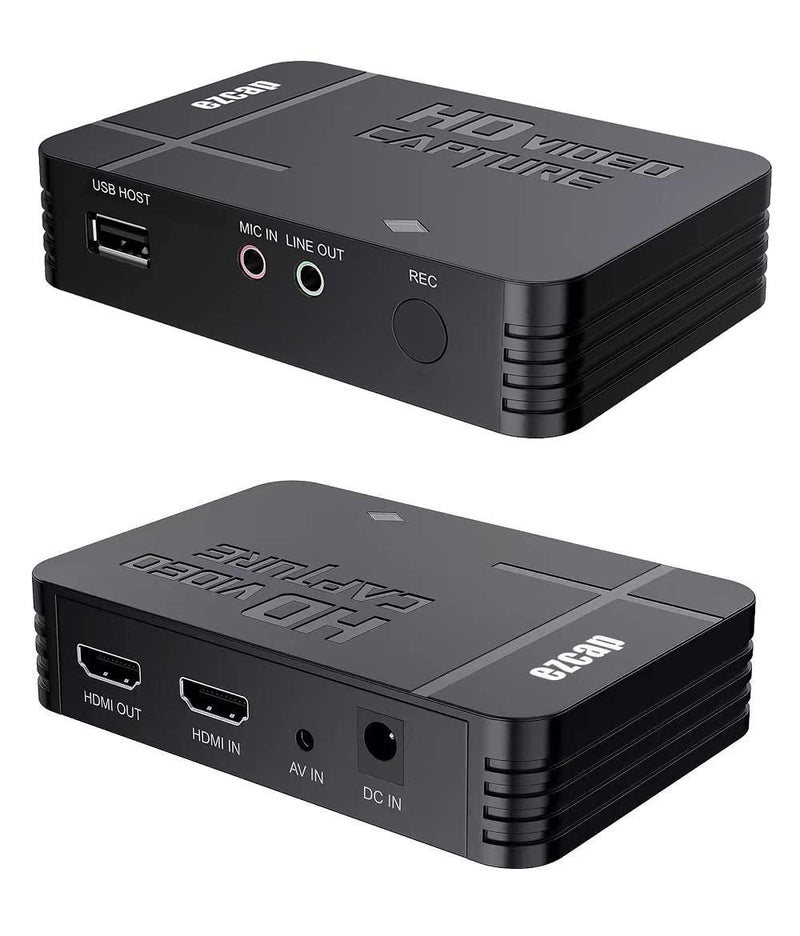

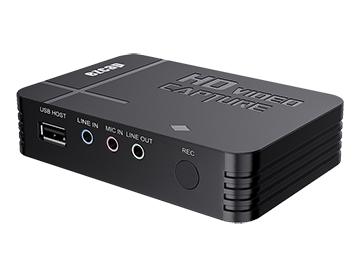

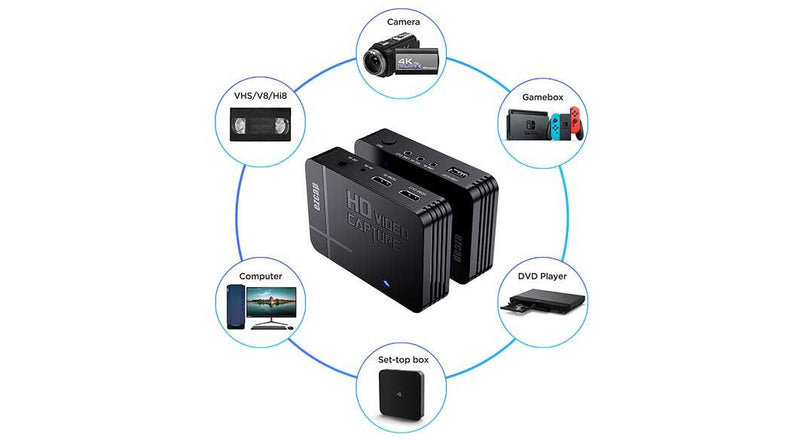

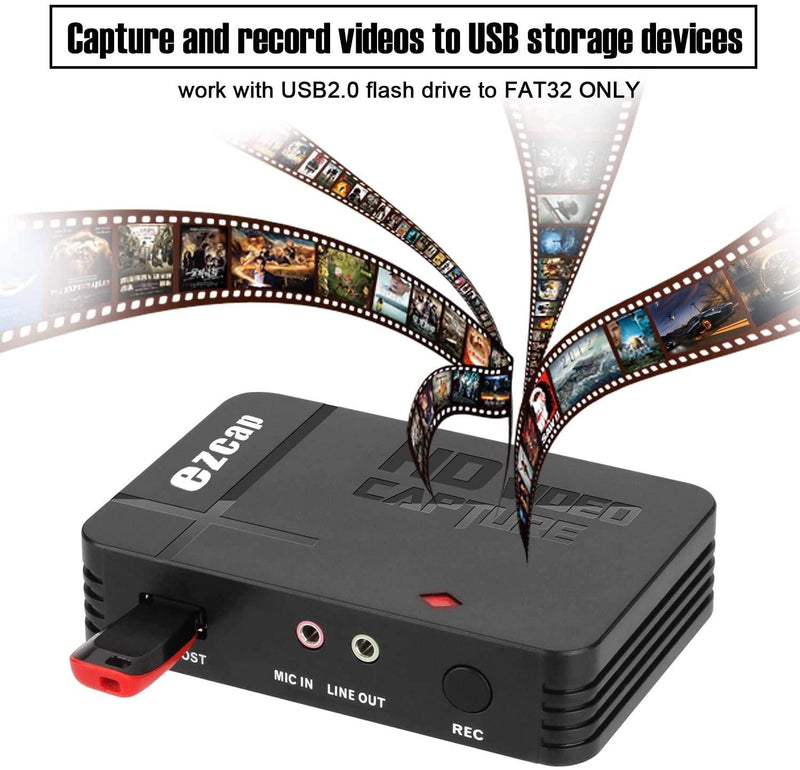

ezcap288 HD AV capture card supports both HDMI and composite video input. It allows you to connect the game console or set-top box to record high-definition video up to 1080p resolution, Can also connect the old VHS or camcorder to digitize the old tape video to digital video. And save the digital video files on the USB stick or USB hard disk. ezcap288 includes HDMI input and loop-through up to 1080p60 full HD resolution. It is possible to connect a microphone or mixer to mix your audio and video together. And connect the headphones or speaker to the Line Out port.

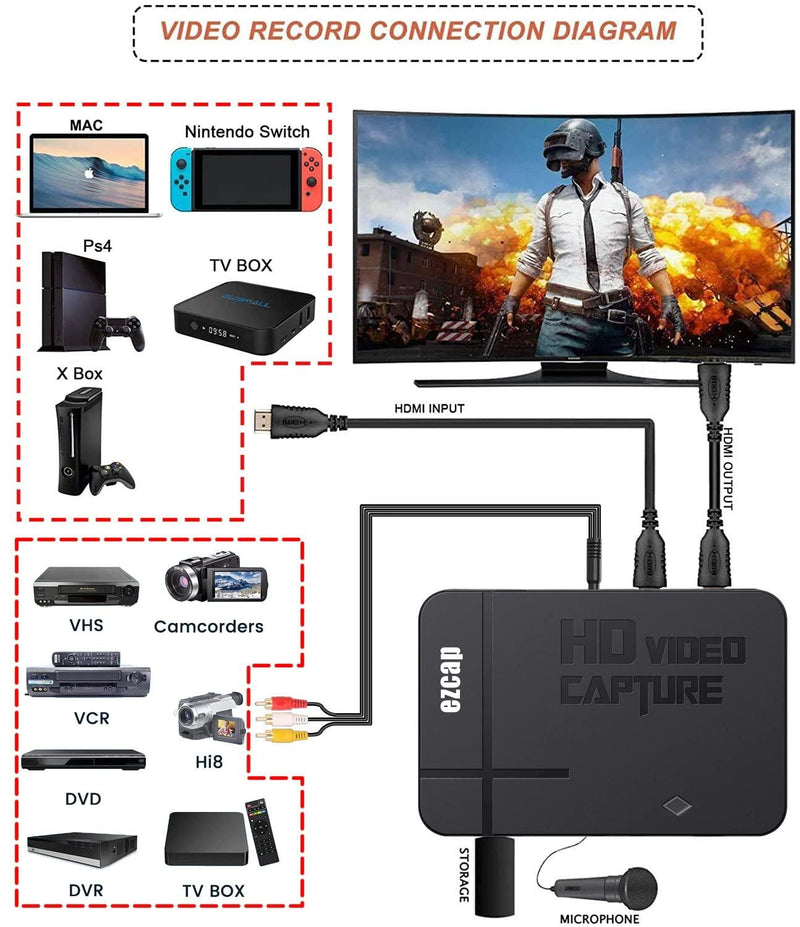

Connect the video source to the input, the HDMI output to the TV, insert the USB device, turn it on, then one click to start recording, and click again to save the video file to the USB device. No computer, no driver installation, no software, no settings, just one click.
TRS microphone input and Line IN to mix your audio and mixer with video together for game commentary or video narration. Connect headphones or speakers to the TRS audio output.
Technical specifications:
- Host Interface: USB 2.0
- Video Input: HDMI, Composite Video
- Audio Input: HDMI, 3.5mm TRS Microphone In, 3.5mm TRS line input.
- Video Output: HDMI
- Audio Output: HDMI, 3.5mm TRS Line Out
- User Interface: REC button, LED indicator
- Storage Media: USB Flash drive, USB HDD, FAT32 and NTFS
- Power Supply: DC 5V2A
- Encoder: Video - H.264, Audio - AAC
Resolution:
- Input / Pass-through: 720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p (60p), 1920 x 1080 (50i), 1920 x 1080 (60i) , 1920 x 1080 (24p), 1920 x 1080 (25p), 1920 x 1080 (30p), 1920 x 1080 (50p), 1920 x 1080 (60p)
- Capture: 720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p (60p), 1920 x 1080 (24p), 1920 x 1080 (25p), 1920 x 1080 (30p) * Upscaling is not supported.
- Record Info: .mp4, max 16Mbps@1080p30fps, 2G per file, about 140MB per minute

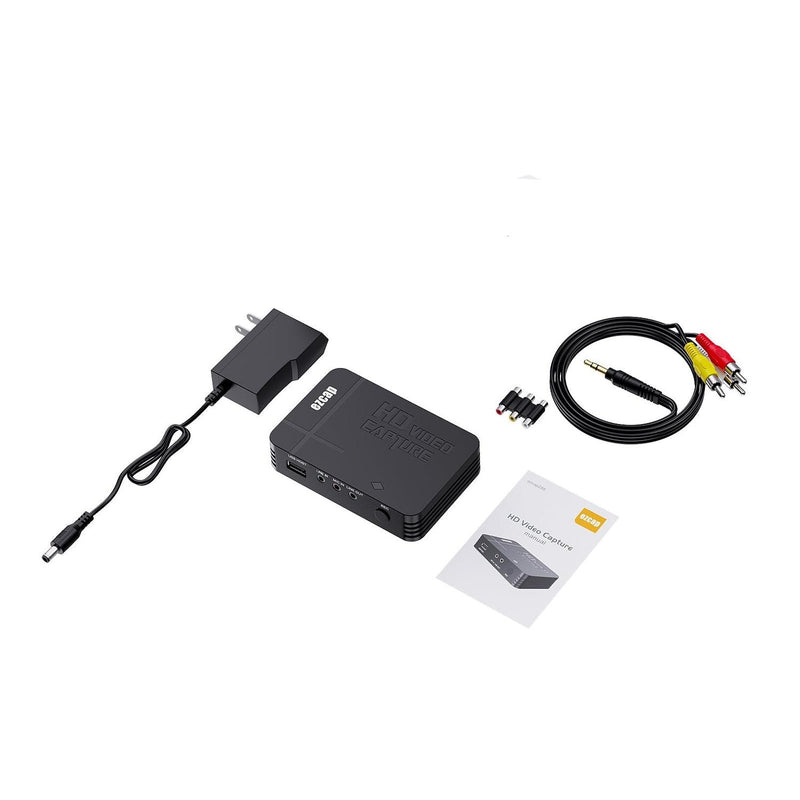

Contents: ezcap288 HD AV Capture, AV adapter cable, 3RCA adapter, 5V2A power supply, Manual
Size/Weight: 110(L) × 75(W) × 27(H) mm, 135g
