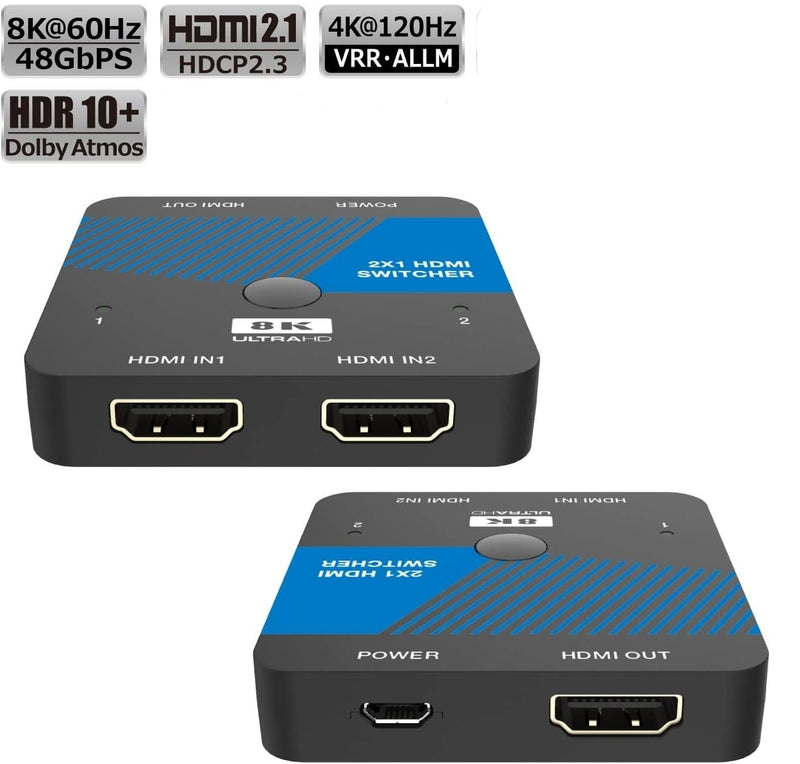

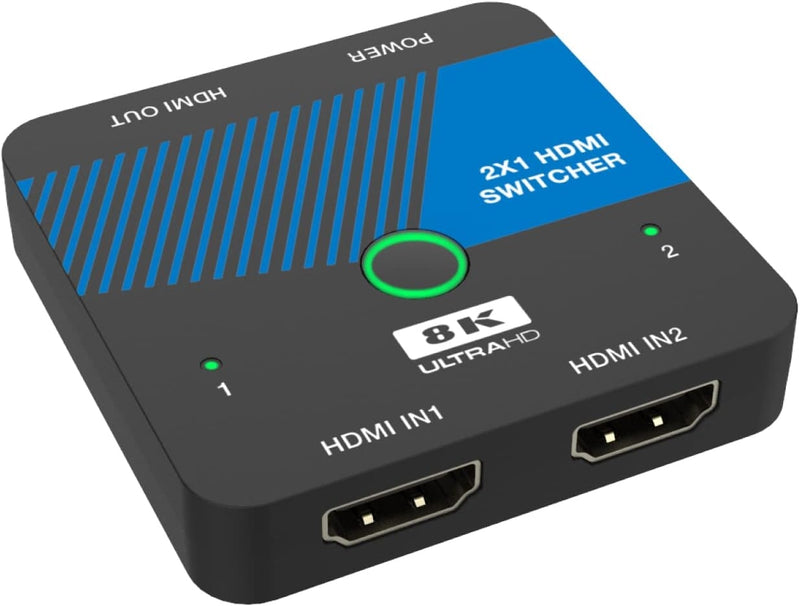

This HDMI switch allows you to connect and switch between 2 HDMI sources to an HDMI display. The switch supports resolutions up to 8K@60Hz 4:2:0 12 bit. Note that HDMI 2.1 cables are required for the highest resolutions. Also supports HDCP 2.3 and is backward compatible with previous versions. Maximum bandwidth 48 Gbps and data rate 41.92 Gbps. Supports color format RGB Y'CbCr 4:4:4, 4:2:2, 4:2:0 and color depth up to 16bpc.
No drivers are required and the extractor is powered by the included 5V1A power cable. Note that this switch is not bidirectional and only works as a 2 to 1 switch, not a 1 to 2 splitter.
Specifications:
- Inputs:
2x HDMI 2.1
1x Micro USB DC 5V1A

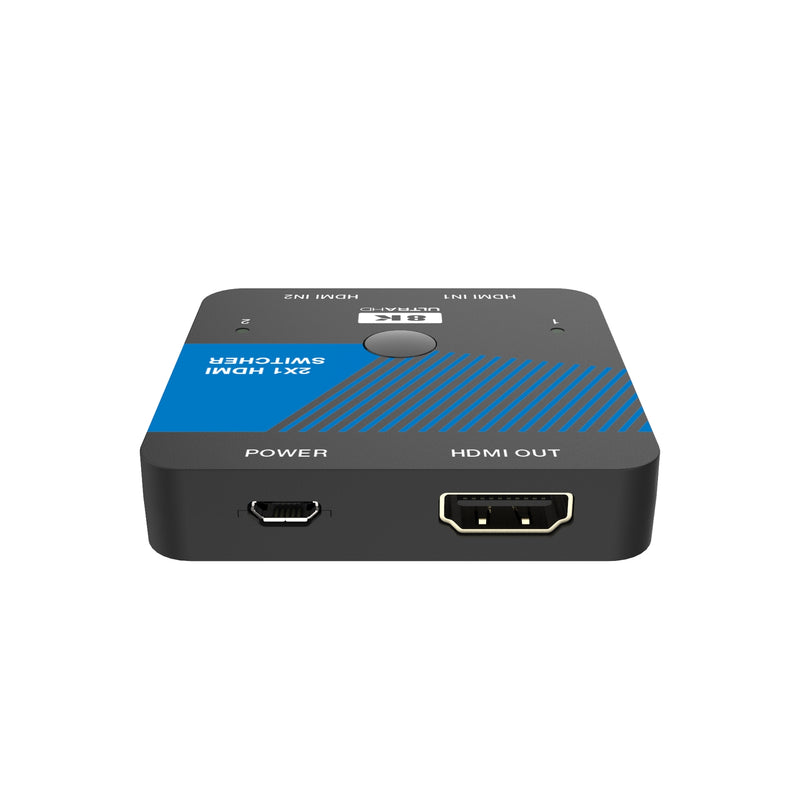

- Outputs:
1x HDMI 2.1
- Resolutions: 8K@60/30Hz, 4K@120/60/30Hz, 1080P@120/60Hz
- Bandwidth: 48Gbps
- Data rate: 41.92Gbps
- Auto EDID support for easy connection
- Support for: HDMI CEC, HDR/10/10+, VRR, ALLM, Dolby Vision, QMS, QFT, SBTM, DSC and HLG pass-through
- Color format: RGB Y'CbCr 4:4:4/4:2:2/4:2:0
- Color depth: up to 16bpc
- Audio format:
LPCM 2.0/2.1/5.1/7.1, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
- No drivers required, Plug and Play

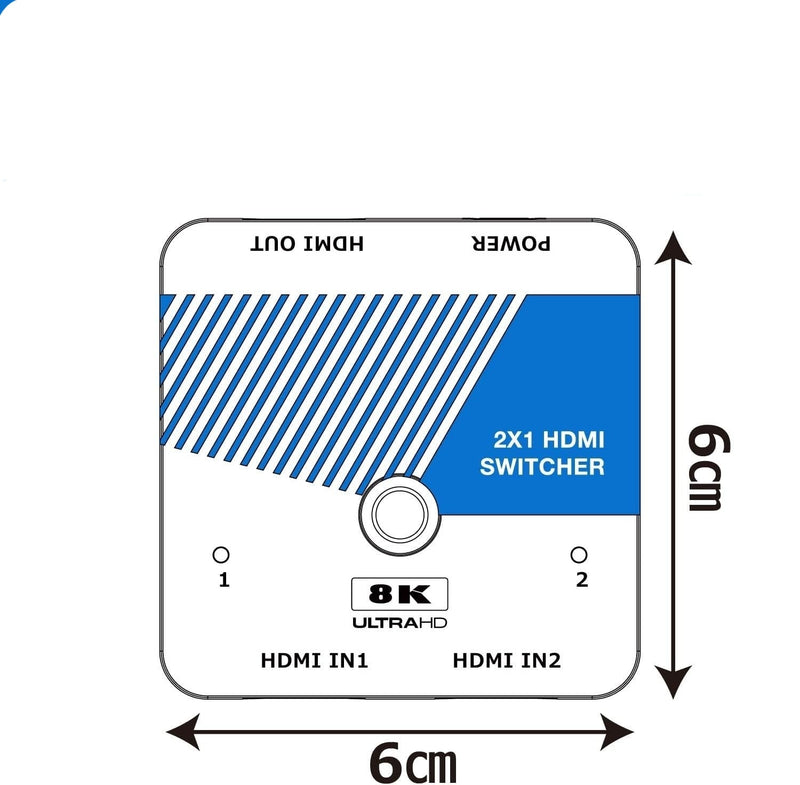

- Dimensions: 60x60x12 mm
- Weight: 31 g
- Colour: Black
- Contents:
1x SGM-247
1x USB mains cable 5V1A
1x Manual
