FNIRSI LCR-P1 Multifunction LCR Transistor Capacitor Tester

Hover over the image to zoom in

FNIRSI LCR-P1 Multifunction LCR Transistor Capacitor Tester

Name: FNIRSI LCR-P1 Multifunction LCR Transistor Capacitor Tester
Brand: FNIRSI
SKU: LCR-P1
Price: 43,00 EUR
Availability: InStock

FNIRSISKU:LCR-P1

FNIRSI LCR-P1 is a high-precision, multifunctional LCR and transistor tester designed for electronics engineers, technicians, and enthusiasts. It can analyze and test the performance and characteristics of semiconductor components such as transistors, diodes, triodes, and FETs. With a color display and automatic component recognition, it simplifies the testing process and improves efficiency.

Specifications

Model: LCR-P1
Display: 1.44" color screen
Power supply: Built-in 300 mAh lithium battery, charging via USB Type-C 5V/1A
Operating temperature: 0–40 °C
Firmware upgrade: Supported
Size: 71 × 87 × 28 mm

Features

Measurable components: Transistors, capacitors, resistors, inductors, diodes, MOSFET, batteries

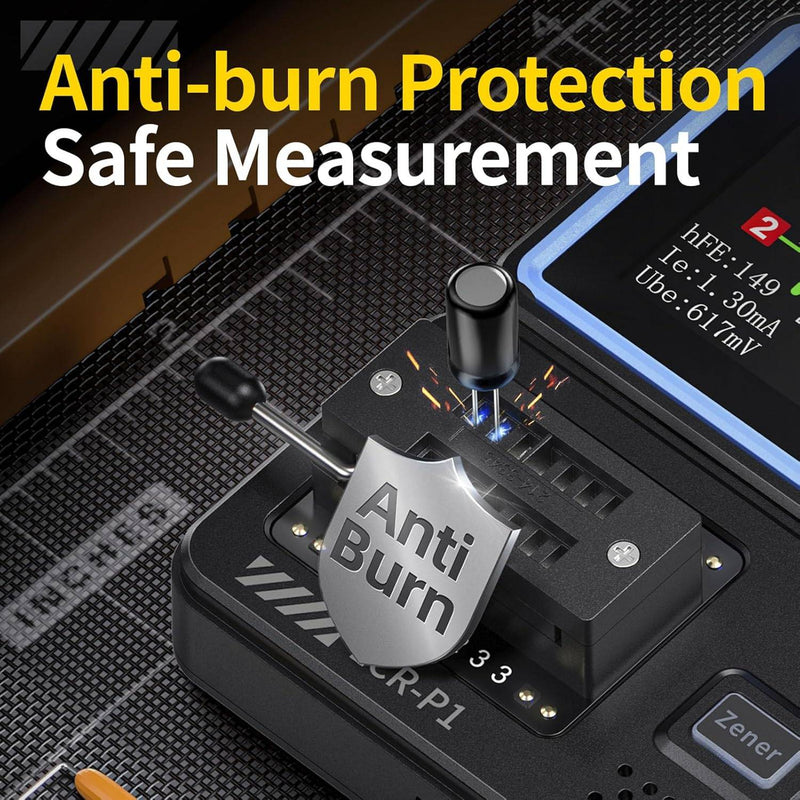

Intelligent anti-burn protection: Uncharged capacitors automatically discharge upon insertion

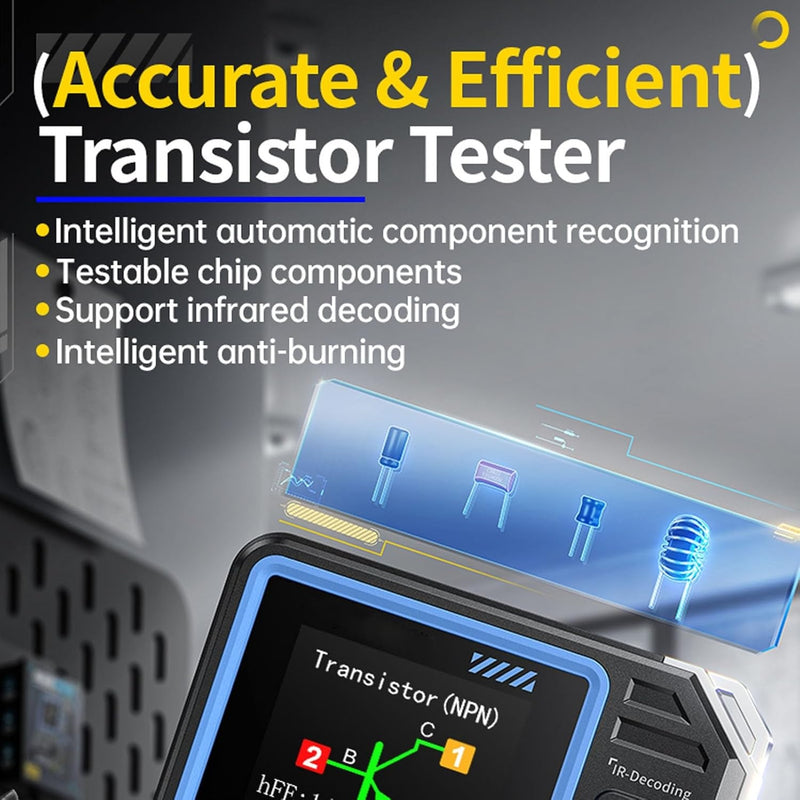

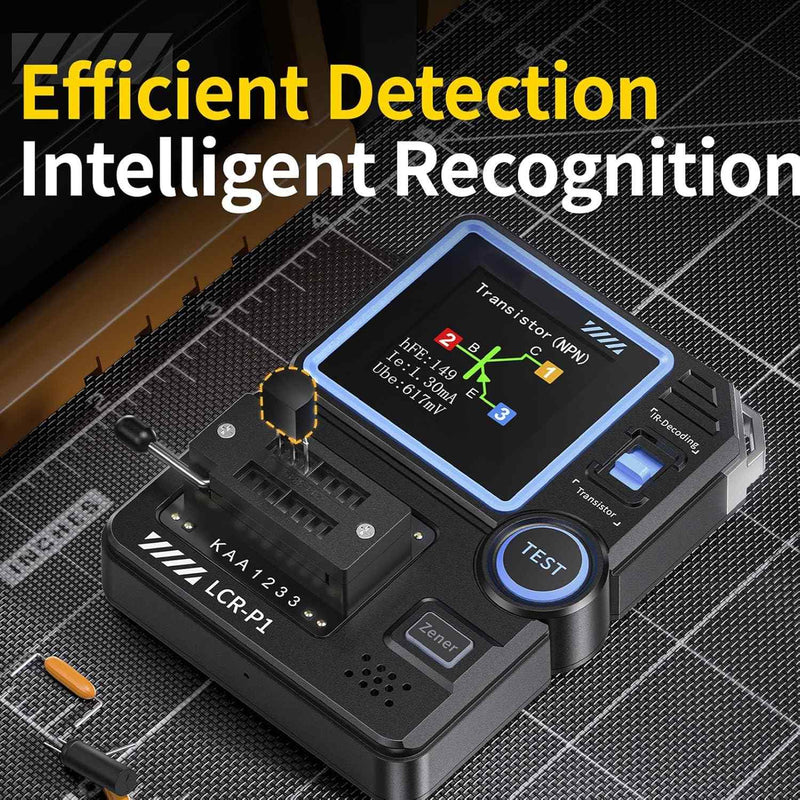

Smart component recognition: Automatic identification of type, pin arrangement, and parameters with one button

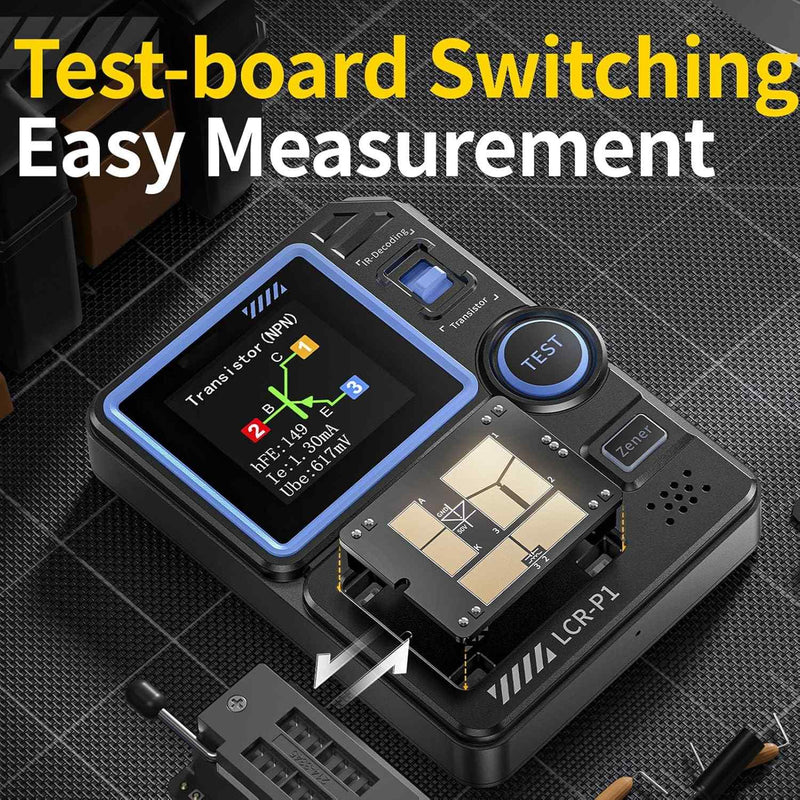

Alternative measurement modes: Interchangeable test cards for various testing needs
Zener diode measurement: Independent channel, 0.01–32 V, with pre-measurement for high accuracy

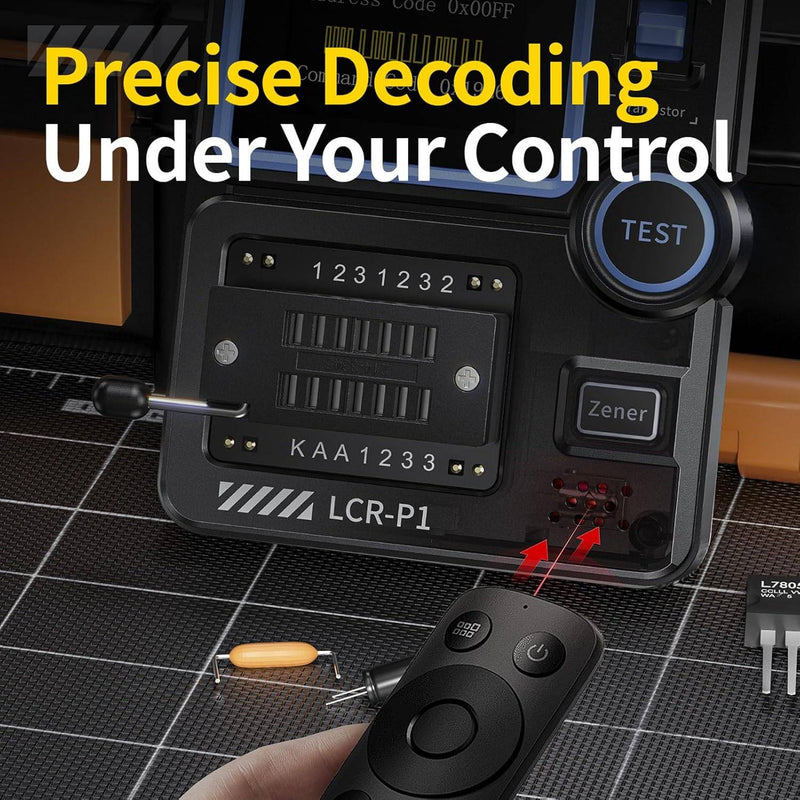

IR analysis: Supports NEC infrared protocol analysis for remote control and troubleshooting
Transistor range: 10 < β < 600
Capacitance: 25 pF–100 mF
Inductance: 10 μH–1000 μH
Resistance: 0.01 Ω–50 MΩ
Diode forward voltage: < 4.5 V
FET: JFET / IGBT / MOSFET
Two-way thyristor: Turn-on < 5 V, Gate-trigger < 6 mA

Contents

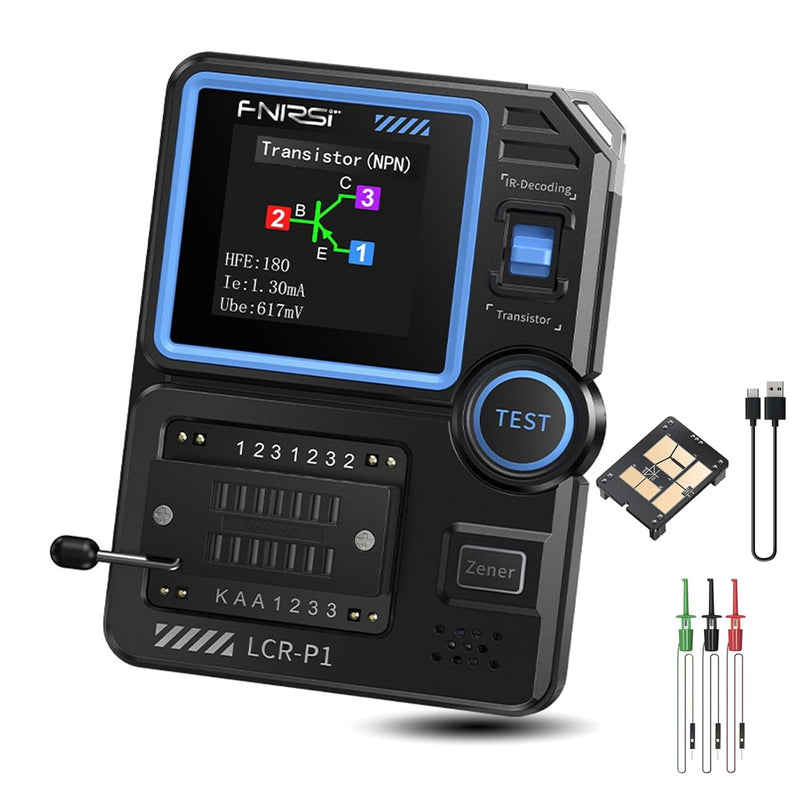

LCR-P1 main unit
Interchangeable test card ×1
USB data cable ×1
User manual ×1
Packaging box
Test hook ×3
