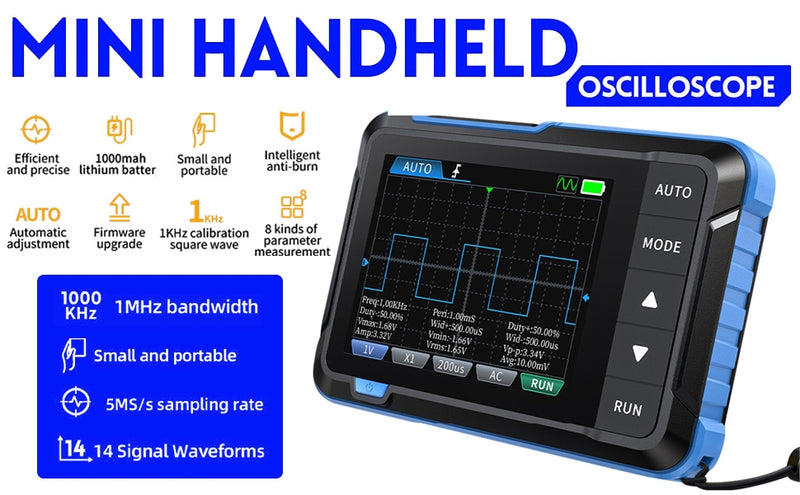

FNIRSI DSO153 is a portable oscilloscope with real-time sampling rate up to 5MS/s and a bandwidth of up to 1MHz. With the high-voltage probe, you can measure up to 800VPP, which corresponds to 280V AC. It can measure voltages up to ± 400V. The DSO153 is a practical and flexible portable oscilloscope suitable for the entertainment and education industry.
With full trigger functionality (single, normal, auto), the DSO153 is perfect for periodic analog signals and non-periodic digital signals. 2.8-inch HD LCD screen with 320x240 resolution gives you a clear picture. The USB-C interface supports data transfer and charging.
Equipped with an efficient one-button automatic setting of all parameters, no need for cumbersome adjustments to display the measurement waveform. Measure waveforms quickly and improve work efficiency.
DSO153 has a built-in 1000mAh lithium battery, which can be used continuously for about 4 hours after it is fully charged. USB-C charging cable is included and you can use it while charging. In addition, it is equipped with a multi-function signal generator (10KHz).

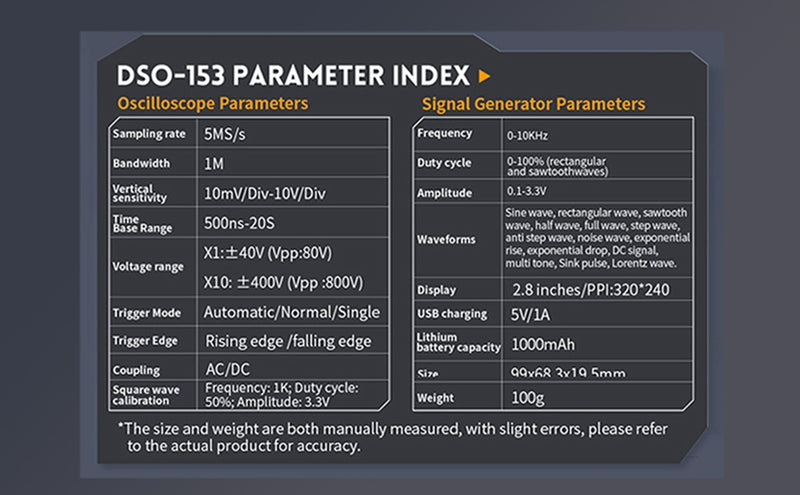

Specifications:
- Oscilloscope parameters:
- Sampling rate: 5MS/s
- Bandwidth: 1MHz
- Vertical Sensitivity: 10mV/Div to 10V/Div
- Time frame: 500ns to 20s
- Voltage range:
X1: ±40V (Vpp: 80V)
X10: ±400V (Vpp: 800V)
- Trigger modes: Automatic/Normal/Single
- Trigger edge: Rising edge/Falling edge
- Connection: AC/DC
- Square wave calibration:
Frequency: 1K
Duty cycle: 50%
Amplitude: 3.3V
- Signal generator parameters:
- Frequency: 0 to 10kHz
- Duty cycle: 0 to 100% (rectangular and sawtooth waves)
- Amplitude: 0.1V to 3.3V
- 14 different waveforms including sine, rectangular, exponential, Lorentz, step and anti-step waves
- Display: 2.8 inches/PPI: 320x240

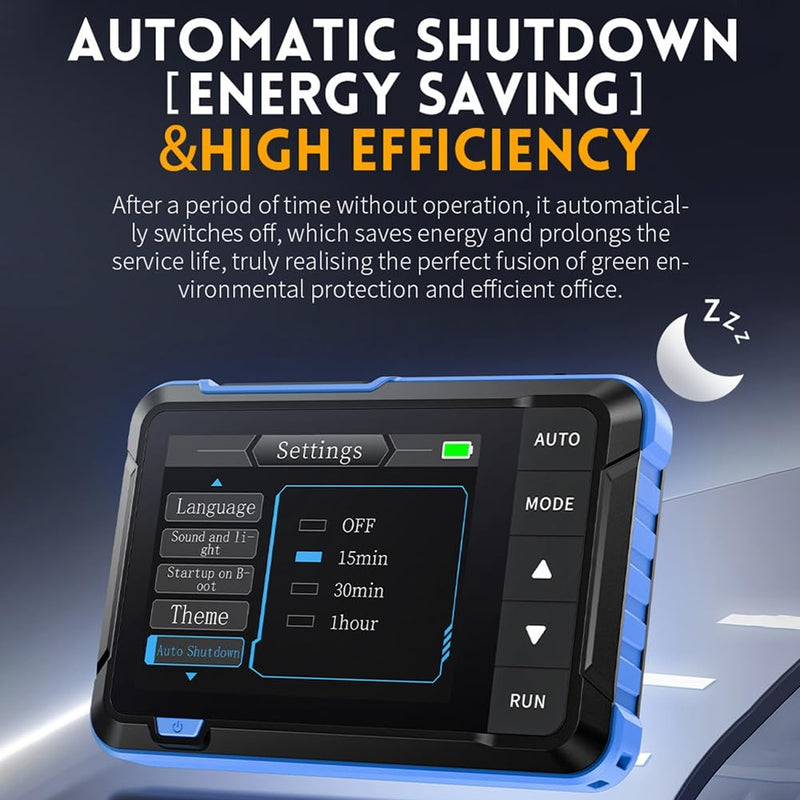

- Adjustable power saving function
- Power: 5V/1A
- Powered via 1000 mAh rechargeable lithium-ion battery
- Dimensions: 100x68x20mm
- Weight: 100g

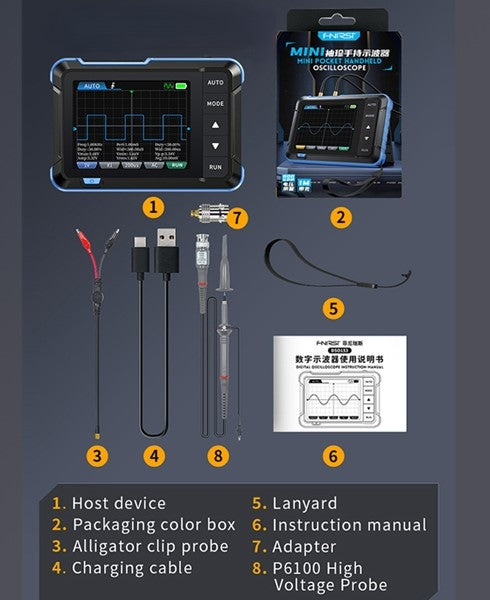

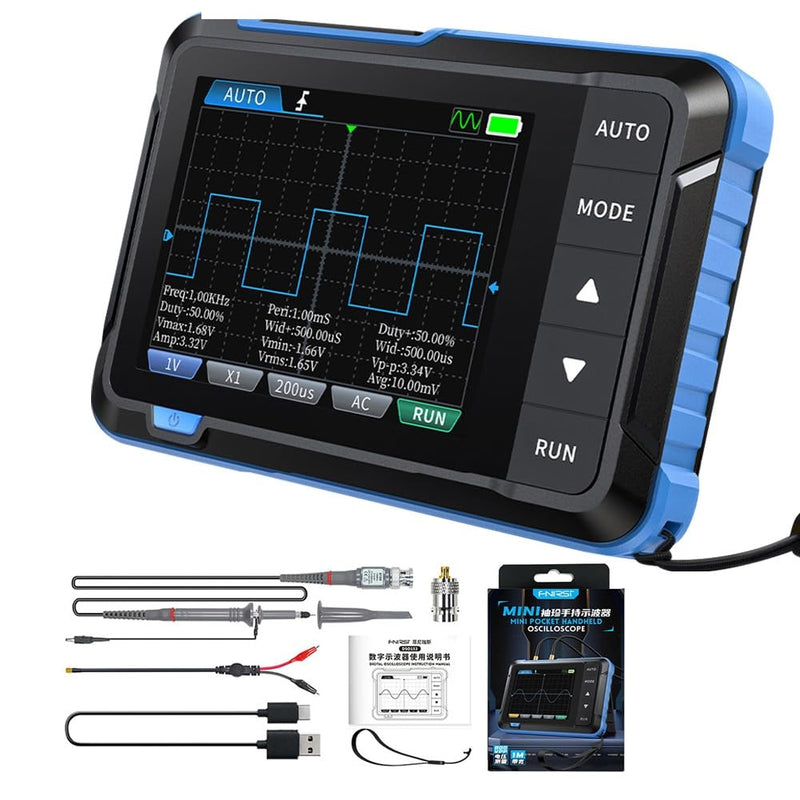

- Contents:
1x DSO153
1x Alligator clip
1x USB-C power cable 5V1A
1x Lanyard
1x Manual
1x Adapter
1x P6100 high voltage probe
