This product allows you to connect up to four computers and share two monitors, as well as four USB devices such as a keyboard, mouse, and printer. It supports both mirrored mode (same image on both screens) and extended mode (different images on each screen), provided each computer has two HDMI ports.
Specifications
-
Video:
- Up to 8K @ 60Hz and 4K @ 120Hz resolution
- Backward compatible with 4K @ 60Hz, 1080p and lower resolutions

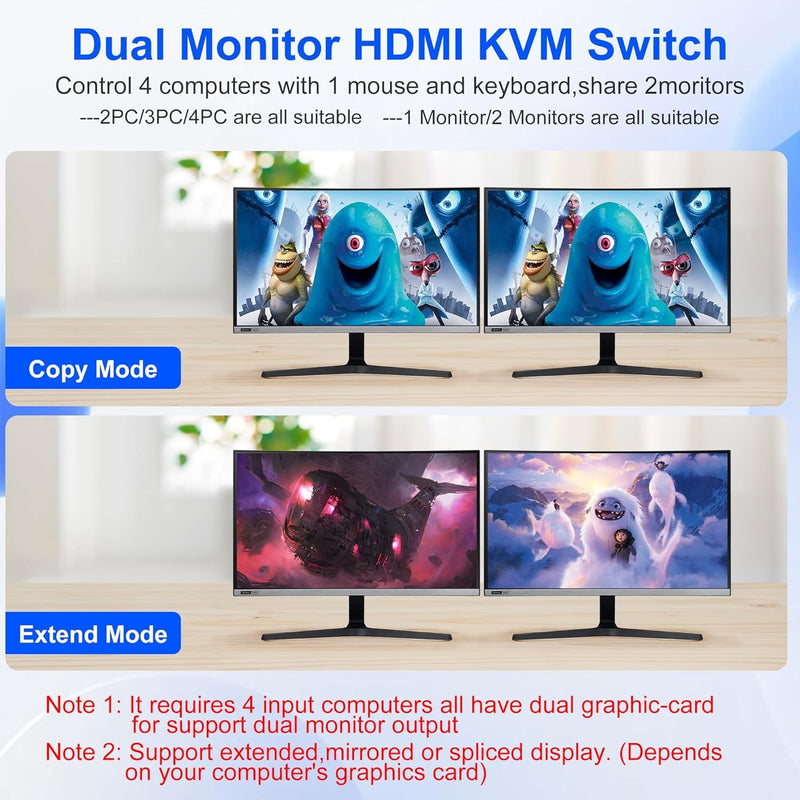

- Supports mirrored and extended mode (depends on graphics card)
- Requires each computer to have two HDMI ports
-
USB:

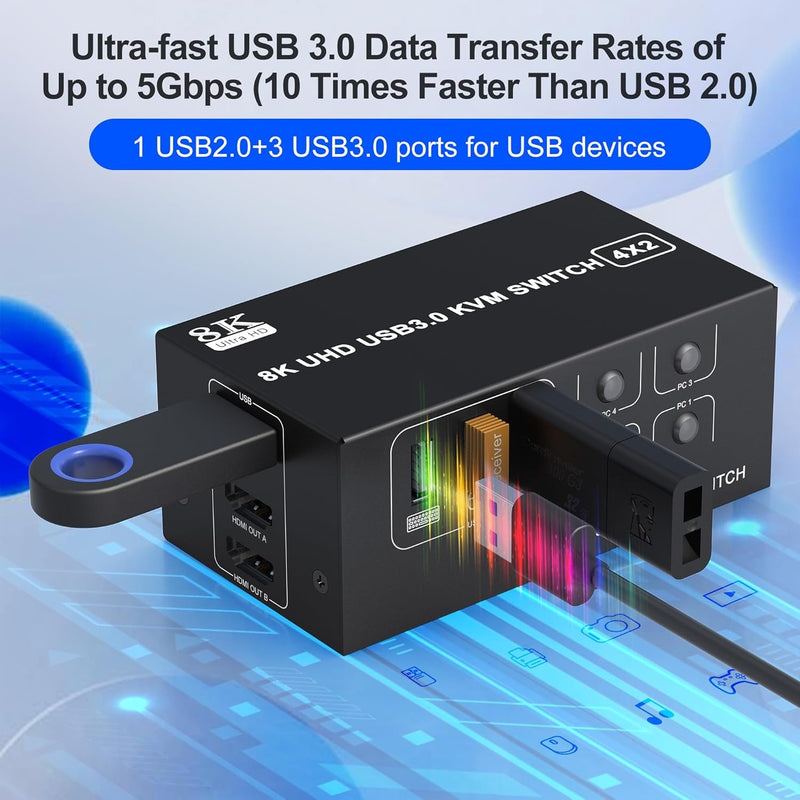

- 3 × USB 3.0 ports (5 Gbps transfer speed)
- 1 × USB 2.0 port (for e.g. 2.4GHz wireless keyboard/mouse)
- Allows sharing of mouse, keyboard, USB drives, cameras, etc. between computers
-
Switching methods:

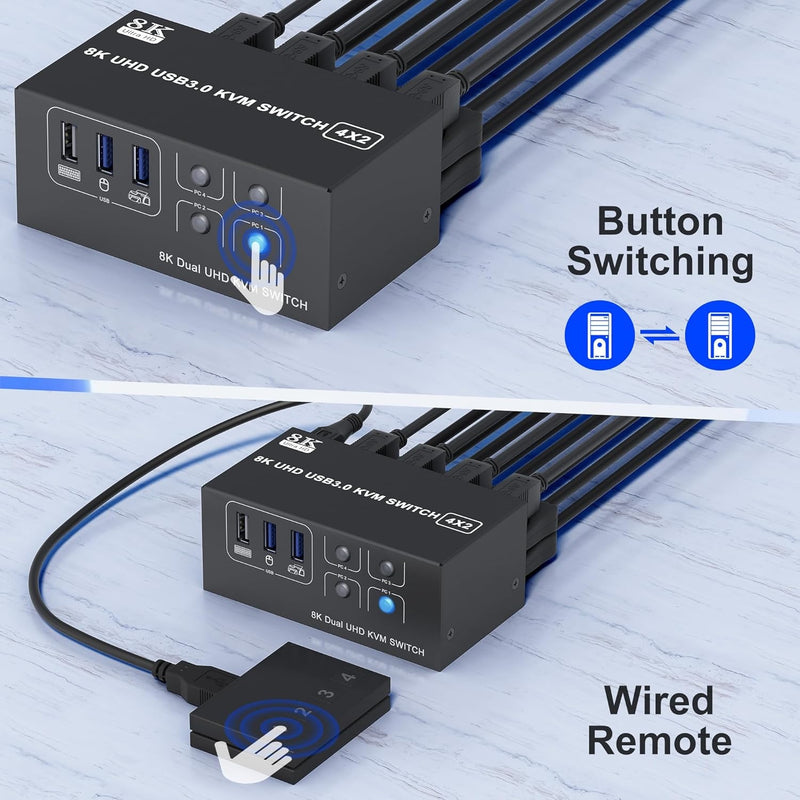

- Panel buttons for PC1 to PC4
- Wired remote control included
- LED indicators show active computer
-
Compatibility:
- Windows Vista, XP, 7, 8, 10, 11
- macOS
- Linux and Unix
-
Dimensions and weight:
- Size: 232 × 174 × 56 mm
- Weight: 730 g

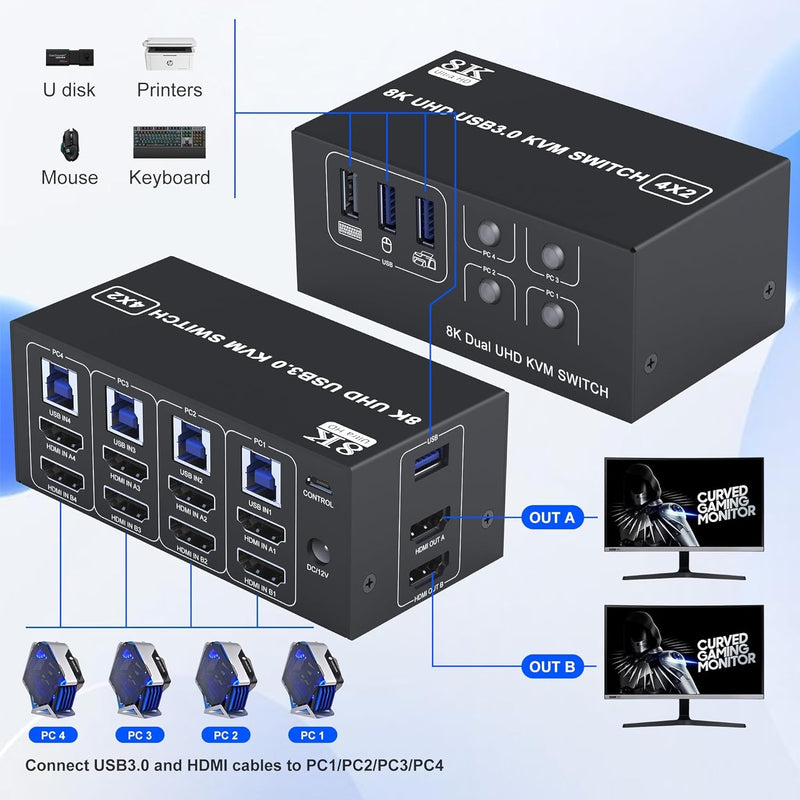

Connections
-
INPUT:
- 8 × HDMI (each computer requires 2×HDMI for dual display)
- 4 × USB-B (to connect to computer)
-
OUTPUT:
- 2 × HDMI (to monitors)
- 4 × USB-A 3.0 (for USB devices)

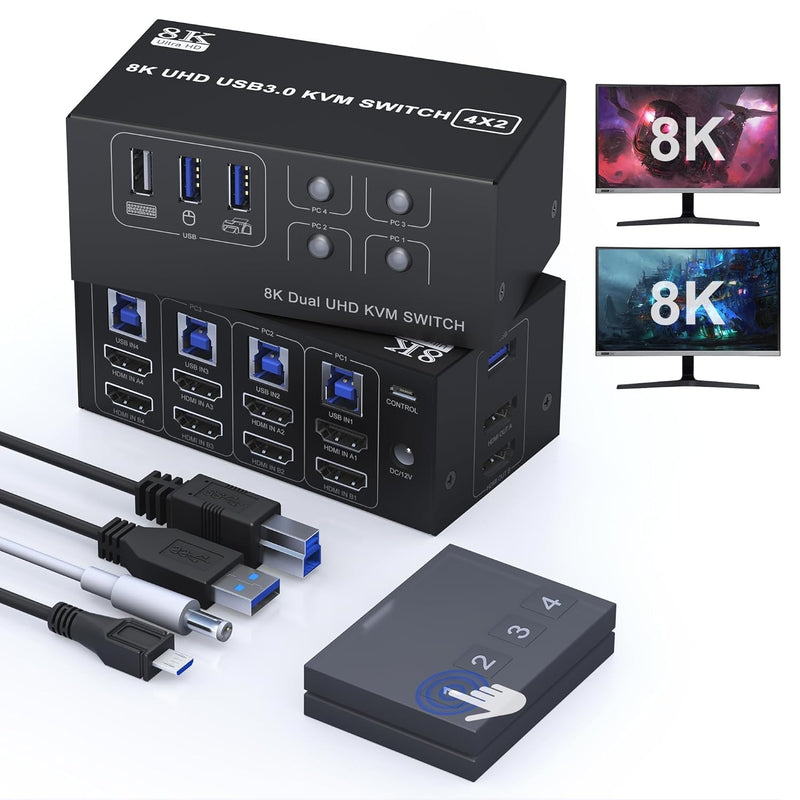

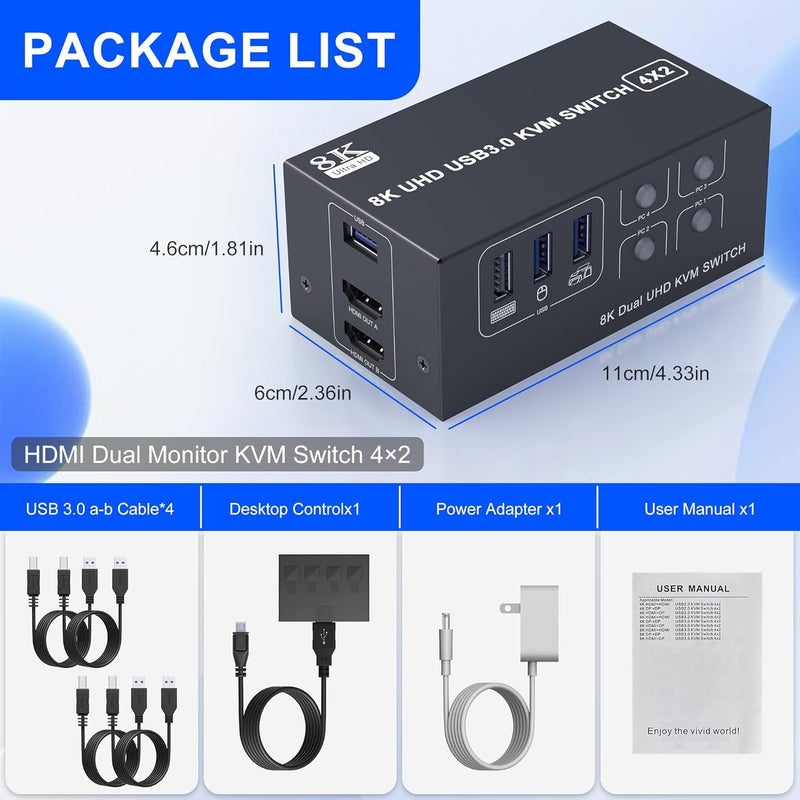

Package content
- 1 × NÖRDIC 4 to 2 HDMI KVM switch
- 4 × USB-A to USB-B cables (USB 3.0)
- 1 × Wired remote switch
- 1 × Power adapter
- 1 × User manual
