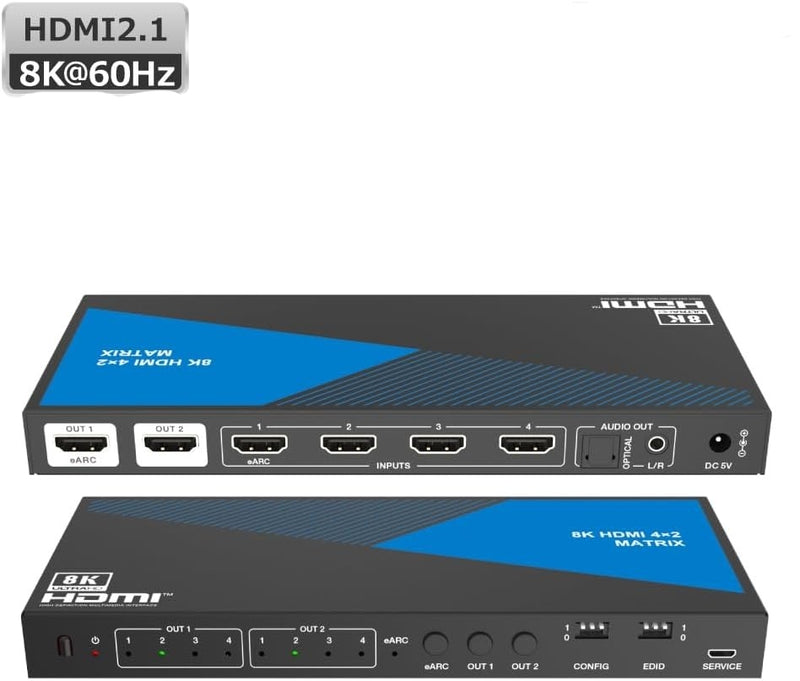

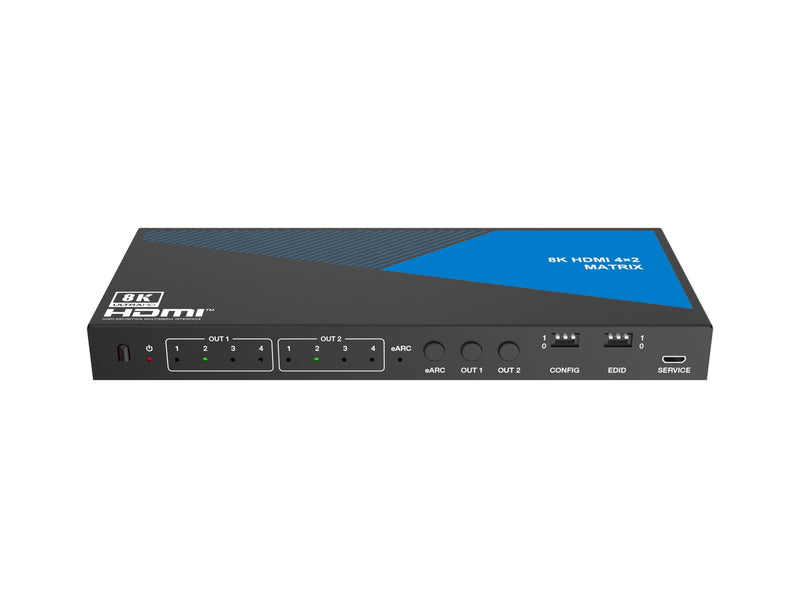

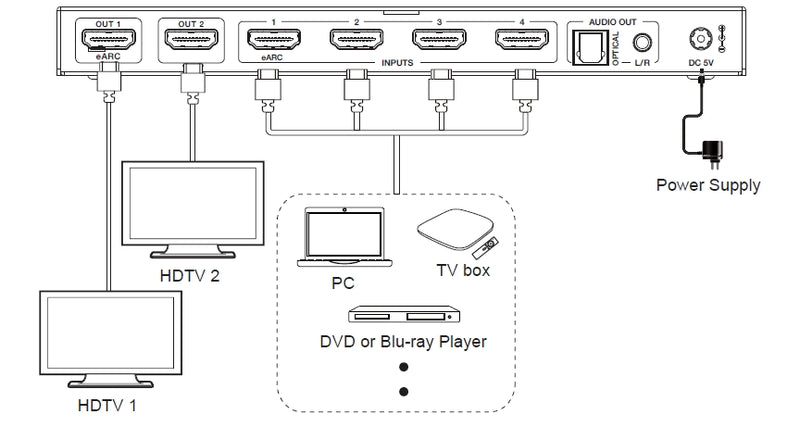

This HDMI eARC/ARC extractor allows you to connect and switch between and extract audio from up to 4 HDMI sources or from one eARC HDMI display to two HDMI displays. The extractor supports resolutions up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit and is certified by the 8K association. Note that HDMI 2.1 cables are required for the highest resolutions. Input and output 1 support eARC and ARC and you activate the ARC function with a simple button press on the extractor. Also supports HDCP 2.3 and is backward compatible with previous versions. Maximum bandwidth 48Gbps and data rate 41.92Gbps. Supports color format RGB Y'CbCr 4:4:4, 4:2:2, 4:2:0 and color depth up to 16bpc. The sound is extracted via 3.5mm AUX, optical S/PDIF or HDMI and the extractor supports 2-channel, 5.1 and 7.1-channel audio (note 7.1 only via HDMI). Support for the latest audio formats Dolby Atmos, DTS Master, Dolby TrueHD, Dolby Digital Plus and more. With support for HDMI CEC, you can control the volume of input devices with the TV remote control, audio format is also set on the HDMI source.
No drivers are required and the extractor is powered by the included 5V2A power cable.
Specifications:
- Inputs:
1x HDMI 2.1 eARC/ARC
3x HDMI 2.1
1x DC 5V2A
- Outputs:
1x HDMI 2.1 eARC/ARC
1x HDMI 2.1
1x S/PDIF
1x 3.5mm AUX
- Resolutions: 8K@60/30Hz, 4K@120/60/30Hz, 1080P@120/60Hz
- Bandwidth: 48Gbps
- Data rate: 41.92Gbps
- EDID support for easy connection
- Support for downscaling 8K->4K / 4K->2K
- Support for: HDMI CEC, HDR/10/10+, VRR, ALLM, Dolby Vision, QMS, QFT, SBTM, DSC and HLG pass-through
- Color format: RGB Y'CbCr 4:4:4/4:2:2/4:2:0
- Color depth: up to 16bpc
- Audio format:
AUX: PCM 2.0 stereo
S/PDIF: PCM 2.0, LPCM 5.1 Dolby/DTS 5.1
HDMI: PCM 2.0, LPCM 7.1/5.1, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
- No drivers required, Plug and Play
- Dimensions: 200x85x21 mm
- Weight: 411 g
- Colour: Black
- Contents:
1x SGM-243
1x Power supply 5V2A
1x Remote control
1x Manual
