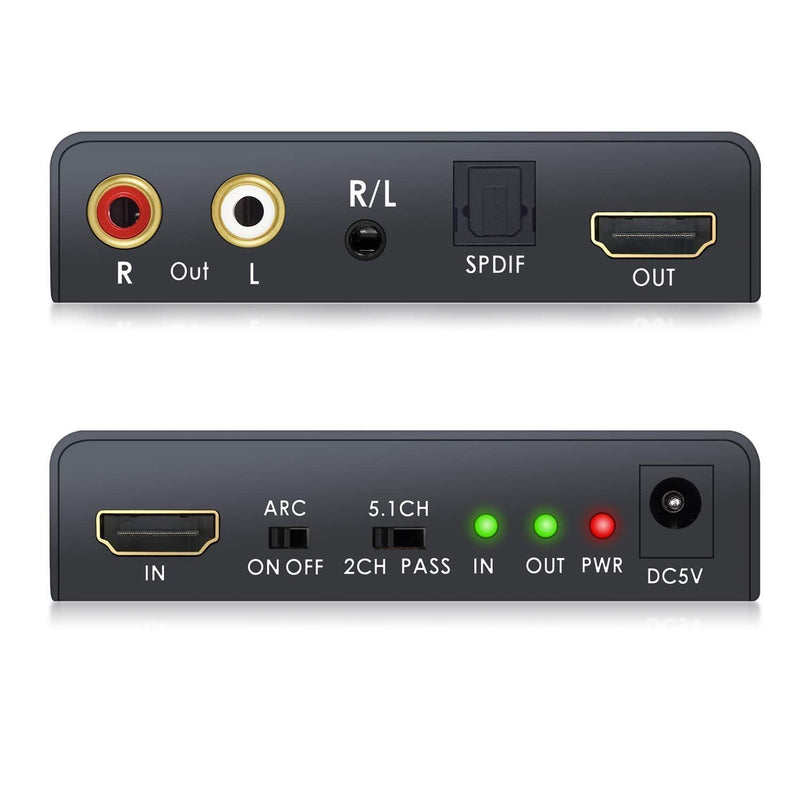

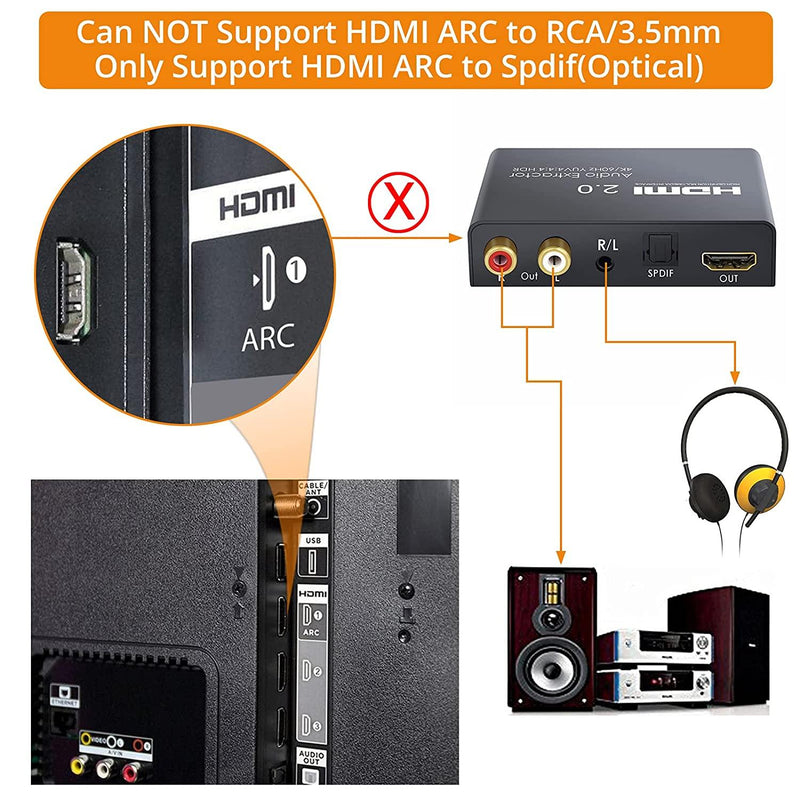

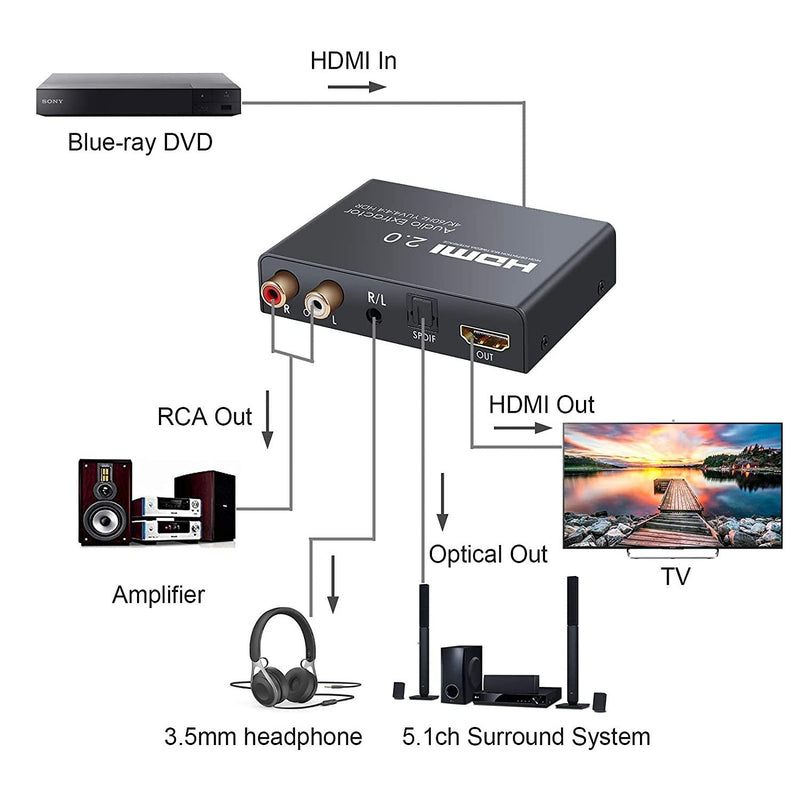

With HDMI ARC Extractor, you can separate audio signals from the HDMI signal in INPUT and convert it to Digital SPDIF, analog stereo audio (2xrca) and analog 3.5mm AUX. Support for 192khz Audio Sampling Rate. The extractor will only pass Dolby Digital / DTS sound format, it will not decode audio signals from HDMI ARC for the analog output. If you use the analogue output, make sure your HDMI source is set to PCM sound.
HDMI 2.0 Resolution 4K 60Hz HDCP2.2 YUV4: 4: 4 Support for HDMI Video Color Format: 2160p, 10/12 Bits, 24/25 / 30Hz, 2160p, 10/12 Bits, 50 / 60Hz Support for HDR 10BITS HDMI INPUT MAX CABLED LENGTH 3M OUTPUT 3M Support for HDMI AUDIO Format: DTS-HD / Dolby-TrueHD / LPCM7.1 / DTS / OLBY-AC3 / DSD SPDIF Toslink supports Dolby Digital, AC3, DTS, LCPM, 5.1ch Output Input OUTPUT TMDS Signal: 0.5 ~ 1.5VP-P (TTL) INPUT OUTPUT DDC Signal: 5VP-P (TTL)
Dac Sampling Frequency: 32 ~ 192 kHz Dac piece Rate: 16 ~ 24 bit RCA Analog OUTPUT (1KHz @ 0dB): 1V RMS Signal To Noise Ratio @ 0DB (CC1R / ARM): ?90DB Frequency Response: 20Hz ~ 20khz Max power: 400mA AC 100V-240V 50 / 60Hz, DC 5V / 1A

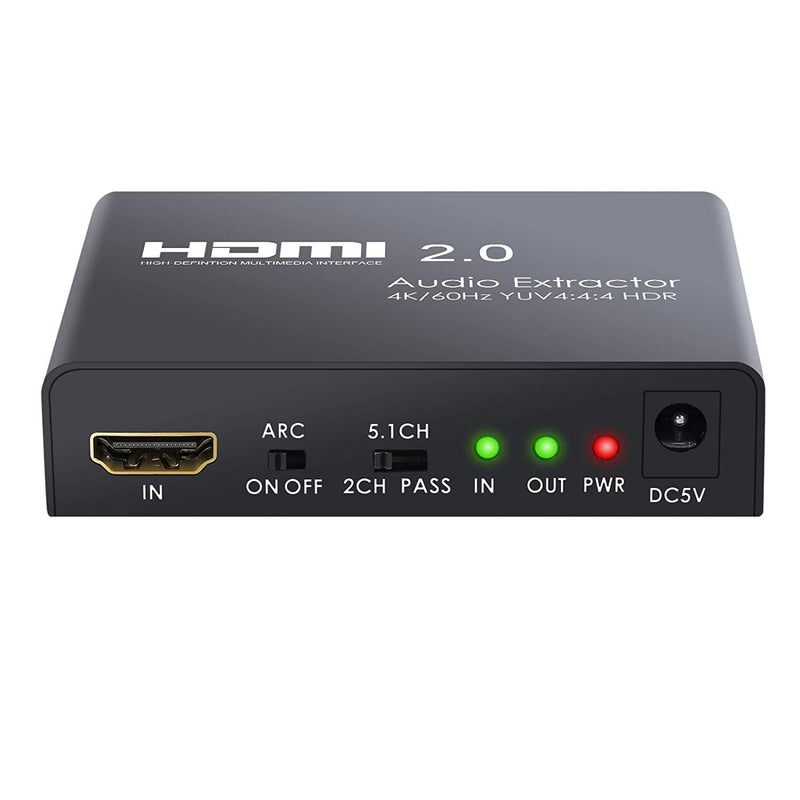

LED indicator shows different status of extractor 192khz 24 bit Powered by the included AC adapter 5V1a
Input Dimensions: 80x60x21. Material: Aluminum Content: HDMI Adapter, AC adapter and manual
