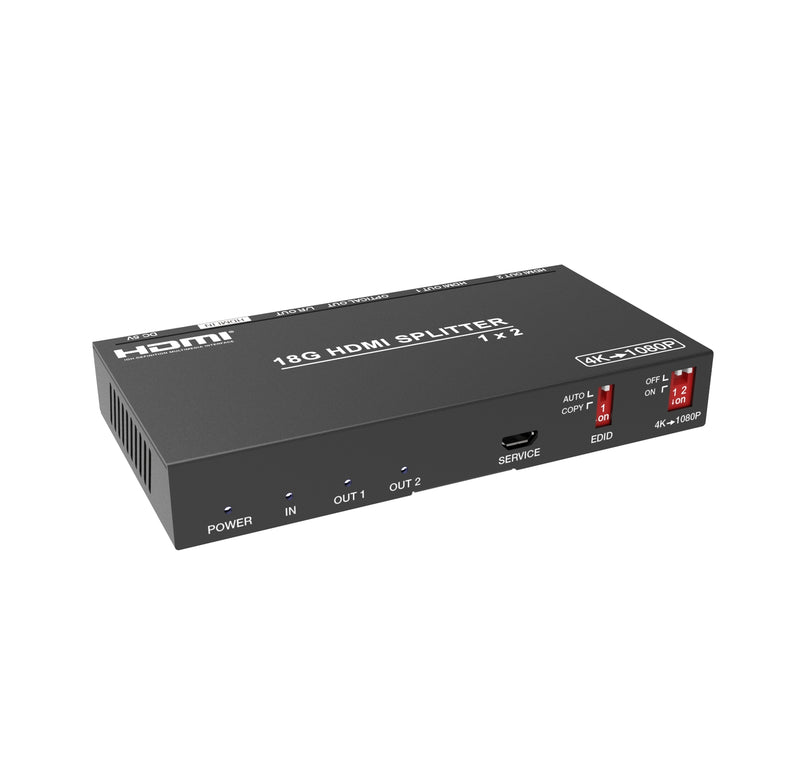

This HDMI splitter allows you to connect an HDMI source and easily switch between up to two HDMI displays, and in addition also extract the sound via optical S/PDIF or 3.5mm AUX. The splitter supports resolutions up to 4K@60Hz 4:4:4. Note that HDMI 2.0 cables are required for the highest resolutions. Also supports HDCP 2.1 and is backward compatible with previous versions. Maximum bandwidth 18 Gbps and data rate 14.4 Gbps. Supports color format RGB Y'CbCr 4:4:4, 4:2:2, 4:2:0 and color depth up to 12bpc. Supports downscaling of video signals from 4K to 1080p.
No drivers are required and the splitter is powered by the included 5V1A power cable. Note that this splitter is not bidirectional and only works as a 1 to 2 splitter, not a 2 to 1 switch.
Specifications:

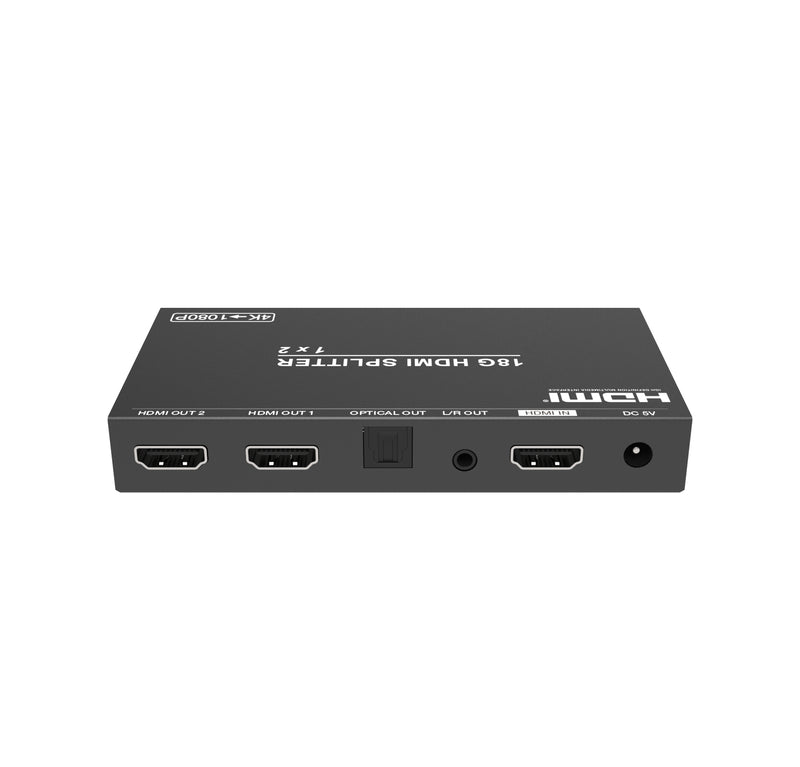

- Inputs:
1x HDMI 2.0
1x DC 5V1A
- Outputs:
2x HDMI 2.0
1x S/PDIF
1x 3.5mm AUX
- Resolutions: 4K@60Hz 4:4:4, 4K30Hz, 1080p@60Hz
- Bandwidth: 18 Gbps
- Data rate: 14.40 Gbps
- EDID support for easy connection
- HDCP 2.1 and 1.4 support
- Color format: RGB Y'CbCr 4:4:4/4:2:2/4:2:0
- Color depth: 4K60Hz 8 bit, 1080p 12 bit
- Audio format:
AUX: PCM 2.0 stereo
S/PDIF: LPCM 2.0/2.1 Dolby 5.1, Dolby True HD, Dolby DD+, DTS 5.1, DTS-ES 6, DTS-HDMA 5.1, DTS HD-HRA 5.1
HDMI: LPCM 2.0/5.1/7.1 Dolby Digital/Plus/X, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS-HD Master Audio, DSD
- No drivers required, Plug and Play
- Dimensions: 120x70x15 mm
- Weight: 170 g
- Colour: Black
- Contents:
1x SGM-253
1x Power supply 5V1A
1x Manual
