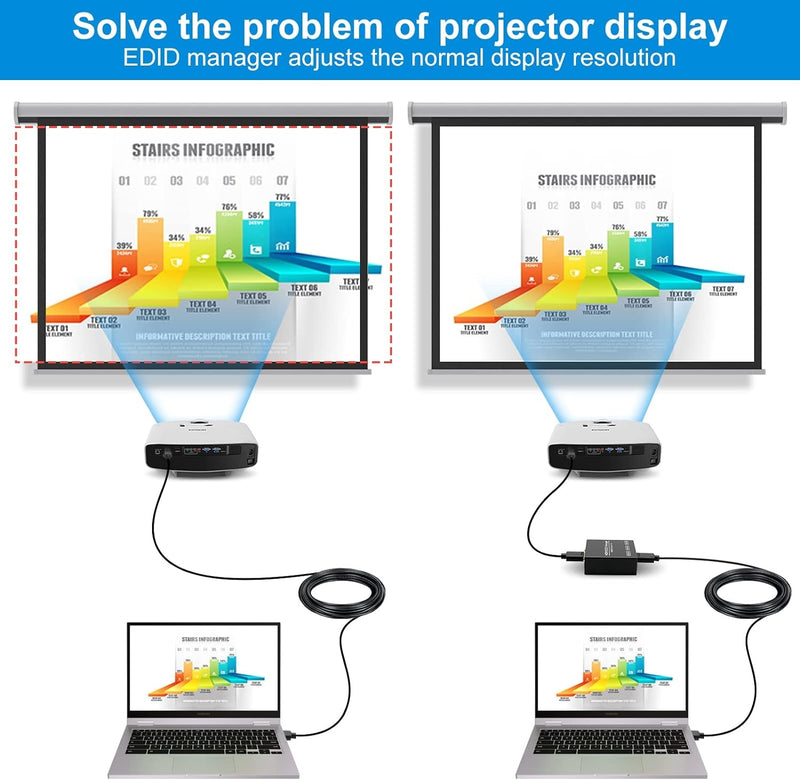

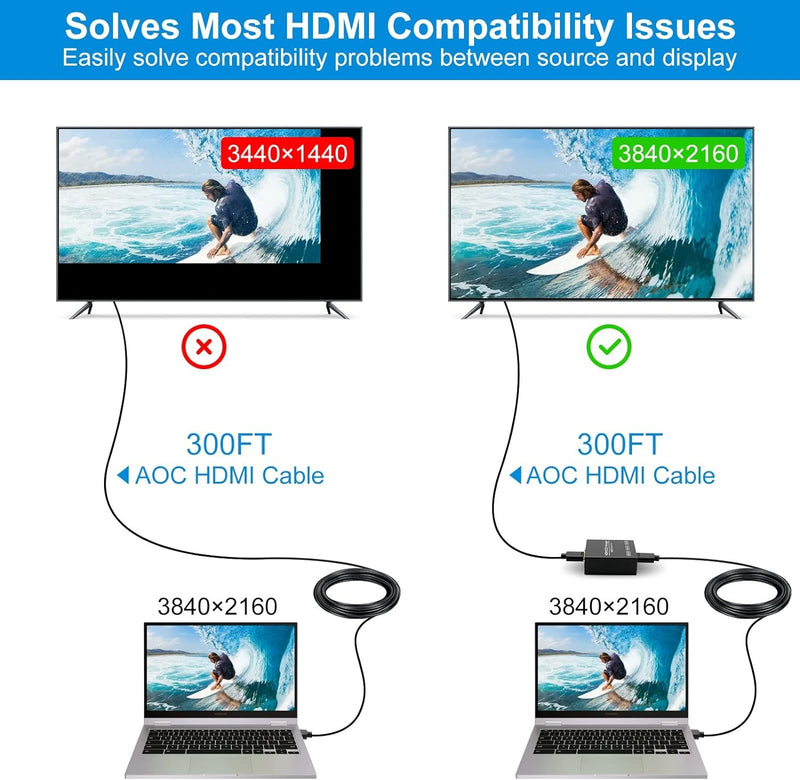

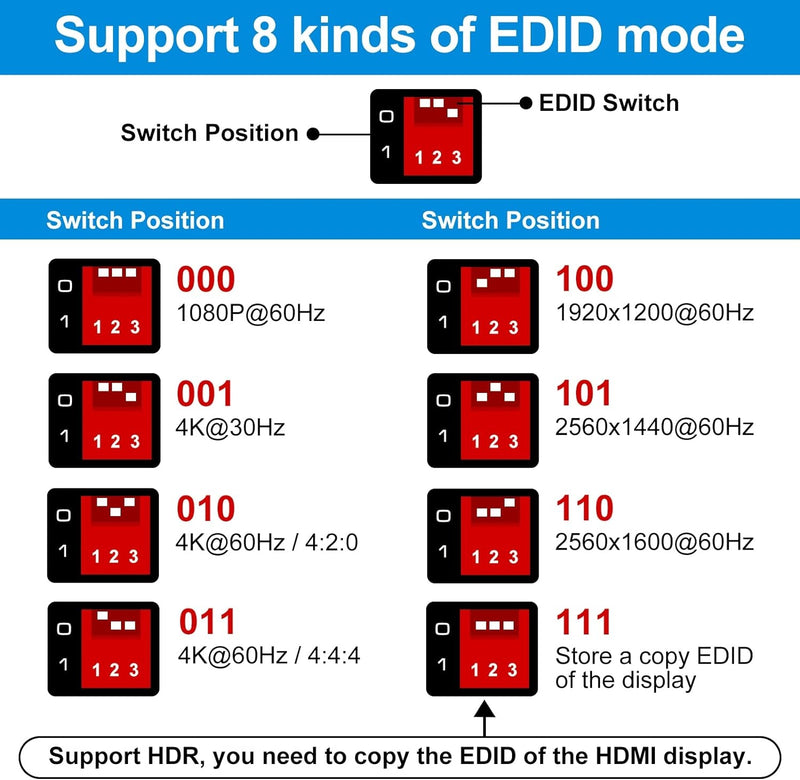

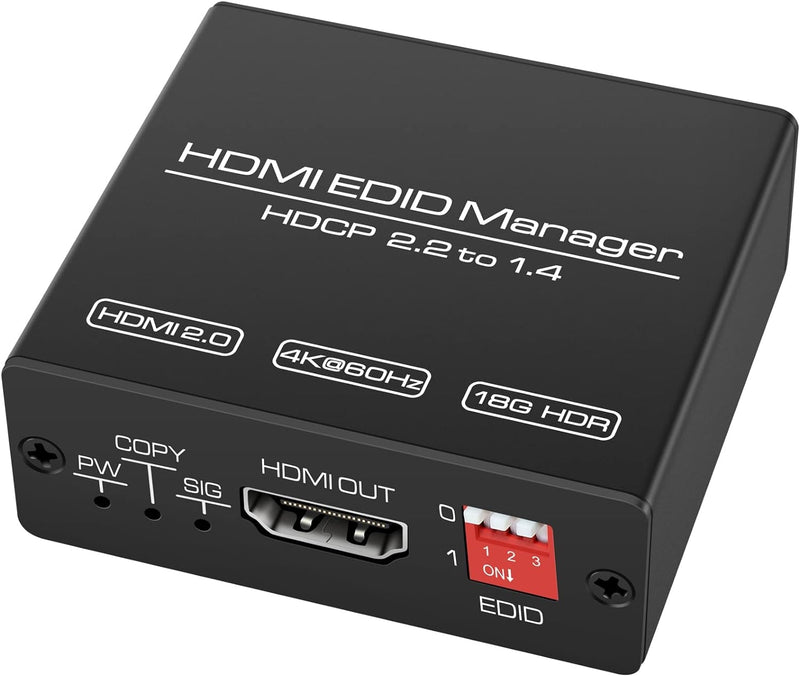

This HDMI 2.0b EDID emulator solves the problem of EDID incompatibility between multiple HDMI devices and has the function of saving and copying EDID data from the final display device and 8 kinds of preset EDID data. This allows the entire HDMI device to combine the video and audio signals required for system operation. The emulator can amplify and equalize HDMI signals to provide higher video and audio quality and enables multiple layers of cascading. The emulator supports HDMI 2.0b protocol (backwards compatible) and supports resolutions up to 4K60Hz YUV 4:4:4 with 18Gbps bandwidth as well as HDR and HLG. It also supports HDCP 2.2 and CEC pass thorugh which can be done without affecting the operation of other functions of the HDMI device system. The device does not require any drivers.
Specifications:

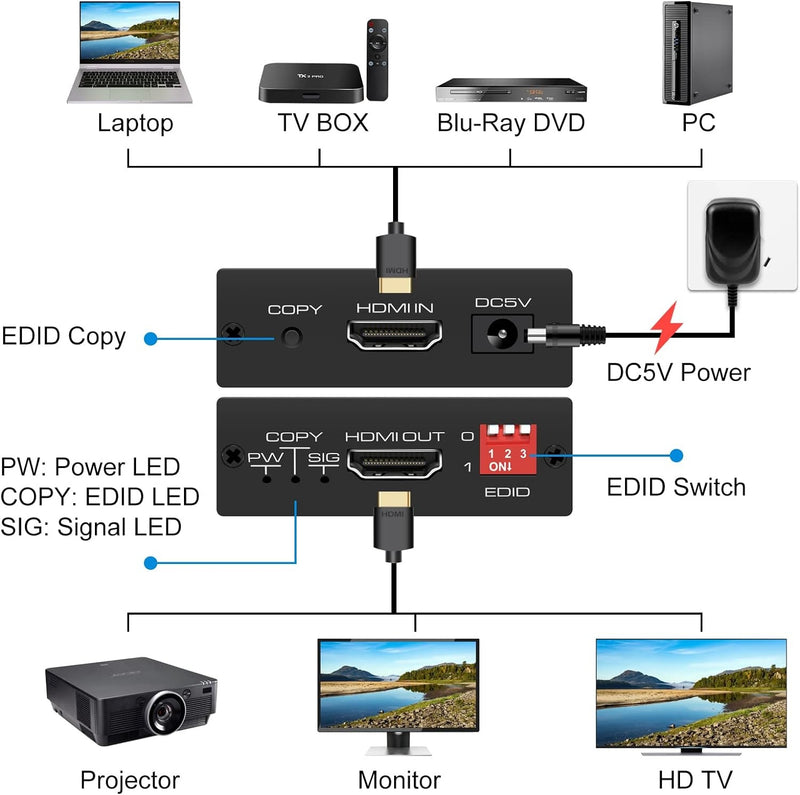

- Inputs:
1x HDMI 2.0b
1x 5V DC
- Outputs:
1x HDMI
- Support for resolutions up to 4K60Hz YUV 4:4:4
- Supports HDMI 2.0b for access to HDR and HLG
- Support for HDCP 2.2 and CEC pass through
- Amplifies and equalizes HDMI signals
- No drivers required, Plug & Play
- Powered by the included power supply and cable
-

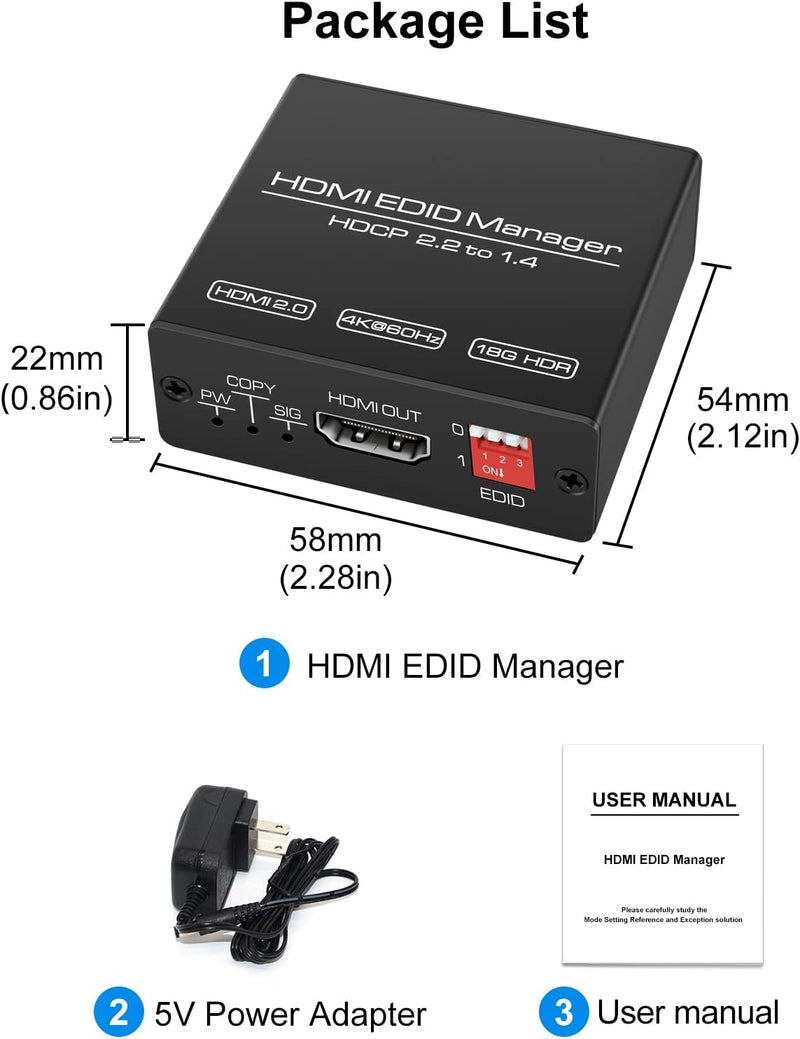

Content
1x EDID emulator
1x 5V power supply
1x Manual
