This product allows you to switch between two HDMI sources and send the signal to one or two screens simultaneously. Perfect for home theaters, gaming setups, or presentations where you want to show the same image on two displays or quickly switch between different HDMI devices. Supports up to 8K@60Hz, 4K@120Hz, and HDR for stunning image quality and deep color reproduction.
Specifications
-
Video:
- Up to 8K@60Hz
- 4K@120Hz / 4K@60Hz
- HDR, HDR10, HDR10+, Dolby Vision
- HDCP 2.3 compatible
- Bandwidth: up to 40 Gbps
- Note: Image quality is limited to the lowest common denominator between the displays
- Not an HDMI matrix – both outputs always show the same image
-
Switching & Function:
- 2x2 function: 2 HDMI inputs, 2 HDMI outputs

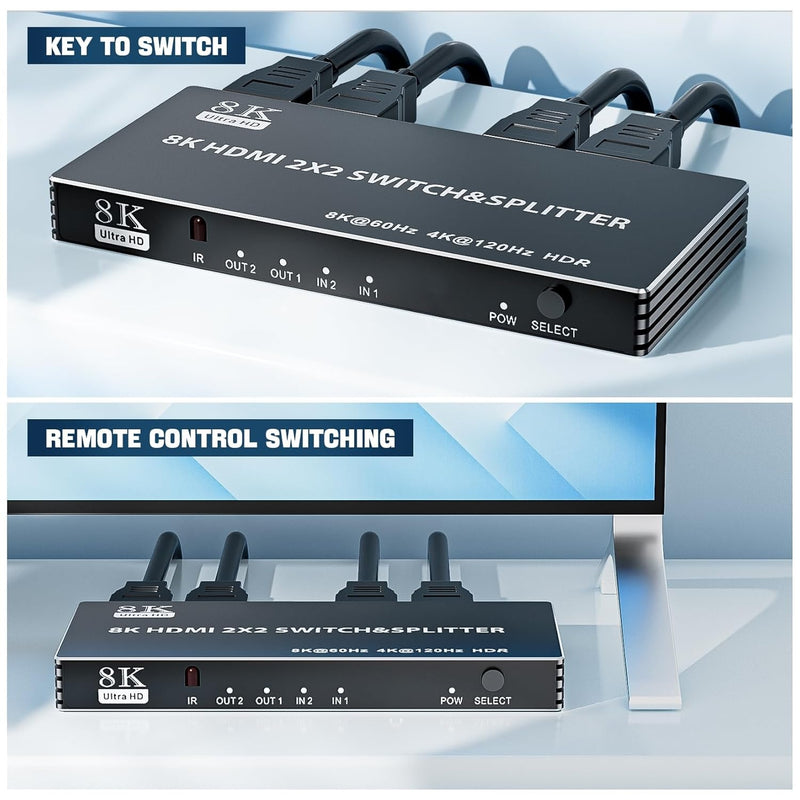

- Switch manually with button or via included IR remote
- Built-in equalizer, retiming, and driver for stable signal
- No support for CEC or HDMI audio output to soundbar
-
Usage Recommendations:
- Always use certified HDMI 2.1 cables
- Total cable length (in + out) should not exceed 4 meters for HDMI 2.1
- Both displays must support the desired resolution for optimal output
Compatibility

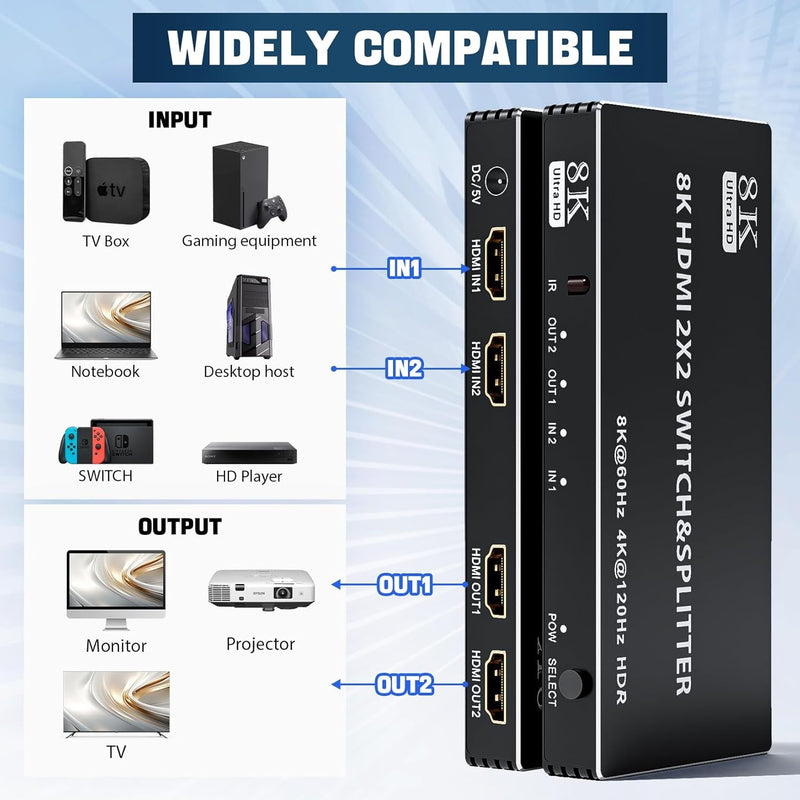

- HDMI 2.1 / 2.0 / 1.4
- PS5, Xbox Series X/S, Fire TV, Blu-ray, projector, TV, monitor, etc.
Connections
-
INPUT: 2 × HDMI 2.1
-
OUTPUT: 2 × HDMI 2.1
Package Contents

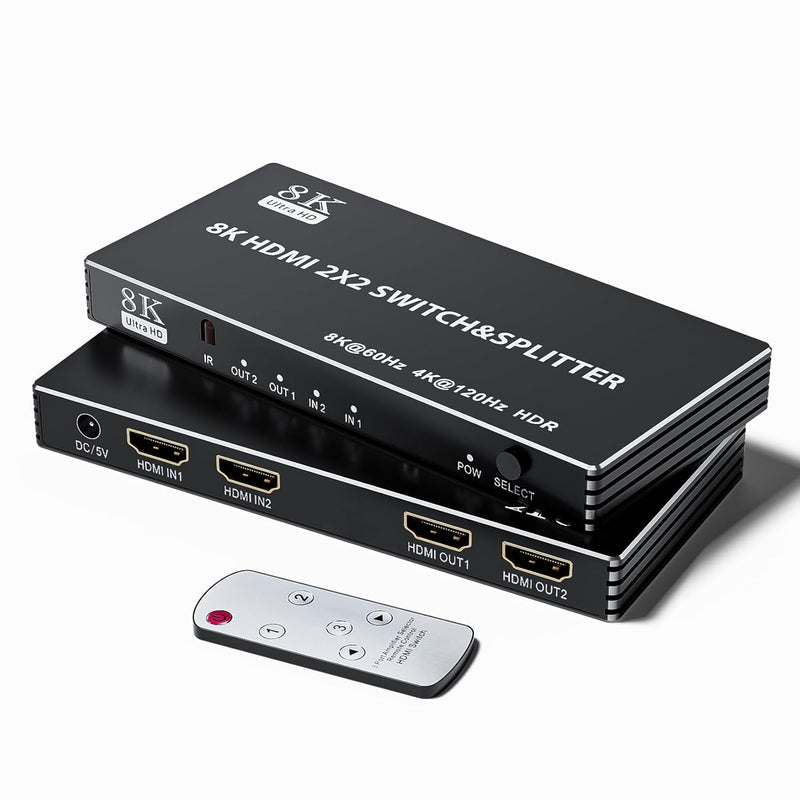

- 1 × NÖRDIC HDMI 2.1 2x2 Switch & Splitter

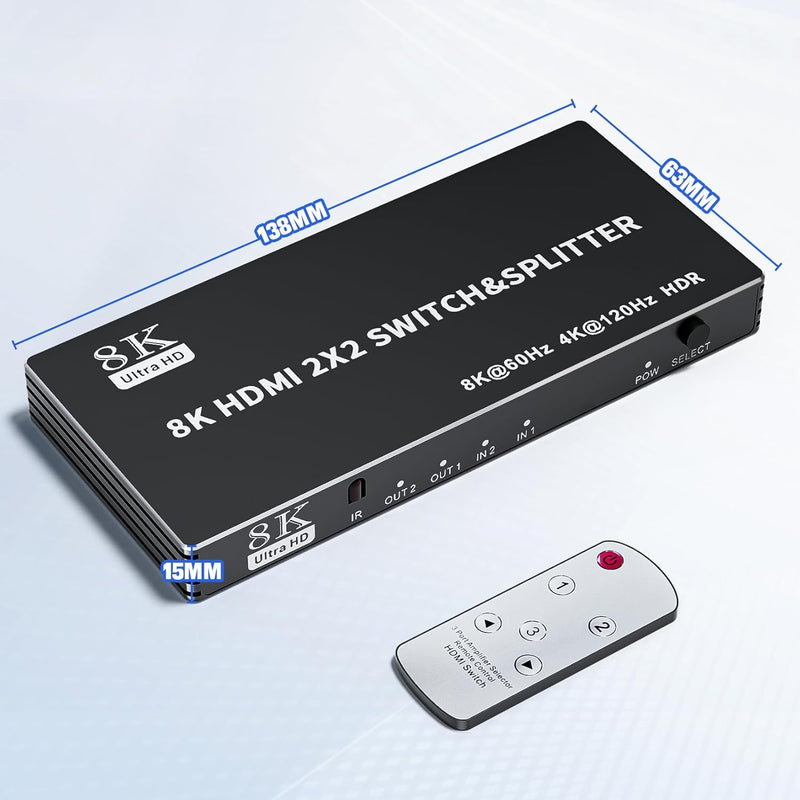

- 1 × IR remote control
- 1 × DC-5V power adapter
- 1 × User manual
