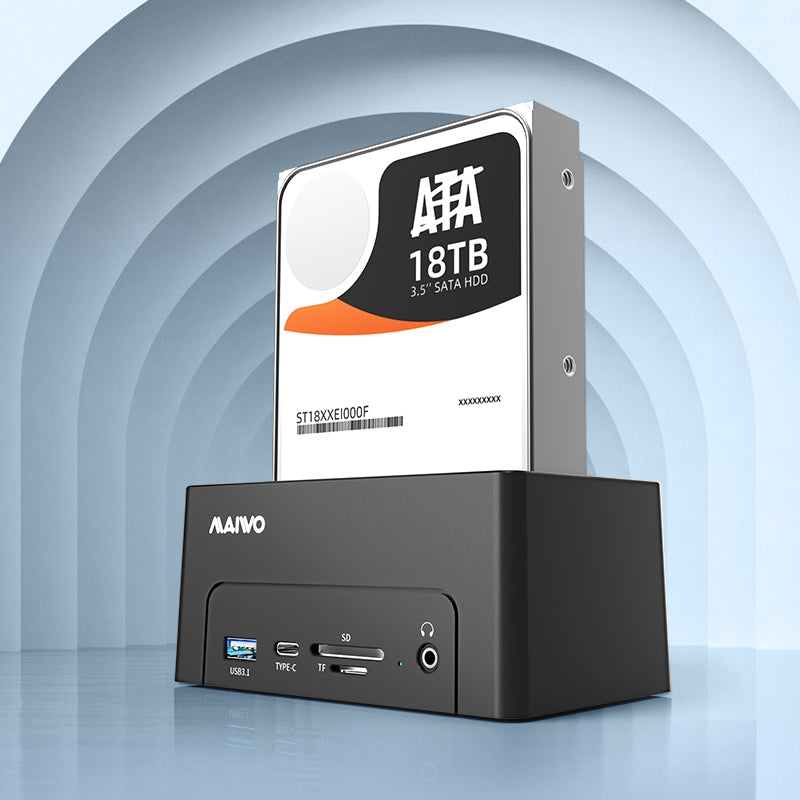

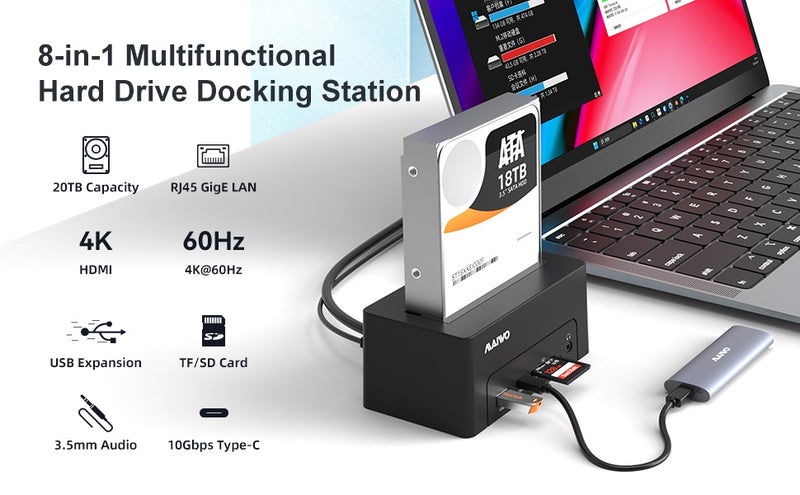

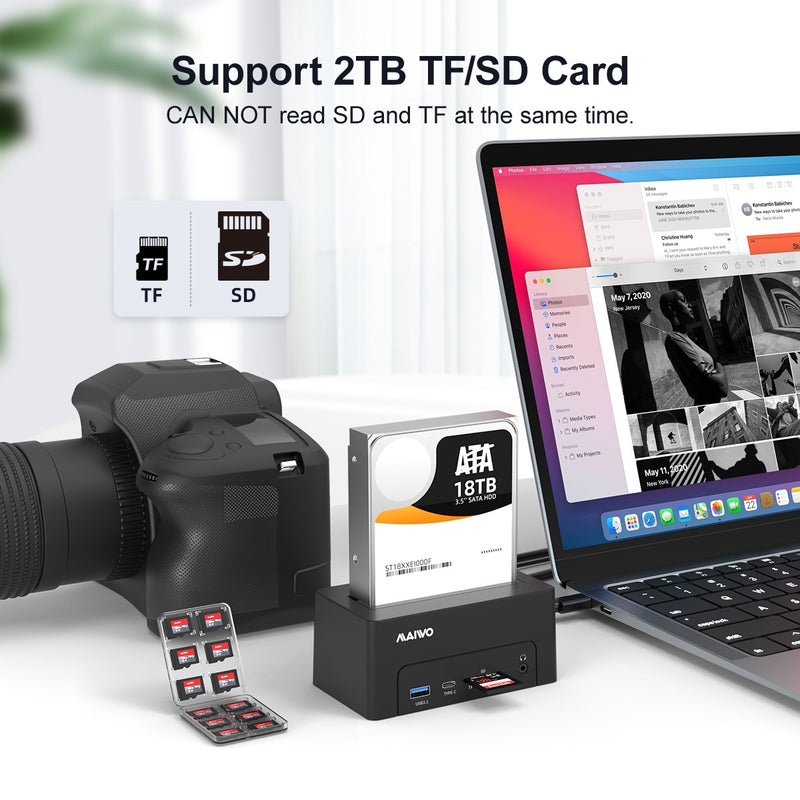

Maiwo K308P is a combination of an external storage cabinet and a docking station. It allows you to connect 2.5" or 3.5" SATA I/II/III HDDs or SSDs with up to 20TB of storage space to your computer via USB-C 3.1 Gen 2. In addition, it has ports for SD memory cards and TF memory cards up to 2 TB, note that you cannot read SD and TF at the same time.
The cabinet has, in addition to the USB-C connection to your computer, a USB-A 3.1 and a USB-C 3.1 for connecting a keyboard, telephone, USB memory etc. and both USB ports support data transfer rates of up to 10 Gbps and is backward compatible with previous USB versions. In addition to storage, you can also connect an external screen to your computer via the HDMI 2.0 port, which supports resolutions up to 4K60Hz. The docking station also comes with a port for 3.5mm AUX and RJ45 Ethernet port that supports 1 Gbps network connection. The cabinet is powered by the supplied 36W power supply which supports overcurrent, overvoltage and short circuit protection. No drivers required, plug & play.
Specifications:

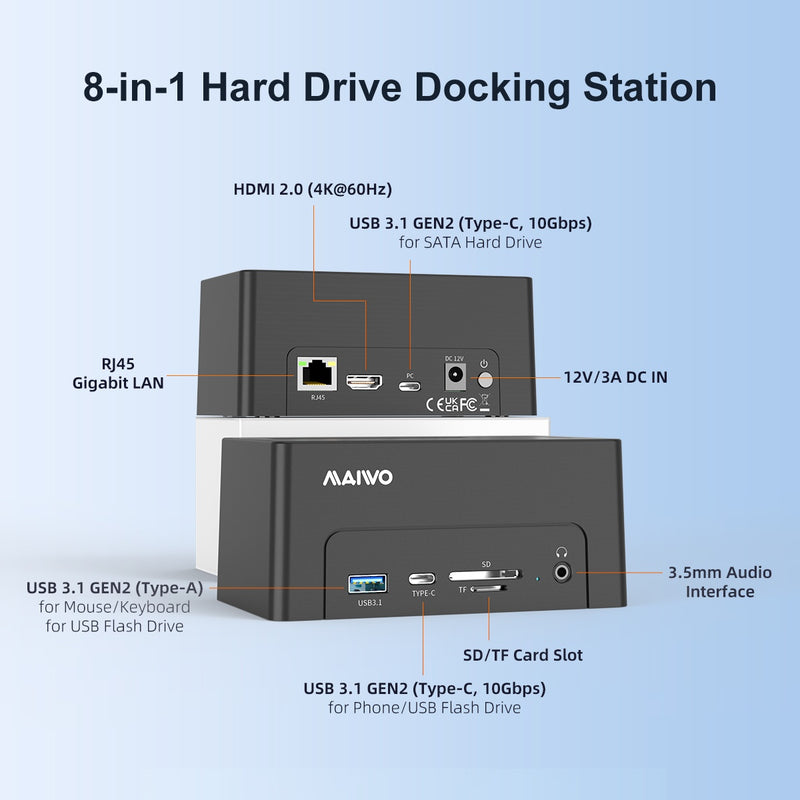

- Connections:
- 1x 2.5"/3.5" SATA HDD SSD slots
- 2x USB-C 3.1 Gen 2 10Gbps
- 1x USB-A 3.1 Gen 2 10Gbps
- 1x 3.5mm AUX
- 1x RJ45 GigaLan
- 1x HDMI 2.0 4K60Hz
- 1x 12V/3A DC
- Interface: USB Type-C to SATA
- Maximum storage space: HDD/SSD up to 20TB, SD/TF up to 2TB
- Resolution: 4K60Hz, 2560x1440p 144/120/60Hz, 1920x1080p 240/120/60Hz

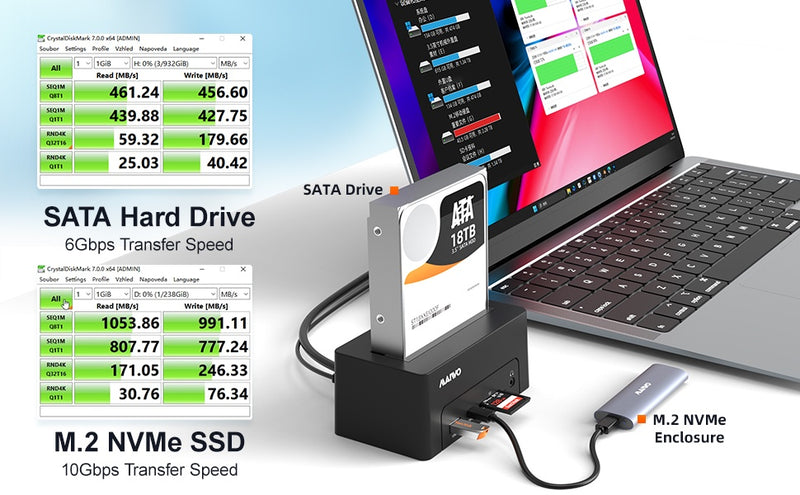

- Data transfer speed: up to 10Gbps
- Plug & Play, no drivers required
- Dimensions: 130x70x57mm
- Material: Plastic
- Contents:
- 1x K308P
- 1x USB-C to USB-C 1m cable
- 1x Power supply and cable 36W
- 1x Manual
