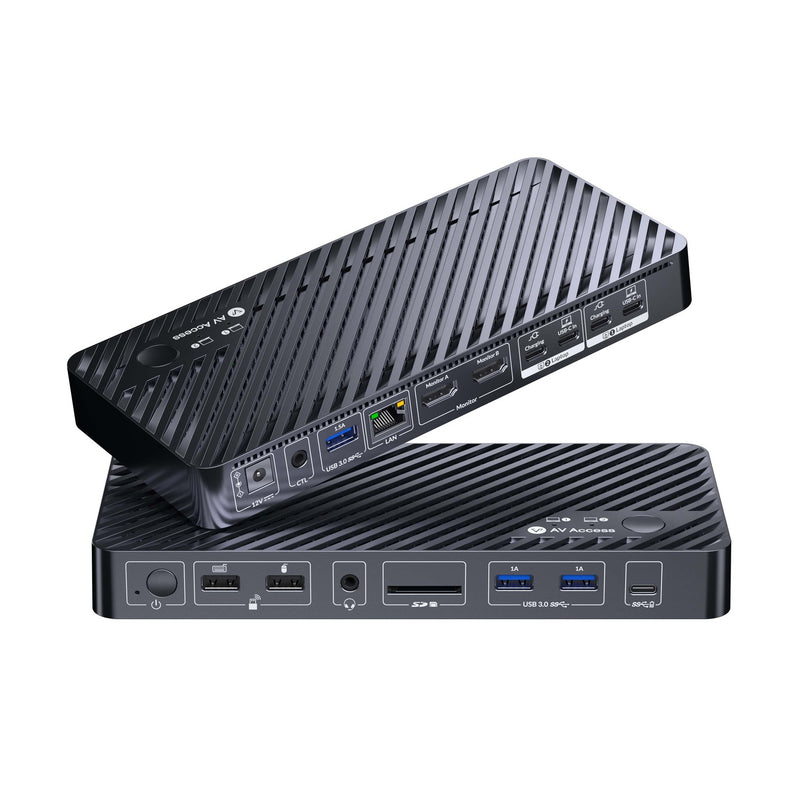

This product is an advanced KVM docking station that allows you to switch between two USB-C laptops and use two external HDMI monitors simultaneously – with full support for 4K@60Hz via DisplayPort Alt mode MST. Designed for productivity in professional environments where multiple computers share displays, network, audio, and peripherals. With support for high-resolution video, fast data transfer, 100W USB-C charging, and extensive connectivity options, the KD-E20 is the optimal all-in-one solution for modern workplaces.
Specifications
-

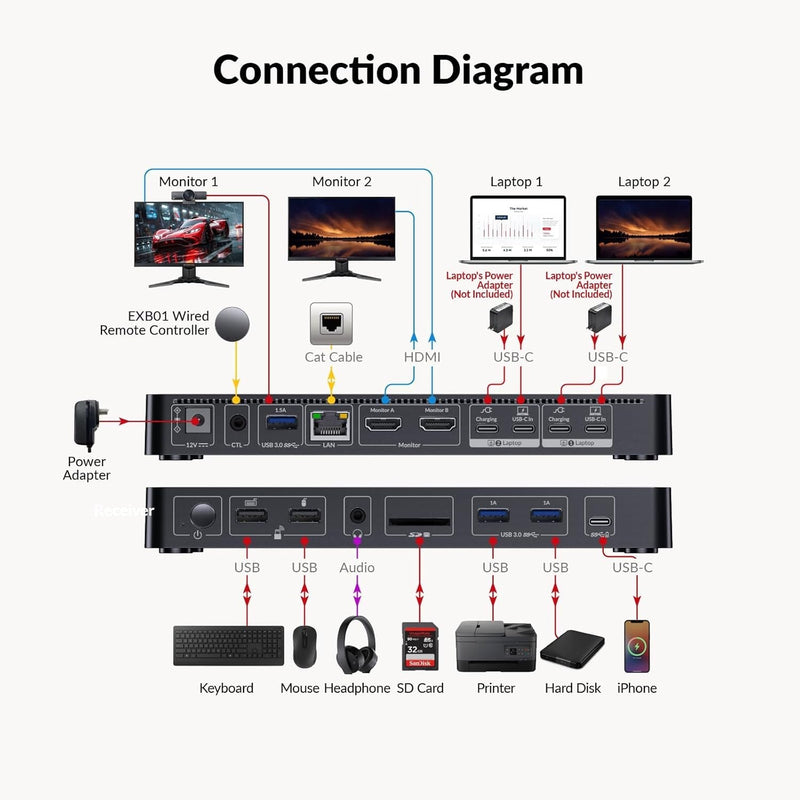

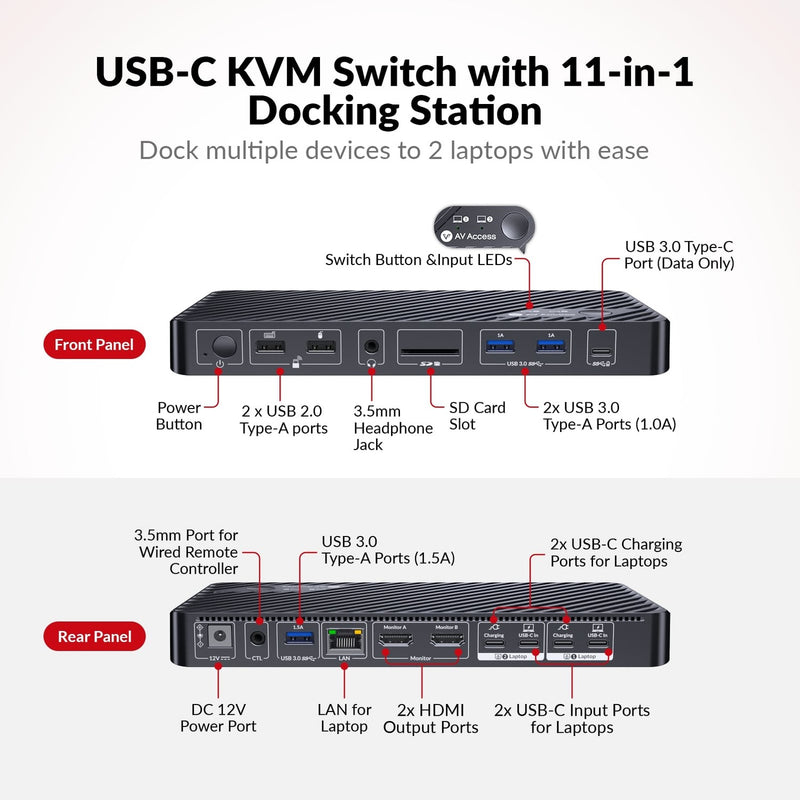

INPUT
- 2× USB-C (Computers): DP 1.4a MST (up to 2× 4K@60Hz video), USB 3.0 (5Gbps)

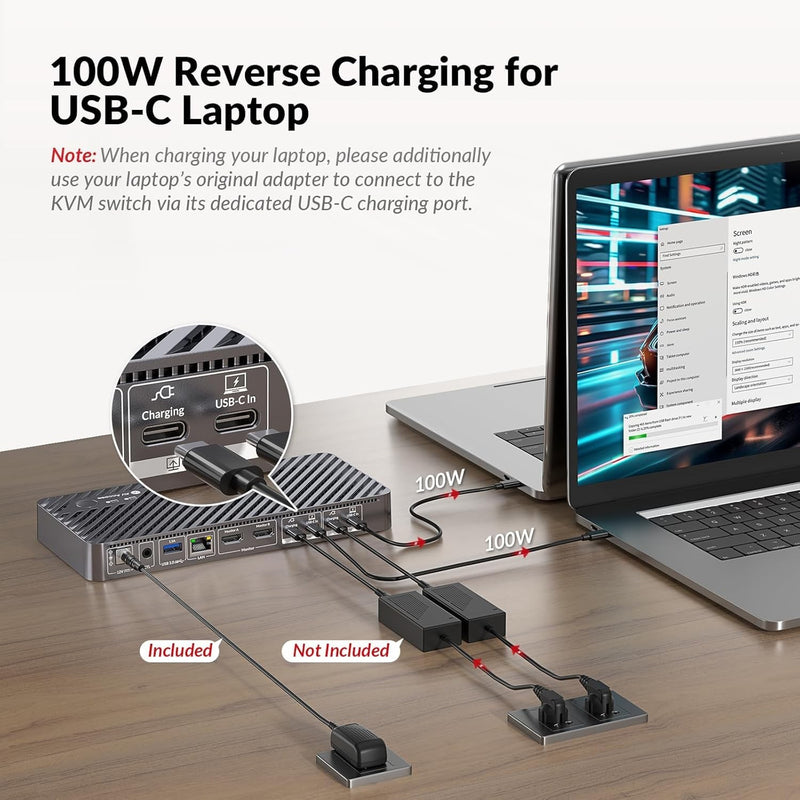

- 2× USB-C (Computers): Power delivery only (PD 3.0, up to 100W per laptop)
- 3× USB-A 3.0: Up to 5Gbps (2× 5V/1A, 1× 5V/1.5A)
- 2× USB-A 2.0: Up to 480Mbps
- 1× USB-C: Up to 5Gbps, 1.5A (data only)
- 1× RJ45 LAN: 1Gbps Ethernet (shared between both laptops)
- 1× SD card slot: Up to 104MB/s, max 2TB
- 1× 3.5mm TRRS: Stereo audio + microphone
- 1× DC 12V/3A (power adapter included)
-
OUTPUT
- 2× HDMI 2.0b: Up to 4K@60Hz 4:4:4 8bit, HDCP 2.2
-
Video Formats – Resolution & Frequency Support
-
SMPTE Formats: 1280×720p, 1920×1080i/p, 2560×1080, 3840×1080, 3840×2160, 4096×2160 (Up to 240Hz depending on resolution)
-
VESA Formats: From 800×600 up to 2560×1440 (Up to 165Hz at 1080p, 144Hz at 2560×1440)
-
Audio Format Support
- HDMI OUT & USB-C IN: PCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTS-HD MA, DTS:X
- 3.5mm Jack: Stereo
-
Other
- Operating Temperature: 0°C to +45°C
- Storage Temperature: -20°C to +70°C
- Humidity: 20–90%, non-condensing
- Power Consumption: Max 28.2W
Dimensions
- Size: 220 × 25.2 × 100 mm
- Weight: 0.72 kg
Contents

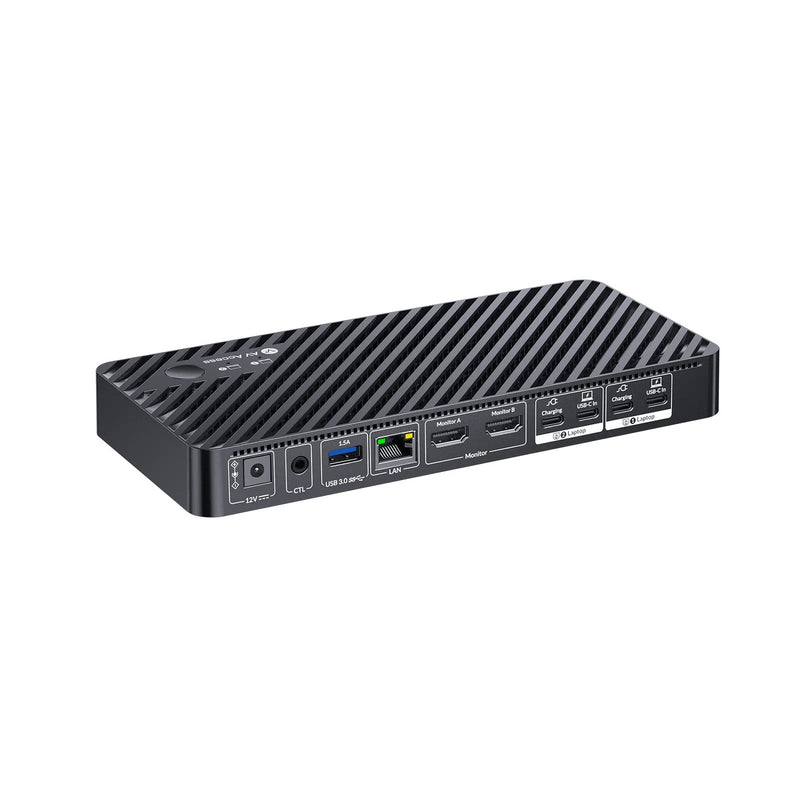

- 1× KD-E20 KVM Dock Switch
- 1× Power Adapter (DC 12V/3A)
- 2× USB-C to USB-C Cables (1 meter, USB 3.2 Gen 2)
- 1× Wired Remote Control (EXB01)
- 1× User Manual
