This product allows you to share two monitors along with keyboard, mouse, and USB peripherals between two computers. It supports resolutions up to 4K@60Hz and HDR formats like HDR10+, Dolby Vision, and HLG. Ideal for professional workstations where seamless switching between computers is required.
Specifications
- Resolution: Up to 4K@60Hz (4:4:4 8-bit), 2K@60Hz/144Hz
- HDR support: HDR, HDR10, HDR10+, Dolby Vision, HLG
- Video Bandwidth: 18 Gbps
- HDMI Standard: HDMI 2.0
- DP Standard: DP 1.2a
- HDCP Version: HDCP 2.3
- USB Ports: 2 x USB HOST (type B), 4 x USB DEVICE (type A), 2 x USB 3.0 front ports
- Audio Support: LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS:X etc.
- Video & Audio Latency: 0 ms
- Power Supply: 12V/1A (included adapter)
- Operating Temperature: 0–40 °C
- Storage Temperature: -20–60 °C
- Power Consumption: 8.4 W (typical), 0.6 W (standby)
- Dimensions: 220 x 100 x 30 mm
- Weight: 626 g
- Housing: Metal

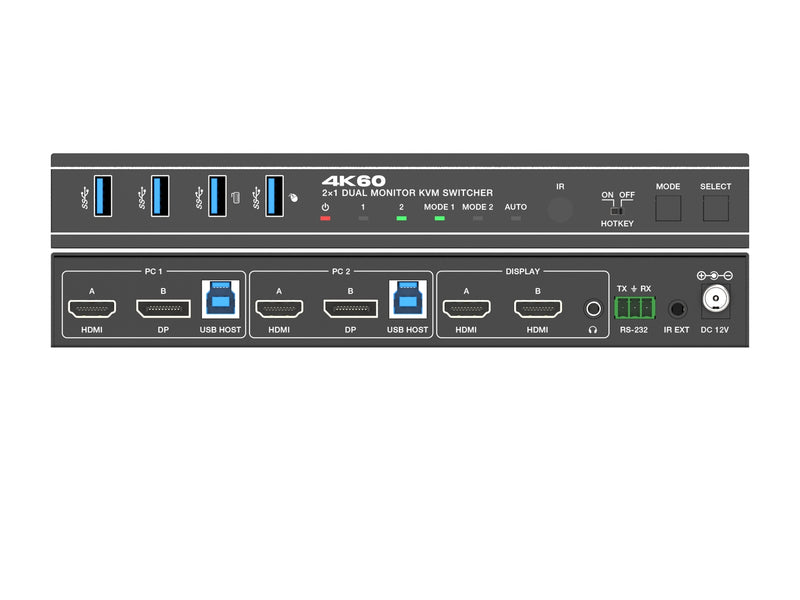

Connections
- INPUT: 2 x HDMI, 2 x DisplayPort, 2 x USB HOST (type B)
- OUTPUT: 2 x HDMI, 1 x L/R 3.5 mm audio out, 4 x USB-A
Features

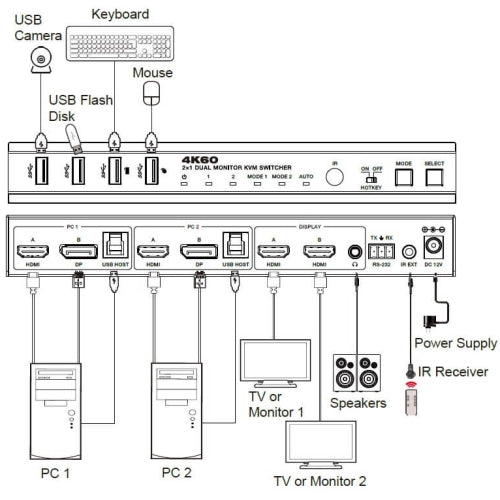

- Supports two computers with dual monitors (HDMI and DP for each PC)
- Share USB peripherals like printer, webcam, external hard drive, etc.
- Built-in EDID emulators ensure correct resolution when switching
- Seamless switching via front button, IR remote, keyboard/mouse hotkeys, or RS-232 commands
- Hotkey support and dual KVM mode support
- Automatic signal switching on connect/disconnect
- Compatible with Windows, macOS, Linux
- No delay in video or audio
- Supports ultra-wide monitors
- Supports auto wake from sleep
- Fully Plug & Play – no driver needed
Package Contents
- 1 x NÖRDIC KVM Switch 2 to 2 HDMI/DP
- 2 x HDMI cables (1.5 m)
- 2 x DP cables (1.5 m)
- 2 x USB 3.0 cables (type A to type B, 1.8 m)
- 1 x IR remote
- 1 x IR receiver cable (1.5 m)
- 1 x RS-232 3-pin phoenix connector
- 1 x 12V/1A power adapter (EU/US universal)
- 2 x Mounting brackets
- 4 x Screws (KM3*4)
- 1 x Manual
