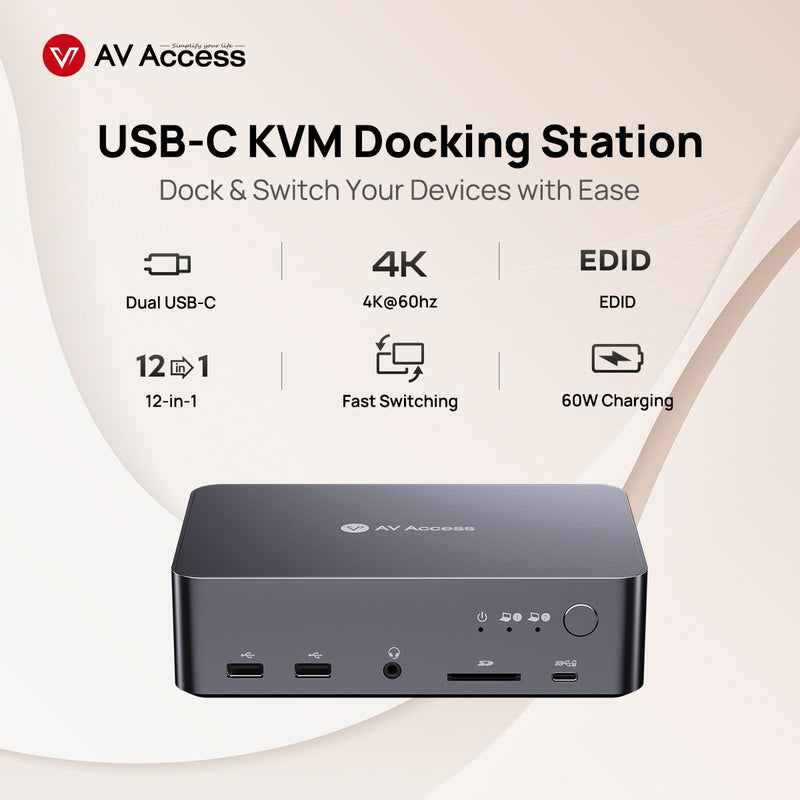

AV Access iDock C20 is a powerful 12-in-1 KVM docking station that allows you to switch between two USB-C laptops with a single button press. With support for dual 4K displays, up to 60W charging per laptop, and shared USB devices, network, and audio, it is perfect for home offices, gaming, and professional workstations. Two USB-C cables are included for easy connection of both computers.
Specifications
- Supports two laptops with easy switching via button or wired remote control
- Supports dual external displays up to 4K@60Hz 4:4:4
- Up to 60W USB-C Power Delivery per laptop
- USB-C MST support for dual extended displays on compatible systems (not MacOS)
- 12-in-1 docking station with HDMI, USB, SD card, LAN, and audio connections
- Shared 1G Gigabit Ethernet connection for both laptops
- EDID emulation for stable display handling and preserved window positions
- Plug & Play – no drivers required
- Supports wireless RF and Bluetooth devices
- Aluminum chassis with CNC-machined design
- Supports Windows, macOS, Linux, Ubuntu, Android, and iOS
- Supports resolutions up to:
- 4096×2160@60Hz
- 3440×1440@60Hz
- 2560×1440@144/120/60Hz
- 1920×1080@240/120/60Hz
- Bit rate: 18 Gbps
- Data rate: 14.4 Gbps
- HDCP 2.2
- Color formats: RGB, 4:4:4, 4:4:2, 4:2:0, 4:0:0
- Color depth: up to 16bpc
- Audio support:
- 3.5mm: Stereo 2.0
- HDMI: PCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, DTS:X
- SD card reader up to 104MB/s and max 2TB
- Maximum power consumption: 151.2W
- Operating temperature: 0°C to 45°C
- Storage temperature: -20°C to -70°C
- Dimensions: 168 × 47 × 110 mm
- Weight: 0.67 kg

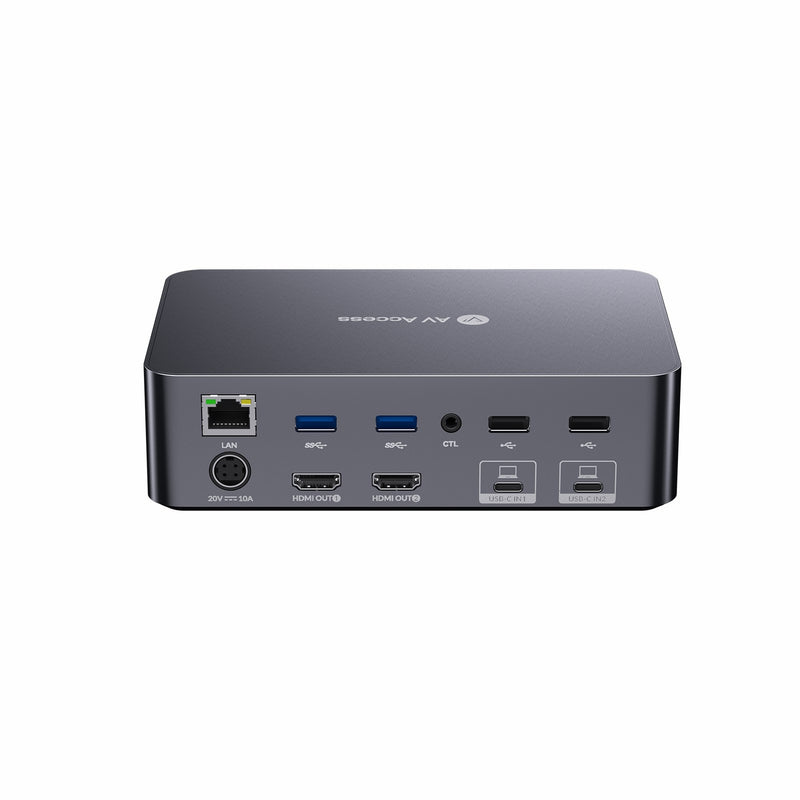

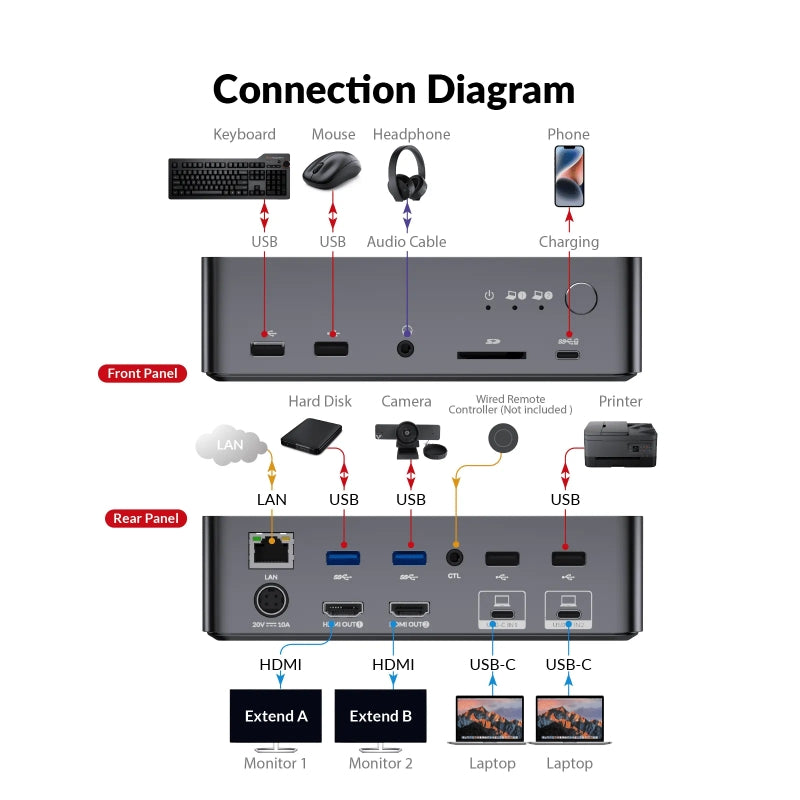

Input
- 2× USB-C 3.2 Gen2x1
- 1× DC 20V/10A
Output
- 2× HDMI 2.0
- 4× USB-A 2.0
- 2× USB-A 3.0
- 1× USB-C 3.0
- 1× RJ45 Gigabit LAN
- 1× SD card slot
- 1× 3.5mm AUX
- 1× port for wired remote control
Features
- Quickly switch between two laptops with a button press or external control
- Connect two external 4K displays for efficient multitasking
- Charge both laptops simultaneously with up to 60W per device
- Share keyboard, mouse, headset, storage, and other USB devices between two systems

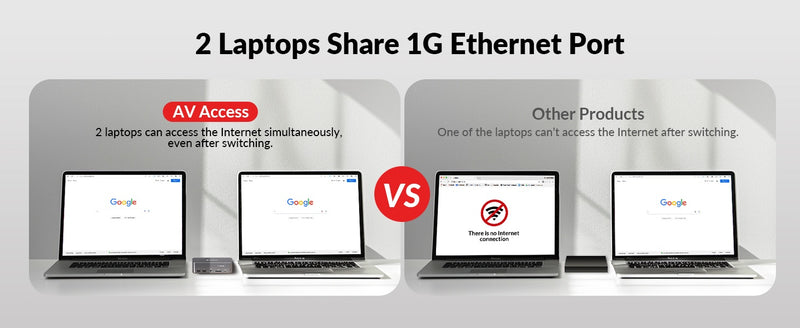

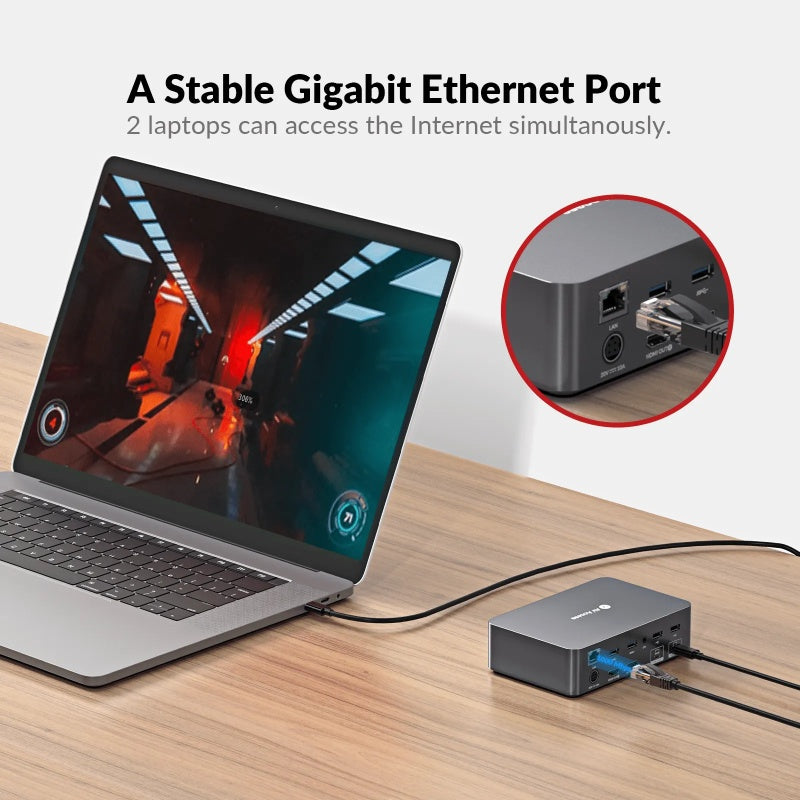

- Stable 1G Ethernet connection for both laptops through shared LAN port
- USB-C MST support for dual extended displays on compatible Windows devices (not MacOS)

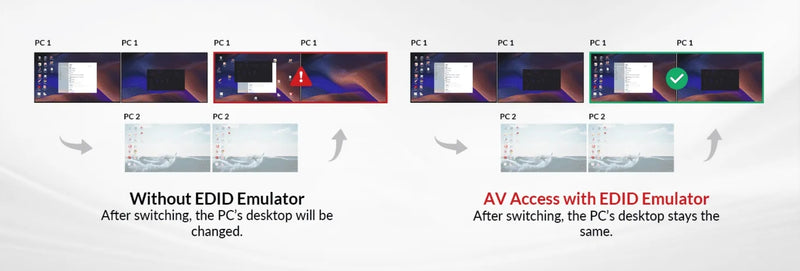

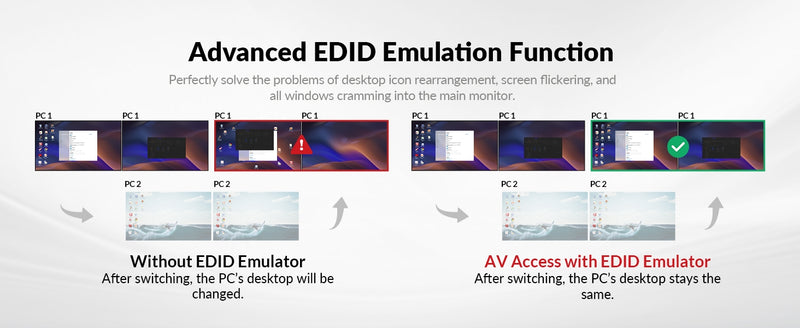

- EDID emulation provides fast switching and stable display recognition
- Perfect for home offices, streaming, gaming, and professional workflows
- Durable aluminum design with efficient heat management
- Plug & Play installation without software or drivers

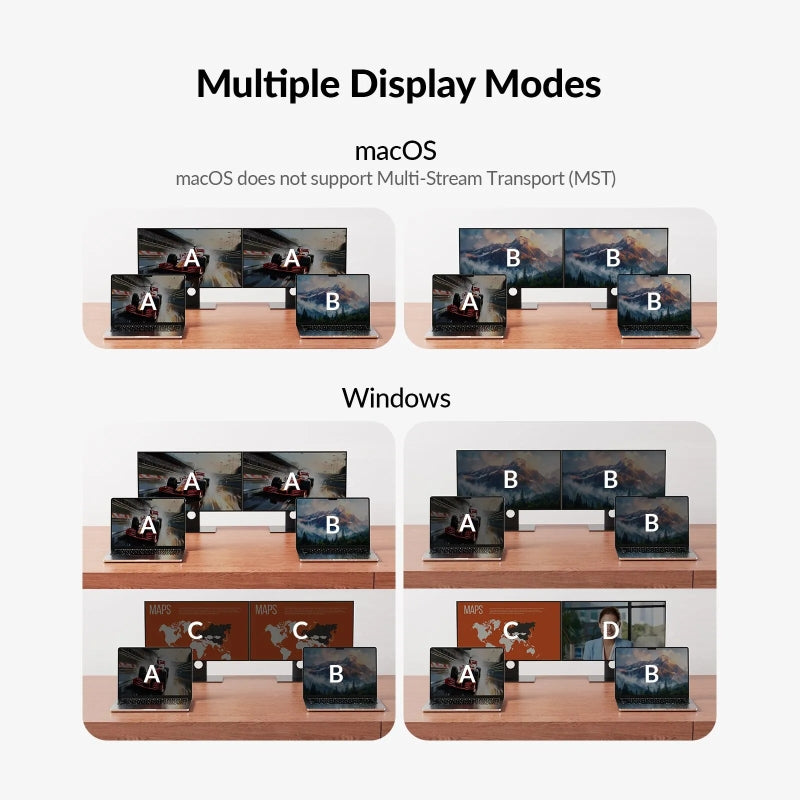

Please note that macOS does not support MST, meaning two identical displays will be shown instead of an extended desktop. Extended desktop requires a USB-C device with MST support.
New firmware feature: USB Mode
Through a firmware update, the iDock C20 can gain support for USB Mode. Press and hold the switch button for 4 seconds to activate the mode. Display A will then show content from laptop A, while display B shows content from laptop B at the same time, and USB devices can be switched between the computers with a single button press. For more information, contact AV Access.
Contents
- 1× AV Access iDock C20
- 2× USB-C 3.2 Gen2x1 cables (1 m)
- 1× Power adapter with cable
- 1× Manual
