NOTE: The KVM switch is black, those pictures with blue color are for reference only
This 2 to 1 HDMI KVM switch allows you to connect two computers that share an external screen and four USB-A 3.1 ports for other USB devices and two USB-A 3.1 ports for each computer. The switch supports resolutions up to 8K60Hz or 4K120Hz via HDMI 2.1 (cables not included). The switch also supports HDCP 2.3 and HDR10. The USB-A 3.1 ports support up to 5Gbps data transfer speed and the switch requires no drivers.

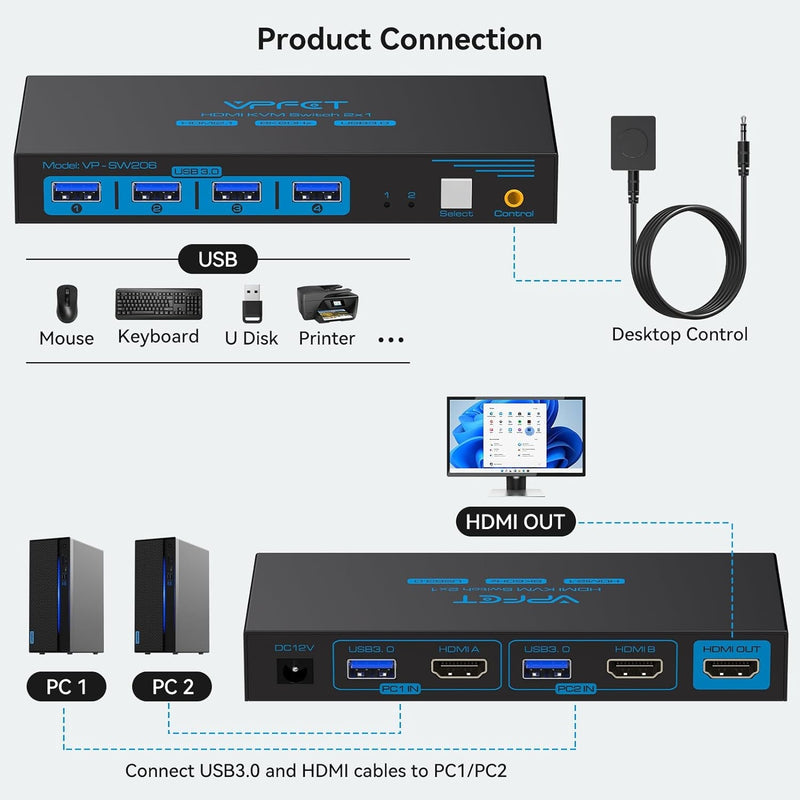

You can choose which computer should be connected to the screen via the button on the switch or via the included wired button. The switch is powered by the included power supply and cable.
Technical specifications:
-
Input:
2x HDMI 2.1
2x USB-A 3.1 5Gbps
1x DC 12V
-
Output:
2x HDMI 2.1
4x USB-A 3.1 5Gbps
-
Video:
- Resolutions:
7680x4320 60Hz 4:4:4
4096x2160 120/60Hz
3440x1440 120/60Hz
2560x1440 144/120/60Hz
1920x1080 240/120/60Hz
- Bandwidth: 48 Gbps
- Data rate: 41.92 Gbps
- HDCP/DPCP: 2.2/1.0
- Compression: DSC 1.2
- HDR: 10
- Color format: RGB, 4:4:4, 4:4:2, 4:2:0, 4:0:0
- Color depth: up to 16bpc
-
Audio:
- HDMI; PCM 2.0/ LPCM 5.1/7.1 Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, DTS:X
- Way to switch on: Button on the switch, external control
- Wireless mouse and keyboard support: RF, Bluetooth (some special gaming and multimedia keyboards and mice may be incompatible)
- Operating system: Windows 11/10/9/8/7/XP/Vista, MacOS, Linux, Ubuntu
- Power: DC 12V/1A, 1W power consumption (supplied)
- Environment: -5 to 45°C in use, -20 to 50°C in storage
- Dimensions: 150x65x22 mm
- Weight: 0.2kg
- Colour: Black
- Material: Aluminum
- Drivers: No drivers, Plug & Play
-

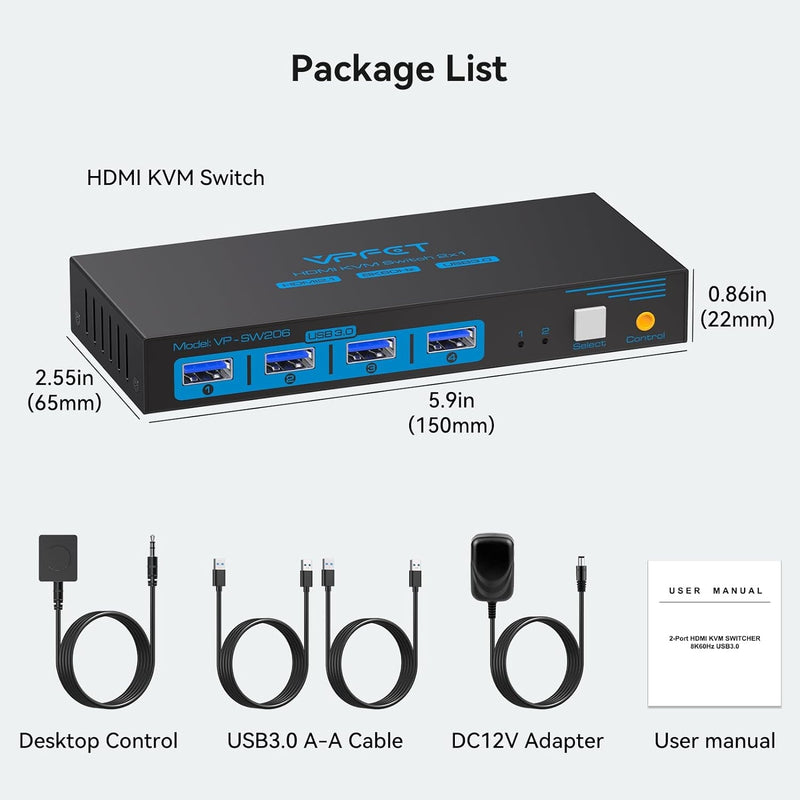

Contents:
1x KVM-154
2x USB-A to A cables
1x External control to switch
1x Power supply and cable
1x Manual
