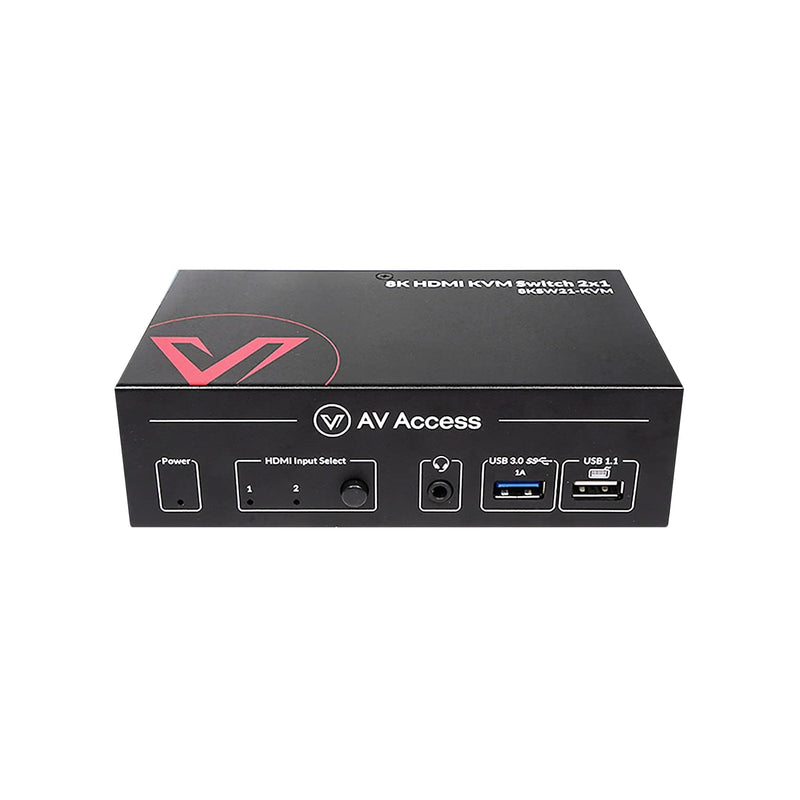

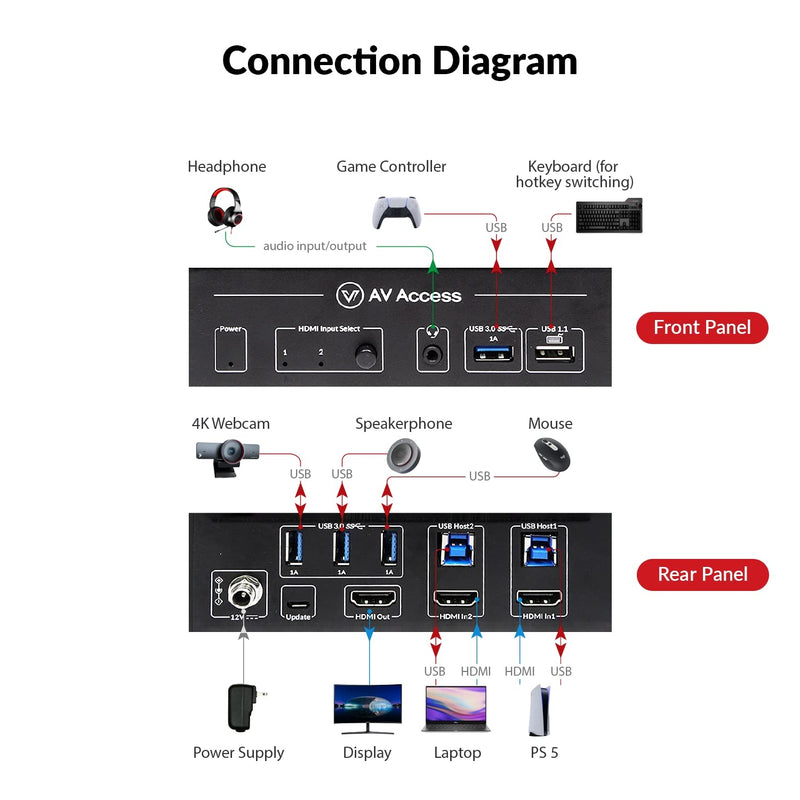

AV Access 8K KVM HDMI 2.1 Switch allows you to connect two computers with HDMI output that share 1x HDMI 2.1, 4x USB-A 3.0, 1x USB-A 1.1 and 1x 3.5mm AUX. The switch supports HDCP 2.3, HDR 10, Dolby vision, VRR, FVA, ALLM and resolutions up to 8K60Hz uncompressed and up to 10K 120Hz 4:2:0 with compression. The USB 3.0 ports support data transfer speeds up to 5Gbps and the USB 1.1 port supports speeds up to 12Mbps. It is possible to connect wired headphones or speakers to the 3.5mm AUX port and it is possible to switch between the computers with a button on the switch or via keyboard shortcut. The switch requires no drivers and is powered by the included power supply.
Technical specifications:
-

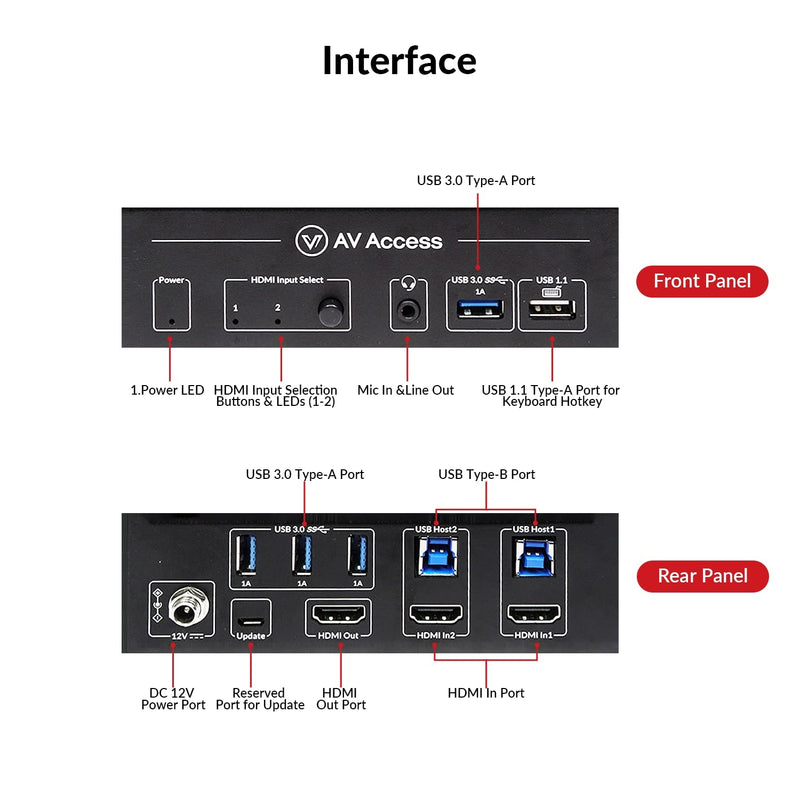

Input:
2x HDMI 2.1
2x USB-B
1x DC 12V
-
Output:
1x HDMI 2.1
1x 3.5mm AUX
4x USB-A 3.0 5 Gbps
1x USB-A 1.1 12 Mbps
-
Video:

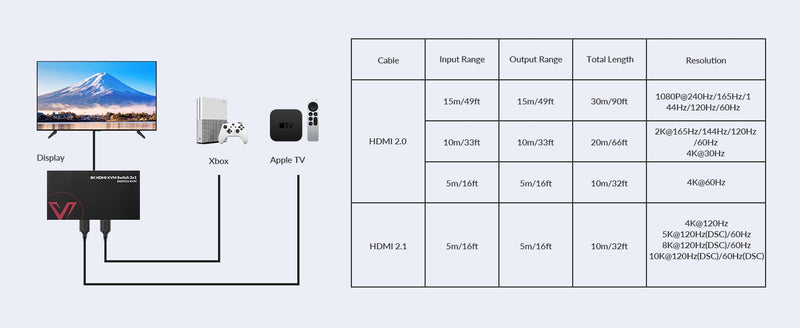

- Resolutions:
10240x4320 120/60/30Hz (requires computer and screen to support DSC)
7680x4320 (120 with DSC)/60/30Hz
5120x2880 120/60/30Hz
4096/3840x2160 120/60/30Hz
3440x1440 165/144/120/60/30Hz
2560x1440 165/144/120/60/30Hz
1920x1080 240/165/144/120/60Hz
- Bandwidth: 48 Gbps
- Data speed: 42 Gbps
- HDCP: 2.3
- HDR: 10, 10+, HLG, Dolby Vision
- Color format: RGB, 4:4:4, 4:4:2, 4:2:0, 4:0:0
- Color depth: up to 16bpc
-
Audio:
- 3.5mm AUX: PCM 2.0 stereo
- HDMI; PCM 2.0/ LPCM 5.1/7.1 Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, DTS:X

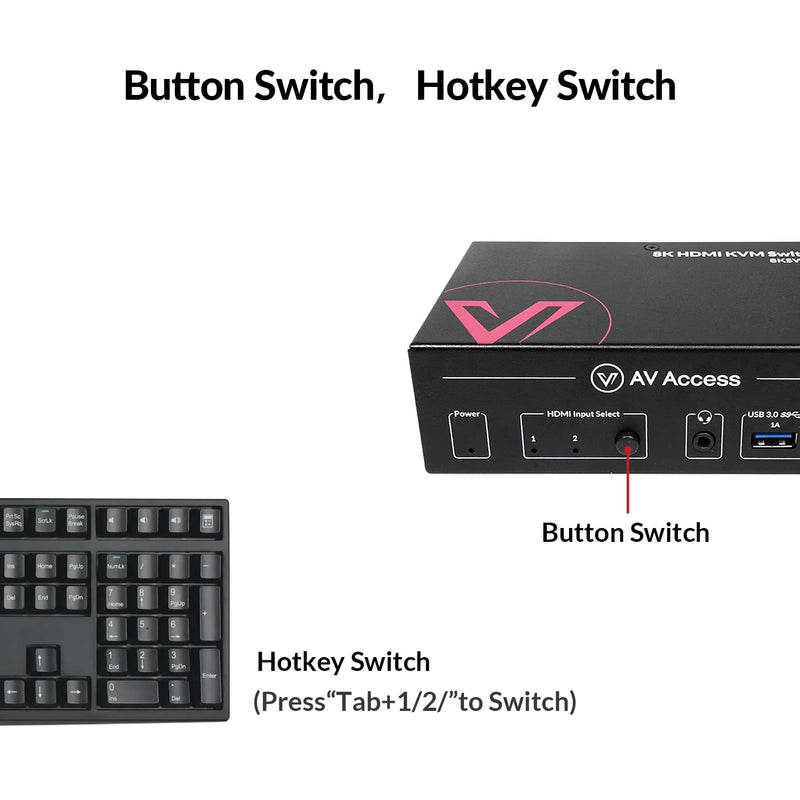

- Way to switch on: Button on the switch and hotkeys
- Wireless mouse and keyboard support: RF, Bluetooth (some special gaming and multimedia keyboards and mice may be incompatible)

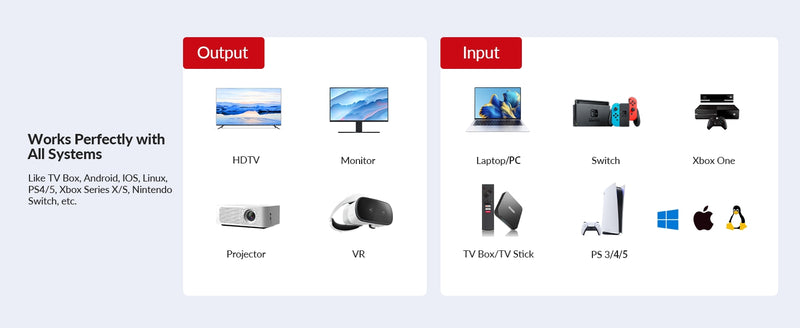

- Operating system: Windows 11/10/9/8/7/XP/Vista, MacOS, Linux
- Supports EDID emulation under 4K60Hz for smooth connection
- Supports HDMI CEC
- Power: DC 12V/3A, 14W max (supplied)
- Environment: -5 to 45°C in use, -20 to 50°C in storage
- Dimensions: 140x80x42 mm
- Weight: 0.45 kg
- Colour: Black
- Material: Aluminum
- Drivers: No drivers, Plug & Play
-

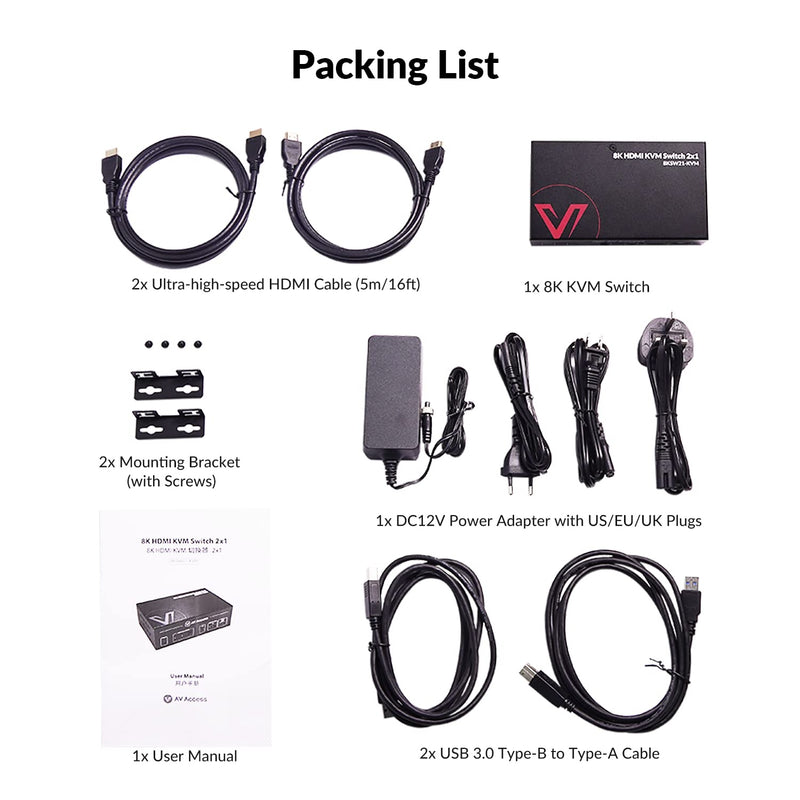

Contents:
1x KVM-135
2x HDMI 2.1 cables
2x USB-A to USB-B cable
1x Power supply 12V 3A and power cable
1x Manual
