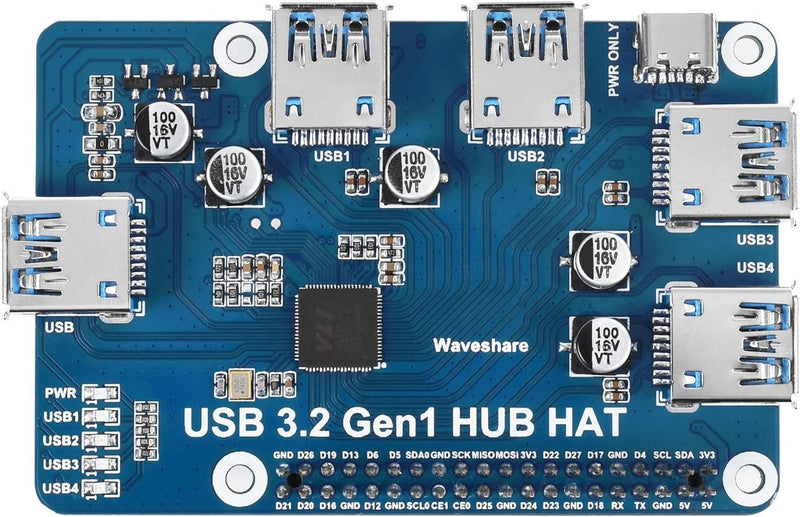

This product is a powerful and fast USB 3.2 Gen1 HUB HAT designed for Raspberry Pi. It expands the number of available USB ports with four high-performance USB 3.2 Gen1 ports (up to 5 Gbps), making it easy to connect multiple high-speed USB devices. The board supports external power via USB‑C to power demanding devices and comes with LED indicators for each port. It is specifically developed for Raspberry Pi 5 / 4B, but is also compatible with older models.
Specifications
- USB ports: 4× USB‑A, compatible with USB 3.2 Gen1 / 3.0 / 2.0 / 1.1
- Data speed: Up to 5 Gbps (USB 3.2 Gen1)
- USB hub chip: VL817‑Q7
- Flash chip: MX25L512EOI‑10G
- Power:
- External power input: USB‑C 5 V DC
- Internal connection to Raspberry Pi USB port
- LED indicators:
- PWR: Power indicator
- USB1–USB4: Individual port indicators
- Interfaces:
- GPIO: Direct connection via 40‑pin header
- USB: Internal HUB input via USB adapter/cable

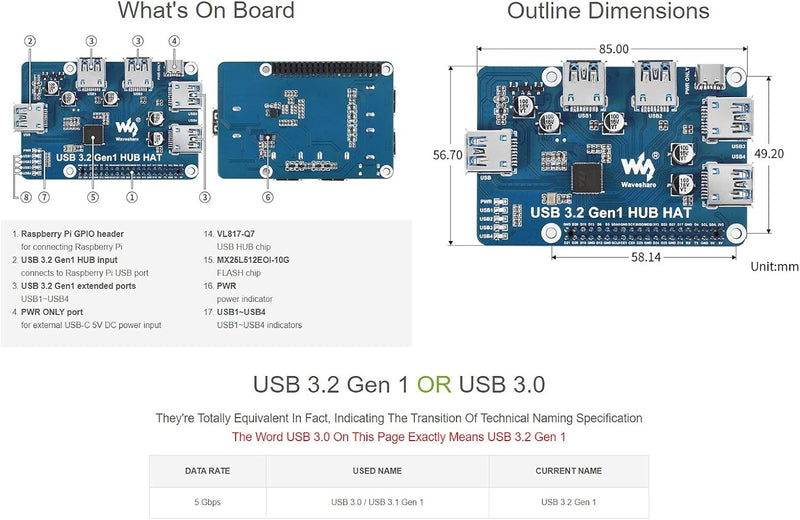

- Dimensions: 85 × 56.7 mm
- Weight: 89 g
Ports
-
Input: 1× USB 3.0 (to Raspberry Pi), 1× GPIO connector (40‑pin), 1× USB‑C (power only)
-
Output: 4× USB‑A 3.2 Gen1
Compatibility
- Raspberry Pi 5 / 4B (full USB 3.2 Gen1 speed)
- Raspberry Pi 3B+ and earlier (backward compatible at lower speed)
- Operating Systems: Windows, macOS, Linux, Android
- Plug and Play – no drivers required
Note: Only Raspberry Pi 5, 4B, and Pi 400 currently support USB‑3.0. When used with older Raspberry Pi models, data transfer speeds will be limited.

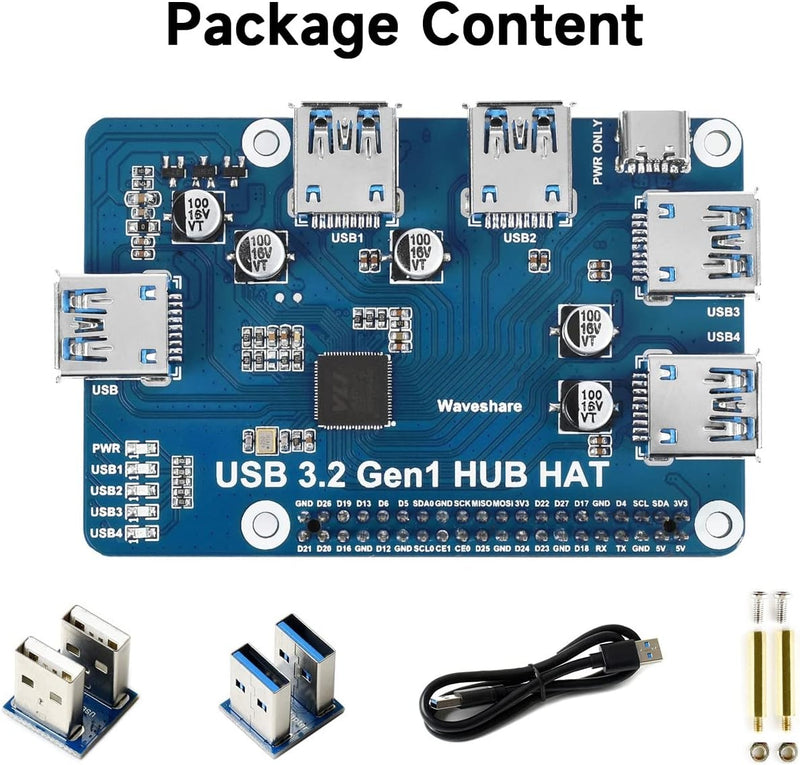

Contents
- 1× USB 3.2 Gen1 HUB HAT
- 1× USB 3.2 Gen1 adapter
- 1× USB 3.2 Gen1 adapter (D)
- 1× USB 3.2 Gen1 dual-plug cable
- 1× Screw kit for Raspberry Pi (2 parts)
