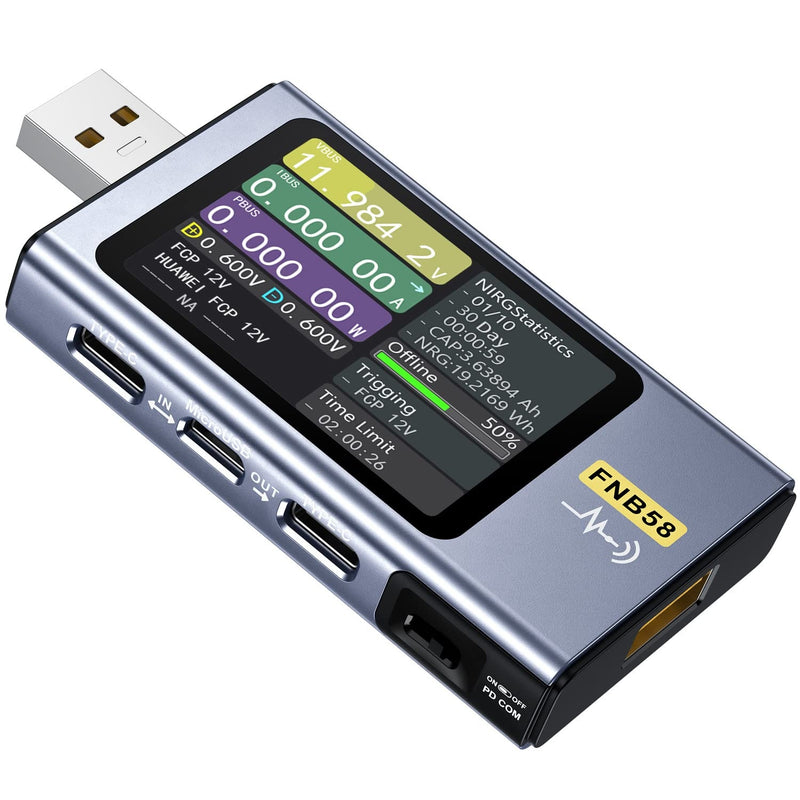

FNIRSI USB Digital voltmeter allows you to test your USB-C, Micro USB and USB-A cables. If you connect the tester between a charger and a device you are charging, the tester measures volts, amps, watts, ohms, temperature and also stores how much current has been transferred. The tester also has the option of testing whether cables support fast charging via QC2.0/QC3.0, FCP/SCP, AFC, USB PD2.0/3.0, VOOC/WARP and Super VOOC 1.0/2.0 and can also read E- marker chip in USB-C cables.
The tester has a 2 inch LCD display with several different views that show you different information about the cable. The supplier also has both a program for Windows computers and an Android app that can be used together with the tester.
Specifications:

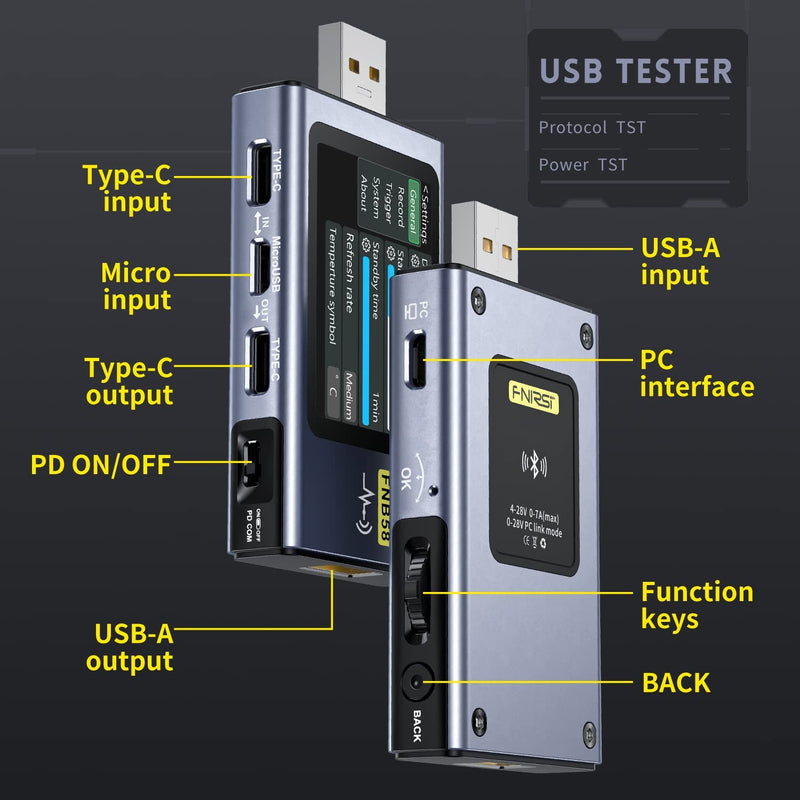

- Inputs:
1x USB-C Female
1x Micro USB Female
1x USB-A Male
1x Micro USB Female (for connection to computer)
- Outputs:
1x USB-C Female
1x USB-A Female

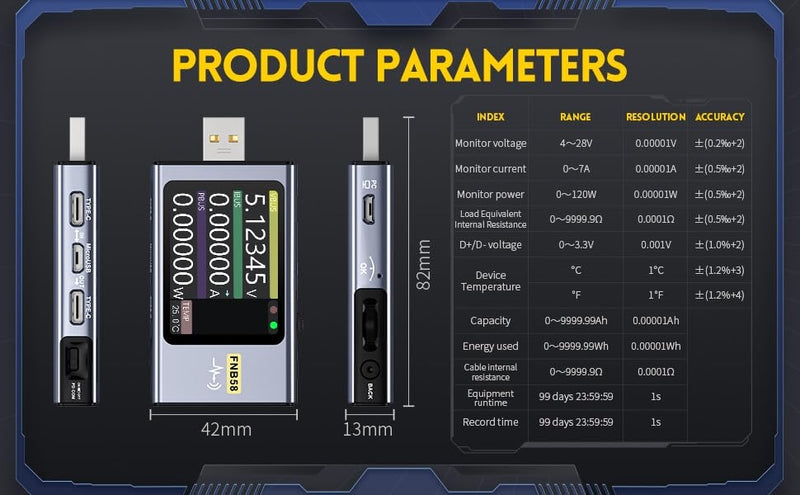

- Measures: volts, amps, watts, ohms, temperature and D+/D- volts

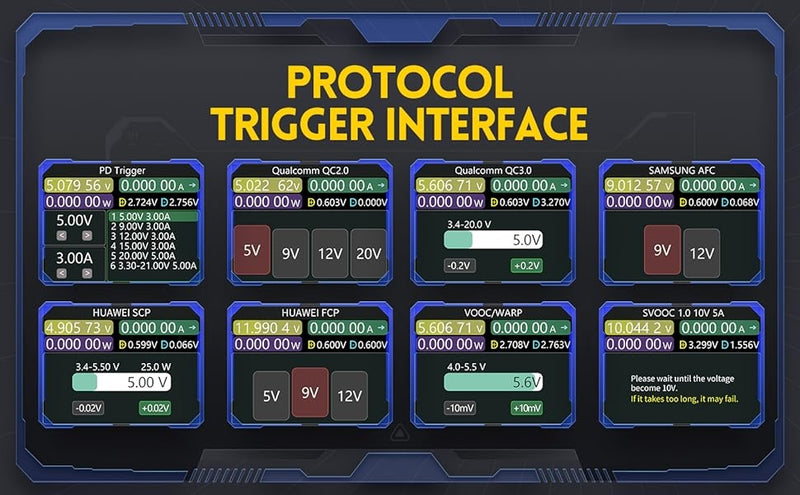

- Tests fast charging via: QC2.0/QC3.0, FCP/SCP, AFC, USB PD2.0/3.0, VOOC/WARP and Super VOOC 1.0/2.0
- Support to read E-marker chip
- Can measure device average power consumption
- Can be used with PC or Android app
