FNIRSI-1014D Desktop Oscilloscope 100MHZ*2 1GS/s 2 in 1 Dual Channel Digital Oscilloscope 10MHZ Signal Generator

Hover over the image to zoom in

FNIRSI-1014D Desktop Oscilloscope 100MHZ*2 1GS/s 2 in 1 Dual Channel Digital Oscilloscope 10MHZ Signal Generator

Name: FNIRSI-1014D Desktop Oscilloscope 100MHZ*2 1GS/s 2 in 1 Dual Channel Digital Oscilloscope 10MHZ Signal Generator
Brand: FNIRSI
SKU: 1014DH
Price: 260,00 EUR
Availability: InStock

FNIRSISKU:1014DH

This FNIRSI oscilloscope is a powerful tool for both hobbyists and professional electronics users. With dual channels, 100MHz*2 analog bandwidth, and a real-time sampling rate of 1GSa/s, you can measure and analyze signals with high precision. Thanks to the built-in DDS signal generator and extensive storage capabilities, the device functions as both an analyzer and generator in a compact and portable format.

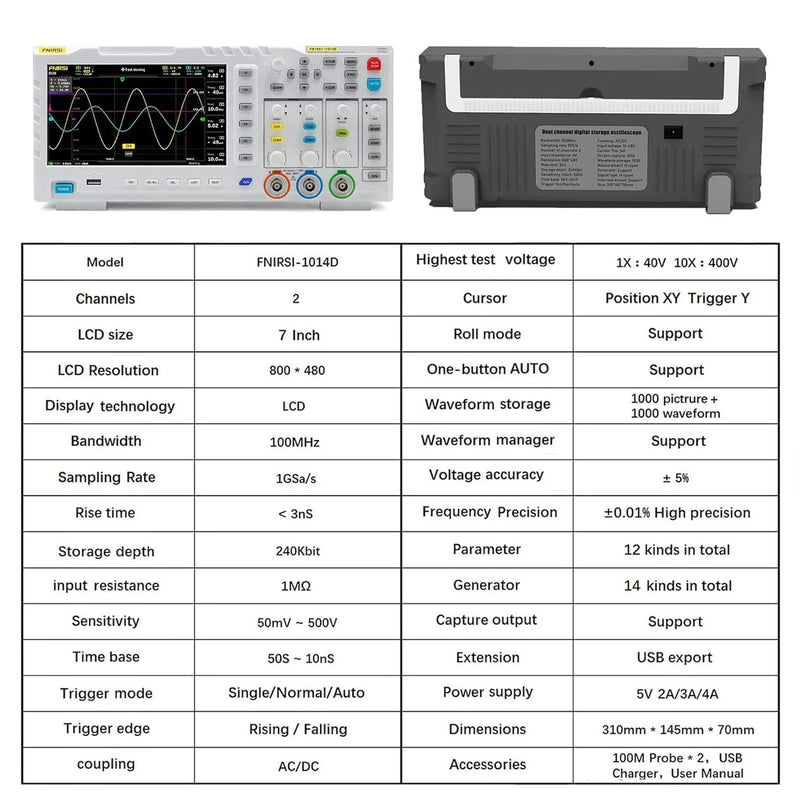

Specifications

Channels: 2

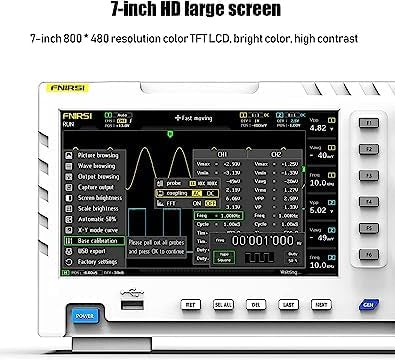

Display: 7" TFT LCD, 800x480 px
Analog bandwidth: 100MHz * 2
Sampling rate: 1GSa/s
Vertical sensitivity: 50mV/div ~ 500V/div
Horizontal timebase: 50S/div ~ 10nS/div
Memory depth: 240Kbit
Input resistance: 1MΩ
ADC precision: 8-bit
Rise time: < 3nS
Coupling: AC/DC
Trigger modes: Auto / Normal / Single
Trigger edge: Rising / Falling
Max test voltage: 40V (1X), 400V (10X), 4000V (100X)
Dimensions: 310 x 145 x 70 mm
Weight: approx. 500 g

Features

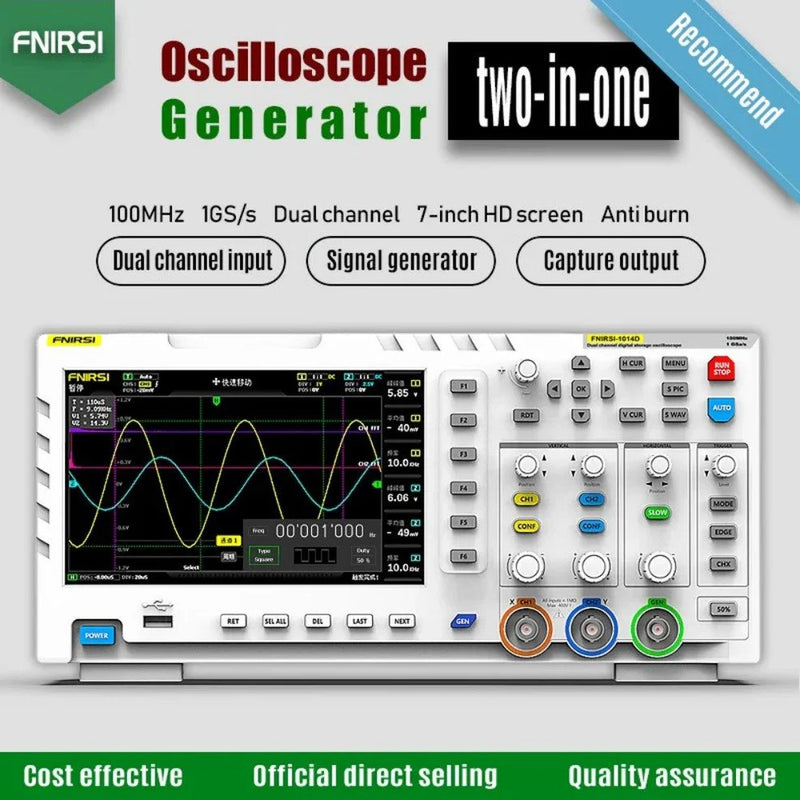

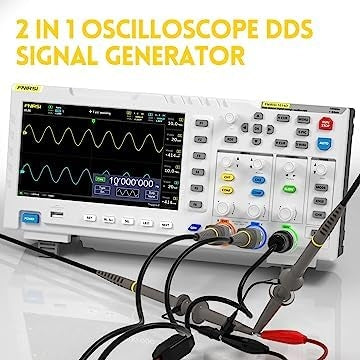

2 in 1: Digital oscilloscope + DDS signal generator
Real-time sampling 1GSa/s with 100MHz bandwidth
Built-in DDS generator with 14 function signals and 1 custom signal
Storage of up to 1000 screenshots + 1000 waveforms (1GB internal memory)
Powerful waveform manager with miniature scroll, zoom and analysis
Complete trigger function (single/normal/auto)
Cursor measurement for easy voltage and frequency reading
Lissajous figures for signal comparison and FFT function for spectrum analysis
High-efficiency "one-button AUTO" and quick setup (25%, 50%, 75% trigger)
Screenshot and waveform saving with a single button
USB connection for export and analysis on PC

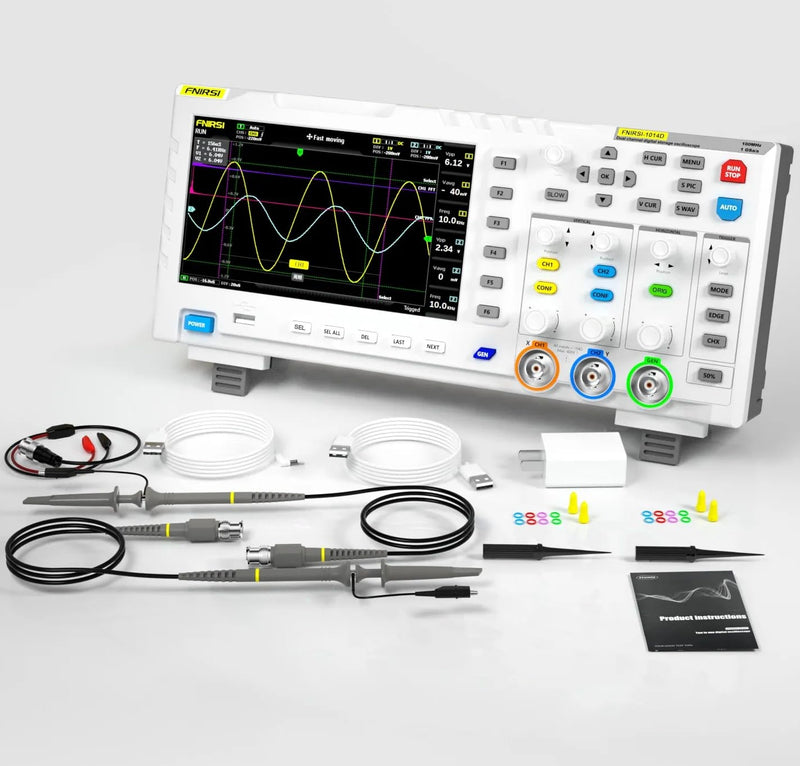

Contents

FNIRSI-1014D Digital oscilloscope with signal generator
Probes 1X/10X
USB cable
Power adapter
User manual
