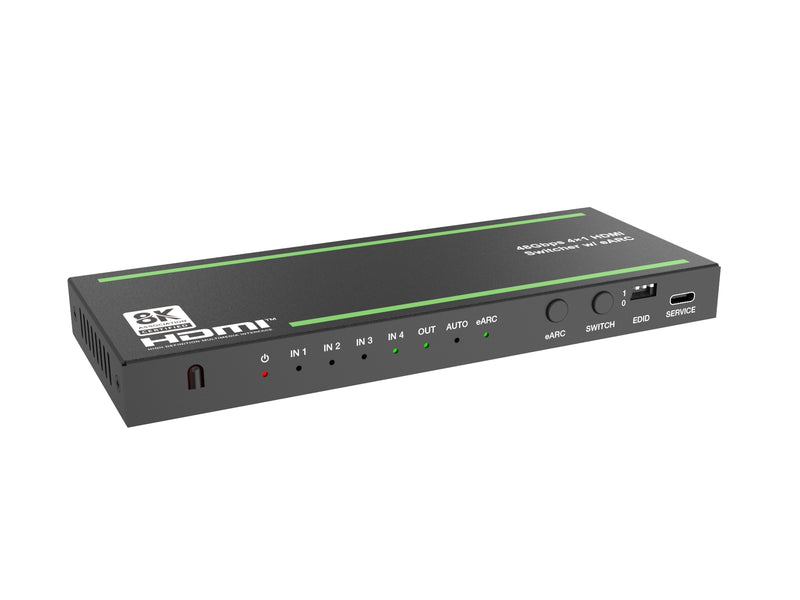

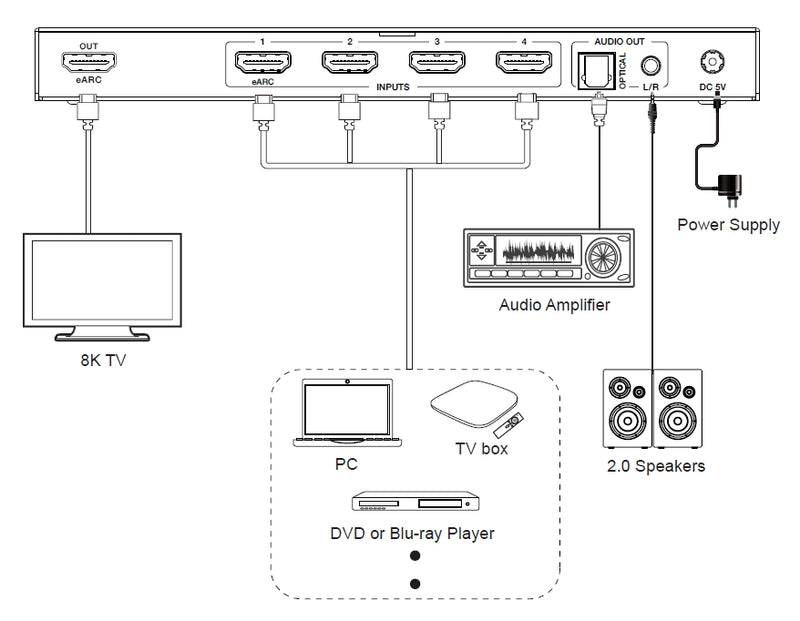

This HDMI switch allows you to connect and switch between 4 HDMI sources to an HDMI display, and in addition also extract the sound via optical S/PDIF or 3.5mm AUX. The switch supports resolutions up to 8K@60Hz 4:2:0 10 bit. Note that HDMI 2.1 cables are required for the highest resolutions. Also supports HDCP 2.3 and is backward compatible with previous versions. Maximum bandwidth 48 Gbps and data rate 41.92 Gbps. Supports color format RGB Y'CbCr 4:4:4, 4:2:2, 4:2:0 and color depth up to 16bpc. HDMI input 1 and output support eARC/ARC, enable and disable ARC easily on the switch or via remote control.
No drivers required and the extractor is powered by the included 5V2A power cable. Note that this switch is not bidirectional and only works as a 4 to 1 switch, not a 1 to 4 splitter.
Specifications:

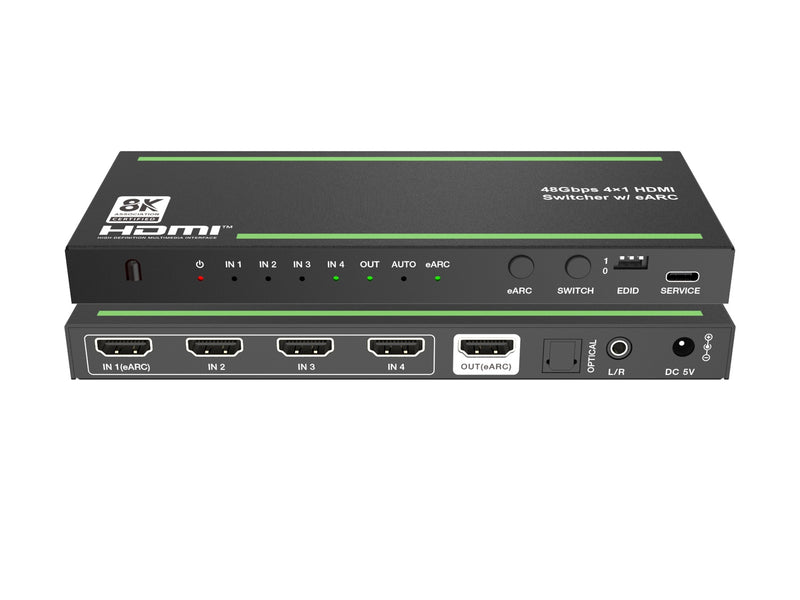

- Inputs:
3x HDMI 2.1
1x HDMI 2.1 eARC
1x DC 5V2A
- Outputs:
1x HDMI 2.1 eARC
1x S/PDIF
1x 3.5mm AUX
- Resolutions: 8K@60Hz 4:2:0 10 bit, 8K@/30Hz 4:4:4 10 bit, 4K@120/60/30Hz, 1080P@240/120/60Hz
- Bandwidth: 48Gbps
- Data rate: 41.92Gbps
- EDID support for easy connection
- Support for: HDMI CEC, HDR/10/10+, VRR, ALLM, FVA and HLG pass-through
- Color format: RGB Y'CbCr 4:4:4/4:2:2/4:2:0
- Color depth: up to 16bpc
- Audio format:
AUX: PCM 2.0 stereo
S/PDIF: LPCM 2.0/2.1/5.1 DTS 5.1,
HDMI: LPCM 2.0/2.1/5.1/7.1, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
- No drivers required, Plug and Play
- Dimensions: 200x85x20 mm
- Weight: 407 g
- Colour: Black
- Contents:
1x SGM-250
1x Power supply 5V2A
1x Remote control
1x Manual
