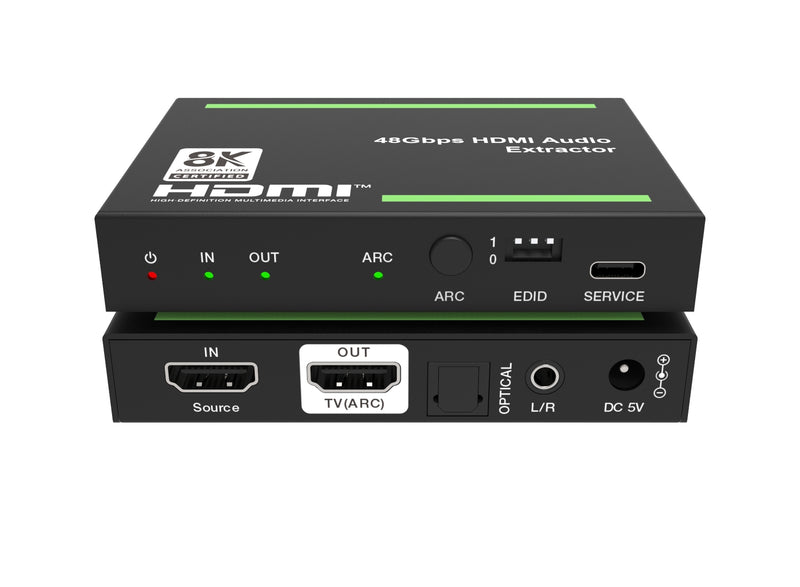

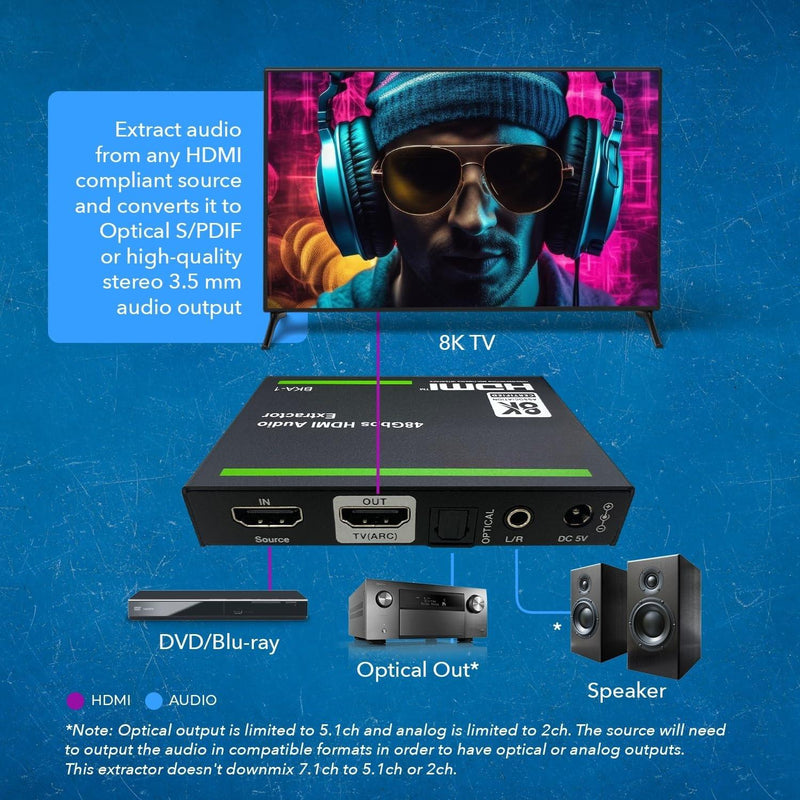

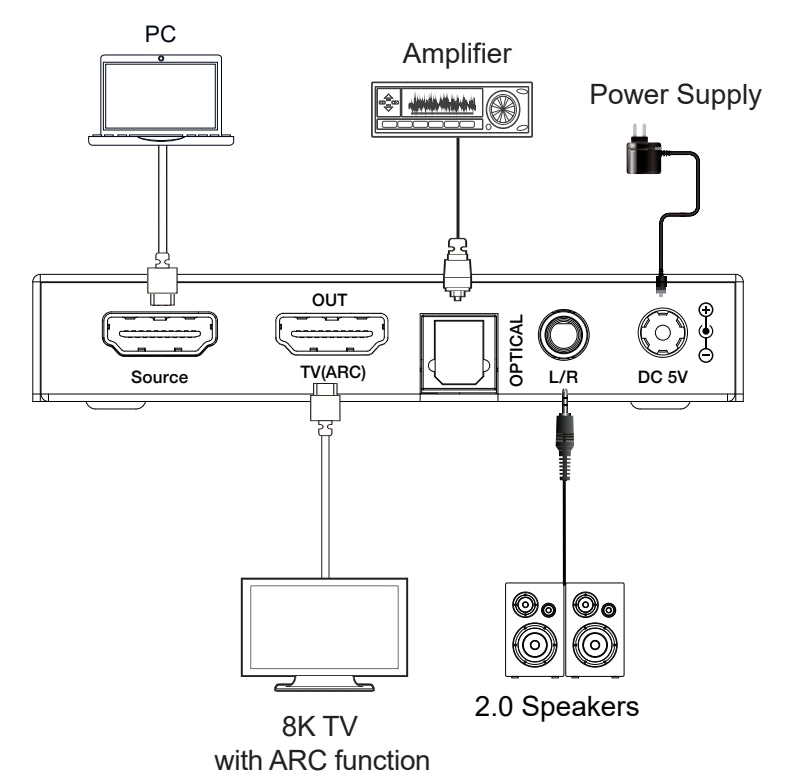

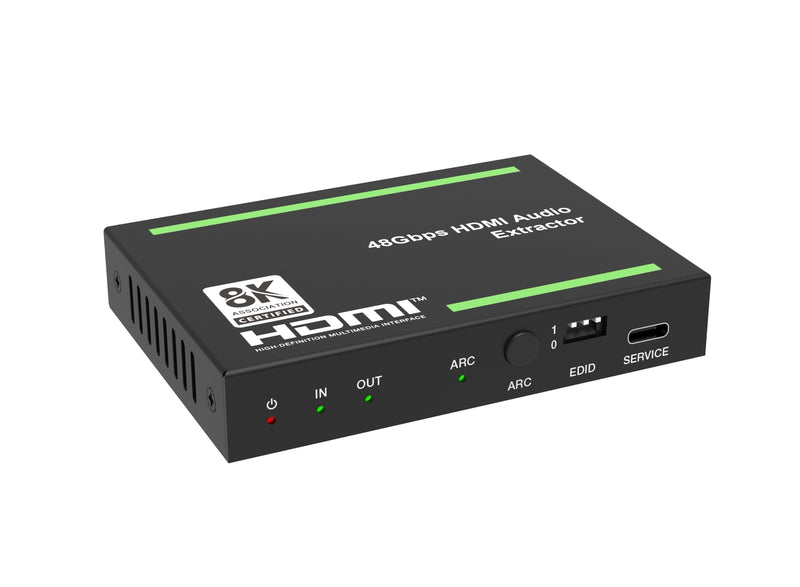

This HDMI eARC/ARC extractor allows you to connect and extract audio from an HDMI source to HDMI, optical S/PDIF or 3.5mm AUX. The extractor supports resolutions up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit and is certified by the 8K association. Note that HDMI 2.1 cables are required for the highest resolutions. Activate the ARC function with a simple push of a button on the extractor. Also supports HDCP 2.3 and is backward compatible with previous versions. Maximum bandwidth 48Gbps and data rate 41.92Gbps. Supports color format RGB Y'CbCr 4:4:4, 4:2:2, 4:2:0 and color depth up to 16bpc. The sound is extracted either via optical or analogue and the extractor supports 2 channels, 5.1 and 7.1 channel sound (7.1 only via HDMI output). Support for the latest audio formats Dolby Atmos, DTS Master, Dolby TrueHD, Dolby Digital Plus and more. With support for HDMI CEC, you can control the volume of input devices with the TV remote control, audio format is also set on the HDMI source.
No drivers are required and the extractor is powered by the included 5V1A power cable.
Specifications:

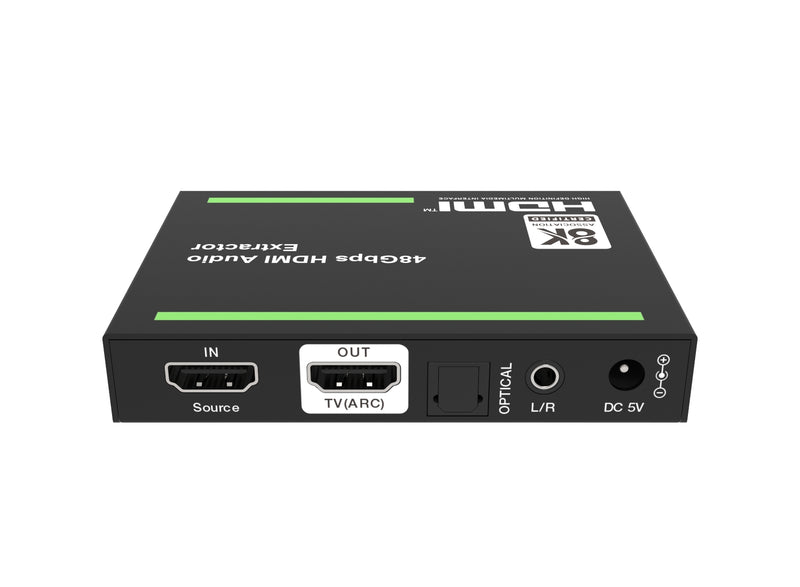

- Inputs:
1x HDMI 2.1
1x DC 5V

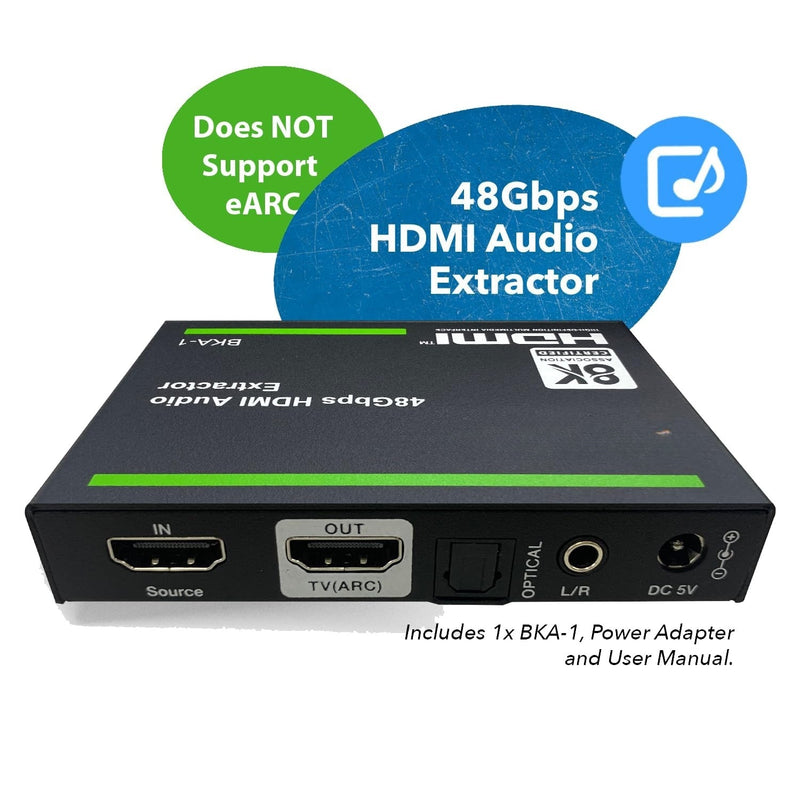

- Outputs:
1x HDMI 2.1 ARC
1x Optical S/PDIF
1x 3.5mm AUX
- Resolutions: 8K@60/30Hz, 4K@120/60/30Hz, 1080P@120/60Hz
- Bandwidth: 48Gbps
- Data rate: 41.92Gbps

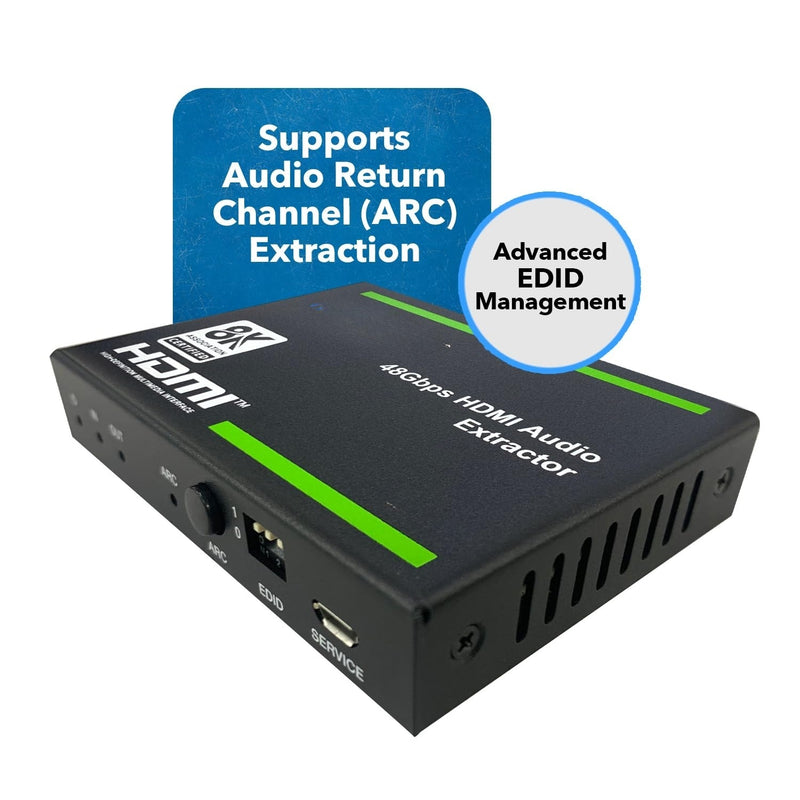

- EDID support for easy connection
- Support for: HDMI CEC, HDR/10/10+, VRR, ALLM, Dolby Vision, QMS, QFT, SBTM, DSC and HLG pass-through
- Color format: RGB Y'CbCr 4:4:4/4:2:2/4:2:0
- Color depth: up to 16bpc
- Audio format:
HDMI: PCM 2.0, LPCM 7.1/5.1, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
S/PDIF: PCM 2.0, LPCM 5.1 Dolby, DTS 5.1
3.5mm: PCM 2.0 Stereo
- No drivers required, Plug and Play
- Dimensions: 95x68x18 mm
- Weight: 178 g
- Colour: Black
- Contents:
1x SGM-240
1x Power supply 5V1A
1x Manual
