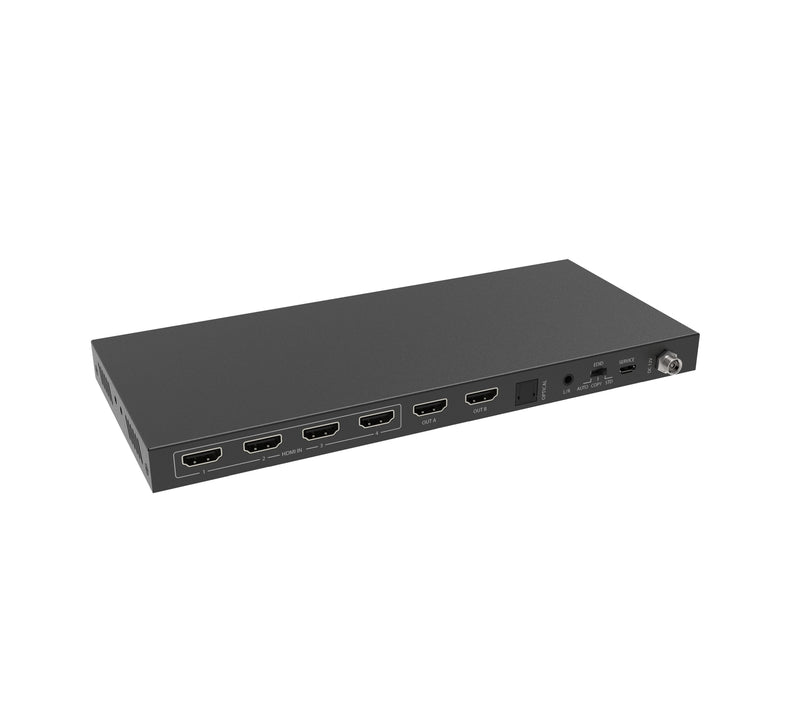

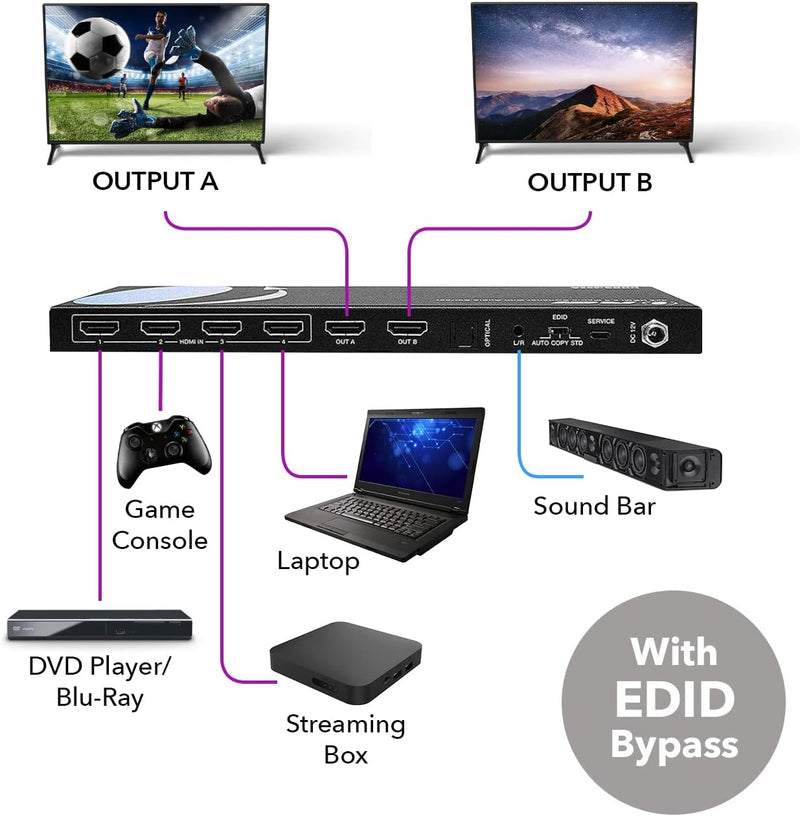

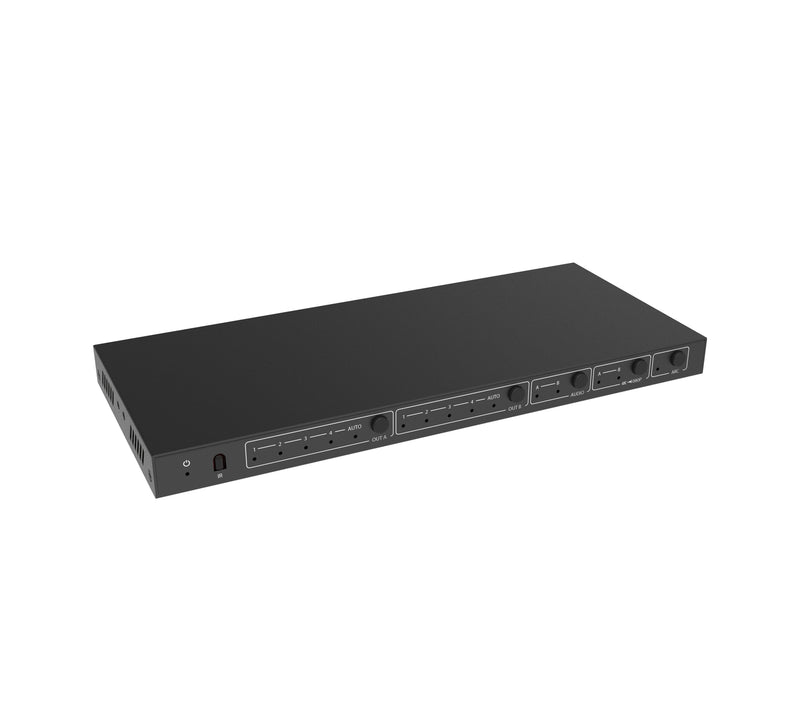

This HDMI switch allows you to connect and switch between 4 HDMI sources to two HDMI displays, and in addition also extract the sound via optical S/PDIF or 3.5mm AUX. With ARC support, your cable management is simplified. Enable and disable ARC easily on the switch or via remote control. The switch supports resolutions up to 4K@60Hz 4:4:4 8 bit. Note that HDMI 2.0 cables are required for the highest resolutions. Also supports HDCP 2.2 and is backward compatible with previous versions. Maximum bandwidth 18 Gbps and data rate 14.4 Gbps. Supports color format RGB Y'CbCr 4:4:4, 4:2:2, 4:2:0 and color depth up to 16bpc.
No drivers required and extractor is powered by included 12V1A power cable. Note that this switch is not bidirectional and only works as a 4 to 2 switch, not a 2 to 4 splitter.
Specifications:
- Inputs:
4x HDMI 2.0
1x DC 12V1A
- Outputs:
2x HDMI 2.0 ARC
1x S/PDIF
1x 3.5mm AUX
- Resolutions: 4K@60/30Hz, 1080P@120/60Hz
- Bandwidth: 18 Gbps
- Data speed: 14.4 Gbps
- EDID support for easy connection
- Support for: HDR/10/10+, VRR, ALLM, FVA and HLG pass-through
- Color format: RGB Y'CbCr 4:4:4/4:2:2/4:2:0
- Color depth: up to 16bpc
- Audio format:
3.5mm AUX: PCM 2.0 stereo (not with ARC)
S/PDIF: LPCM 2.0/2.1/5.1 DTS 5.1,
HDMI: LPCM 2.0/2.1/5.1/7.1, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
- No drivers required, Plug and Play
- Dimensions: 251x105x20 mm
- Weight: 620 g
- Colour: Black
- Contents:
1x SGM-250
1x Power supply 12V1A
1x Remote control
1x Manual
