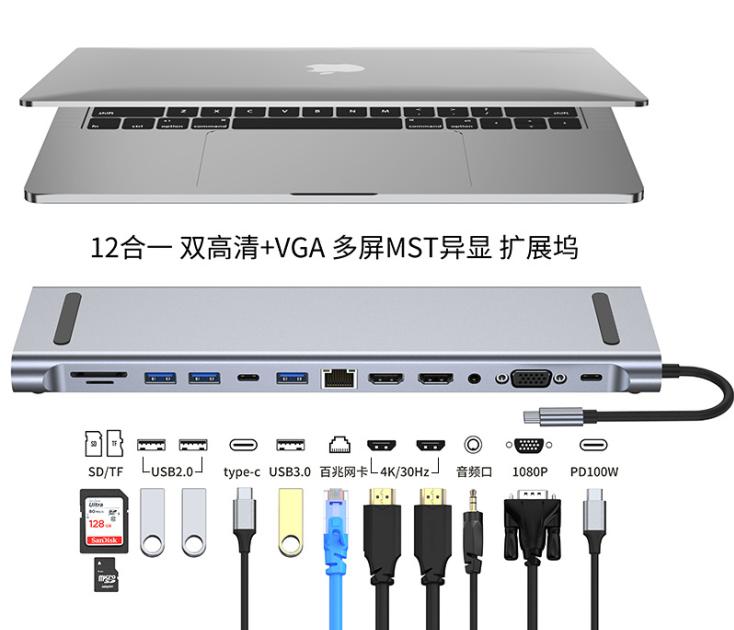

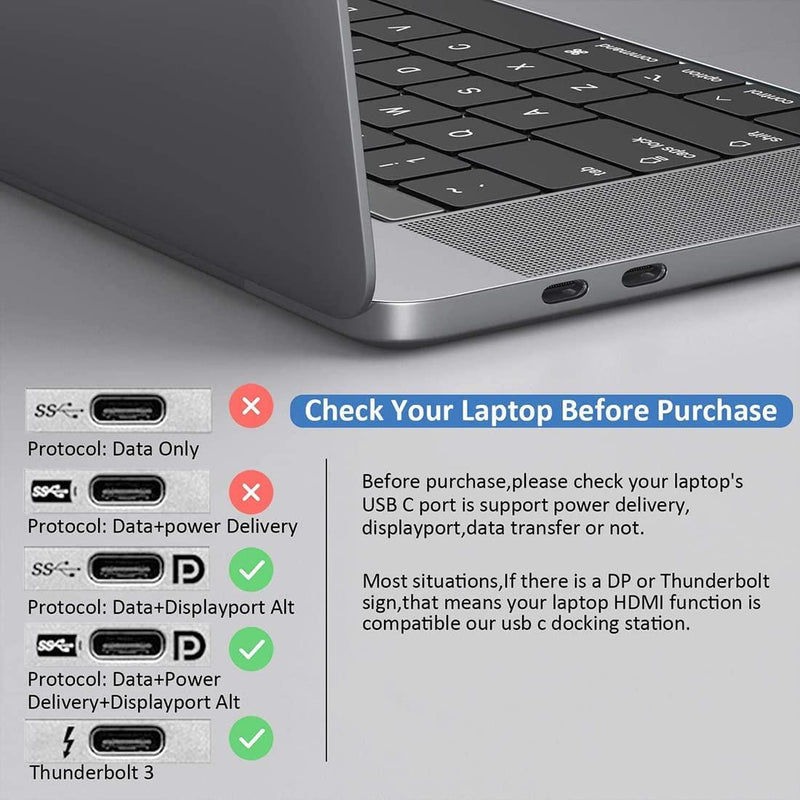

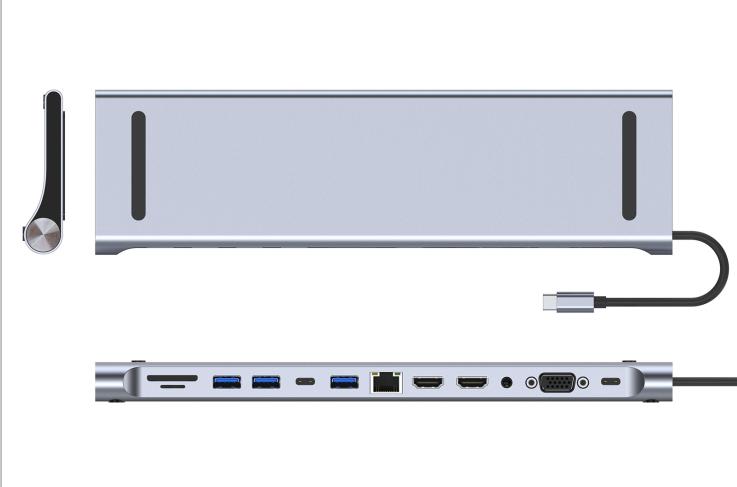

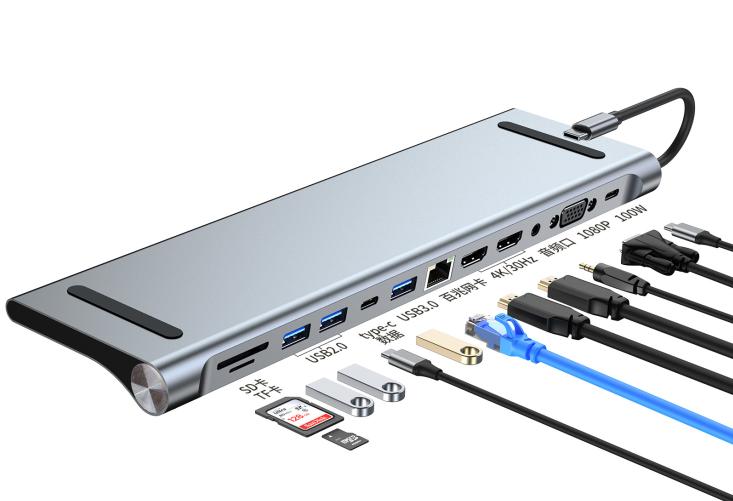

NÖRDIC 1 to 12 Docking Station converts a USB-C or Thunderbolt port in your computer into 12 ports including 2xHDMI 4K 30Hz, 1xVGA 1080p 60Hz, 1x USB-C Power Delivery 100W, 1xUSB-C 3.1, 1x USB A 3.0 5Gbps, 2x USB-A 2.0 1xRJ45 LAN, 1x Audio 3.5mm and 2xSD/Micro SD card reader. The dock supports up to three external monitors (four including the computer's screen). If you connect three monitors, the resolution on all external monitors will be a maximum of 1080p 60Hz. If you connect two monitors, one to HDMI and one to VGA, the maximum resolution is 1080p 60Hz. If you connect two monitors to both HDMI ports, the maximum resolution is 4K30Hz.

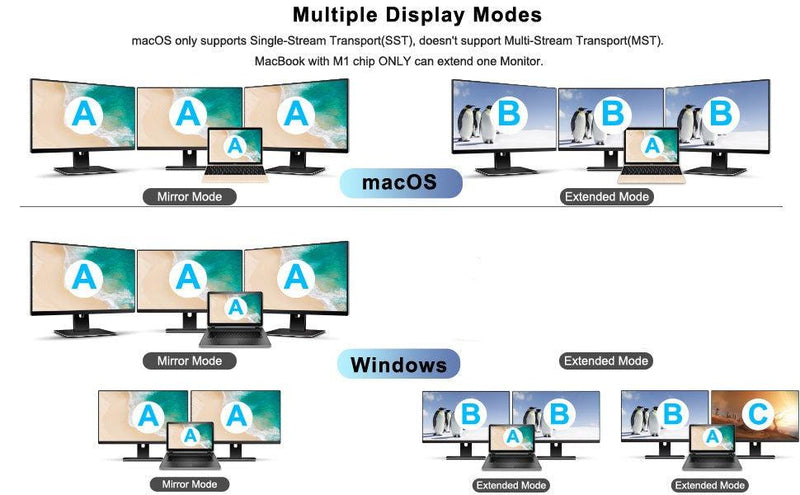

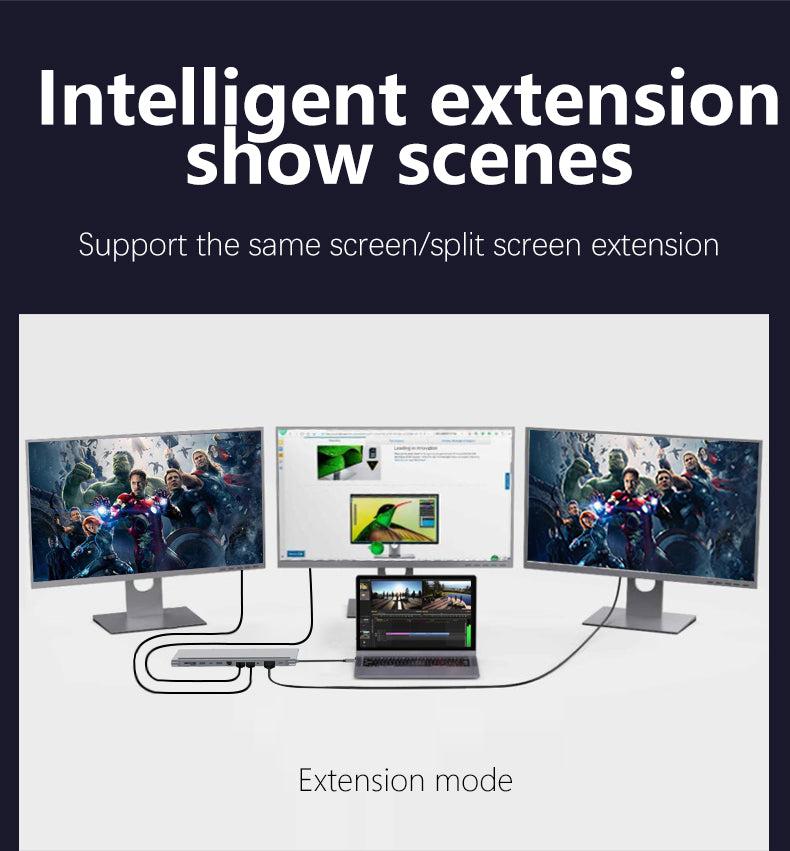

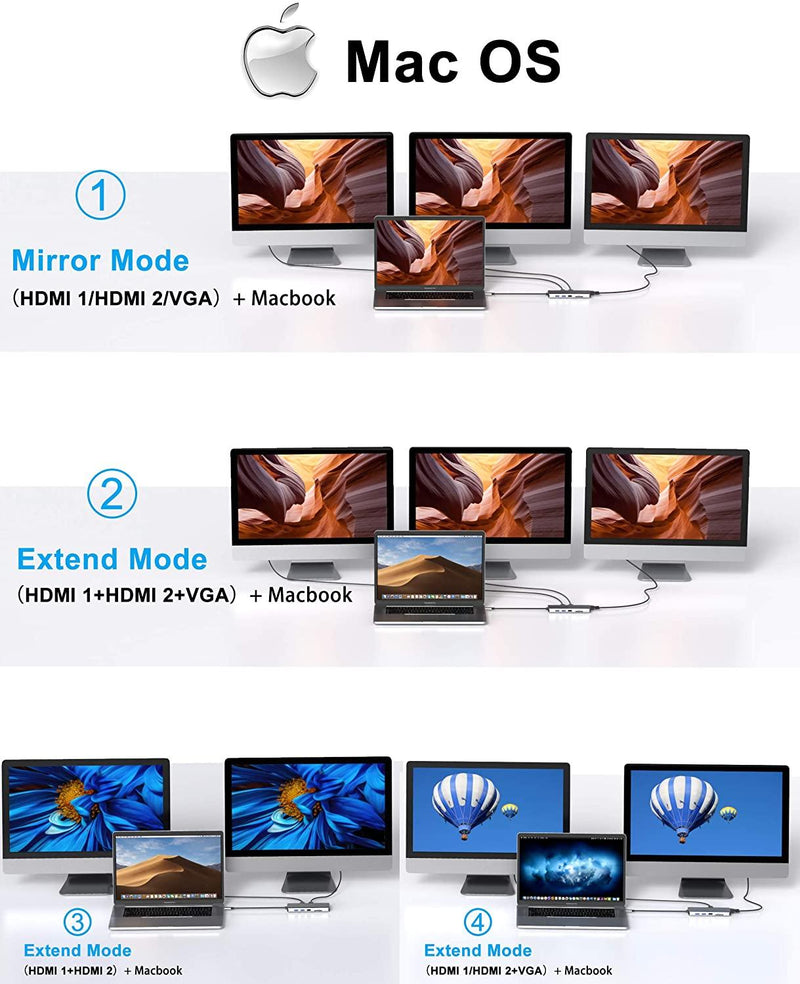

The docking station supports MST and this means that you can mirror (Mirror) or extend (Extend) up to three external monitors. Extended only applies to Windows and it can only be viewed to monitors connected with HDMI. For more details on monitor connections in Mac and Windows please read the manual

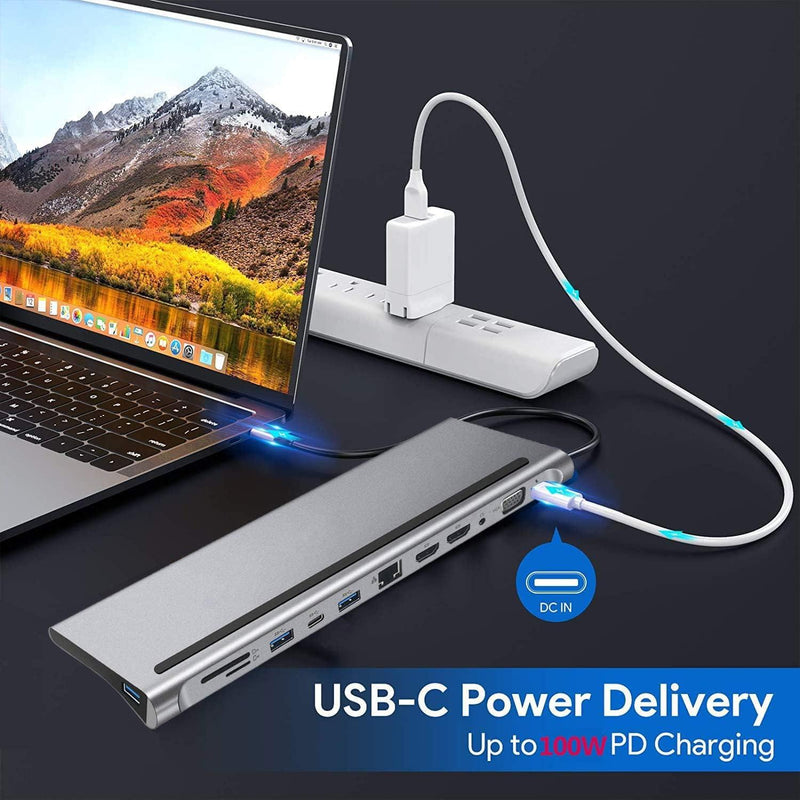

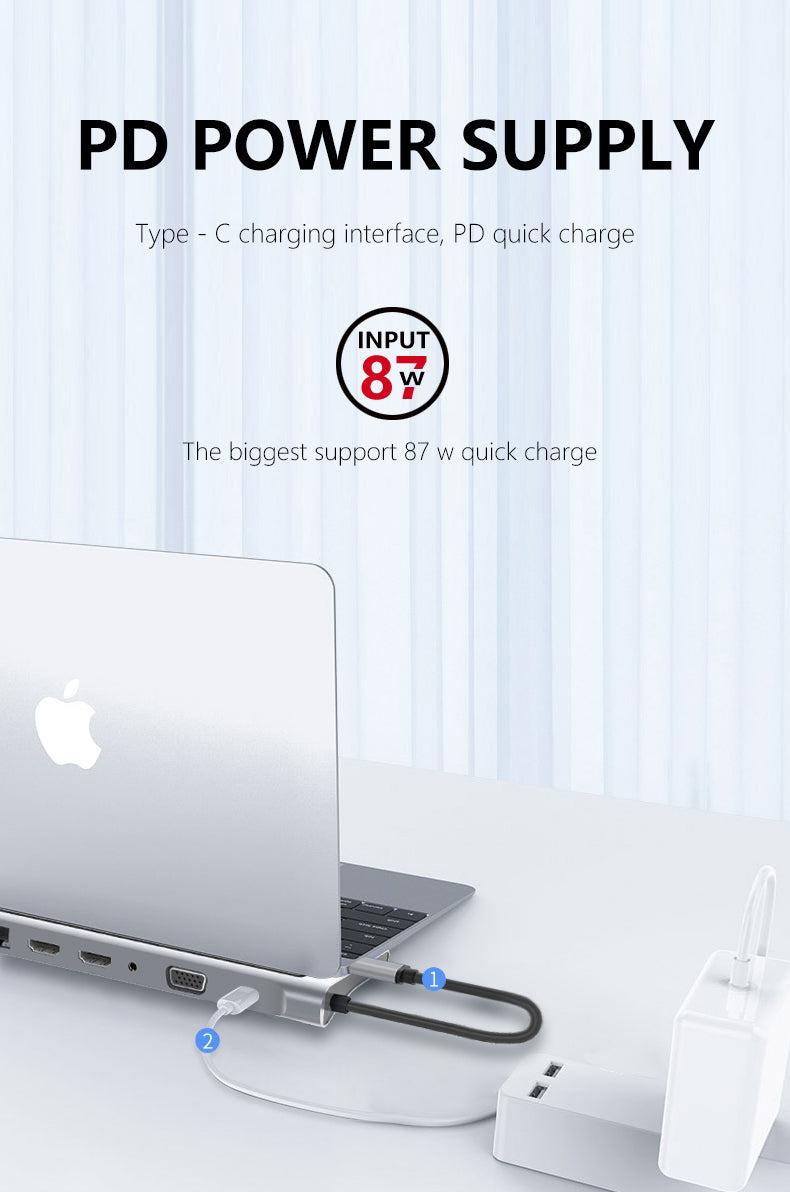

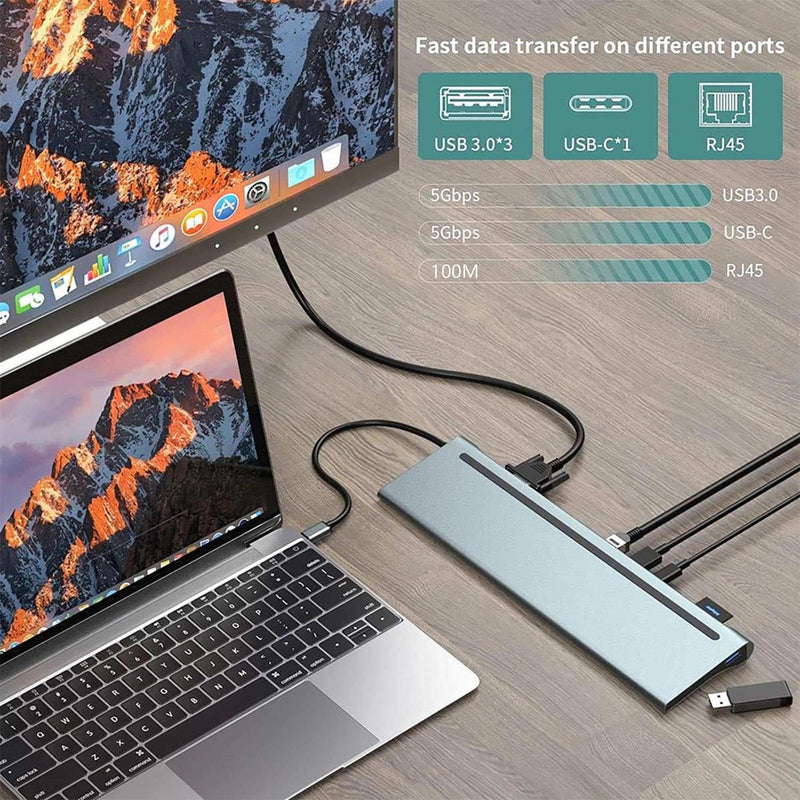

The HDMI ports are backwards compatible with 2K60Hz, 1080p, 1080i and 720P. The VGA port is also backwards compatible. The USB-A 3.1 ports handle data transfer speeds up to 5Gbps and the USB-C port supports Power Delivery up to 100W. The docking station is Plug and Play and no drivers are needed. The doll does not need an external power supply.
Specifications:
- Input: USB-C
- Output:
2xHDMI 4K30Hz
1xVGA 1080p60Hz

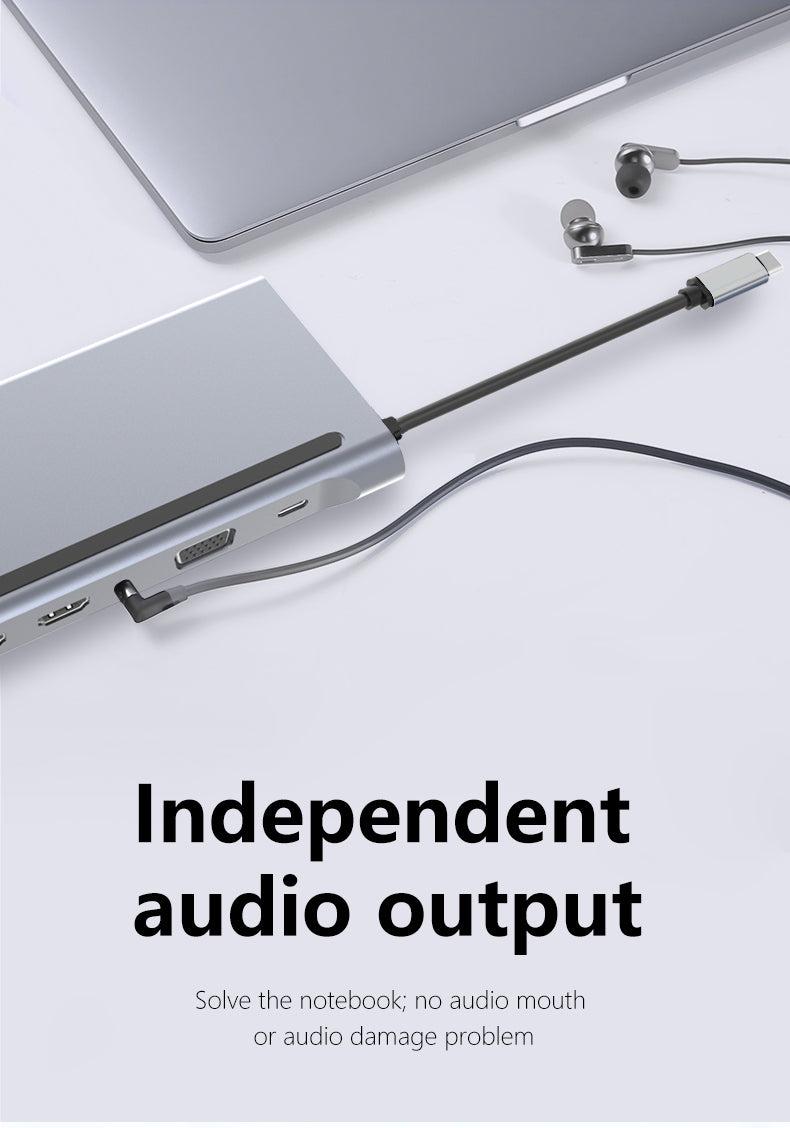

1x3.5mm audio

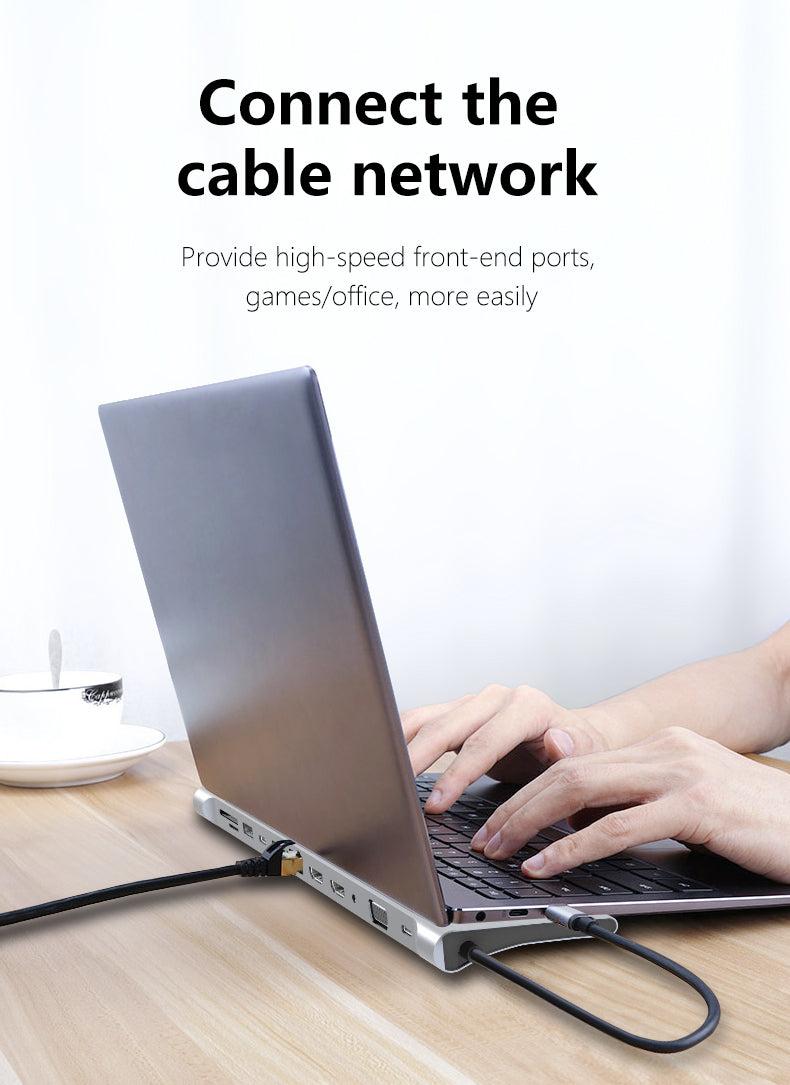

1xRJ45 LAN
1xUSB-C Power Delivery 100W
1xUSB-A 3.0 5Gbps
2xUSB-A 2.0 480Mbps
1xUSB-C 3.1 5Gbps

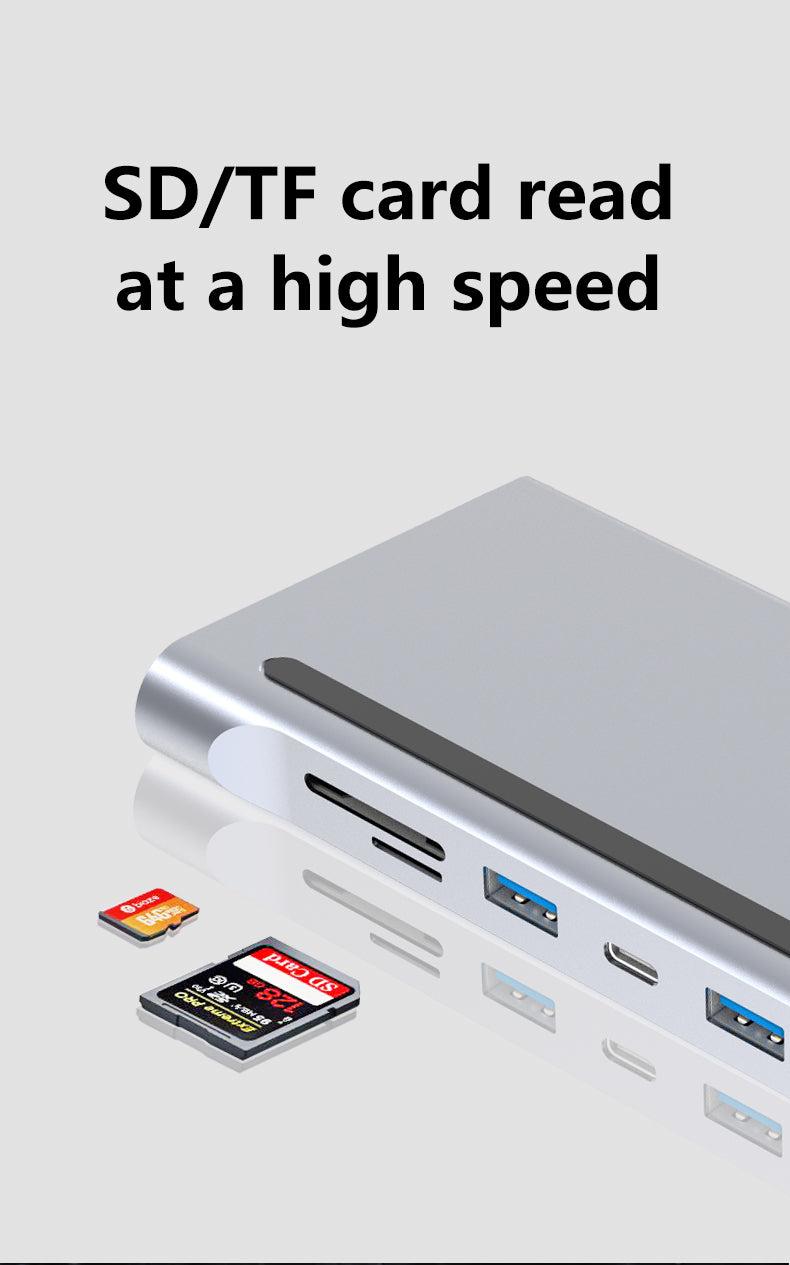

1xSD card reader
1xMicroSD card reader
- Package Contents: Docking Station
