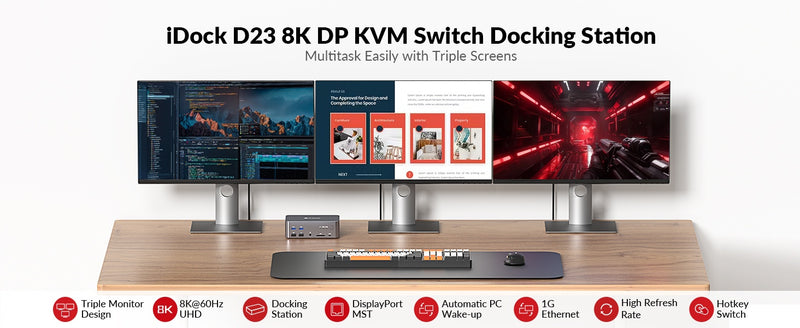

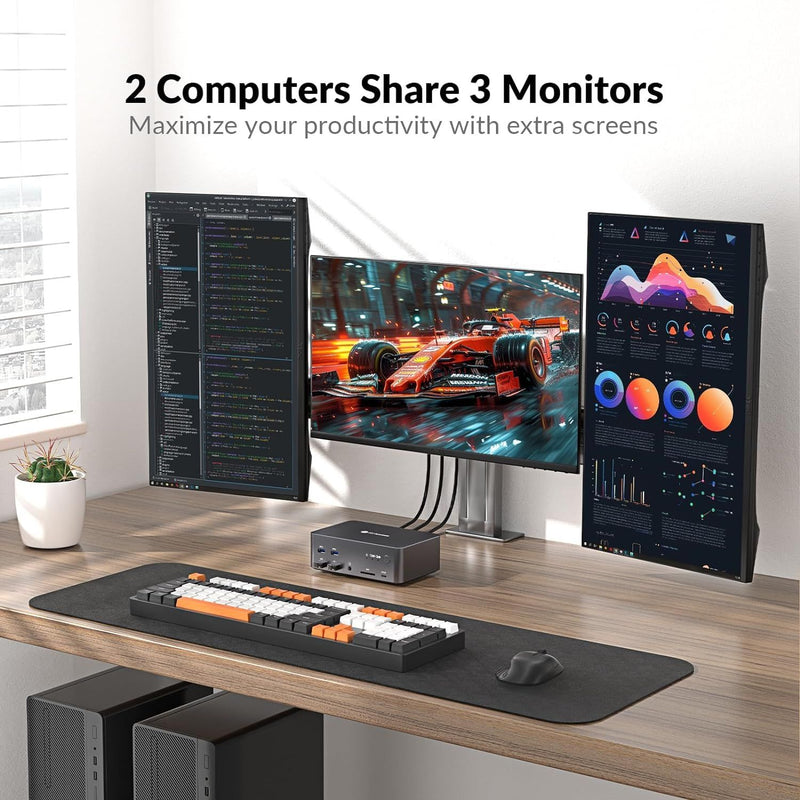

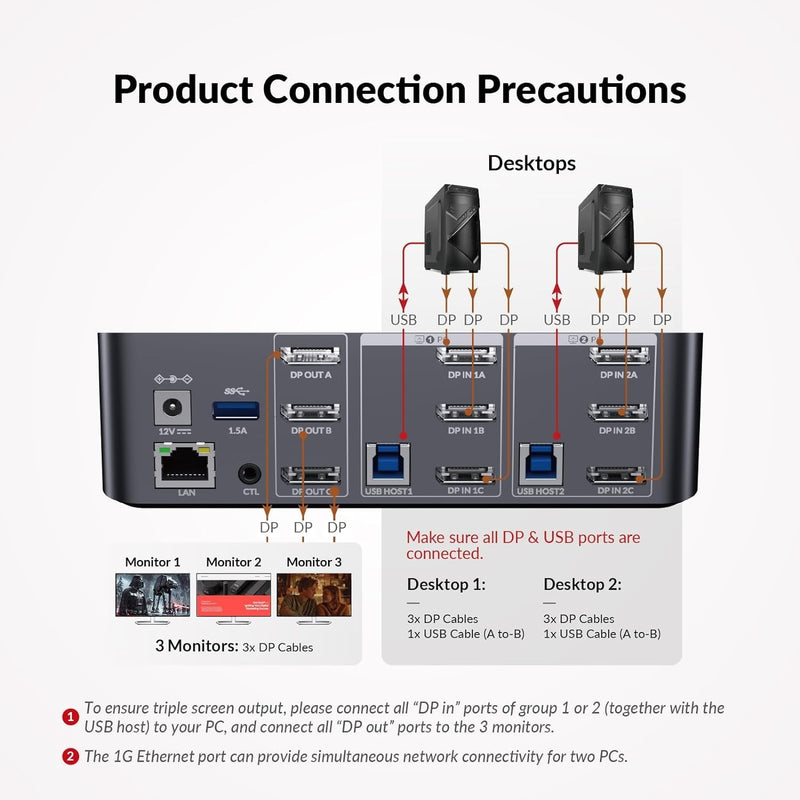

This docking station and switch allows you to build a powerful workstation at home to connect two computers with DisplayPort outputs to three different displays. The switch supports resolutions up to 8K 60Hz and in addition to the three monitors, your connected computers can share USB devices such as mouse, keyboard, webcam, hard drives and USB sticks, but also SD cards and connected mobiles. Connect the computers to the KVM switch with DisplayPort for video and audio and USB for data transfer to connected USB devices. With automatic wake-up function, the switch and all USB devices start when you start the computer. All DisplayPorts on the switch support MST and can connect to multiple displays from just one cable, your computer's DisplayPort must also support this to work. DisplayPort 1.4a cables are included in the package. No drivers required, plug and play.
Technical specifications:
-
Input:
6x DisplayPort 2.0 UHBR13.5, 3 per computer
2x USB-B, 1 per computer
1x DC 12V3A
-
Output:
3x DisplayPort 2.0 UHBR13.5
3x USB-A 3.0 5 Gbps
1x USB-A 2.0 480 Mbps
1x USB-A 1.0 dedicated for keyboard
1x USB-C 3.0 5 Gbps, 5V/1.5A power supply
1x RJ45 GigaLan
1x 3.5mm audio port
1x SD memory card slot
-
Video:

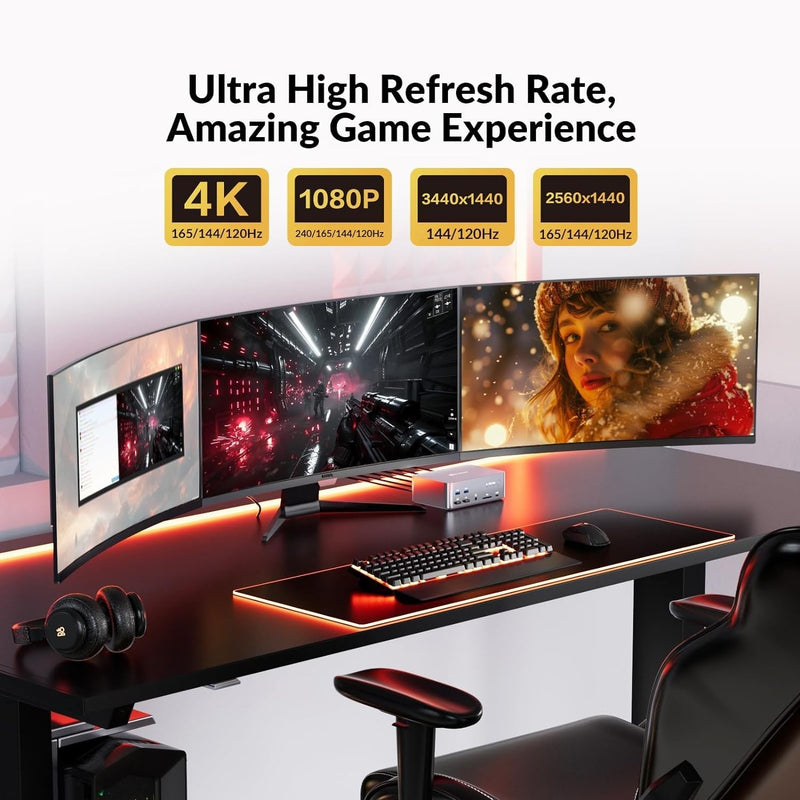

- Resolutions:
7680x4320 60/30Hz
5120x1880 60Hz
4096x2160 165/144/120/60Hz
3440x1440 144/120/60Hz
2560x1440 240/165/144/120/60Hz
1920x1080 240/165/144/120/60Hz
- Bandwidth: up to 80 Gbps
- Data rate: up to 13.5 Gbps per channel
- HDCP: 2.3
- Support for: HDR, HDR10, HDR10+, HLG, Dolby Vision
- Support for: VRR
- Color format: RGB, 4:4:4, 4:4:2, 4:2:0, 4:0:0
- Color depth: up to 16bpc
-
Audio:
- 3.5mm; 2.0 stereo
- DP; PCM 2.0/5.1/7.1 Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, DTS:X and more
- Memory card: SD card slot up to 104 Mbps, Max size 2TB

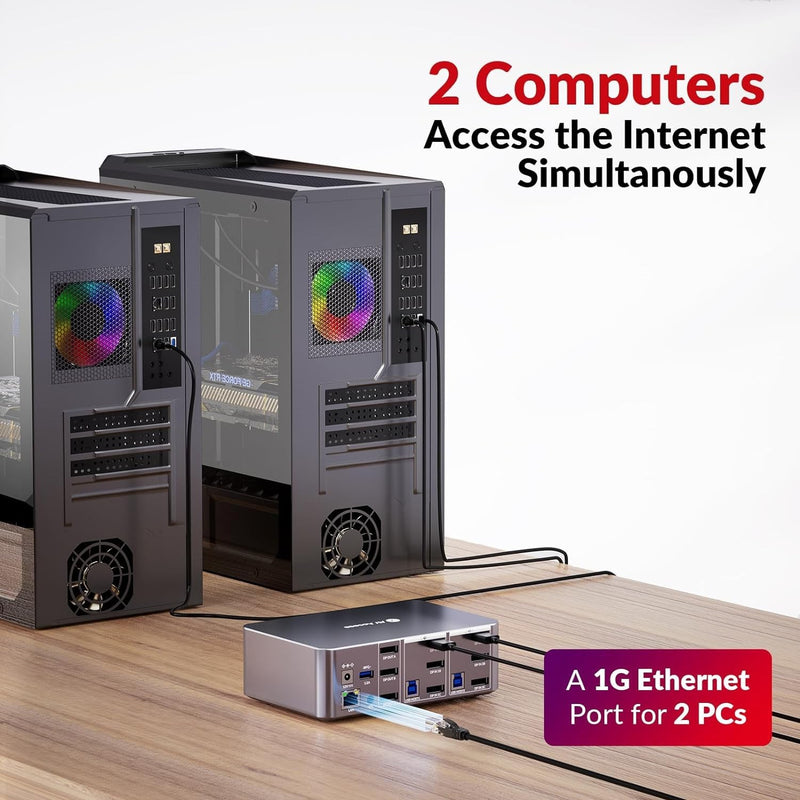

- Network: RJ45 1Gbps ethernet
- Support for Display Stream Compression

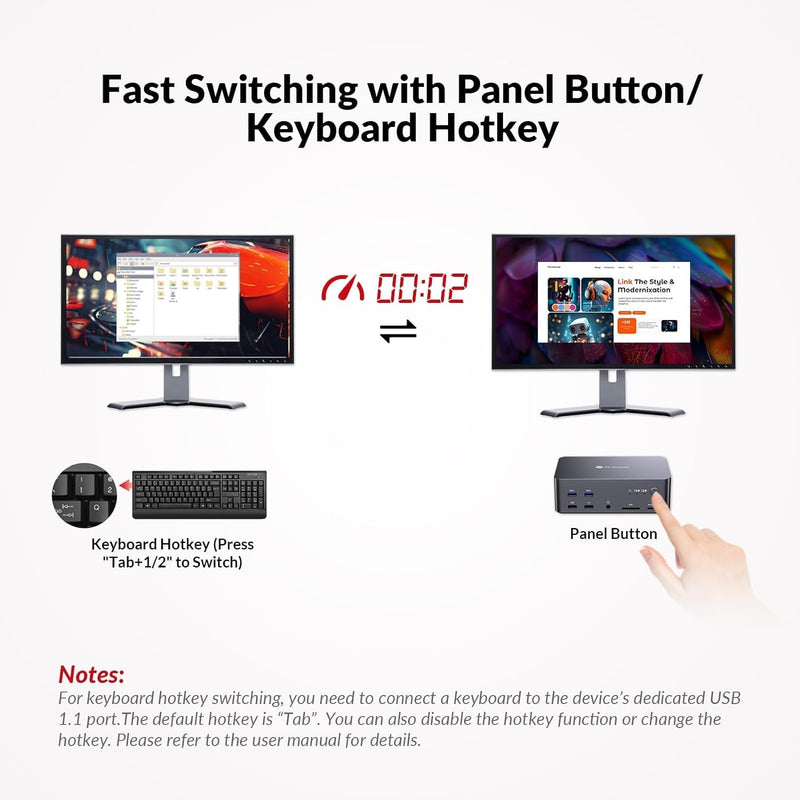

- Way to switch on: Button on the switch, hotkeys (Tab + 1/2)
- EDID support: No
- Wireless mouse and keyboard support: RF, Bluetooth, Gaming etc
- Operating system: Windows 11/10/9/8/7/XP/Vista, Linux, Ubuntu, Android, ChromeOS, PlayStation and XBOX
- Power: DC 12V/3A, 31.25W maximum (supplied)
- Environment: 0°C to 45°C in use, -20 to 70°C in storage

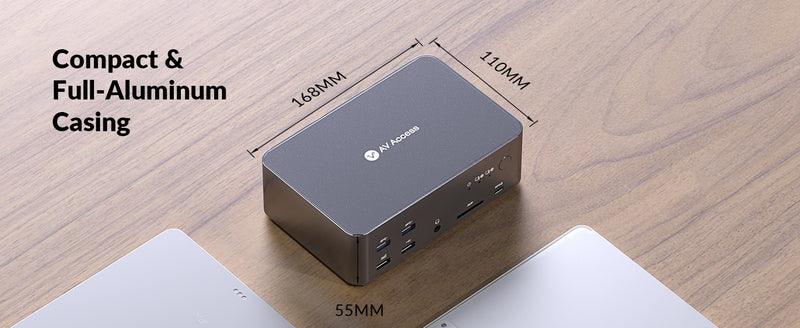

- Dimensions: 168x110x55 mm
- Weight: 0.75kg
- Colour: Space Gray
- Material: Aluminum
- Drivers: No drivers, Plug & Play
-

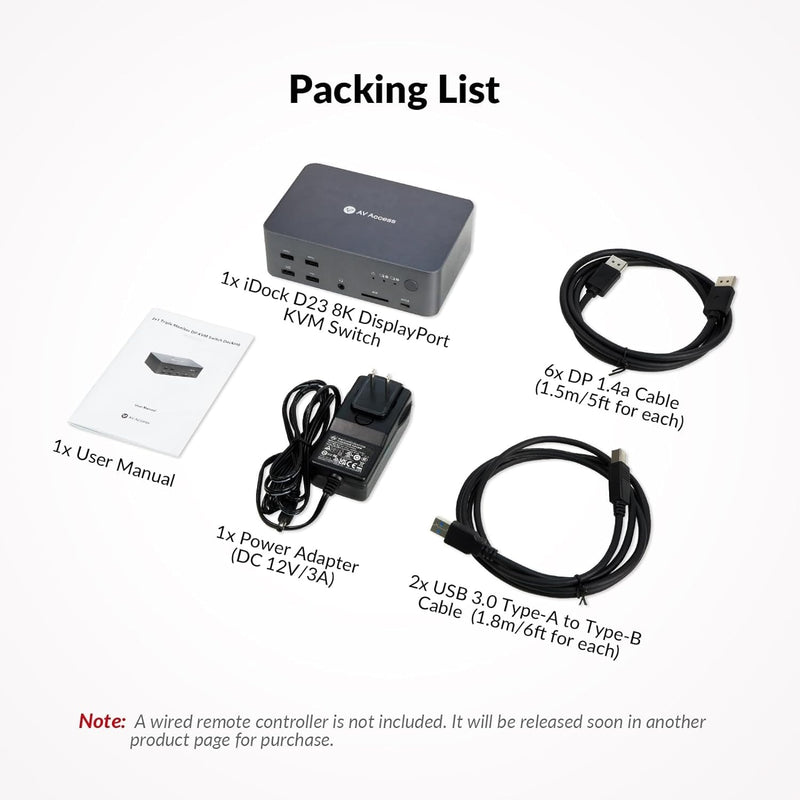

Contents:
1x KVM-139
6x DisplayPort 1.4a 1.5m cables
2x USB-A to USB-B 3.0 1.8m cables
1x Power supply and power cable 12V 3A
1x Manual
